We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

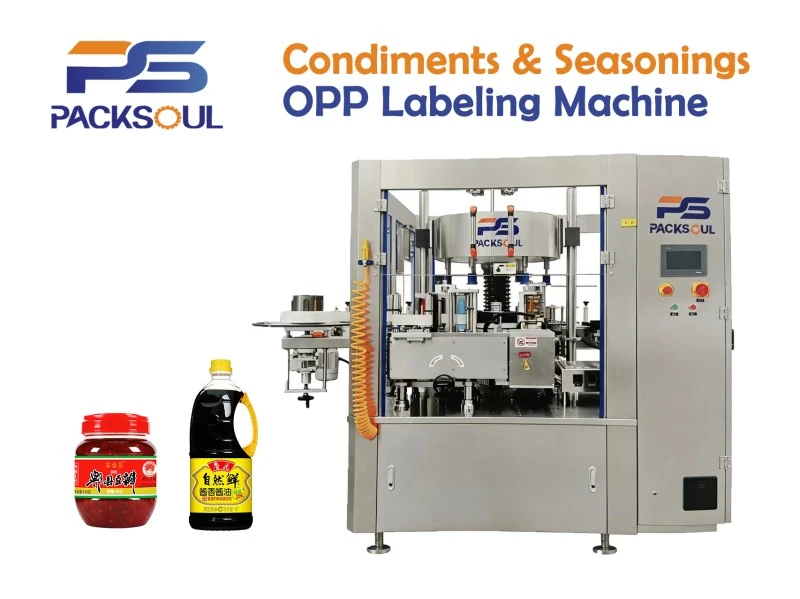

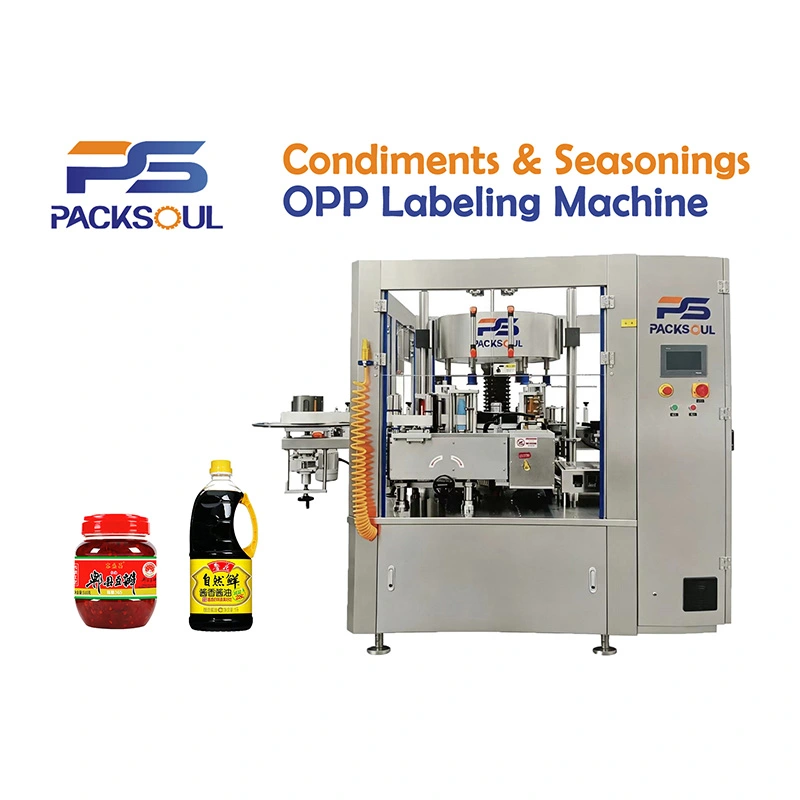

The Packsoul Condiments and Seasonings OPP Labeling Machine is a high‑speed rotary hot melt labeling system designed for condiment packaging like sauce bottles, vinegar bottles, and paste buckets. Integrating precise positioning, automatic label feeding, and hot melt technology, it meets the automated labeling needs of the food industry for soy sauce, vinegar, and seasoning pastes.
The Packsoul Condiments and Seasonings OPP Labeling Machine is optimized for multi‑size production. Key components like star wheels, bottle holders, and screws feature a quick‑release design, allowing tool‑free replacement and adjustment. This significantly reduces changeover time and boosts line efficiency.
The anilox glue roller ensures stable performance and minimizes glue consumption to approximately 1 kg per 100,000 labels.
Equipped with a low‑inertia high‑speed servo motor and dedicated controller, it ensures precise feeding and cutting synchronization. This stable power output reduces label deviation at high speeds, improving cutting accuracy and labeling consistency.

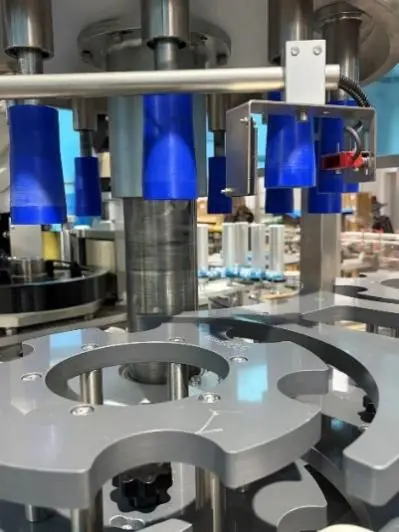

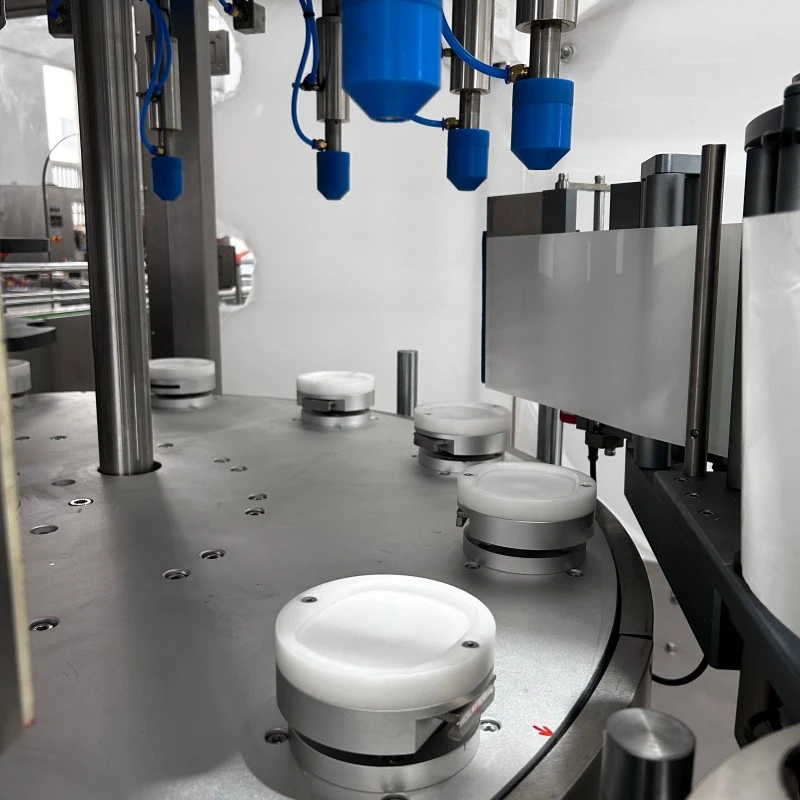

The Packsoul Condiments and Seasonings OPP Labeling Machine features an integrated star wheel design for precise bottle separation and spacing. Combined with high‑speed transport, it effectively minimizes bottle shaking and positioning errors.
A rotary encoder connects the labeling system to the production line. The smart system auto‑measures product and label sizes, using high‑speed CPU processing to perfectly align the label with the product's centerline for enhanced precision.

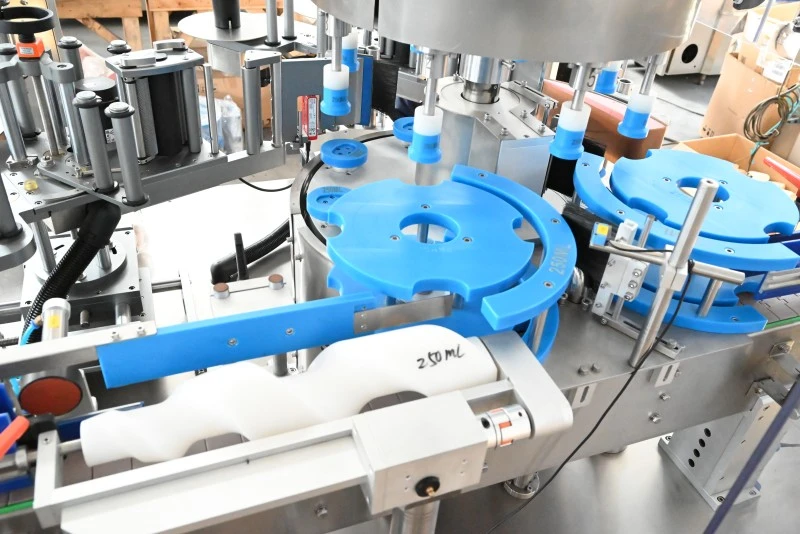

The infeed screw, infeed guide rails, star wheels, and bottle guides are all made from synthetic materials with low friction coefficients and high wear resistance.
| Model | PSX‑120 |
| Capacity | 14000BPH |
| Machine Size | 3000L*2100W*2000H |
| Power | 12KW |
| Container Diameter | φ30‑110mm(Can be customized if exceed) |
| Container Height | 100‑500mm |
| Working Height | 1000±50mm |
| Paper Inner Diameter | 6 inches |
| Paper Max Outer Diameter | 500 mm |
| Voltage | 380vV/50Hz/18KW |
| Air Pressure | 0.6 Mpa |
The machine comes with a complete toolbox containing ball hex keys, combination wrenches, adjustable wrenches, Phillips and flathead screwdrivers, screws, and diagonal pliers to facilitate daily maintenance, debugging, and assembly.

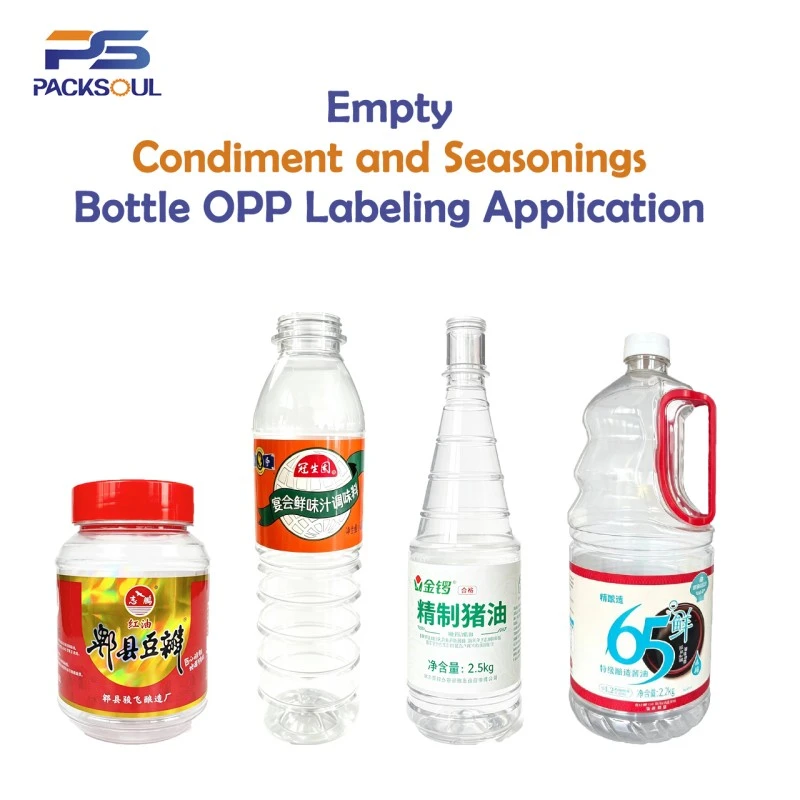

Ideal for condiment packaging such as soy sauce, vinegar, and pastes. It accommodates various container shapes, including large‑capacity plastic jugs, round sauce bottles, and square seasoning jars. It supports both pre‑labeling of empty bottles and post‑filling labeling.

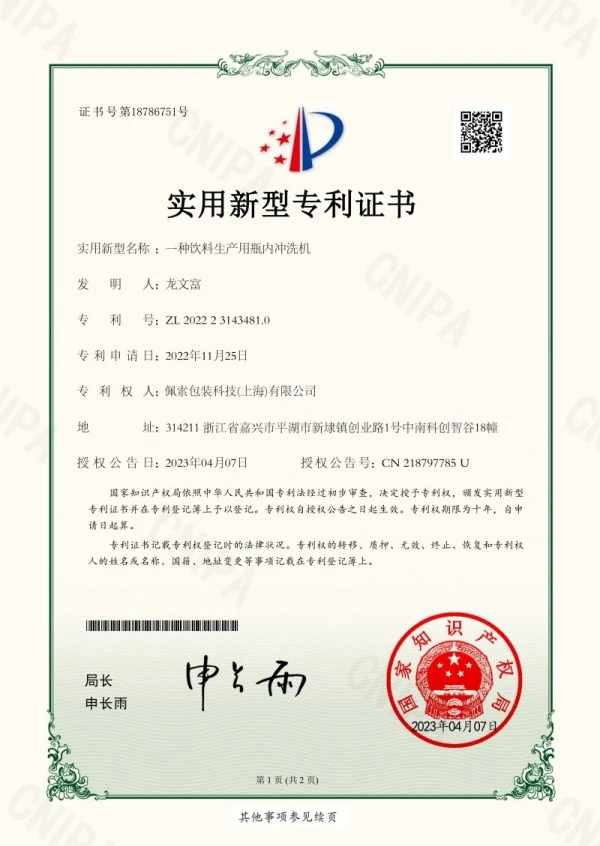

Backed by multiple utility patents for core mechanisms like bottle sorting and internal rinsing, our machines are CE certified. Strict standardized assembly and testing ensure reliable, stable performance.
We listen to your needs and provide tailored labeling solutions. With reliable equipment and professional service, we aim to build mutually beneficial partnerships with clients worldwide.
Strict packaging standards and secure fastening of equipment ensure safe transit and on‑time delivery.
A: No. Hot melt adhesive provides strong bonding, and precise pressing ensures long‑lasting label adhesion.
A: No. The servo feeding system, detection sensors, and encoder linkage ensure precise synchronization and stable, consistent labeling even at high speeds.
A: The infeed screw and star wheels are made of low‑friction, wear‑resistant synthetic materials to ensure smooth bottle guiding without scratches.
A: Yes. It accommodates bottles with diameters of 30–110mm and heights of 100–500mm. Custom structures are available for larger sizes.
A: Yes. Its maintenance‑friendly design minimizes hard‑to‑reach corners, making daily cleaning and management easy.
A: No. The machine comes with a complete set of maintenance tools (wrenches, screwdrivers, pliers, etc.) for all daily debugging and repairs.
