We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.
PACKSOUL is a manufacturer and supplier of Rotary Self Adhesive Labeling Machines, providing high-speed automatic labeling equipment and customized solutions for customers requiring rotary labeling solutions. The equipment adopts a multi-station rotary structure, full servo drive, and intelligent control system. It is suitable for round bottles, square bottles, flat bottles, and some irregular-shaped bottles. Different configurations can be selected according to bottle type, number of labels, labeling position, and production speed.

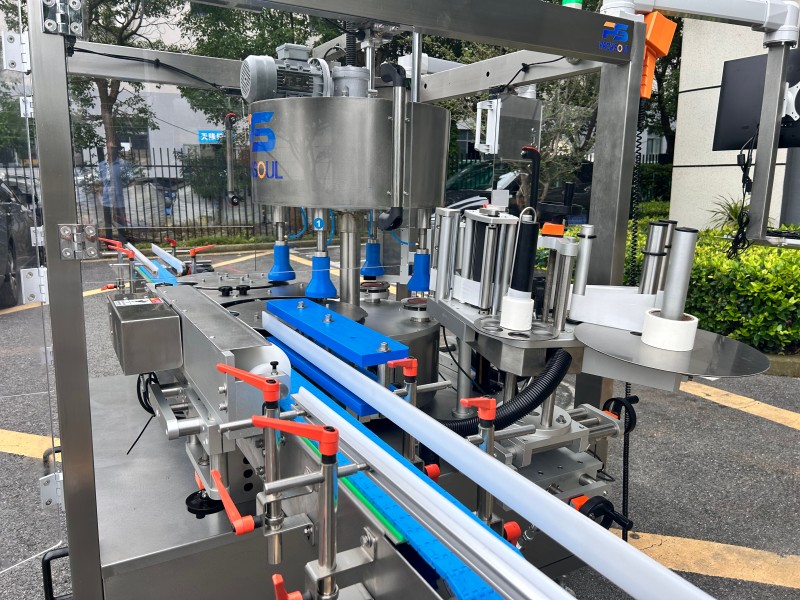

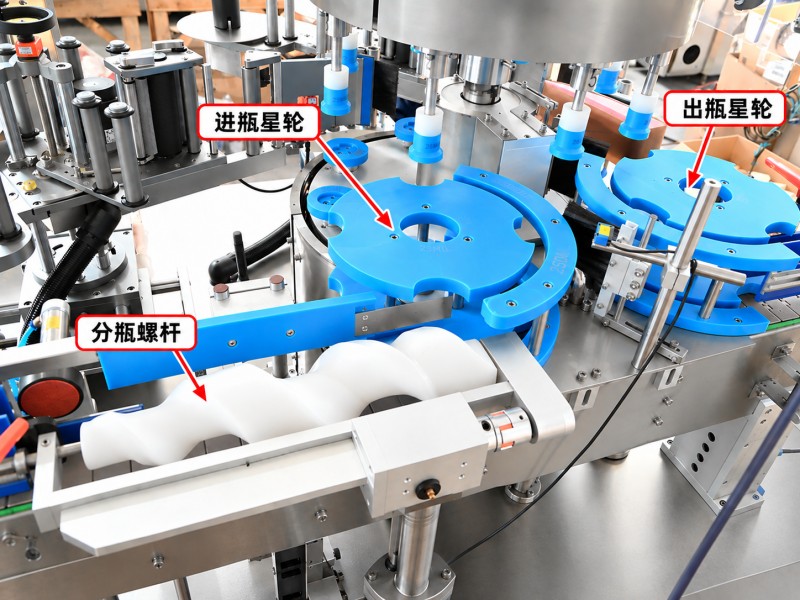

Rotary Self Adhesive Labeling Machines are high-speed self-adhesive labeling equipment that uses a rotary multi-station structure for automatic positioning and labeling. After bottles enter the machine, they are continuously conveyed and accurately positioned through the bottle separating screw, infeed star wheel, and rotary stations. The labeling head then completes label feeding and application, and finally the outfeed star wheel completes product output.
Compared with standard linear labeling equipment, this rotary labeling equipment is more suitable for continuous and high-volume production. Multiple independent stations can operate synchronously, allowing bottle conveying, positioning, rotation, and labeling processes to work together stably. PACKSOUL equipment can be used as standalone machinery or connected with filling machines, capping machines, coding machines, and other packaging equipment to form an automated production line.

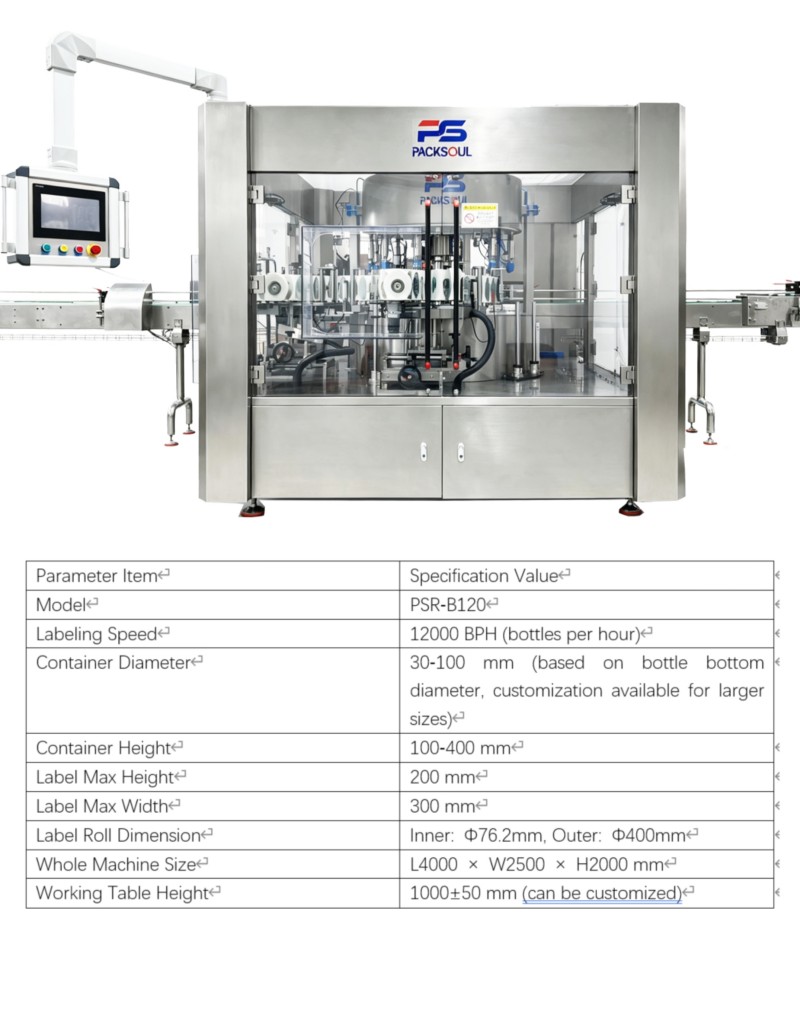

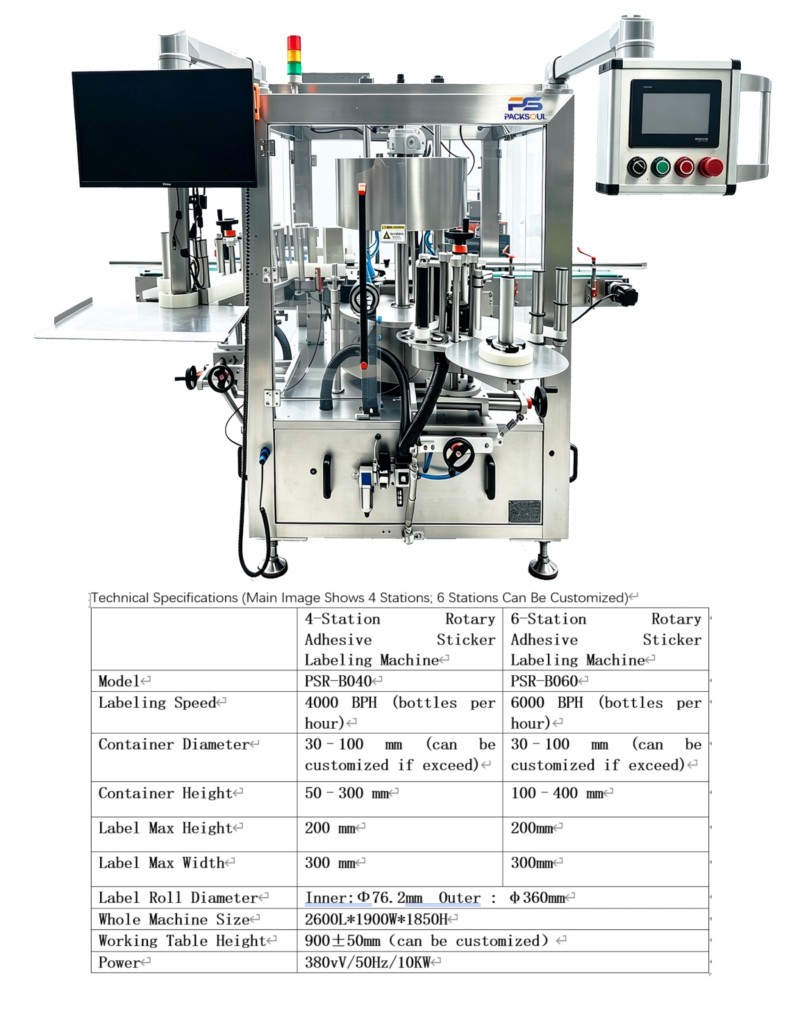

PACKSOUL Rotary Self Adhesive Labeling Machines provide 4-station, 6-station, 8-station, 12-station, and 24-station configurations. Based on a standard speed of approximately 1,000 bottles per hour per station, the corresponding production capacity is about 4,000, 6,000, 8,000, 12,000, and 24,000 bottles per hour.
Different station numbers can be selected according to the actual production capacity of the factory. 4-station and 6-station models are suitable for medium-capacity production, 8-station and 12-station models are suitable for higher-speed continuous production, and the 24-station model is suitable for large-volume high-speed automatic production. The actual production speed will vary depending on bottle type, label size, number of labels, and labeling requirements.

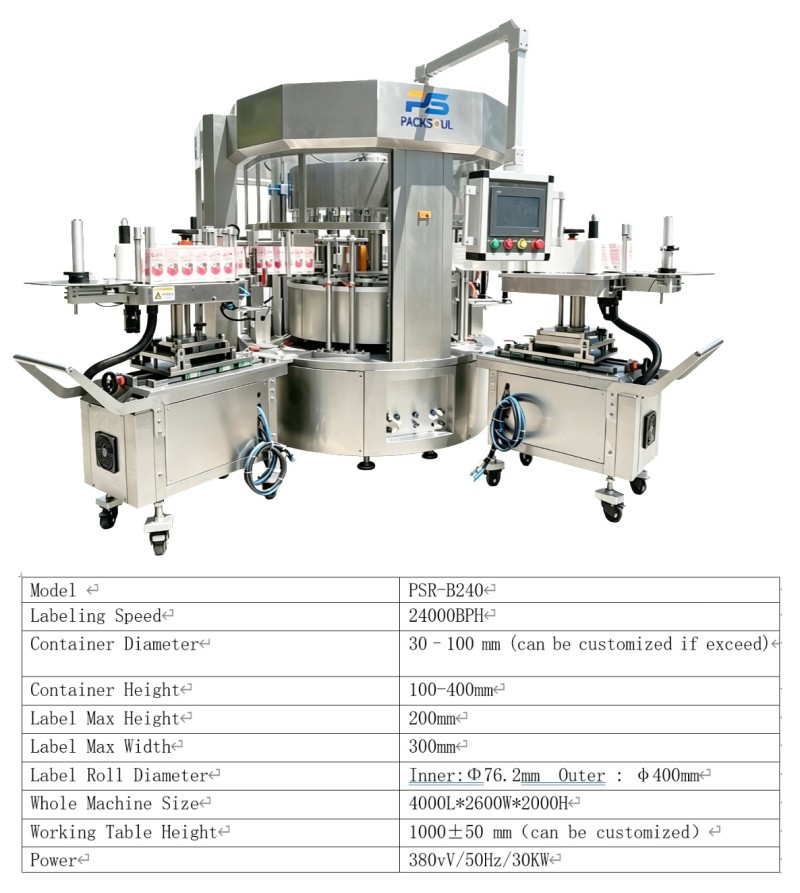

Each station can be configured with two labeling heads according to actual product requirements. Additional labeling heads can also be added according to the number of labels and labeling positions. The 24-station equipment can be configured with 3 labeling heads according to production requirements to meet automatic labeling requirements for multi-label products.

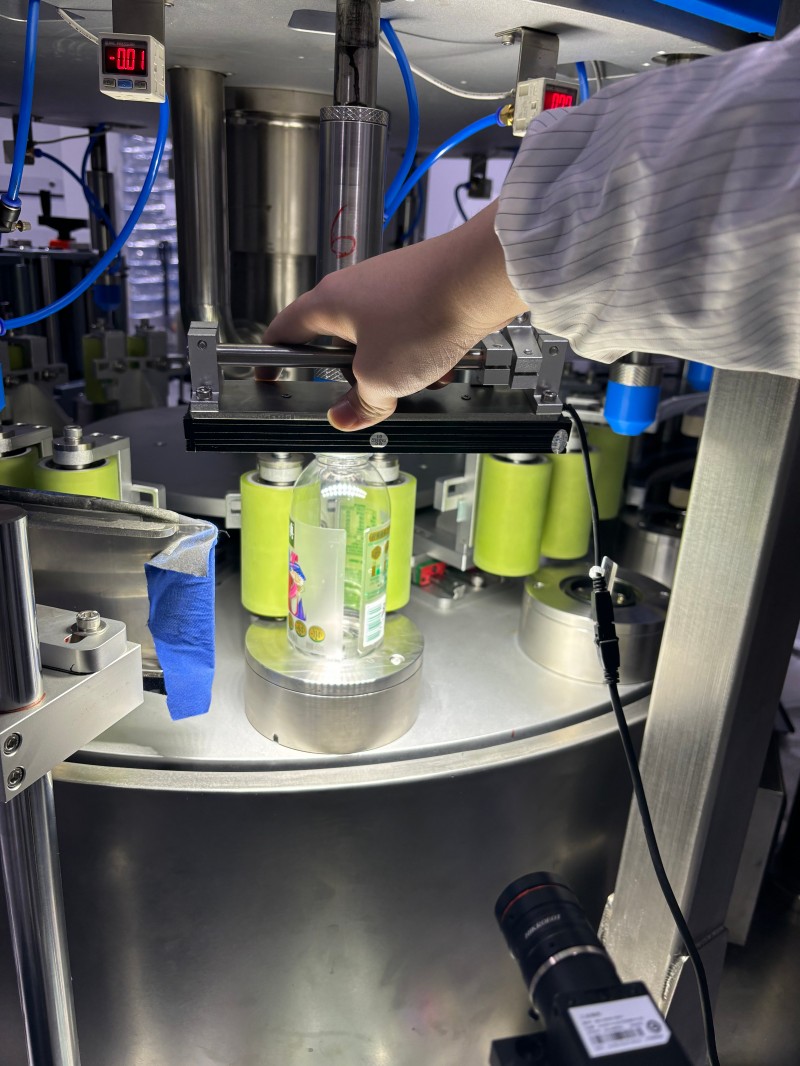

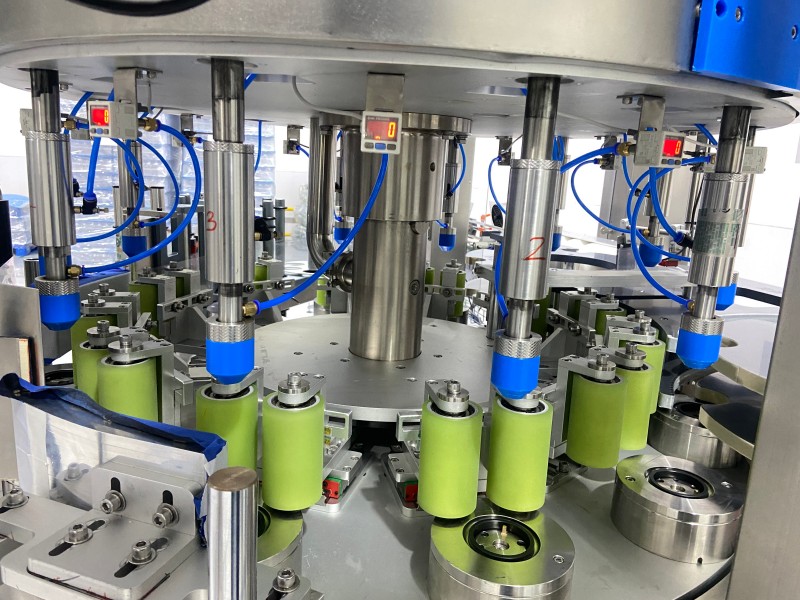

Some PET bottles, plastic bottles, or thin-wall empty bottles are easily deformed under pressure during the labeling process. PACKSOUL equipment can be equipped with an inflatable constant pressure device to maintain stable pressure according to product conditions, reducing empty bottle deformation while ensuring bottle positioning.
For health supplement bottles, food bottles, beverage bottles, and other lightweight packaging products, this structure improves bottle stability during high-speed rotary labeling.
Transparent labels and frosted labels have higher requirements for labeling performance. Standard labeling structures may cause problems such as air bubbles and uneven edge adhesion during high-speed operation. PACKSOUL equipment can be equipped with a special label supporting mechanism to keep labels stable during feeding and application, effectively reducing visible air bubbles on transparent and frosted labels.
For transparent bottles, glass bottles, and products with high appearance requirements, this structure helps improve label application quality and finished product appearance consistency.
Traditional mechanical cam structures may require adjustment or replacement of mechanical components when changing products. The electronic cam control system allows operators to set and switch parameters through the touch screen without frequently replacing mechanical cams.
For factories producing multiple bottle types and product specifications, electronic cam control can reduce machine adjustment time and improve product changeover efficiency.

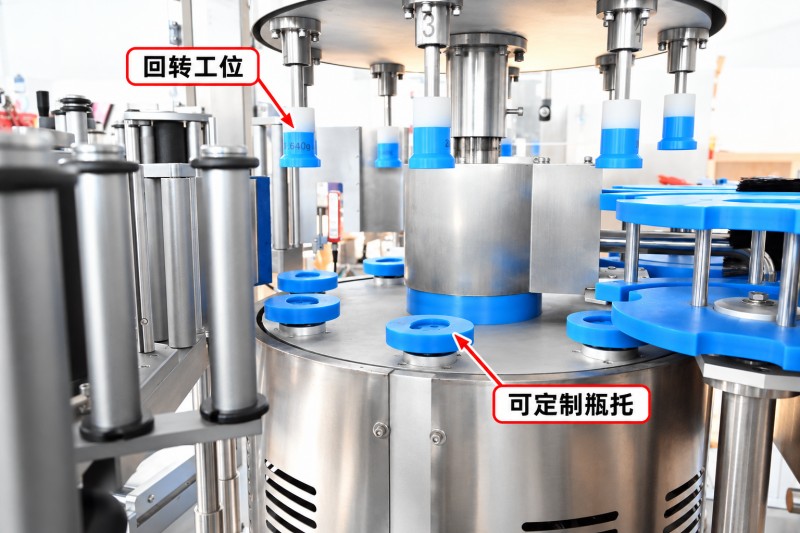

Different bottle types require matching bottle holders. PACKSOUL labeling equipment can customize bottle holders according to bottle shapes and adopt a screw-free design for quick installation and replacement without special tools.
This design is especially suitable for multi-size product production. It helps reduce the operation time required for replacing bottle holders and allows the equipment to quickly switch to the next product.
Transparent plastic bottles and glass bottles have higher requirements for surface appearance. Friction during conveying may affect the final product appearance. The equipment is equipped with anti-scratch structures to reduce unnecessary friction during bottle conveying, positioning, and labeling, making it suitable for packaging production with high appearance requirements.
An important feature of PACKSOUL Rotary Self Adhesive Labeling Machines is the full servo drive system. The top drive, working stations, infeed star wheel, outfeed star wheel, bottle separating screw, and labeling heads can all adopt independent servo control, allowing different motion units to maintain precise synchronization.
Each working station is equipped with one servo motor. The top drive is equipped with one servo motor, while the infeed star wheel, outfeed star wheel, and bottle separating screw are each equipped with servo motors. Each labeling head uses two servo motors for drive.

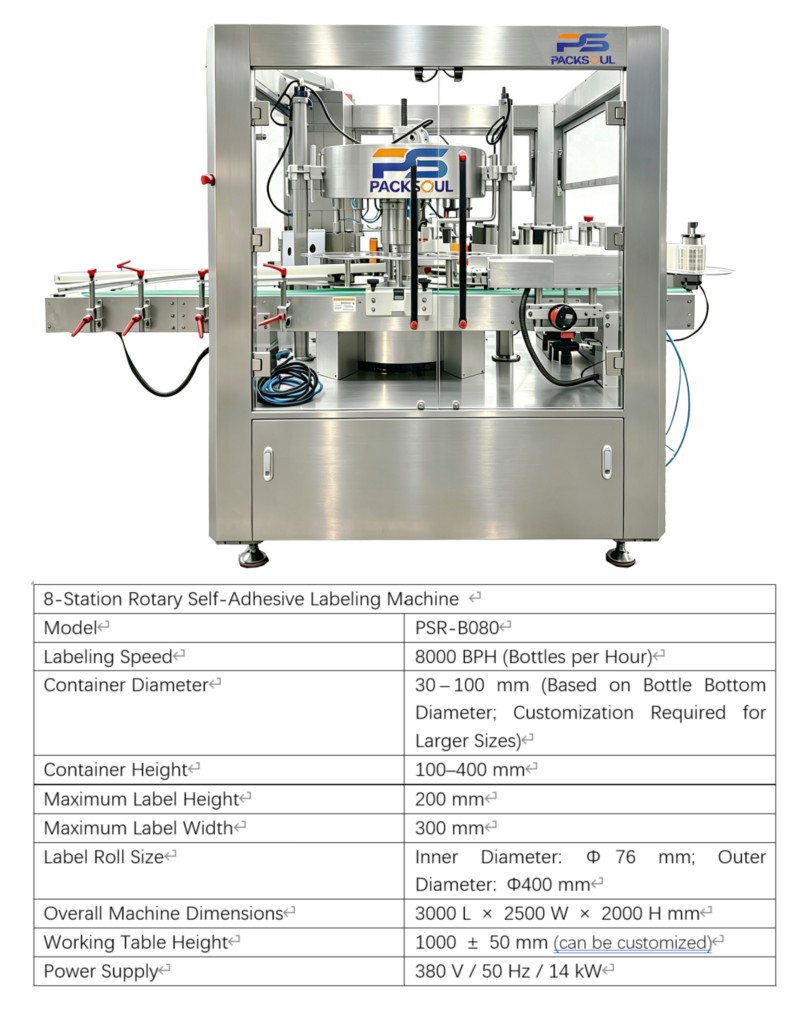

For example, an 8-station Rotary Self Adhesive Labeling Machine is equipped with 8 station servo motors, 1 top drive servo motor, 1 infeed star wheel servo motor, 1 outfeed star wheel servo motor, 1 bottle separating screw servo motor, and 4 labeling head servo motors, with a total of 16 servo motors for the complete machine.
A 24-station machine can be configured with 3 labeling heads according to production requirements. Each labeling head uses 2 servo motors, corresponding to 6 labeling head servo motors in total. This full servo structure is not only designed to improve operating speed but also to maintain stable synchronization between bottle conveying, rotary positioning, label feeding, and labeling processes, meeting the control accuracy requirements of high-speed automatic production.

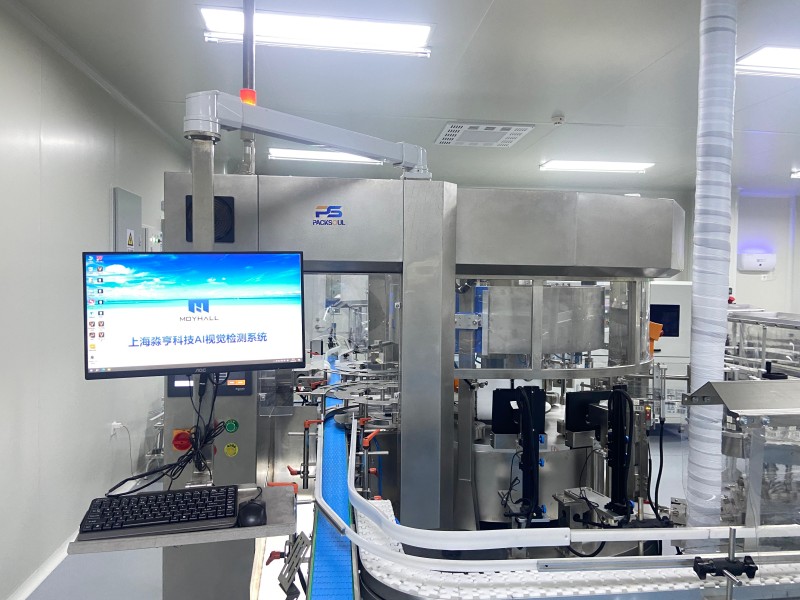

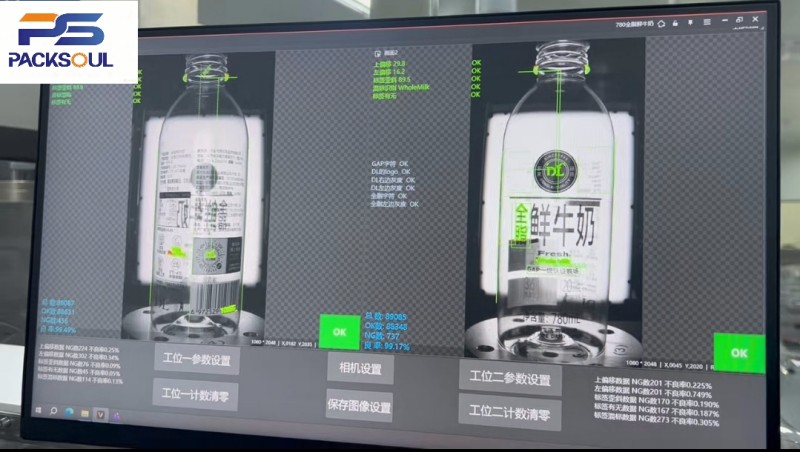

PACKSOUL Rotary Self Adhesive Labeling Machines can be equipped with a vision inspection system according to production requirements. The system can perform online inspection of labeled products and identify issues such as missing labels, incorrect label positions, and abnormal labeling conditions.
The inspection results can be connected with the equipment control system to remove defective products in time, reduce manual inspection, and improve labeling quality consistency during continuous production.
When choosing Labeling Machines, the highest machine speed should not be the only consideration. Bottle type, bottle material, label size, number of labels, labeling position, and existing production line speed should also be evaluated.
If the main products are single-label round bottles, the suitable number of rotary stations can be selected according to the required production capacity. If products require front and back labels or multiple labels, the number and installation position of labeling heads should be confirmed. For transparent bottles, thin-wall empty bottles, or transparent label applications, attention should be paid to the constant pressure device, label supporting mechanism, and anti-scratch structure.
For factories that frequently change product specifications, electronic cam control and screw-free quick-change bottle holders can help reduce changeover time. For high-speed continuous production, the servo configuration of working stations, star wheels, bottle separating screw, and labeling heads should be confirmed.
Rotary Self Adhesive Labeling Machines can be applied in food, beverage, pharmaceutical, health supplement, cosmetics, daily chemical, and other packaging industries.
In the beverage industry, this equipment can be used for automatic labeling of beverage bottles and water bottles. In the food industry, it can be applied to food bottles, seasoning bottles, and sauce packaging. In the pharmaceutical and health supplement industries, it is suitable for medicine bottles, vitamin bottles, and nutritional supplement bottles. In the cosmetics and daily chemical industries, it can be used for skincare products, personal care products, and other round packaging containers.
For companies requiring stable production capacity and continuous automatic operation, PACKSOUL labeling equipment can operate independently or be connected with automatic bottle unscramblers, filling machines, capping machines, coding machines, and other equipment.
