High-Performance Horizontal Sleeve Labeling Machines for Efficient Packaging Lines

PACKSOUL specializes in the manufacturing and supply of Horizontal Sleeve Labeling Machines, providing tailored sleeving solutions for slender, lightweight, and uniquely shaped products.

Suitable for pencils, slender cylindrical products, small bottles, cosmetic containers, and other products difficult to convey upright. Horizontal conveying and positioning ensure stable sleeving and heat shrinking.

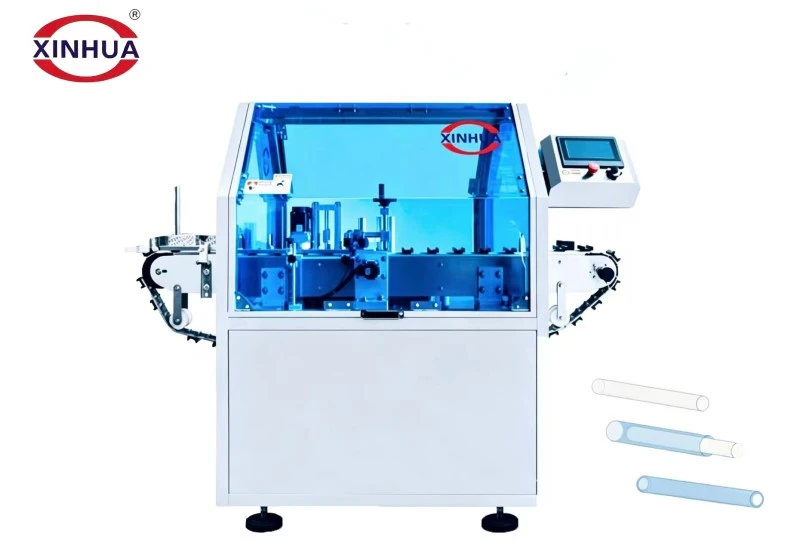

What Are Horizontal Sleeve Labeling Machines?

A Horizontal Sleeve Labeling Machine conveys, positions, and sleeves products in a horizontal orientation. It is ideal for slender, lightweight, or unstable products, such as pencils, pens, slim cylindrical products, and small cosmetic containers.

Product Applications

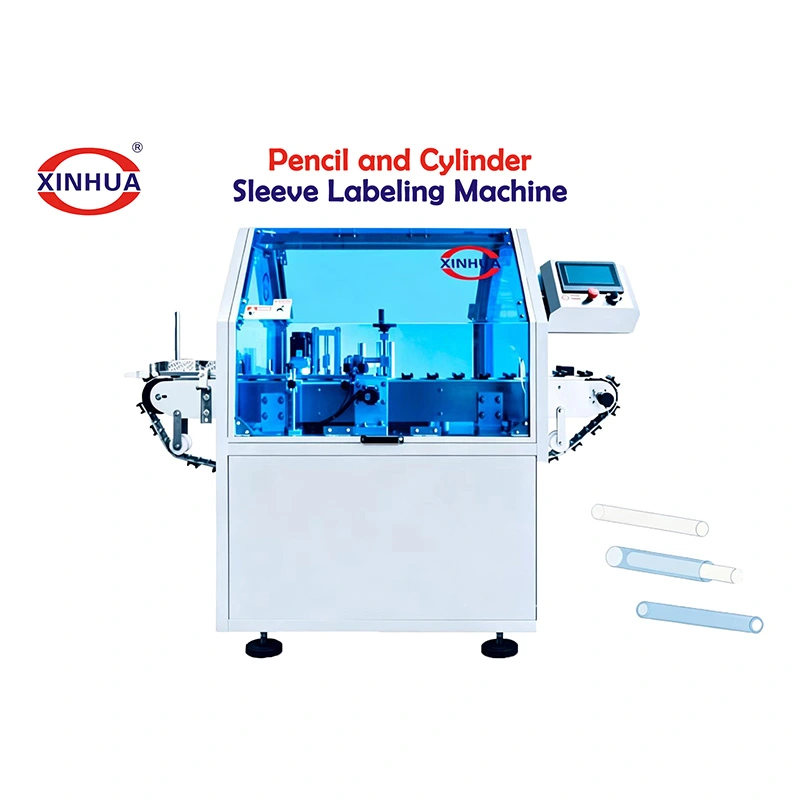

1.Pencils and Pen Products

Pencils, colored pencils, markers, and other slender cylindrical products can use a Pencil and Cylinder Sleeve Labeling Machine.

With their length significantly greater than their diameter, these products can be conveyed horizontally to prevent tipping and shifting during sleeving.

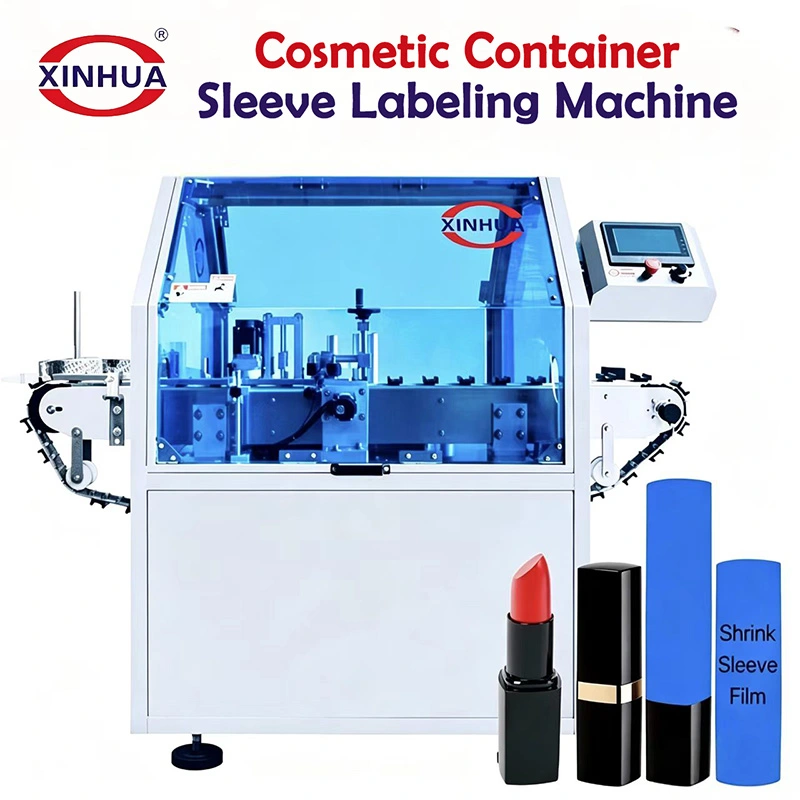

2. Small Cosmetic Containers

Small cosmetic products, such as mascara tubes, lip gloss tubes, eyeliner pens, and serum containers, often require specialized sleeving solutions.

The Cosmetic Container Sleeve Labeling Machine can be configured for different product sizes and shapes, ensuring stable conveying and positioning.

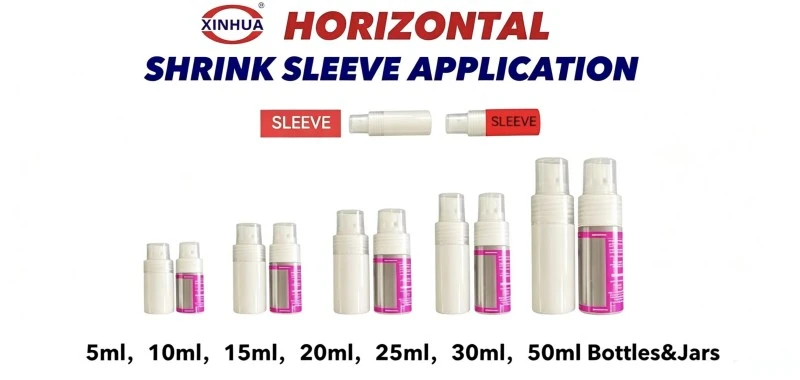

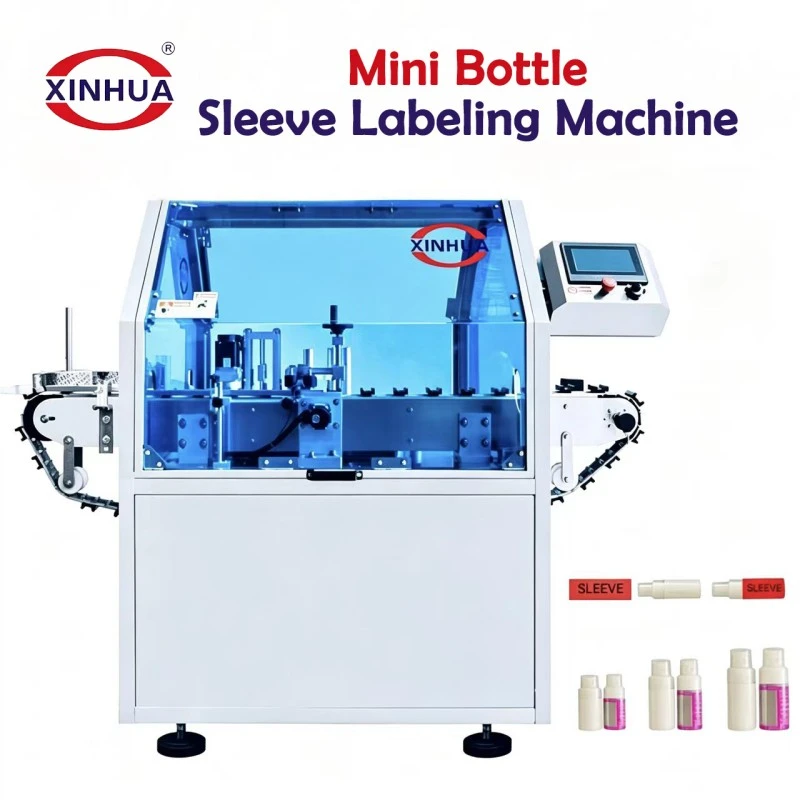

3. Mini Bottles

Small-volume products, including 2ml, 5ml, 10ml, 15ml, 30ml, and 50ml bottles, require precise spacing and positioning due to their compact size and light weight.

The Mini Bottle Sleeve Labeling Machine is specially configured for small-format products rather than simply scaled down from standard bottle equipment.

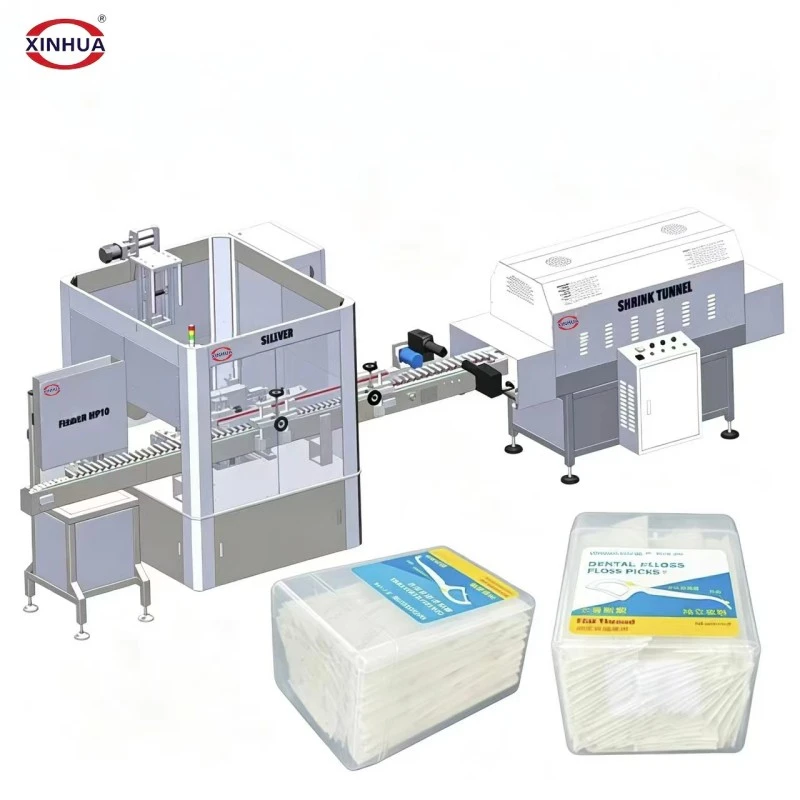

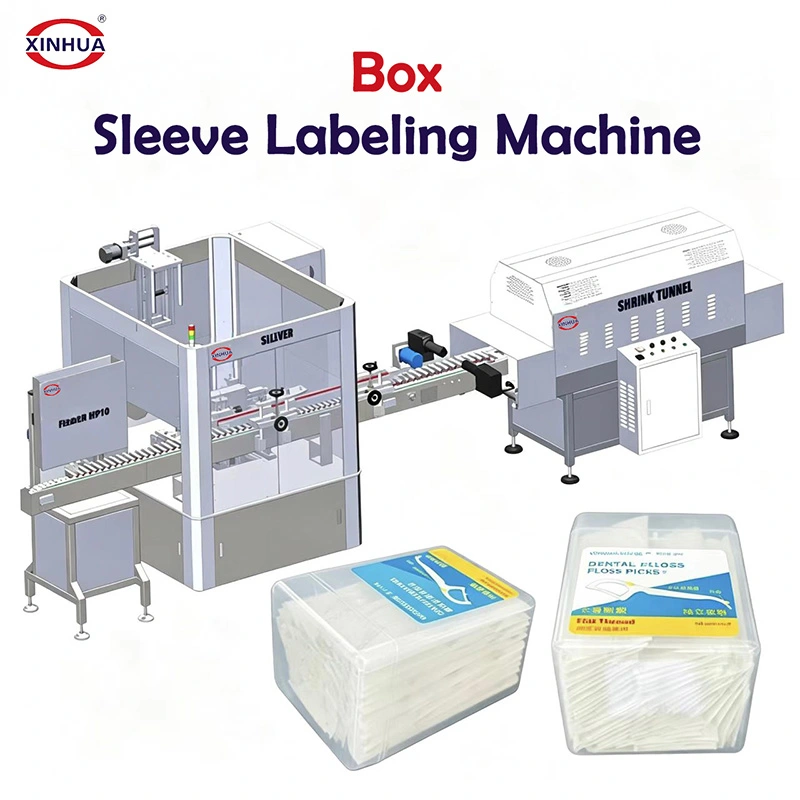

4. Boxed Products

The Box Sleeve Labeling Machine is suitable for small boxed products such as dental floss boxes, cosmetic boxes, and candy boxes. It supports partial or full-wrap sleeve labeling, including four-corner wrapping and partial film coverage. Suitable for flat, square boxes and integration with fully automated packaging lines.

Equipment Features

1. Precise Positioning for Consistent Sleeving Positioning systems are configured according to product shape, size, and label requirements, keeping products stable during conveying and sleeving while minimizing shifting and tilting.

2. Flexible Adjustment for Various Products Suitable for pencils, pens, slender cylinders, small cosmetic containers, Mini Bottles, boxes, and more. Conveying and positioning systems can be adjusted according to product length, diameter, weight, and sleeve position.

3. Stable Sleeving for Fine Packaging Stable conveying and precise positioning ensure smooth sleeving and a close fit after heat shrinking, delivering consistent results for cosmetics, stationery, daily chemical products, and other packaging.

4. Multi-Size Compatibility and Easy Changeover Conveying and positioning components can be adjusted for different product dimensions and sleeve sizes, reducing changeover and setup time for multi-size production.

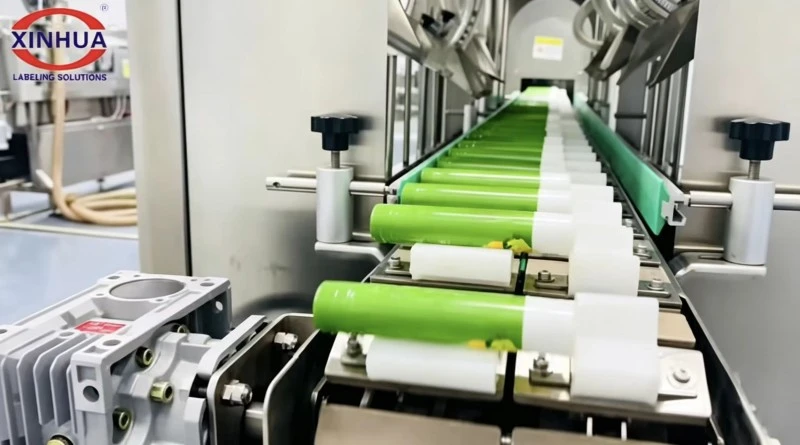

Why are Slender Products Better Suited to Horizontal Conveying?

This directly affects equipment selection.

For example, a 100mm-long product with a 10mm diameter has a high center of gravity when conveyed upright, making it prone to tilting from minor vibrations.

Horizontal conveying provides continuous support and improves product stability.

Horizontal sleeving is not simply a vertical machine placed on its side. It requires dedicated conveying, positioning, and sleeving systems designed for slender products.

What is the Difference Between Horizontal and Vertical Sleeve Labeling Machines?

Neither is inherently more advanced each is designed for different product types.

Simple rule: Products that can stand and convey steadily generally suit vertical sleeving.

Products that are too slender, long, lightweight, or unstable to stand are better suited to horizontal sleeving.
