We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

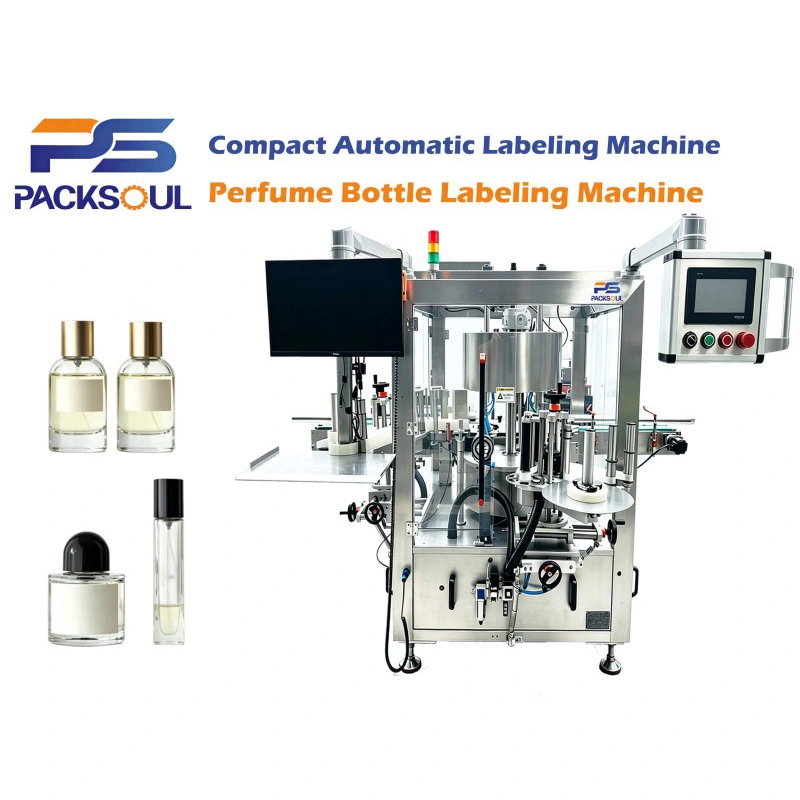

The PackSoul Perfume Bottle Labeling Machine is a compact self‑adhesive labeling machine designed for the fragrance industry. Perfume bottles are often made of smooth, thin glass with curved surfaces. The flexible holder and servo pressure roller help prevent label lifting and bottle scratches. The machine automatically completes bottle feeding, positioning, label feeding, surface labeling and product discharge. It is suitable for both sample testing and mass production.
Flexible Roller for Curved Bottles：The soft pressure roller follows the curved surface of the perfume bottle. It helps keep hot stamping and PET transparent labels smooth and reduces lifted edges.
High Precision Servo Positioning：The servo motor works with a sensitive fiber sensor. Labeling repeat accuracy can reach ±0.8 mm, helping keep every label in the same position.

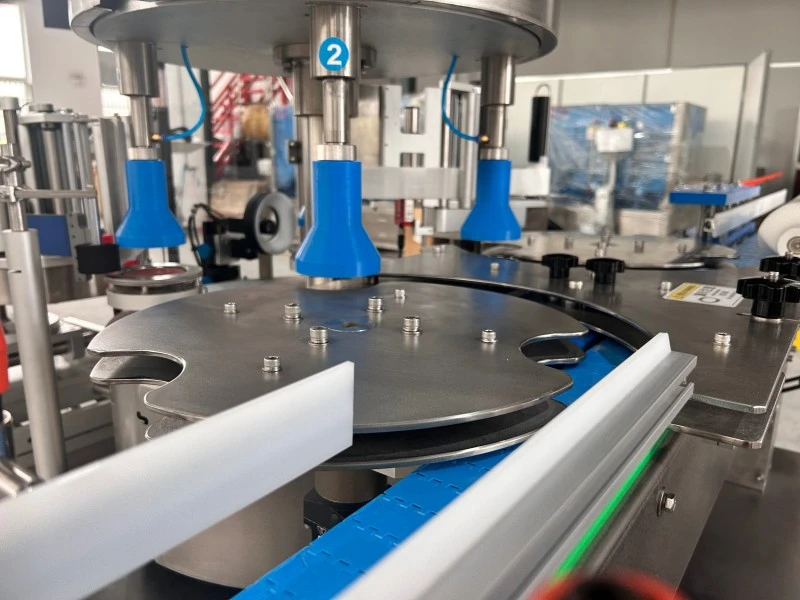

Soft Anti Scratch Bottle Holder：Silicone soft parts are used where the machine contacts the bottle. They help prevent scratches and pressure marks on high gloss glass bottles.
Compact and Space Saving：The machine has a simple and compact structure. It is easy to place in small and medium size perfume factories and OEM workshops.
Quick Changeover：Different perfume bottle diameters can be changed with simple handwheel adjustment. No complicated molds are required.
Automatic Missing Bottle Detection：When no bottle is detected, the machine stops label feeding automatically. This helps reduce label waste.
Optional Functions：Optional static elimination, coding and vision positioning systems are available. The machine can also handle neck labels, full wrap labels, security labels and hot stamping labels.

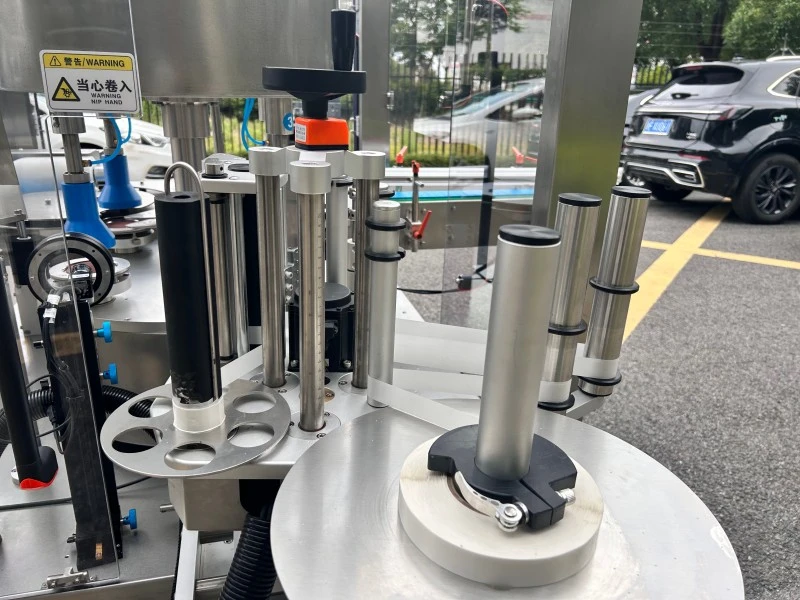

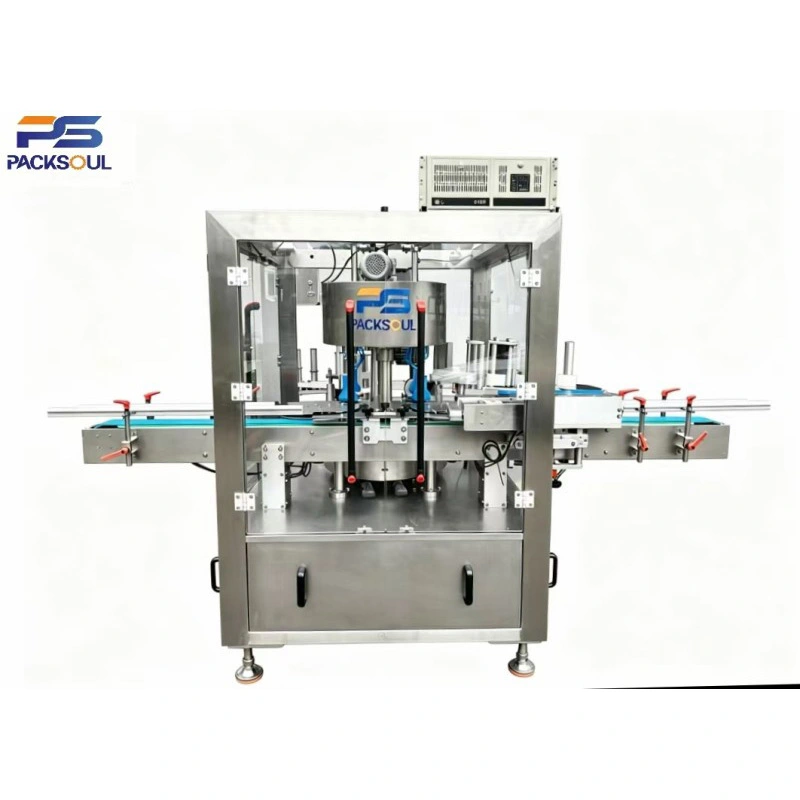

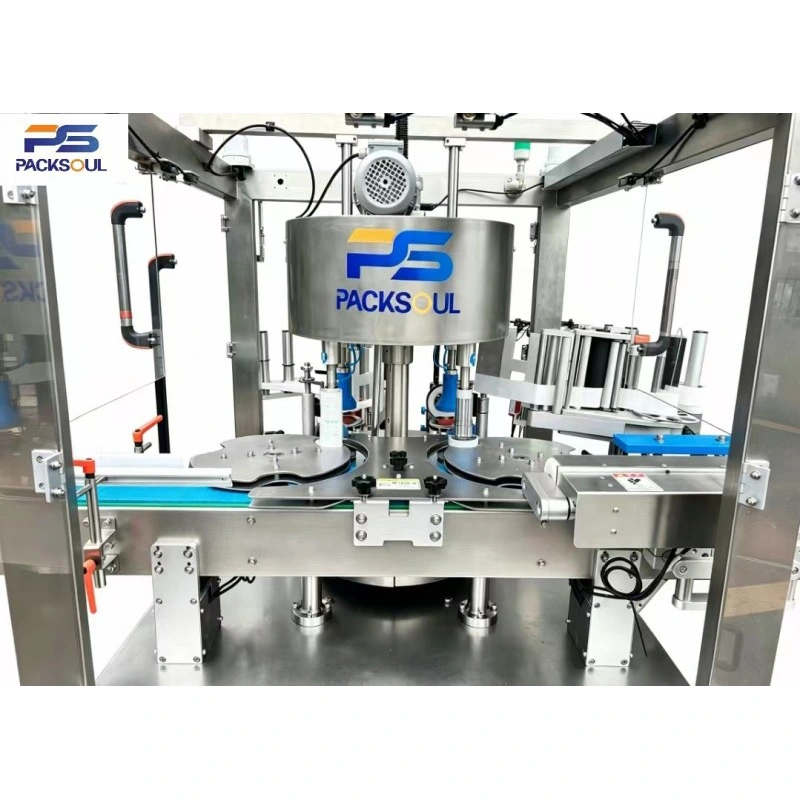

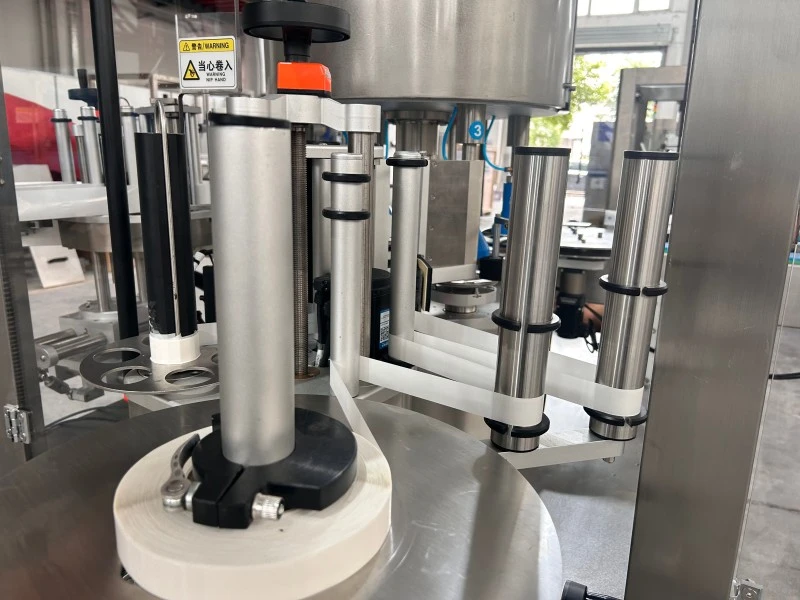

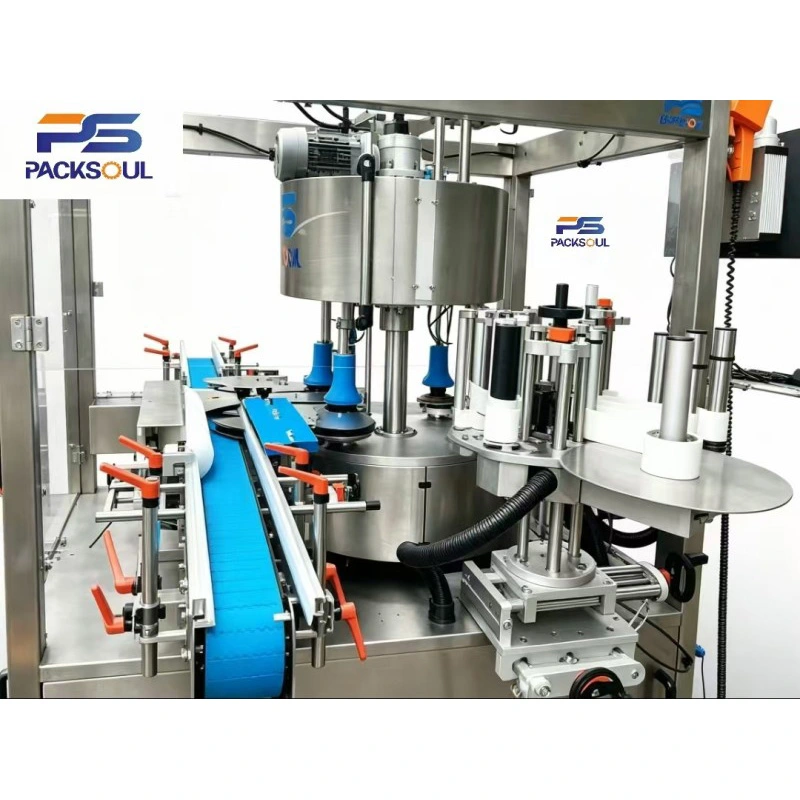

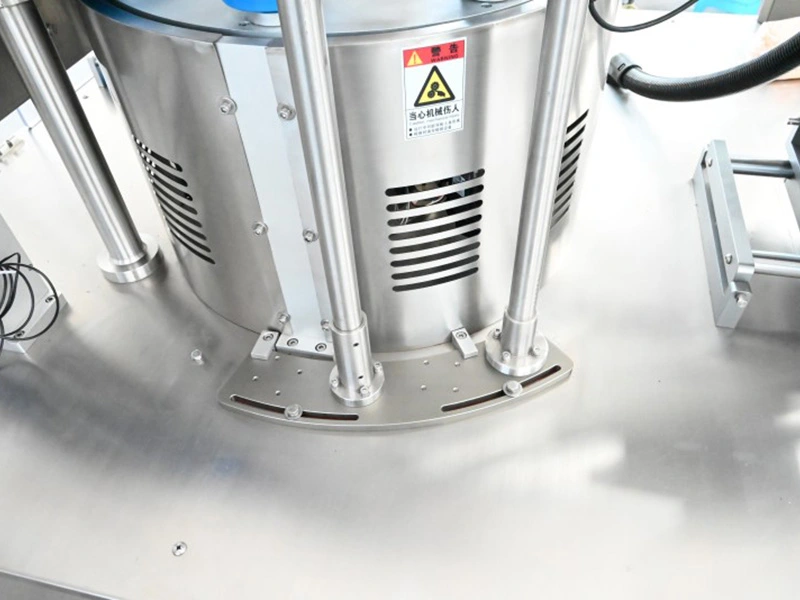

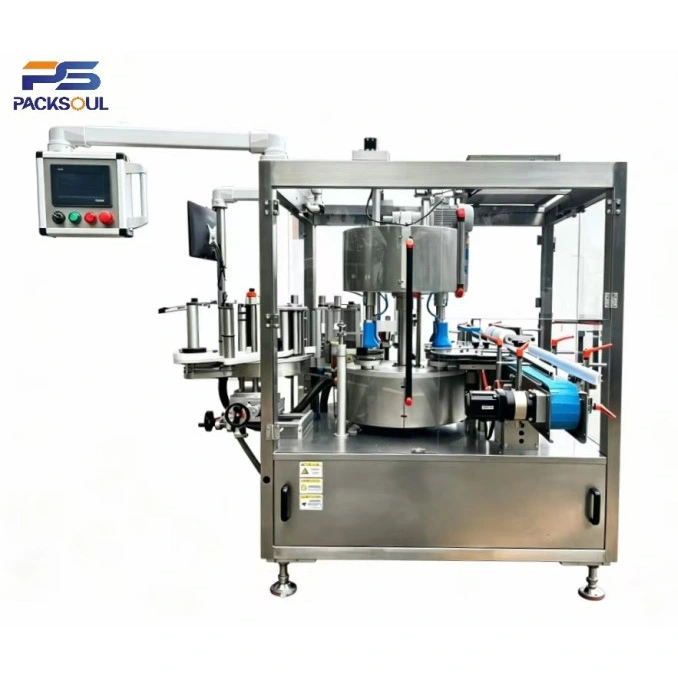

The PackSoul Perfume Bottle Round Bottle Labeling Machine is made of 304 stainless steel. The servo labeling unit, flexible pressure rollers and bottle positioning system are precisely assembled.
Suitable Bottles：Full size round perfume bottles, glass perfume sample bottles, travel fragrance bottles and round essential oil bottles. The machine works with standard self adhesive, hot stamping and transparent PET labels.
Application Areas：Suitable for perfume factories, fragrance OEM companies, beauty brands and perfume filling lines. It supports both small batch sample production and large scale automated production.
| Parameter Item | 4‑Station Rotary Adhesive Sticker Labeling Machine | 6‑Station Rotary Adhesive Sticker Labeling Machine |
| Model | PSR‑B040 | PSR‑B060 |
| Labeling Speed | 4000 BPH (bottles per hour) | 6000 BPH (bottles per hour) |
| Container Diameter | 30–100 mm (can be customized if exceed) | 30–100 mm (can be customized if exceed) |
| Container Height | 50–300 mm | 100–400 mm |
| Label Max Height | 200 mm | 200mm |
| Label Max Width | 300 mm | 300mm |
| Label Roll Diameter | Inner:Φ76.2mm Outer : φ360mm | Inner:Φ76.2mm Outer : φ360mm |
| Whole Machine Size | 2600L*1900W*1850H | 2600L*1900W*1850H |
| Working Table Height | 900±50mm（can be customized） | 900±50mm（can be customized） |
| Power | 380V/50Hz/10KW | 380V/50Hz/10KW |

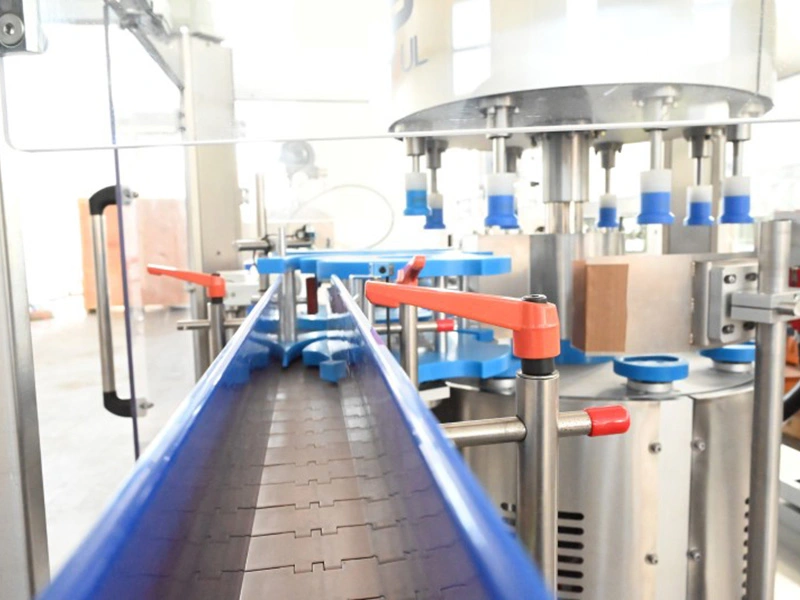

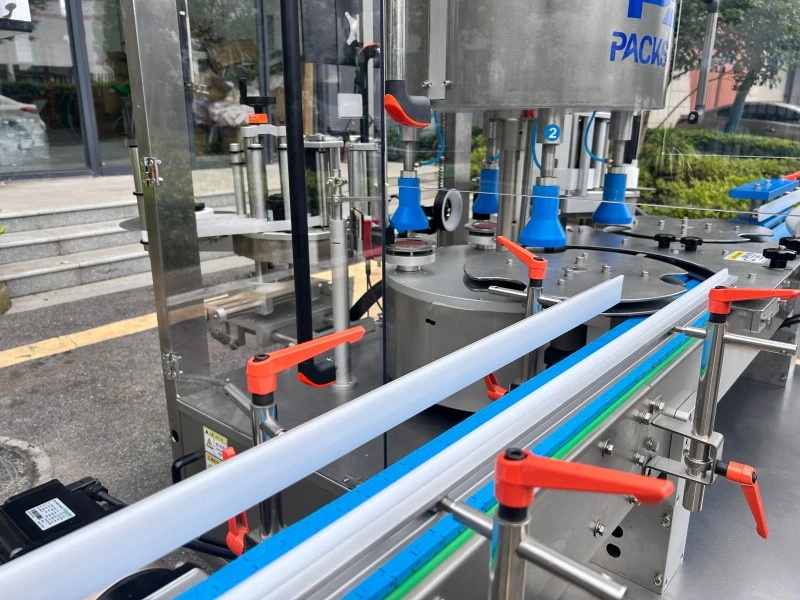

Perfume bottles enter the machine through the conveyor. The fiber sensor detects the bottle position and the servo system feeds the label at the right time. Soft silicone rollers follow the curved glass surface and press the label smoothly to remove air. After labeling, the finished bottle is discharged automatically.
Bottle Feeding → Bottle Detection and Positioning → Servo Label Feeding → Flexible Roller Pressing → Product Discharge
Clean glue from the pressure rollers and conveyor after each production run to prevent scratches on perfume bottles.
Wipe the fiber sensor regularly. Glass dust may affect bottle detection and labeling position.
Lubricate the moving parts regularly to keep the servo system running smoothly.
Keep the electrical control box clean and well ventilated. Check and remove dust every week.
Release the roller pressure during long periods of shutdown to prevent silicone parts from deformation.
Turn on the machine and complete the automatic self check.
Adjust the conveyor width and roller pressure according to the perfume bottle size.
Install the label roll and adjust the label tension.
Test the machine with a sample bottle and fine tune the labeling position and roller pressure.
Check the label for bubbles and lifted edges, then start automatic production.
Stop the machine and clean it after production.
The 3D engineering drawing shows the machine layout, main components and overall dimensions. It helps with solution planning, workshop layout and installation preparation.

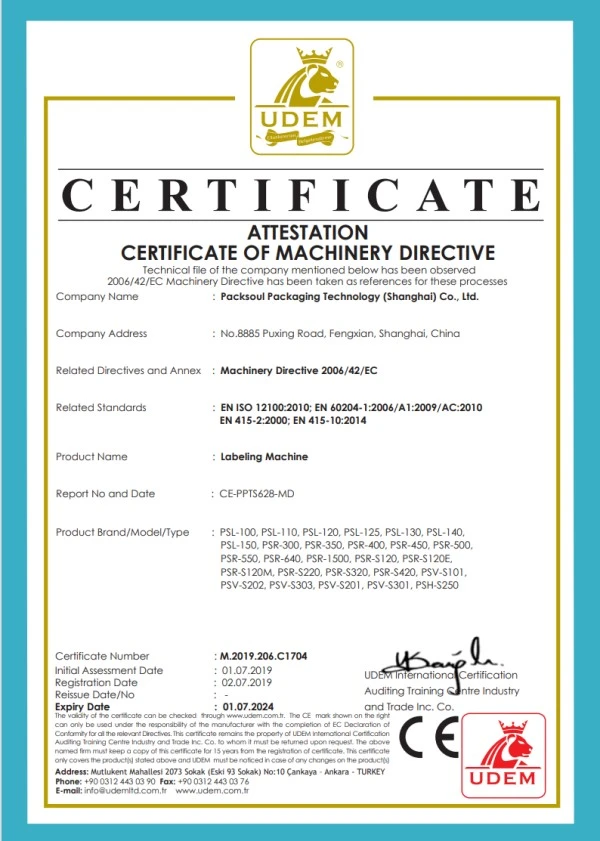

Before delivery, PackSoul tests the machine with real perfume glass bottles. Labeling accuracy, machine stability and bottle protection are fully checked. The machine follows packaging machinery safety standards and uses industrial electrical components. Inspection reports and certification documents can be provided.
Specially designed for smooth and thin glass perfume bottles. The machine is optimized for curved surface labeling instead of simply changing settings on a standard round bottle machine.
Soft contact parts help protect the bottle surface and reduce scratches and damaged bottles.
The compact design saves space and offers good value for perfume brands and OEM factories with multiple bottle sizes and small batch orders.
Optional functions support neck labels, full wrap labels and other special perfume labeling applications.
Factory direct supply is available. Bottle drawings can be used for holder and machine adjustments.
The complete machine has a 1 year warranty. Long term technical support is available for key electrical parts.
Operation manuals, setup instructions and training videos are provided. English documents are available for overseas customers.
Remote online commissioning support is available for quick troubleshooting.
Original spare parts are supplied for long term maintenance, with controlled replacement costs.
The PackSoul Perfume Bottle Round Bottle Labeling Machine is packed in fumigation free wooden crates for export. Silicone rollers, sensors and other precision parts receive separate foam protection. A tool kit and operation manual are included. Domestic delivery and overseas sea shipping are available.

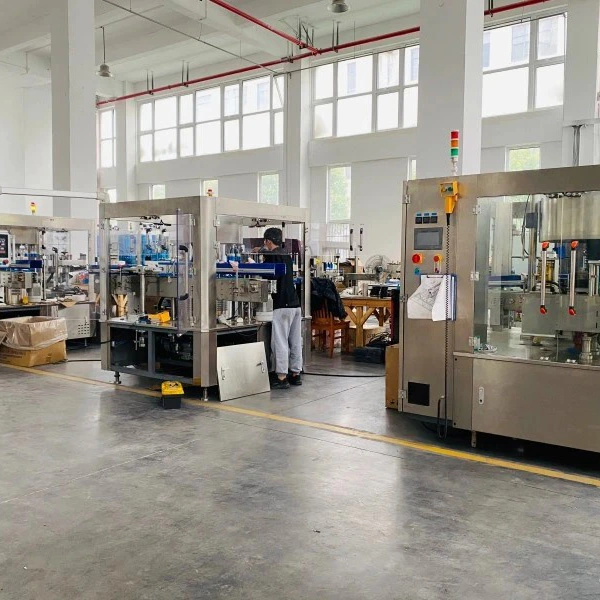

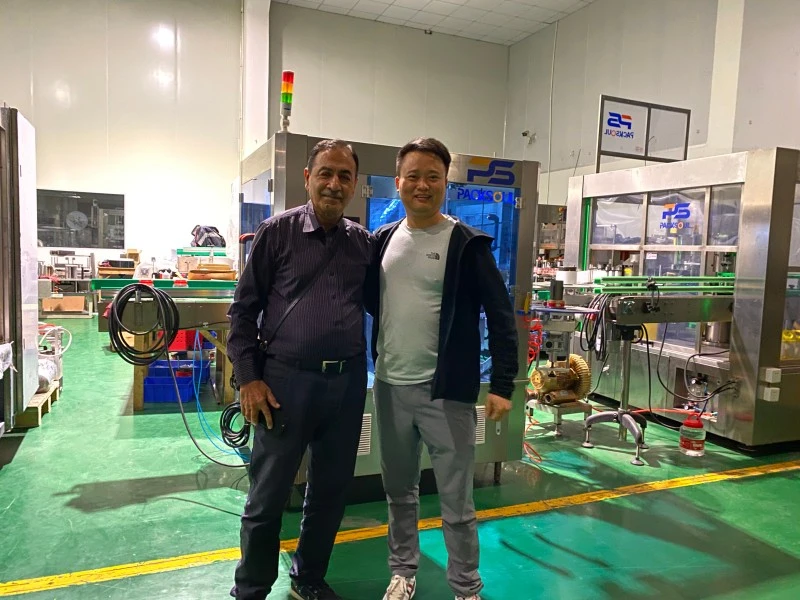

PackSoul focuses on automation equipment for cosmetic and fragrance packaging. Our perfume bottle labeling machines have been used by several perfume OEM factories and fragrance production companies. We have our own processing workshop and can provide factory photos, production line testing videos and overseas project references.
A: The flexible roller system is designed for smooth curved glass surfaces. Together with label tension control, it helps reduce lifted edges and bubbles when using suitable hot stamping or PET transparent labels.
A: Yes. Standard bottle sizes can be changed through simple mechanical adjustments and touch screen settings. Special bottle sizes can use customized holders.
A: The parts that contact the bottle use soft silicone materials. The holding pressure can be adjusted to help protect the glass surface from scratches during normal operation.
A: Yes. We can adjust the machine according to bottle drawings, production capacity and workshop conditions. Optional functions can also be added.
A: Yes. Power supplies from 110V to 240V can be customized. The touch screen supports Chinese and English, and English documents are available.
A: The machine is tested and adjusted before shipment. Customers can set it up with the operation videos, and one to one remote guidance is available. Onsite service can be discussed for special requirements.
