We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

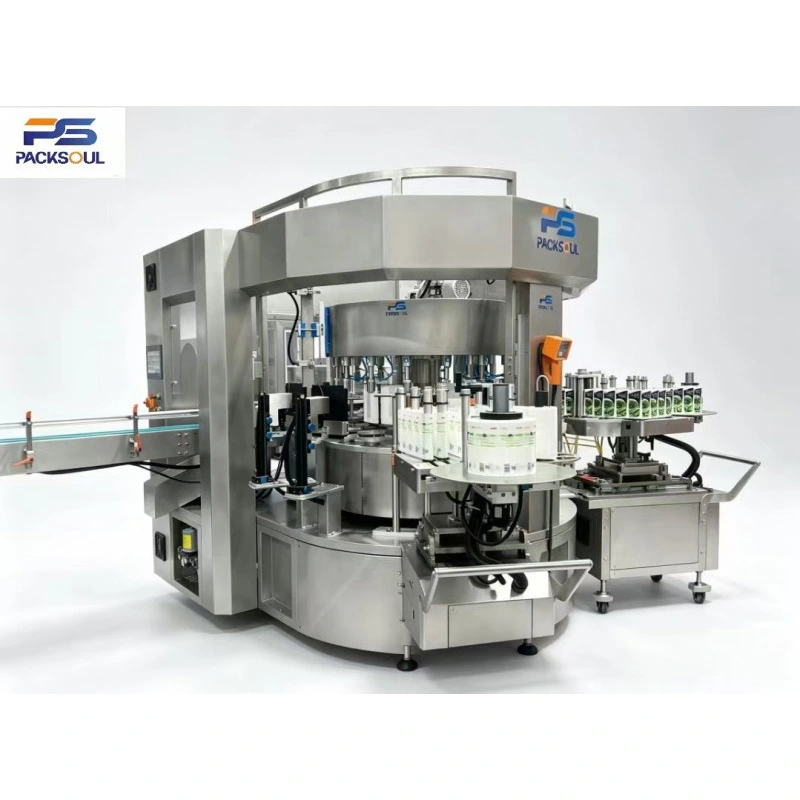

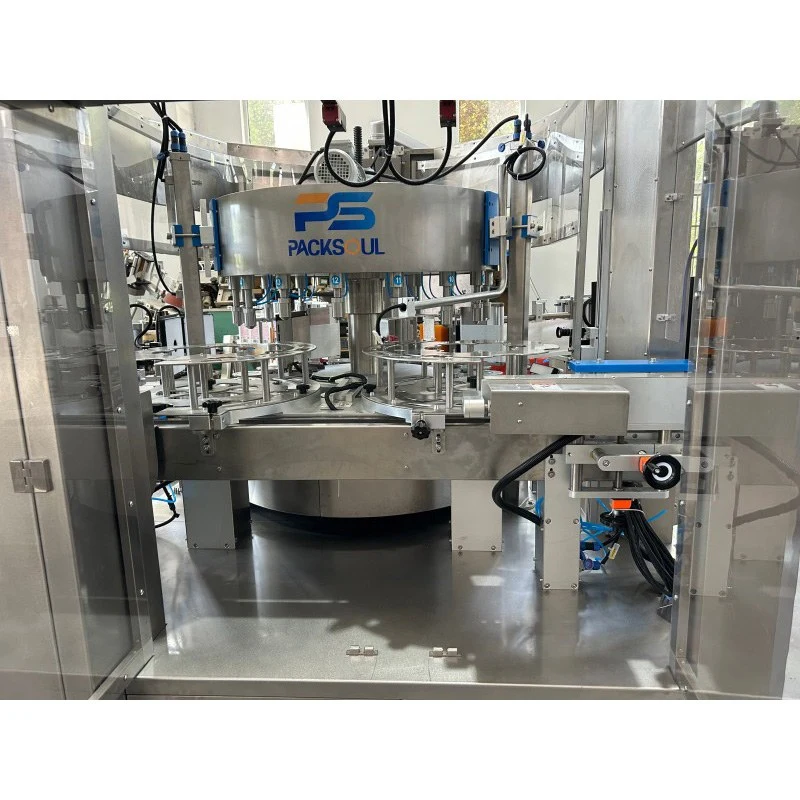

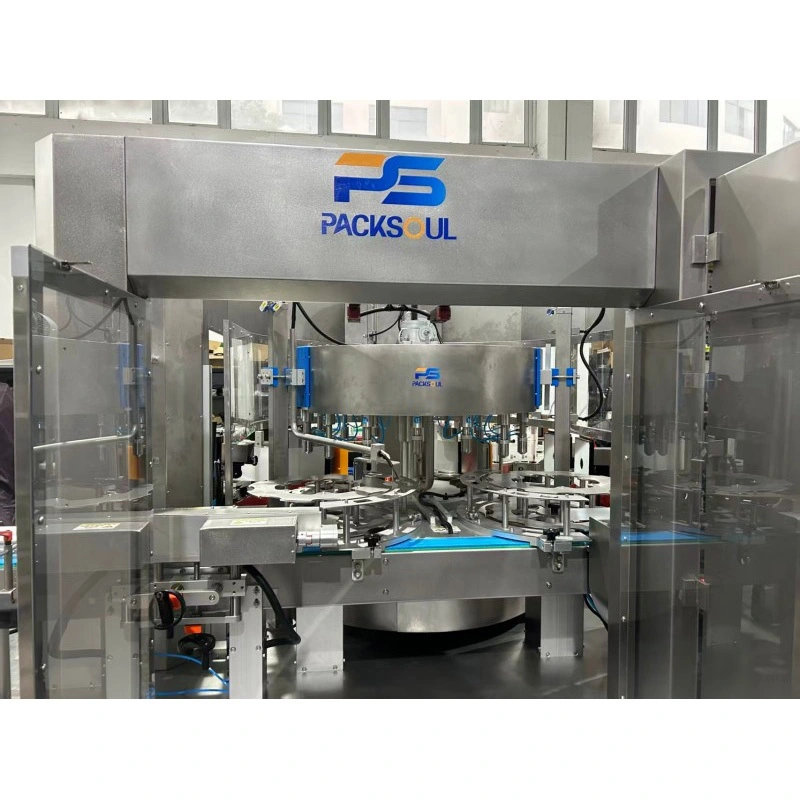

The PACKSOUL 400ml Body Lotion Flat Bottle Labeling Machine is specially designed for 400ml flat lotion bottles. It helps reduce common labeling problems such as shifting, misalignment, bubbles, lifted edges and uneven double side labels. The machine automatically completes bottle separation, positioning, labeling, pressing and discharge. It is suitable for 400ml plastic flat bottles, lotion bottles and skincare cream bottles in batch production, reducing manual work and improving packaging consistency.
| Model | PSR‑B240 |
| Labeling Speed | 24000 BPH (bottles per hour) |
| Container Diameter | 30‑100 mm (can be customized if exceed) |
| Container Height | 100‑400 mm |
| Label Max Height | 200 mm |
| Label Max Width | 300 mm |
| Label Roll Diameter | Inner:Φ76.2mm; Outer: Φ400mm |

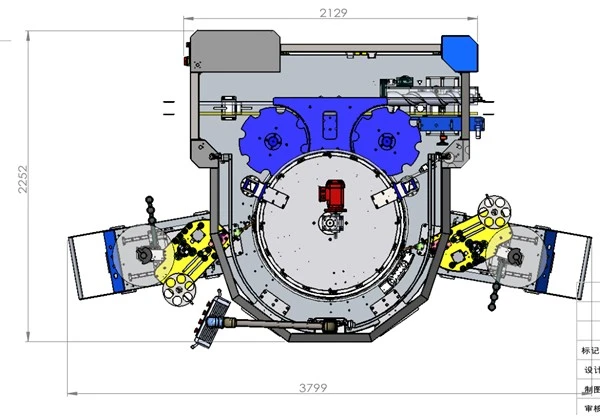

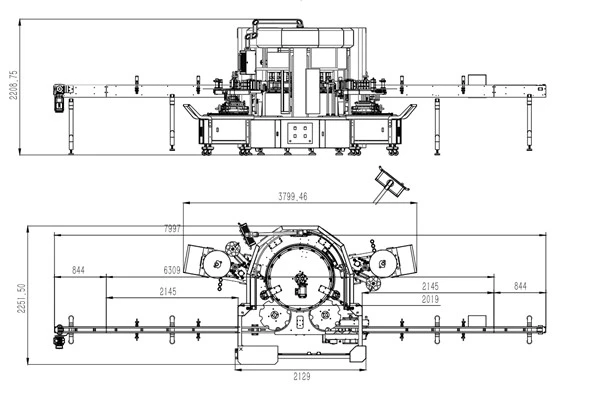

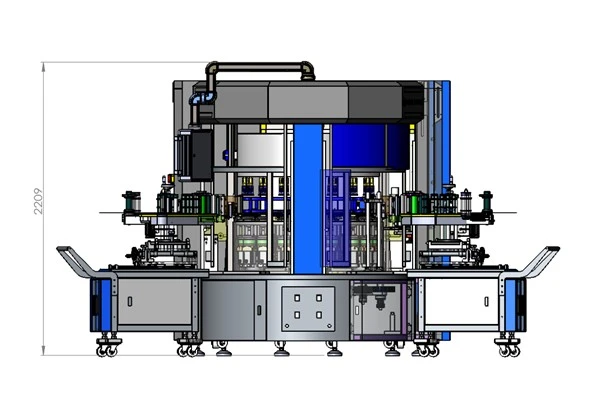

| Whole Machine Size | 4000L*2600W*2000H mm |
| Working Table Height | 1000±50 mm (can be customized) |
| Power | 380V/50Hz/30KW |

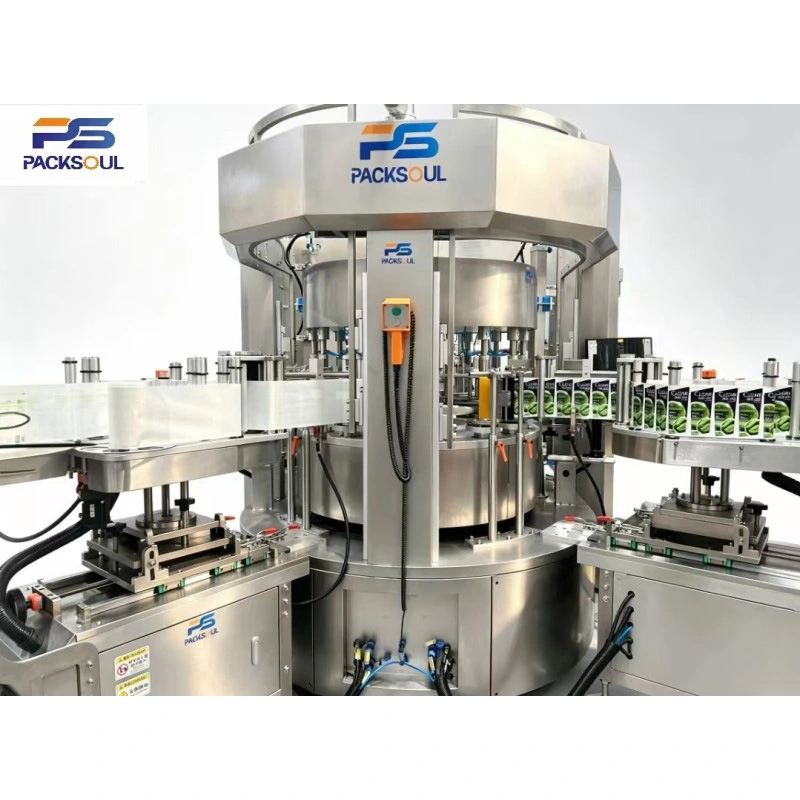

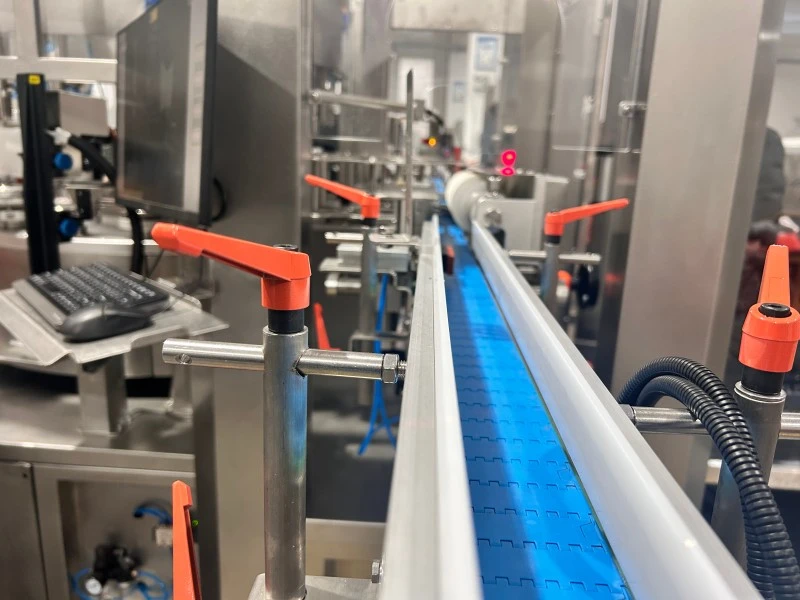

The conveyor moves 400ml flat body lotion bottles at a steady speed. The feeding system keeps the bottles evenly spaced. When the photoelectric sensor detects a bottle, the special fixture adjusts and holds it in the correct position. The servo system feeds the labels accurately, while two flexible pressure rollers apply the front and back labels at the same time. The labels stay flat and aligned. Finished bottles are discharged automatically for continuous production.
Suitable Industries: Skincare factories, body lotion manufacturers, personal care product factories and cosmetic OEM/ODM companies.
Suitable Products: 400ml flat body lotion bottles, moisturizer bottles, skincare lotion bottles and large flat personal care bottles.
Daily Cleaning: Remove label waste, glue and dust. Wipe the conveyor and pressure rollers to keep the machine clean.
Weekly Check: Clean the photoelectric sensor and check the positioning fixture and belt tension.
Monthly Maintenance: Tighten machine screws, lubricate the drive bearings and clean glue from the label peeling unit.
Long Term Shutdown: Disconnect the power, clean the machine and cover it for dust protection. Remove the label roll and store it in a dry place away from light.
Parameter Setup: Select the 400ml flat bottle setting on the touch screen and enter the label size, labeling mode and machine speed.
Automatic Feeding: Flat body lotion bottles enter the conveyor smoothly and continuously.
Accurate Positioning: The special fixture holds the bottle and corrects its angle.
Automatic Labeling: The servo system feeds the labels accurately for single or double side labeling.
Label Pressing: Flexible rollers press the labels evenly and remove air, keeping the labels smooth and firmly attached.
Product Discharge: Finished bottles are automatically sent to the next production process.
The 400ml Body Lotion Flat Bottle Labeling Machine has CE certification. Branded electrical components are used for stable performance and reliable operation. Each machine passes a 72 hour continuous production test before shipment. Labeling accuracy is checked and adjusted under simulated daily chemical production conditions.
Special Flat Bottle Design: The machine is specially adjusted for 400ml flat body lotion bottles. It helps reduce uneven double side labels, bubbles and lifted edges.
Designed for Personal Care Production: The clean and easy to maintain structure is suitable for high quality skincare workshops.
Accurate Double Side Labeling: Dual servo control keeps the front and back labels aligned and provides a consistent appearance.
Quick Changeover and Stable Production: Preset parameters make product changes easier and support continuous production.
Free Sample Testing: Customers can send bottles and labels for free testing before placing an order.
The complete machine has a 12 month warranty. Core parts damaged by non human factors are replaced free during the warranty period. Lifetime technical support is available.
We provide operation manuals, installation and commissioning videos, and maintenance guides.
One to one remote support is available for installation, setup, product changeover and troubleshooting.
Online after sales service is available 24 hours a day to help reduce production downtime.
Original spare parts are supplied for long term machine maintenance.
All export machines are packed in fumigation free wooden crates with waterproof film and shockproof foam protection. Tools, spare parts and manuals are included. Sea, air and land shipping are available worldwide. The packaging is designed for safe export transportation.

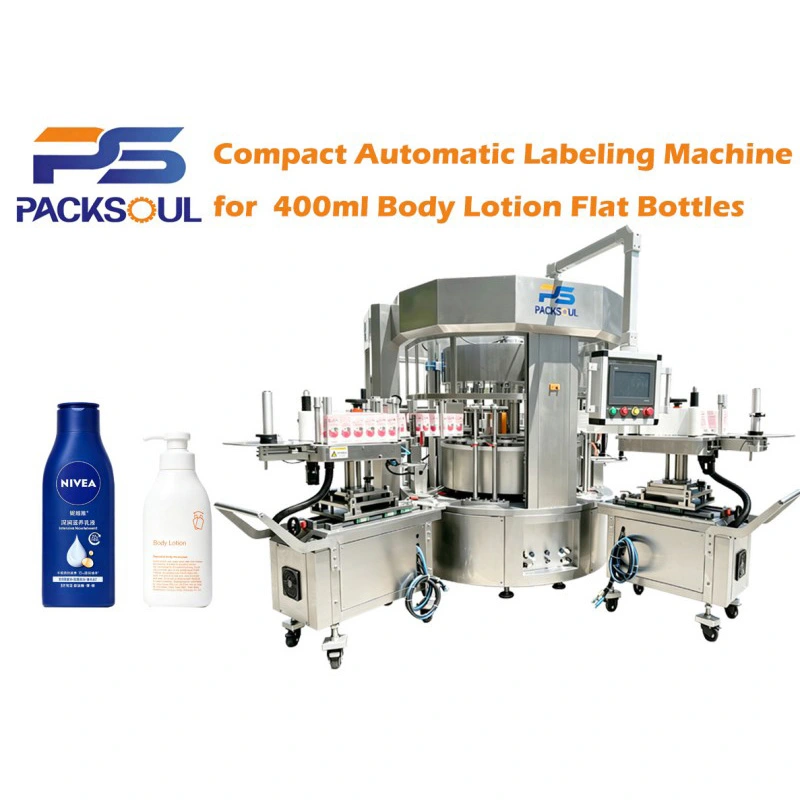

Packsoul focuses on labeling equipment for personal care, food and cosmetic products. Our Compact Automatic Labeling Machines for 400ml Flat Body Lotion Bottles are exported to Southeast Asia, the Middle East, Europe, America and other markets. We have our own production workshop and professional R&D and after sales teams, with many real customer projects.
A: The special flat bottle positioning system, servo label feeding and flexible pressure rollers work together to keep the front and back labels aligned. They also help reduce bubbles, wrinkles and lifted edges.
A: Yes. The labeling system can be adjusted for transparent, holographic and pearl labels. It helps keep these labels smooth and clean after application.
A: Yes. The machine can be adjusted according to the production line height, speed and station layout. It can connect with filling, capping, coding and packing equipment.
A: Yes. We can customize the machine according to bottle size, label specifications, workshop space and production capacity. Please provide bottle samples and product details for our engineers.

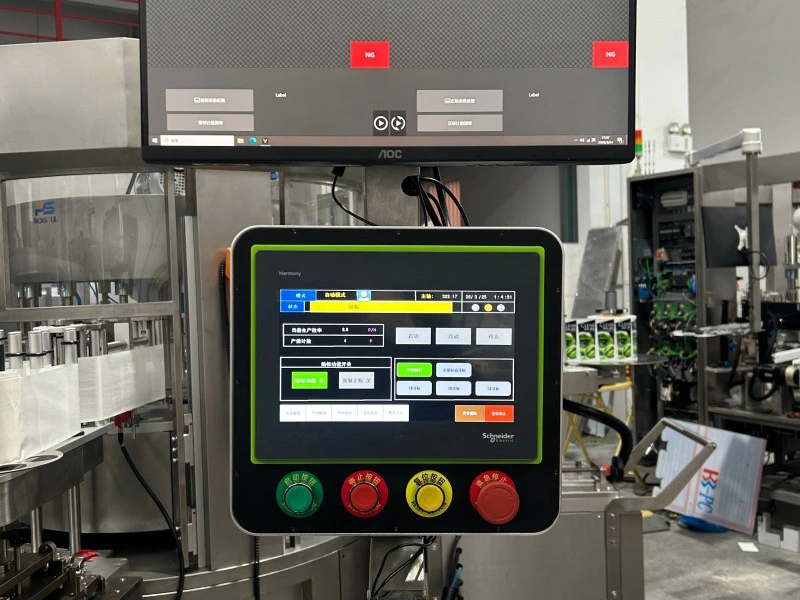

A: The touch screen is simple to use and includes preset product parameters. After basic training, operators can quickly learn the main functions and adjustments.
A: A standalone machine usually takes 30 to 60 days. Customized machines and complete production lines may require more time depending on the design. The confirmed delivery date will be stated in the contract.
A: Overseas orders are usually paid in full before shipment. After payment is received, we complete final testing, packing and shipping arrangements. Flexible terms may be discussed for long term customers.
A: Yes. Customers can send bottle and label samples to our factory. We provide free labeling tests and high quality test videos before order confirmation.
