We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

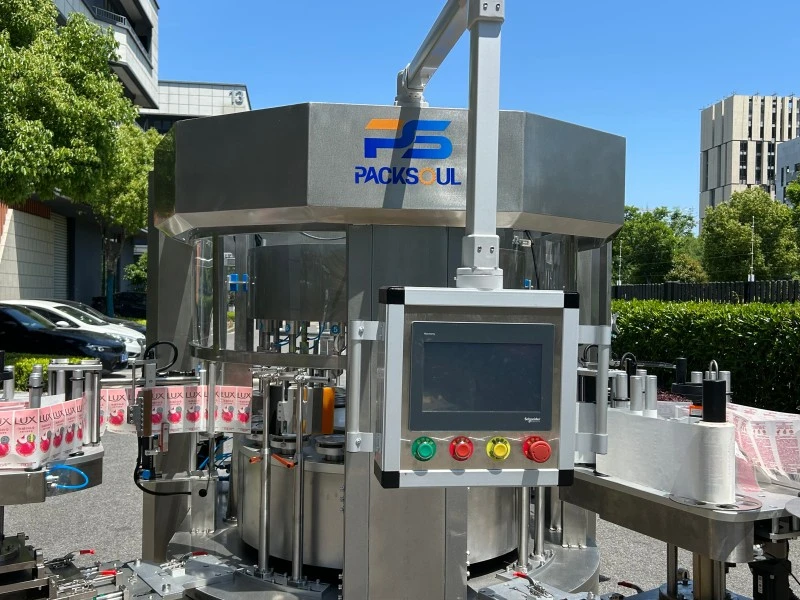

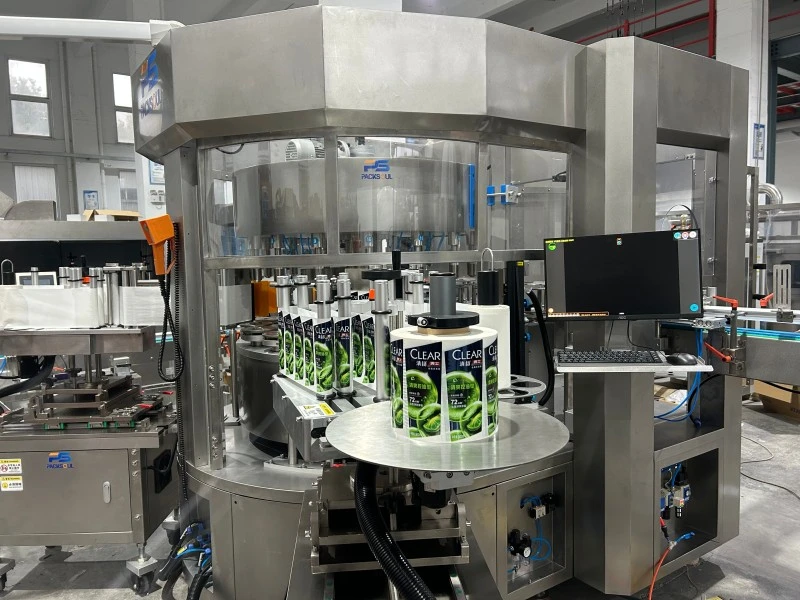

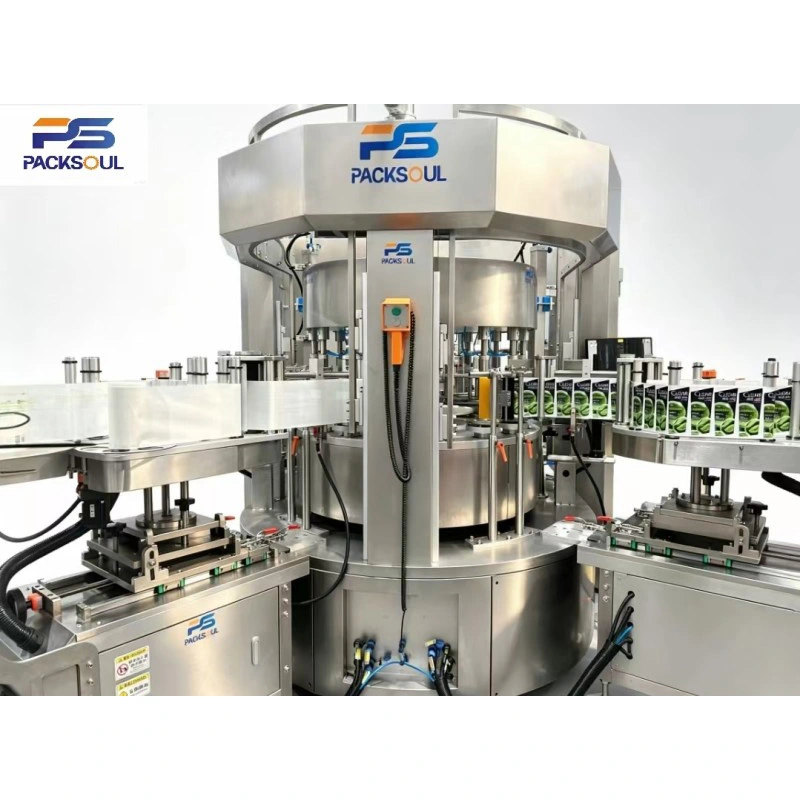

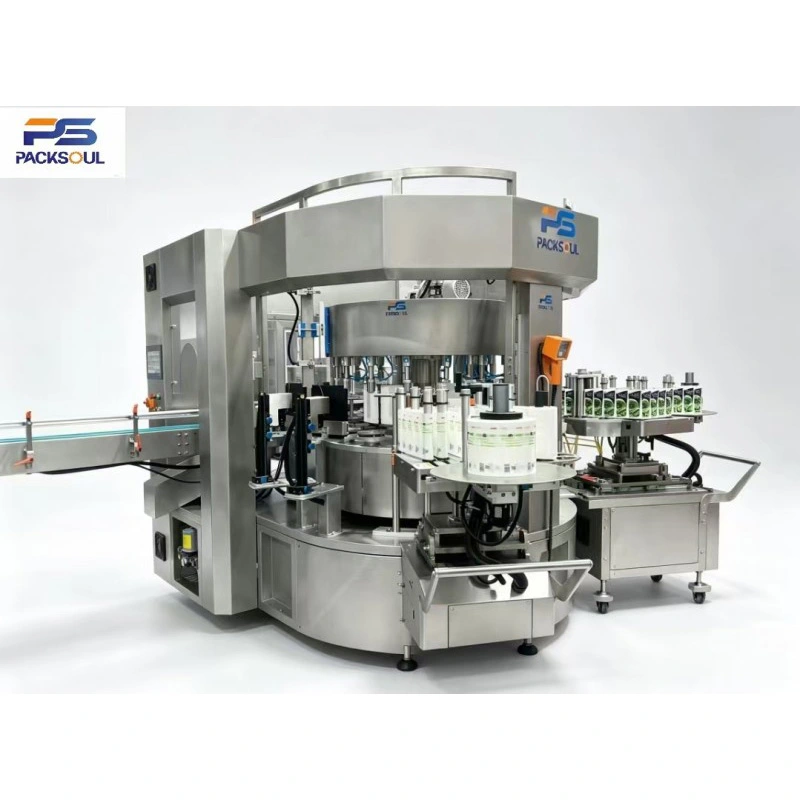

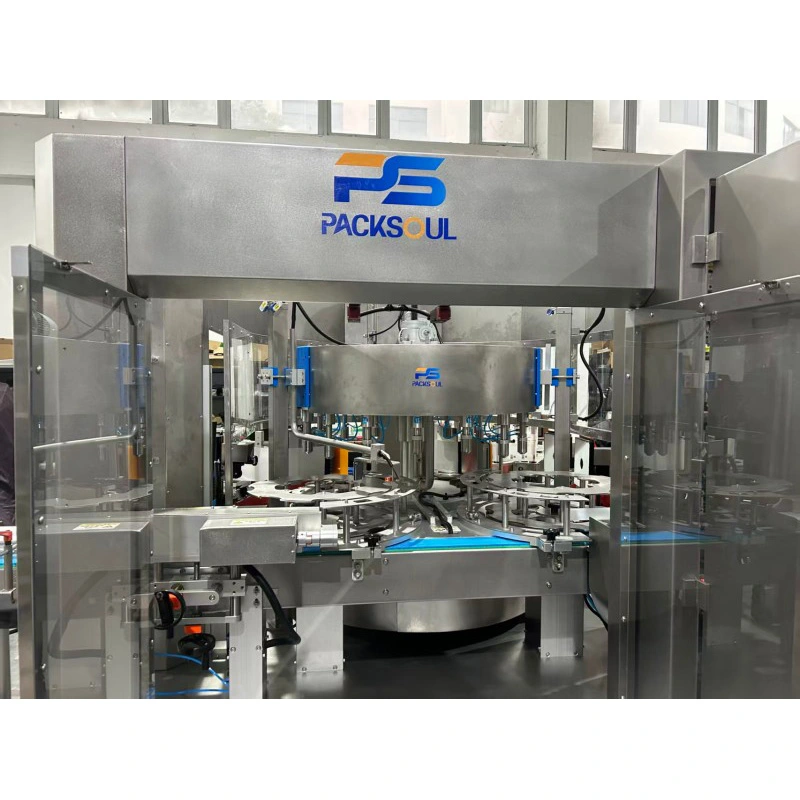

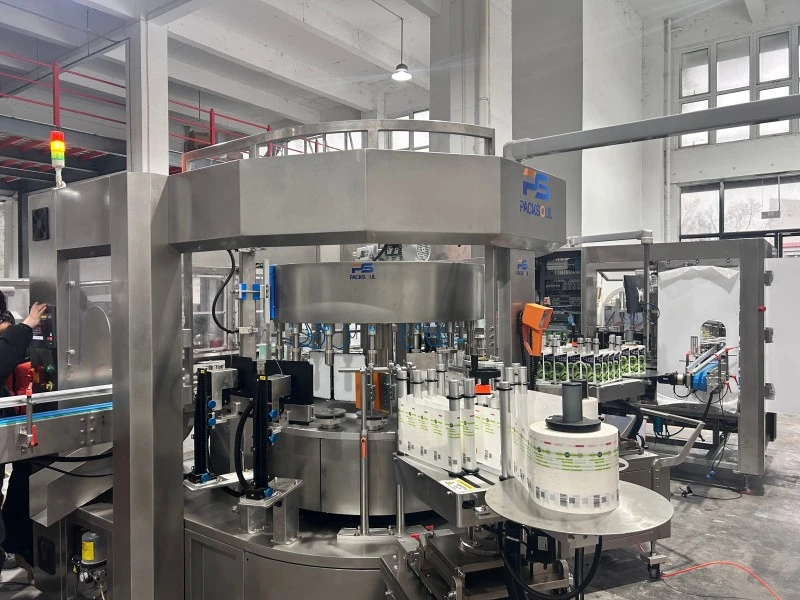

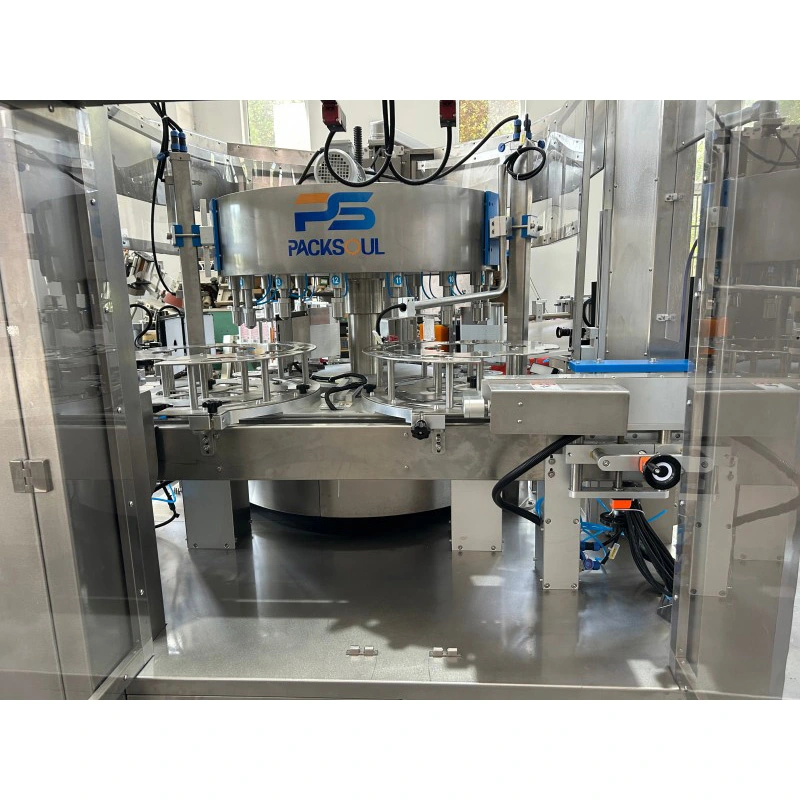

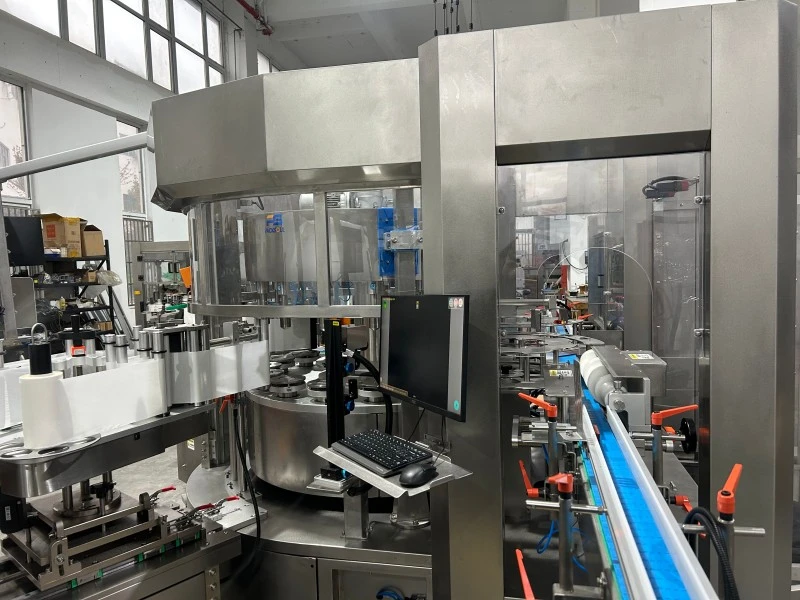

The 750ml Shampoo Flat Bottle Labeling Machine is designed for large flat shampoo bottles. It helps reduce label shifting, uneven double side labels, bubbles, wrinkles and lifted edges. The machine automatically completes bottle separation, positioning, labeling, pressing and discharge. It supports single or double side self‑adhesive labeling and is suitable for large scale production. It can work alone or connect with filling, capping and coding equipment.
| Model | PSR‑B240 |
| Labeling Speed | 24000 BPH (bottles per hour) |
| Container Diameter | 30‑100 mm (can be customized if exceed) |
| Container Height | 100‑400 mm |
| Label Max Height | 200 mm |
| Label Max Width | 300 mm |
| Label Roll Diameter | Inner:Φ76.2mm; Outer: φ400mm |

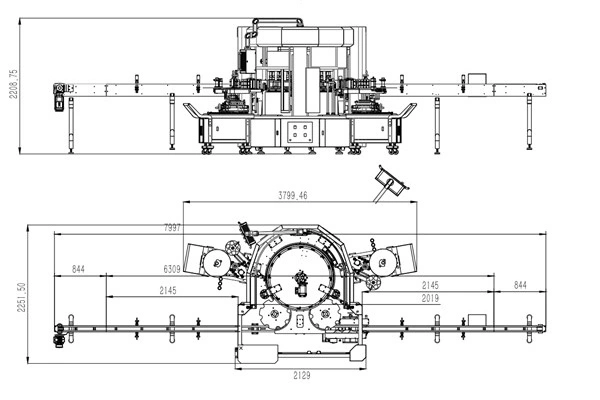

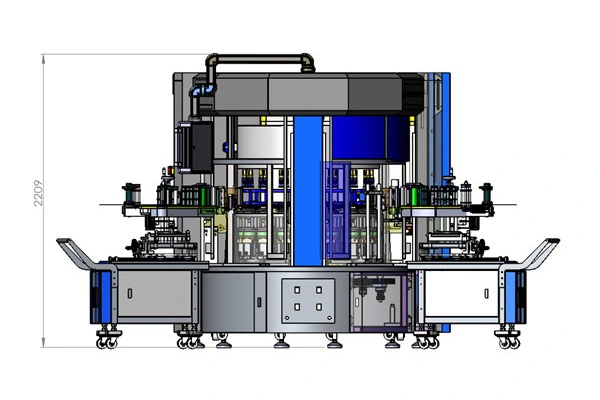

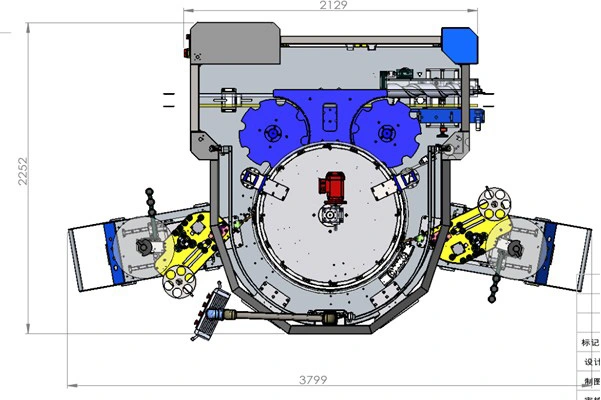

| Whole Machine Size | 4000L*2600W*2000H mm |
| Working Table Height | 1000±50 mm (can be customized) |
| Power | 380V/50Hz/30KW |

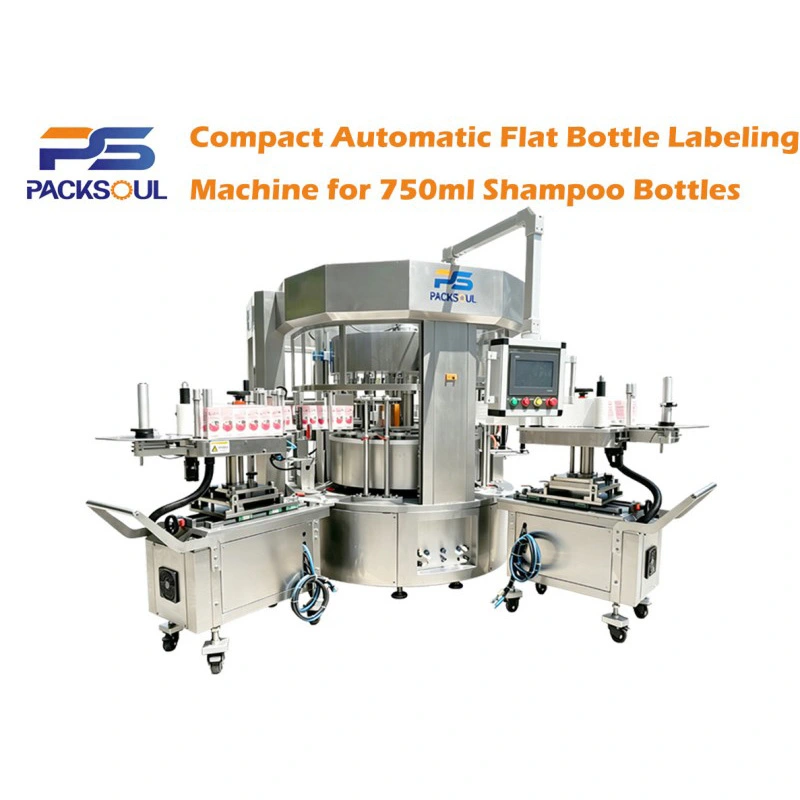

The Compact Automatic Labeling Machine for 750ml Flat Shampoo Bottles uses a continuous conveyor to move the bottles forward. The bottle separator keeps an even distance between bottles. When the photoelectric sensor detects a bottle, the special flat bottle holder adjusts and secures it. The servo system feeds the self‑adhesive labels accurately, while flexible pressure rollers follow the bottle and remove air. Single or double side labeling can be completed automatically. Finished bottles are discharged by the conveyor for continuous production.
Suitable Industries: Shampoo factories, personal care OEM factories, conditioner manufacturers and cosmetic production plants.
Suitable Products: 750ml flat shampoo bottles, large conditioner bottles, flat shower gel bottles and other flat personal care containers.
Project Cases: The machine is used by many personal care OEM factories for high volume double side labeling of large shampoo bottles. It provides a clean and consistent finish for premium packaging.
Daily: Remove glue and label waste after production. Clean the conveyor and pressure rollers.
Weekly: Clean dust from the sensors, check the bottle holder pressure and inspect belt tension.
Monthly: Check and tighten machine screws, lubricate moving parts and remove glue buildup from the label peeling unit.
Long Term Shutdown: Disconnect the power and clean the machine. Cover it for dust protection and store the label roll in a dry place away from direct light.

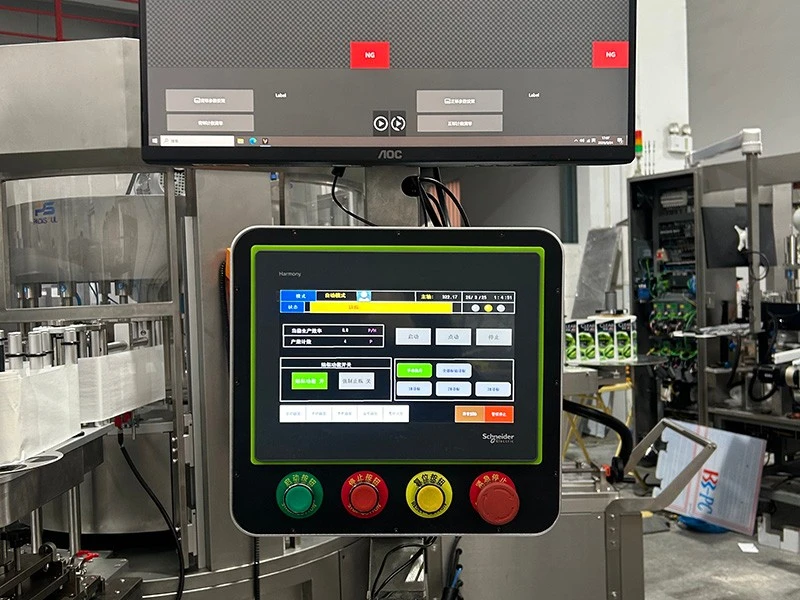

Parameter Setup: Select the 750ml shampoo bottle template on the touch screen. Set the label size, machine speed and single or double side labeling mode.
Automatic Feeding: 750ml flat shampoo bottles enter the conveyor continuously.

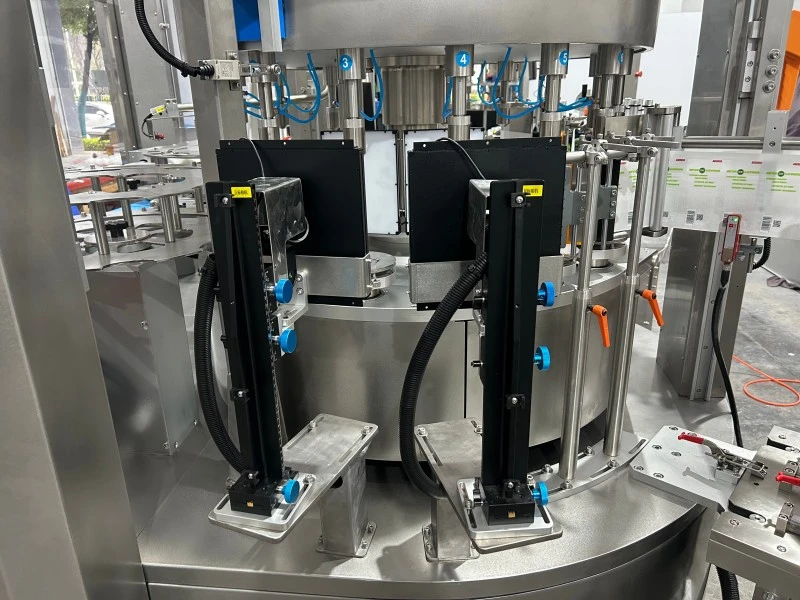

Bottle Positioning: The special holder secures the bottle and corrects its angle to prevent movement.

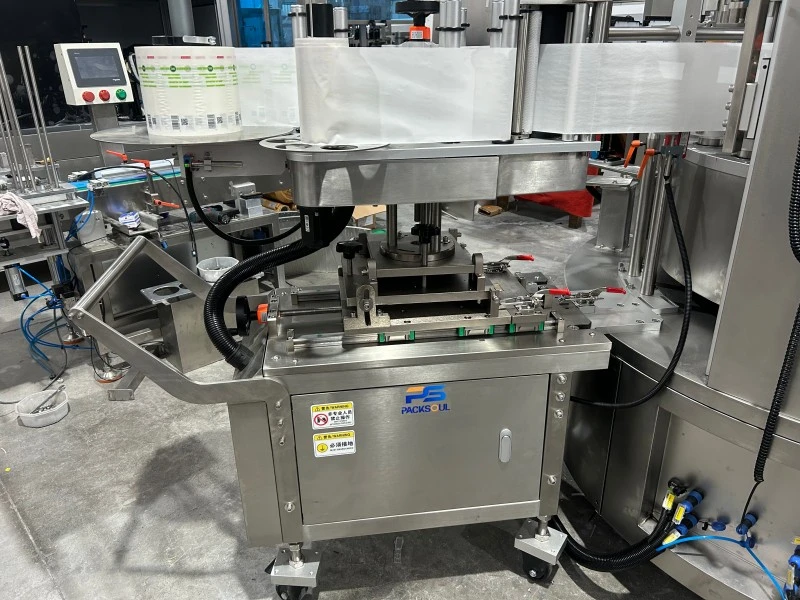

Servo Labeling: The servo system feeds the self adhesive labels accurately for single or double side labeling.
Roller Pressing: Flexible rollers press the labels and remove air between the label and bottle surface.
Product Discharge: Finished shampoo bottles leave the machine and move to the next production process for continuous operation.
| No. | Component Name | Brand |
| 1 | HMI | Schneider (France) |
| 2 | Servo Motor | Schneider (France) |
| 3 | Servo Drive | Schneider (France) |
| 4 | Main Motor | Schneider (France) |
| 5 | Conveyor Motor | Transky (Italy) |
| 6 | PLC | Schneider (France) |
| 7 | Frequency Inverter | Schneider (France) |
| 8 | Frequency Inverter | Schneider (France) |
| 9 | Transparent Label Sensor | LEUZE (Germany) |
| 10 | Object Detection Sensor (Reflective Photoelectric Type) | SICK (Germany) |
| 11 | Detection Photoelectric Sensor (Reflective Type) | SICK (Germany) |
| 12 | Proximity Switch | SICK (Germany) |
| 13 | Switching Power Supply | MW (Taiwan, China) |
| 14 | Universal Change‑over Switch | MOELLER (Germany) |
| 15 | Emergency Stop Switch | Schneider (France) |
| 16 | Earth Leakage Circuit Breaker | Schneider (France) |
| 17 | Miniature Circuit Breaker | Schneider (France) |
| 18 | AC Contactor | Schneider (France) |
| 19 | Rotary Encoder | Nemicon (Japan) |
| 20 | Electrical Slip Ring | Senring |
| 21 | Pressure Gauge | Panasonic (Japan) |
| 22 | Vision Camera | Hikvision |
The 750ml Shampoo Flat Bottle Labeling Machine has CE certification. Key electrical components come from well known brands. Before shipment, each machine completes a 72 hour continuous production test using real shampoo bottles. Labeling accuracy and machine performance are checked carefully to ensure stable operation for overseas customers.
The machine is specially adjusted for large 750ml flat shampoo bottles. The bottle holding and servo settings help improve front and back label alignment and reduce bubbles and lifted edges.
Compared with large rotary machines, this model needs less floor space and offers a more affordable solution for small and medium size personal care factories.
The machine is easy to clean and designed for humid production areas with water vapor and shampoo residue.
Two servo systems work together for double side labeling. The front and back labels stay well aligned for a clean package appearance.
Send us your 750ml shampoo bottles and labels for free testing. We can provide test videos before you place the order.
Warranty Service: The complete machine has a 1 year warranty. During the warranty period, non human caused part replacement and technical service are free, except for consumable parts. After the warranty, only spare parts and reasonable service fees are charged.
Technical Support: Phone and online remote support are available during machine operation. Common problems can be checked remotely. Onsite engineer service can be arranged when necessary.
Manuals and Training: Complete Chinese and English manuals are provided for machine assembly, parameter settings, maintenance and troubleshooting.
Regular Follow Up: We keep in touch with customers and check machine operation and maintenance status to help solve production problems.
Customized Service: Machine adjustments and component upgrades can be made according to bottle types and production line requirements. Payment terms for long term customers can also be discussed.
All export machines are packed in international standard fumigation free wooden crates. Waterproof film and foam protection are used inside the crate to reduce the risk of impact and moisture during transportation. Tools, spare parts and operation manuals are included. FOB, CIF and CFR terms are available, with sea and air shipping options.
PackSoul is a Chinese supplier specializing in self‑adhesive labeling equipment. Our Compact Automatic Labeling Machines for 750ml Flat Shampoo Bottles are exported to Southeast Asia, the Middle East, Latin America and other markets. We work with many personal care and cosmetic OEM factories and have completed many overseas projects. Our production, R&D and after‑sales teams provide complete support.
A: The servo constant tension system and special flat bottle positioning structure keep the bottle stable during labeling. The pressure rollers also remove air, helping the label stay smooth and firmly attached.
A: Yes. We can adjust the machine height and running speed according to your existing line. It can connect with filling, capping and coding equipment to build a complete automatic packaging line.
A: For an overseas standalone machine, installation usually takes 1 day and commissioning takes 6 to 9 days. The actual schedule depends on the site conditions and production line setup.
A: One experienced engineer is normally enough for a standard standalone machine and can handle installation, commissioning and training. For large customized production lines, additional engineers can be arranged according to the project.
A: During the 1‑year warranty, replacement parts and technical service are free for non‑human‑caused problems, except consumable parts. After the warranty, spare parts are charged separately.
A: Yes. We provide complete Chinese and English manuals covering machine assembly, parameter adjustment, daily maintenance and common troubleshooting. Online technical guidance is also available.
