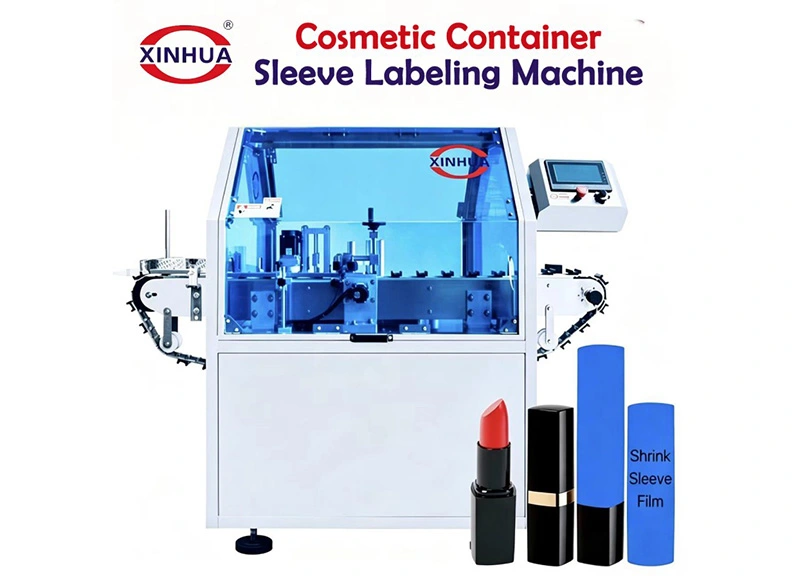

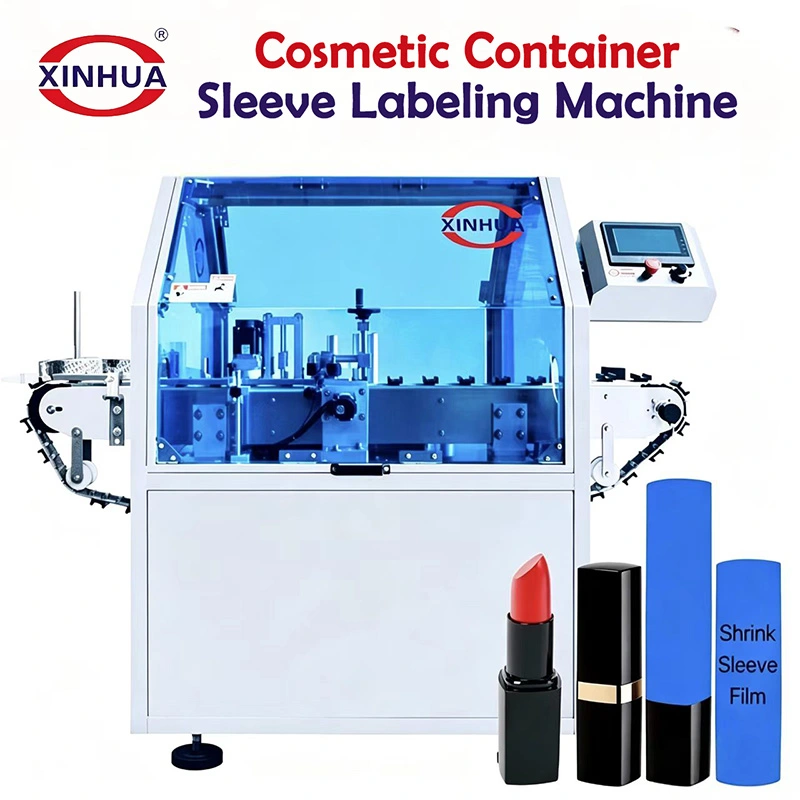

As cosmetic packaging becomes more diverse, small and irregular containers require more precise sleeving. The PackSoul Cosmetic Container Sleeve Labeling Machine combines horizontal conveying with accurate positioning for automatic film feeding, sleeving, and shrinking, reducing misalignment, jamming, and uneven shrinking during high-speed production.
The PackSoul Cosmetic Container Sleeve Labeling Machine uses a precise positioning system to ensure accurate film orientation and consistent sleeve placement. It is ideal for cosmetic packaging with logo and opening-direction requirements, including lipstick tubes, lip gloss tubes, and cream tubes.
Designed for common cosmetic packaging, it handles square lipstick tubes, round lip gloss tubes, eyeliner and mascara tubes, foundation tubes, cream tubes, and serum tubes. Adjustable conveying and gripping systems accommodate different sizes and materials.

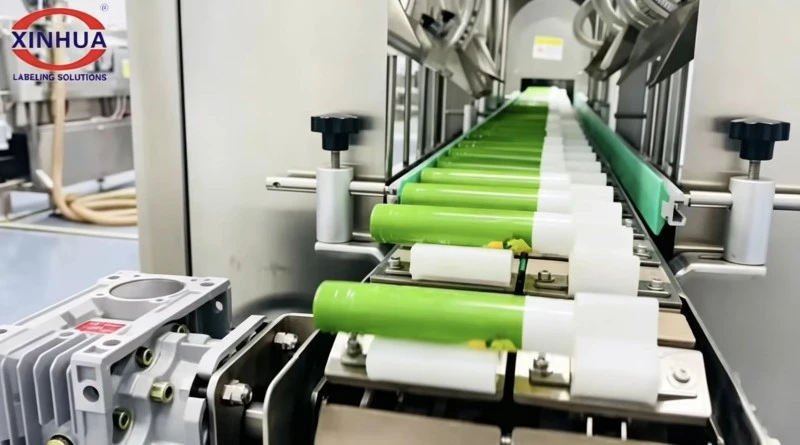

The horizontal conveying system minimizes tipping, shifting, and deformation of lightweight cosmetic containers and thin-wall tubes. It ensures smooth, stable sleeving and reliable integration with automated production lines for continuous operation.
Supports hot air, steam, and heat gun shrinking. The temperature can be adjusted from 90°C to 140°C, with controllable airflow direction for different film materials. Even heating helps prevent over-shrinking and incomplete shrinking, delivering a smooth, tight finish.
Compatible with PVC, PETG, and OPS shrink films. Shrink parameters can be adjusted according to different film properties and packaging requirements.
Supports various sleeving positions and formats, including top & bottom sleeve labeling, partial sleeve wrapping or labeling, and cap and closure tamper-evident sleeve bands.
| Machine Model | XHL-100H, XHL-200H, XHL-300H |
| Main Engine Dimensions | 2000L × 1800W × 2000H mm |
| Sleeve Labeling Method | Horizontal |
| Horizontal Sleeve Application Speed | 60–350 Pieces Per Minute |
| Machine Frame Structure Material | Stainless Steel SUS 304 / SUS 316L |
| Sleeve Diameter Cutting | 5 mm – 130 mm (Customization Available) |
| Sleeve Length Cutting | 5 mm – 300 mm (Customization Available) |
| Sleeve Roll Max Outer Diameter | Max 450 mm |
| Shrink Sleeve Label Material | PVC, PET, PETG, OPS, PE, PLA, POF, etc. |
| Sleeve Roll Inner Core Reel Diameter | 76 mm, 127 mm |
| Voltage | AC 3P 220 / 380V / 415V, 50/60 Hz |
| Main Engine Power Consumption | 10 KW |

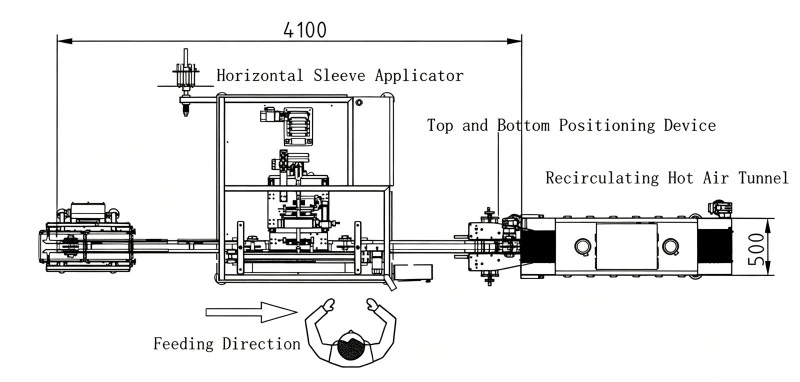

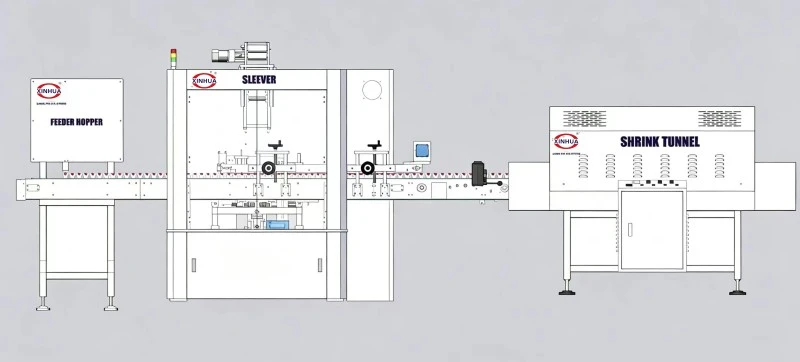

Stores and buffers products, automatically separating and conveying them to the fixtures in an orderly manner.
Unwinds and feeds the sleeve film, cuts it to length, and accurately applies it to the product.
Uses mechanical positioning and belt conveying to secure the sleeve position. A heat gun can be used for pre-shrinking before entering the shrink tunnel.
Available in electric hot-air or steam versions, providing 360° uniform shrinking for a tight, smooth fit.

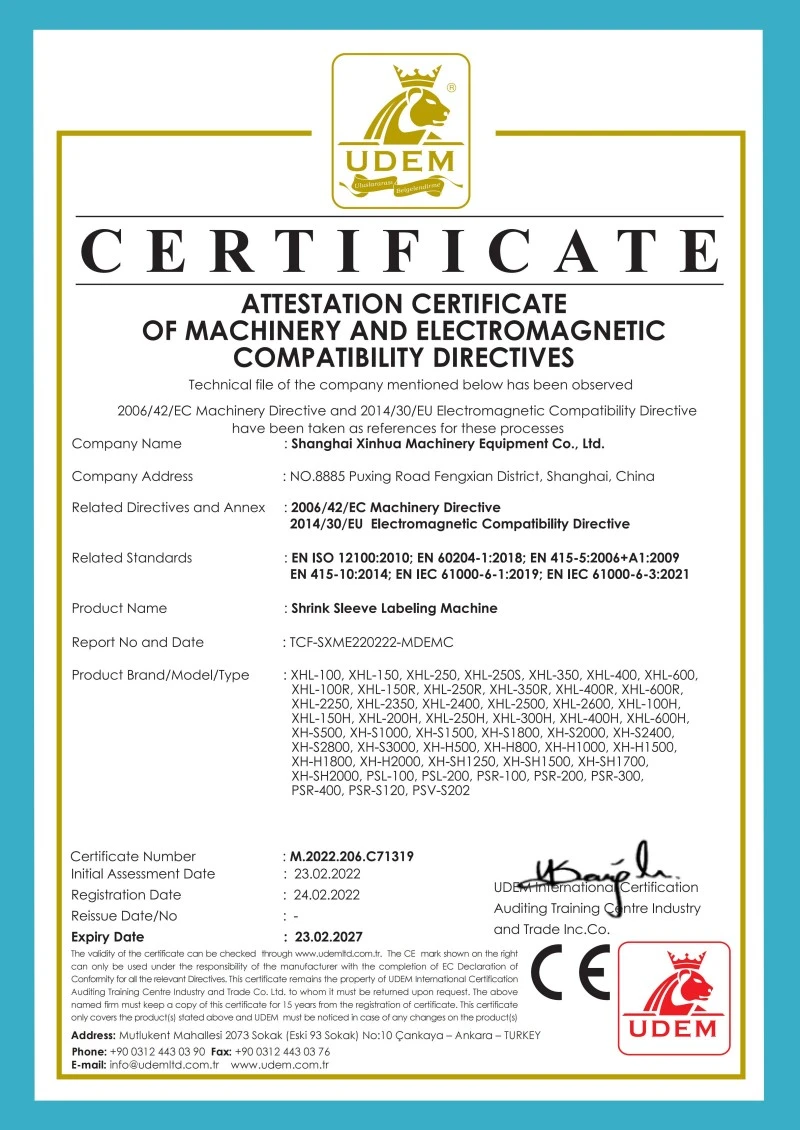

The machine holds multiple utility model patents and has obtained EU CE certification, ensuring safe, compliant operation for cosmetic production lines worldwide.

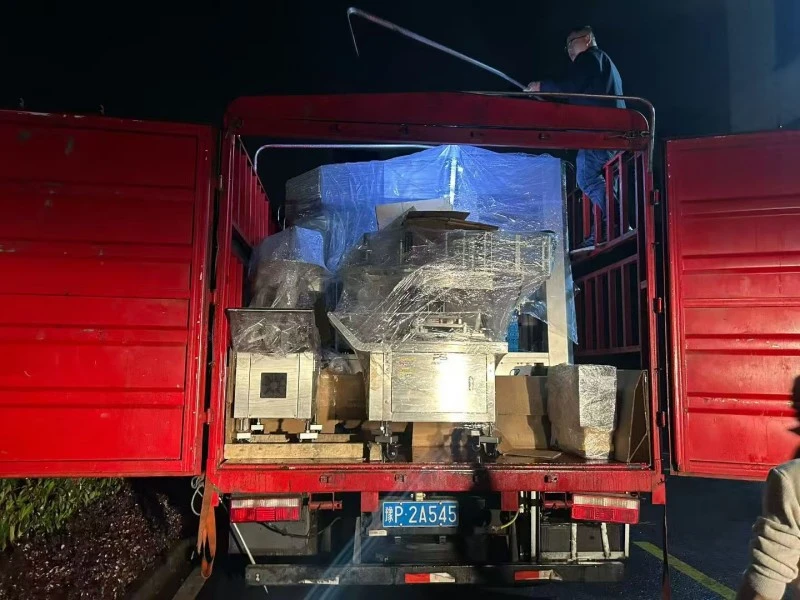

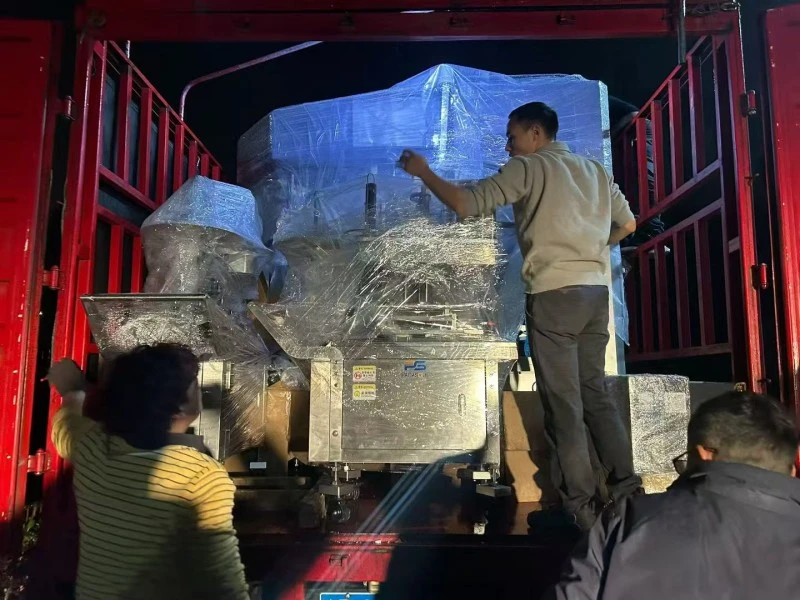

Before delivery, every cosmetic container horizontal sleeve labeling machine is carefully protected with professional packaging. Trained personnel follow standardized loading procedures to ensure safe handling and secure transportation.

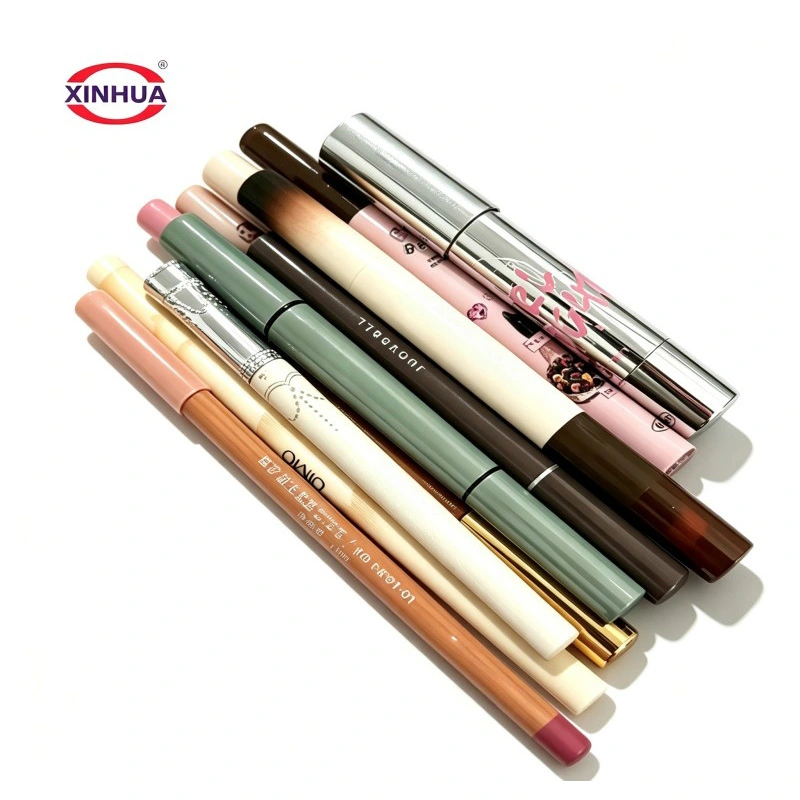

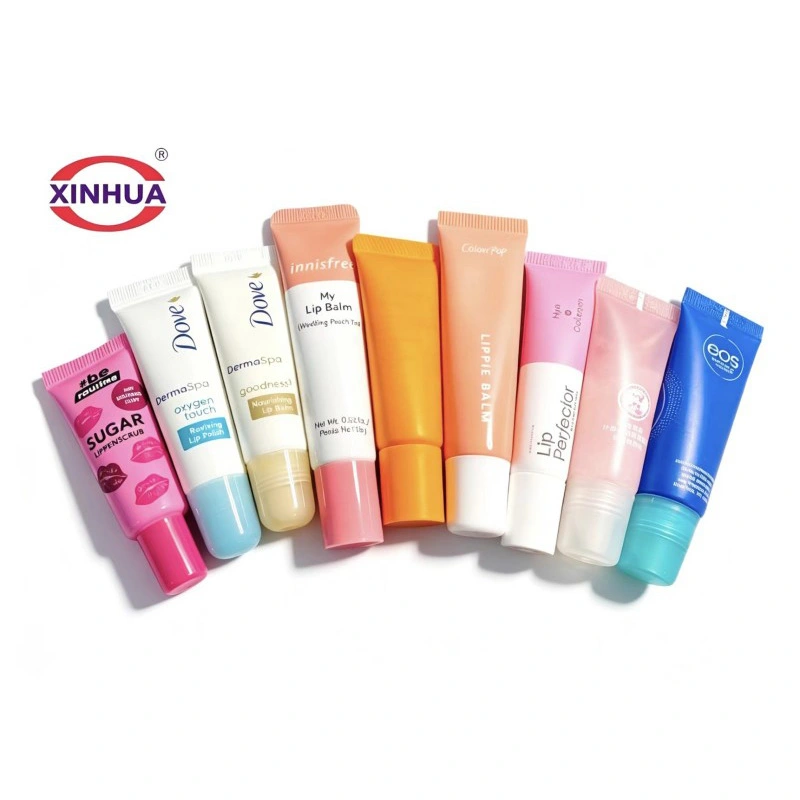

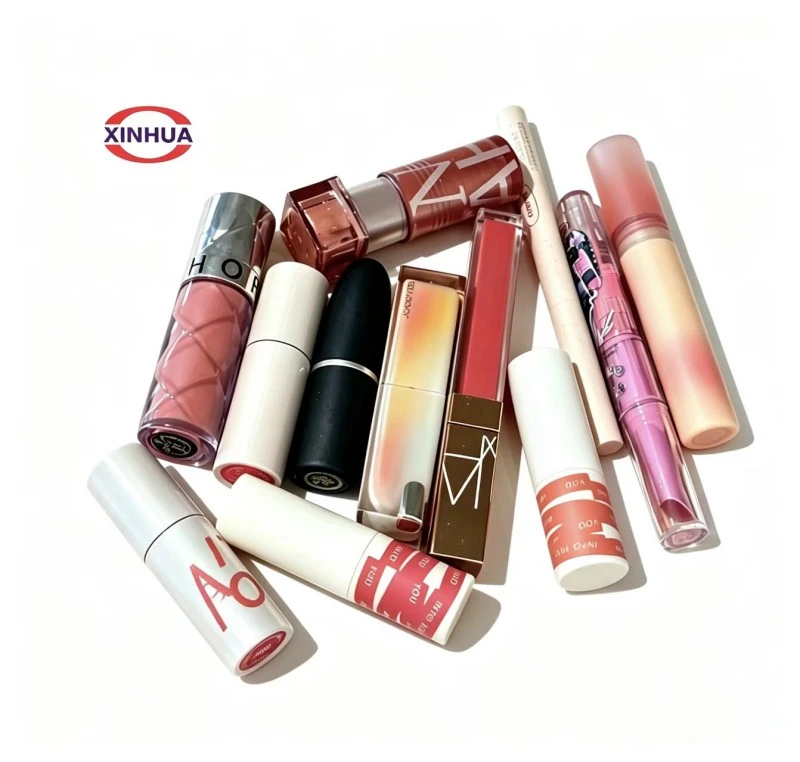

Designed for small cosmetic containers, the horizontal sleeve labeling machine is suitable for a wide range of products, including lipstick tubes, lip gloss tubes, mascara tubes, eyeliner tubes, eye cream tubes, serum tubes, and cream tubes. The machine can handle round, square, and irregular-shaped cosmetic packaging with stable sleeve labeling performance.
Cosmetic containers are often small, lightweight, and easy to tilt or deform during transportation. The horizontal conveying structure keeps products stable throughout the labeling process, reducing movement and positioning errors. Compared with traditional vertical conveying systems, the horizontal design is better suited for soft tubes, slim containers, and lightweight packages, effectively preventing product tilting, jamming, and sleeve position deviation.

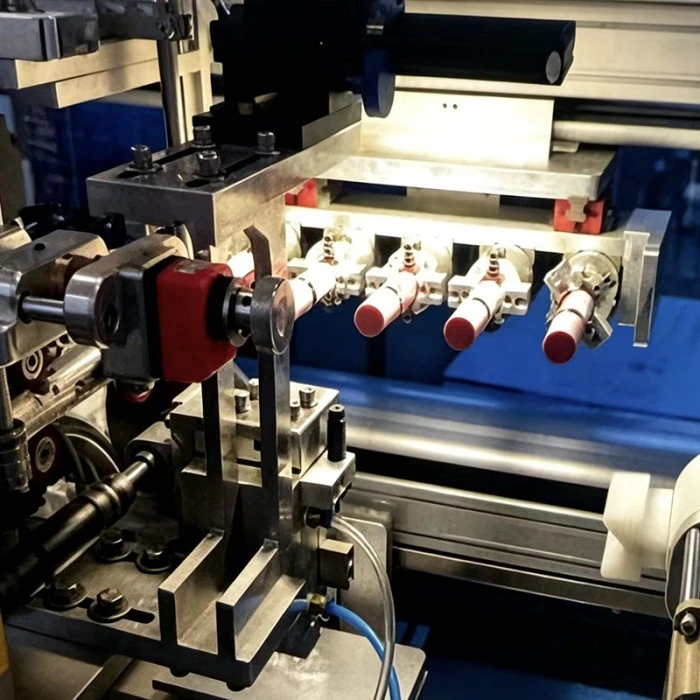

The machine is equipped with a dedicated positioning and conveying system to guide products smoothly into the shrinking area. This ensures that soft tubes remain in a fixed position before shrink application, preventing sleeve displacement.

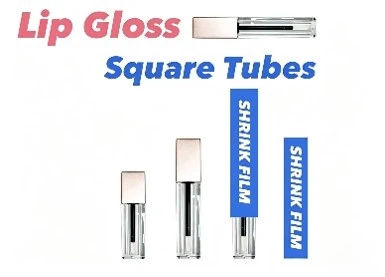

Yes. The conveying system, positioning mechanism, and clamping structure are designed for flexible adjustment, allowing the machine to accommodate different diameters, lengths, and container shapes. Suitable products include lipstick tubes, square lip gloss tubes, mascara tubes, serum tubes, and small skincare containers.
The machine precisely controls key parameters including hot air temperature, airflow distribution, and conveyor speed. This ensures uniform heat shrinkage, creating smooth, tight-fitting sleeves with an attractive packaging appearance.
With extensive experience in automatic packaging equipment, PackSoul develops horizontal shrink sleeve labeling solutions tailored to the requirements of the cosmetics industry, including appearance quality, positioning accuracy, and production stability.
From product positioning and film compatibility to shrink performance, every detail is optimized according to real production needs, helping customers achieve consistent packaging quality while reducing manual labor costs.
Send your container samples, dimensions, sleeve material, and required production speed. PackSoul can review the application and confirm the most suitable horizontal sleeve labeling configuration for your cosmetic packaging line.
