We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

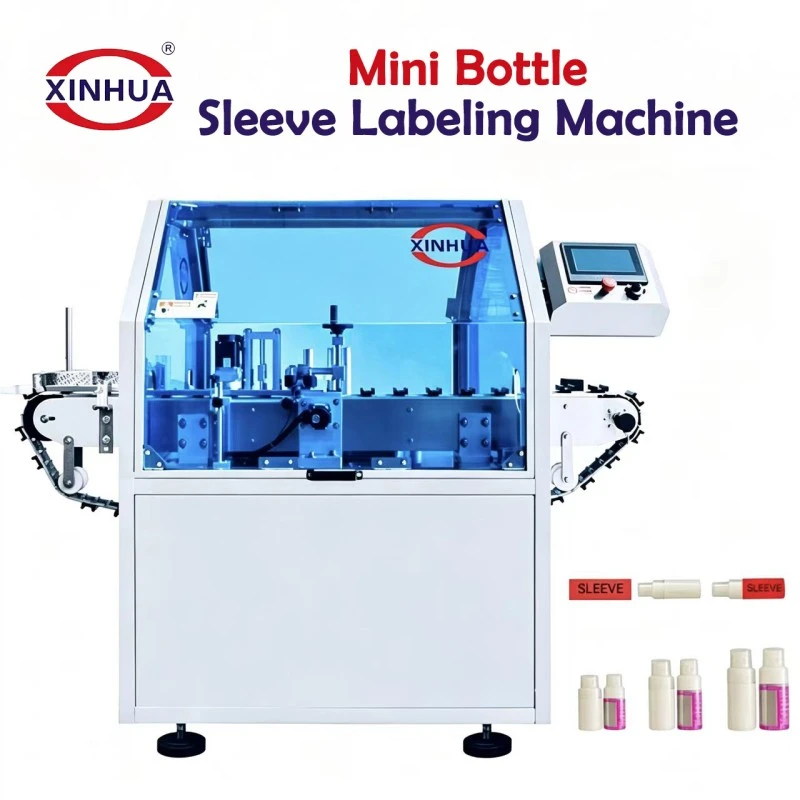

PackSoul Mini Bottle Sleeve Labeling Machine is a fully automatic shrink sleeve labeling machine designed for small‑size containers. It is suitable for 2‑50ml mini bottles, dropper bottles, perfume bottles, and essential oil bottles, supporting neck, partial‑body, and full‑body sleeve labeling for automated small bottle packaging production.
Small containers usually feature:
Lightweight bottle bodies
Small diameters
Easy tipping during conveying
Difficult sleeve positioning
Traditional vertical conveying may cause bottles to shift or tilt, affecting sleeve labeling accuracy.

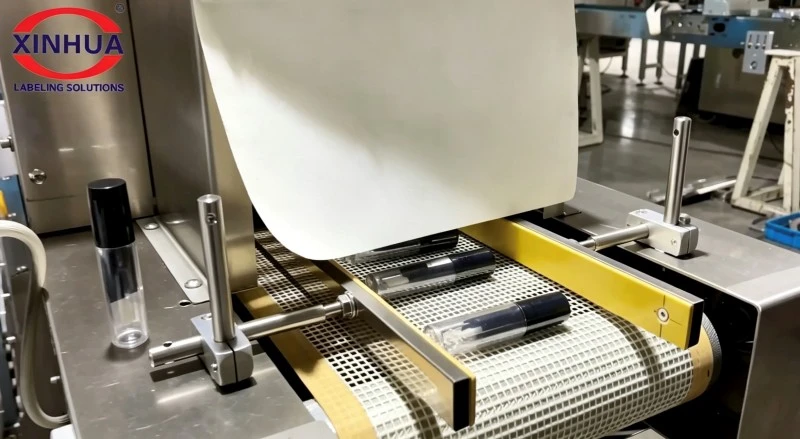

PackSoul Mini Bottle Sleeve Labeling Machine adopts a horizontal conveying structure to keep bottles stable during transportation, reducing tipping and displacement while improving labeling consistency in continuous production.
Designed for lightweight containers such as mini bottles, dropper bottles, and essential oil bottles. The horizontal conveying system ensures stable product transfer into the sleeving and shrinking area, reducing bottle movement and improving labeling accuracy.

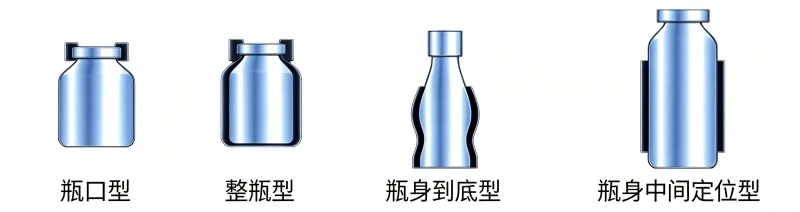

The machine supports multiple sleeve application options to meet different packaging requirements:
Partial body sleeve labeling
Full body sleeve labeling
Cap sealing sleeve labeling

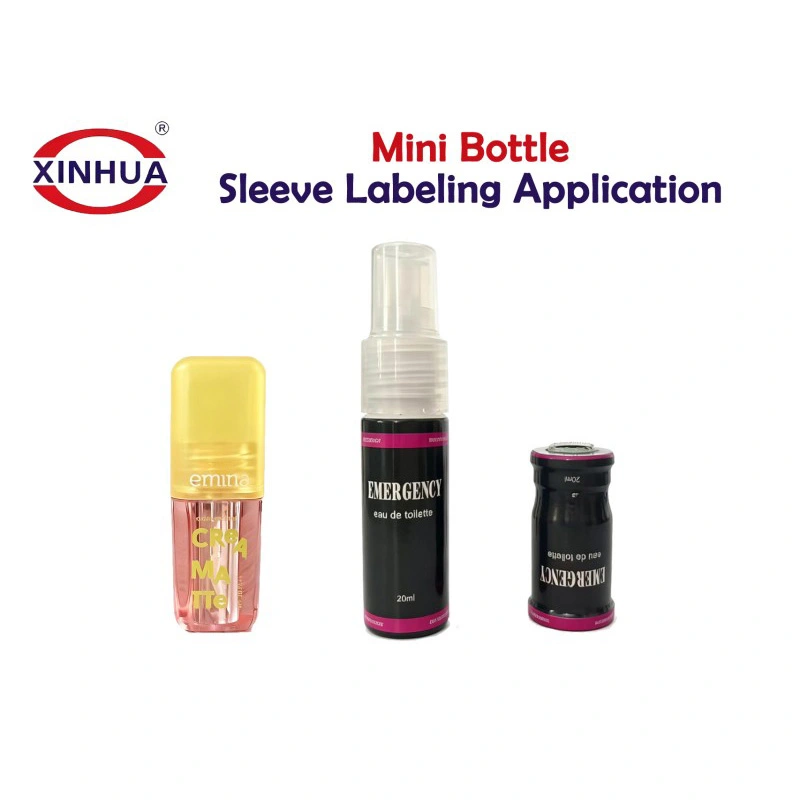

Optimized for small‑size containers, PackSoul Mini Bottle Sleeve Labeling Machine can handle a wide range of products, including:
* 1ml‑100ml mini bottles
* Dropper bottles
* Roller bottles
* Spray bottles
* Perfume bottles
* Essential oil bottles
It provides a flexible sleeve labeling solution for various small container applications.
The machine is suitable for a wide range of container materials, including glass, PET, PE, HDPE, LDPE, aluminum, and metal containers.
The specially designed adjustable cutting unit ensures smooth and accurate sleeve cutting, significantly reducing burrs and defects while making blade replacement easier and more convenient.
| Description | Positioning Horizontal Shrink Sleeve Applicator |
| Machine Material | Main Body SUS304 |
| Main Machine Size | 1800*1450*1450mm(L*W*H) |
| Capacity | 40‑100pcs/min |
| Container Size | 5mm‑40mm |
| Sleeve Material | PVC,PETG,OPS etc |
| Product Material | PET, PP, PE, HDPE, Glass, Metal etc. |
| Sleeve Thickness | 0.025‑0.13mm |
| Roll Label Size |
Core Diameter: φ76mm, Outer Diameter:φ400mm |
| Voltage | AC 3P 220/380V,50/60Hz |
The workshop demonstrates the actual operation of the PackSoul Mini Bottle Sleeve Labeling Machine.
The machine performs automatic shrink sleeve labeling on small bottles, with stable conveying and accurate sleeve positioning, delivering efficient and reliable packaging performance.
With various small and uniquely shaped containers requiring high labeling accuracy, PackSoul Mini Bottle Sleeve Labeling Machine delivers stable sleeve application, demonstrating reliable technology for automated labeling of mini containers.

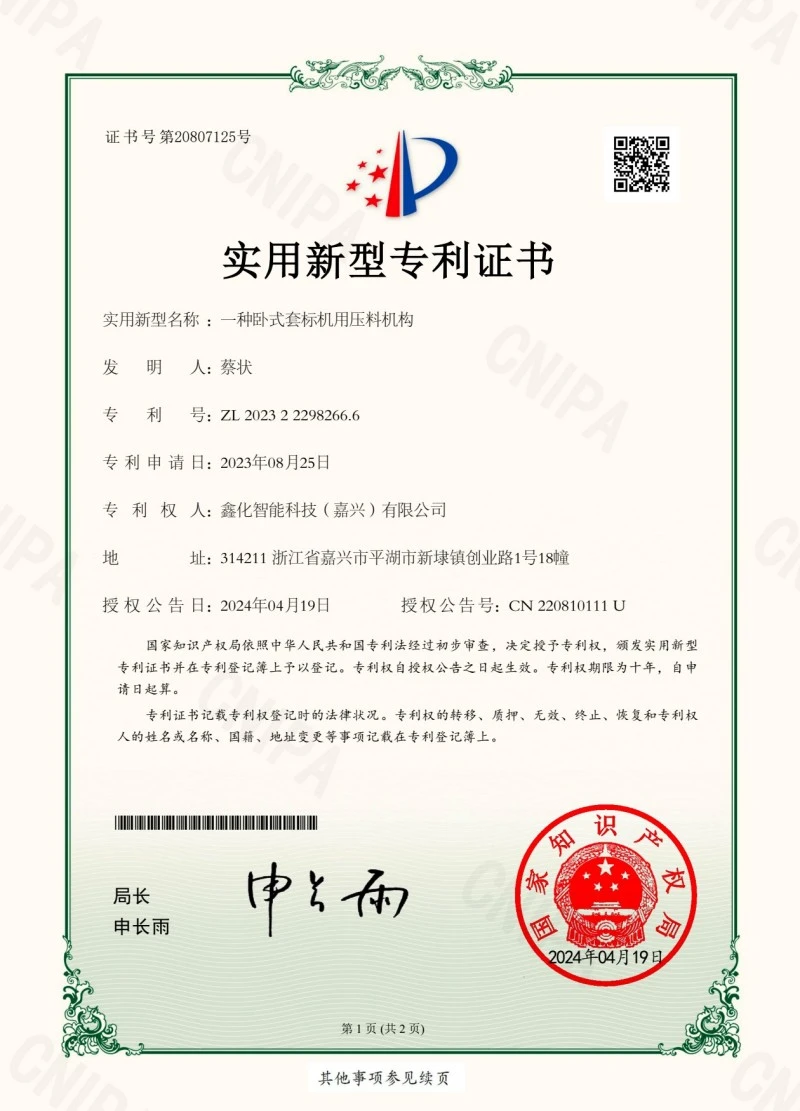

The company has independent R&D capabilities.
1.Made with high‑quality materials and advanced manufacturing processes, ensuring new equipment meets required quality, specifications, and performance standards.
2.One‑year free warranty after acceptance. On‑site service is provided within 48 hours after receiving a repair request. Non‑wear parts with quality issues will be repaired or replaced free of charge during the warranty period. Additional paid maintenance is available for damage caused by improper operation or external factors.
PackSoul provides dedicated protection for precision components of the sleeve labeling machine.

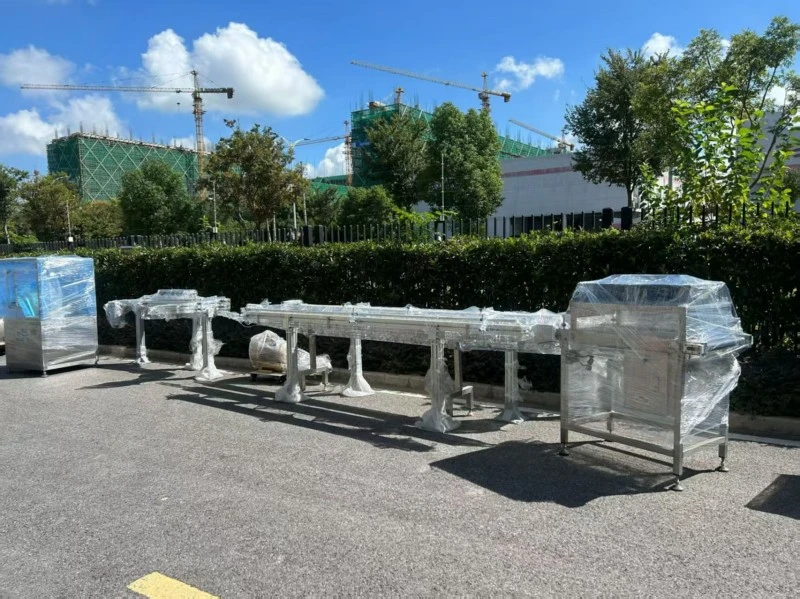

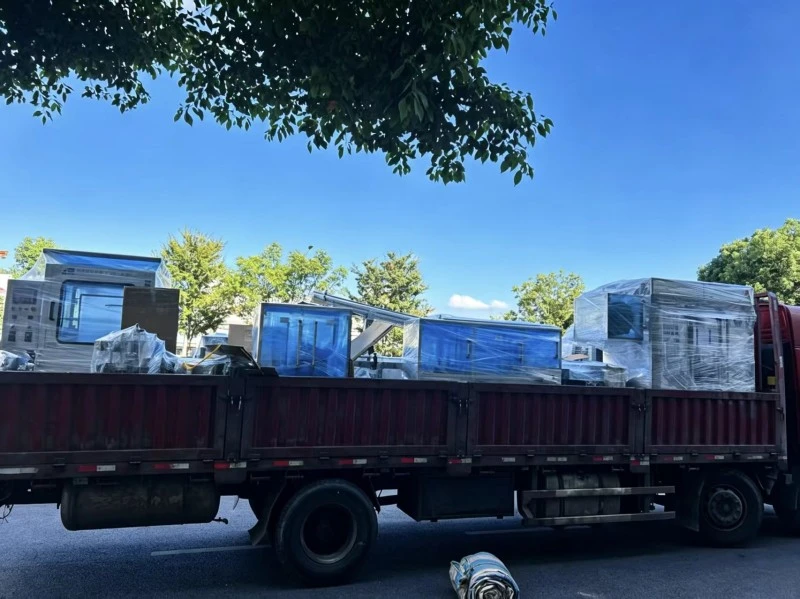

The machine is wrapped with protective film to prevent dust and moisture during transportation. Reinforced packaging reduces damage caused by impact, ensuring safe delivery and smooth installation.
A: It can process containers with a minimum diameter of 5mm, such as 1ml dropper bottles and perfume samples, and supports bottles up to 40mm diameter, covering common 1‑100ml small containers.
A: It supports various shrink films, including PVC, PETG, and OPS, with thicknesses from 0.025‑0.13mm for different shrink and printing requirements.
A: Yes. It supports neck, partial body, full body, and cap sealing sleeve labeling. The adjustable cutting system ensures accurate positioning for different packaging designs.
A: The adjustable cutting system allows quick blade replacement without tools, providing smooth cutting with fewer burrs and reducing downtime.
A: The machine size is 1800×1450×1450mm (L×W×H). It is recommended to reserve 1 meter of operating space at the front and rear for maintenance and material changeover.
