We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

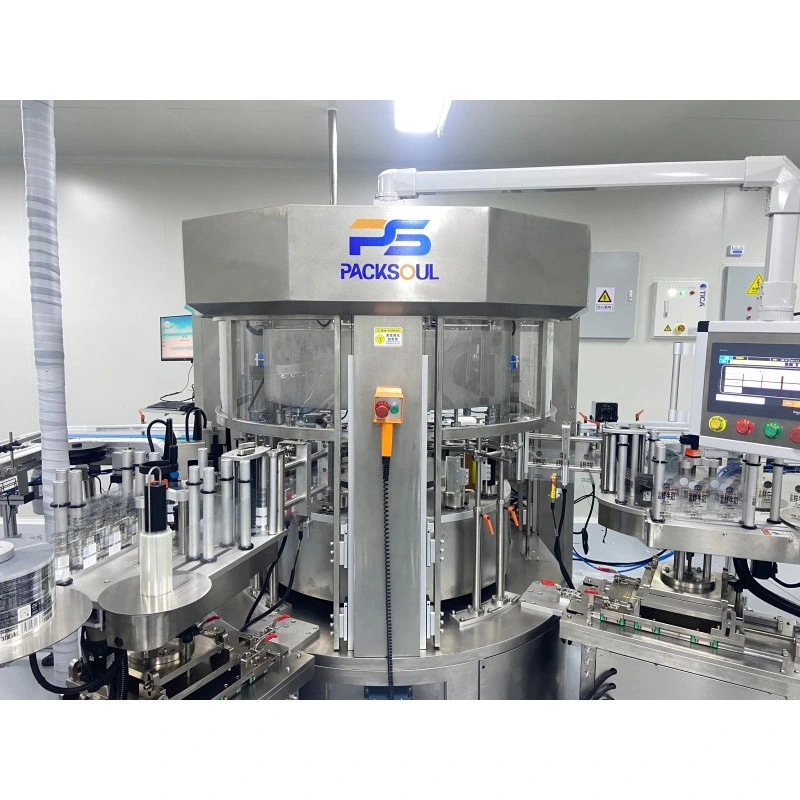

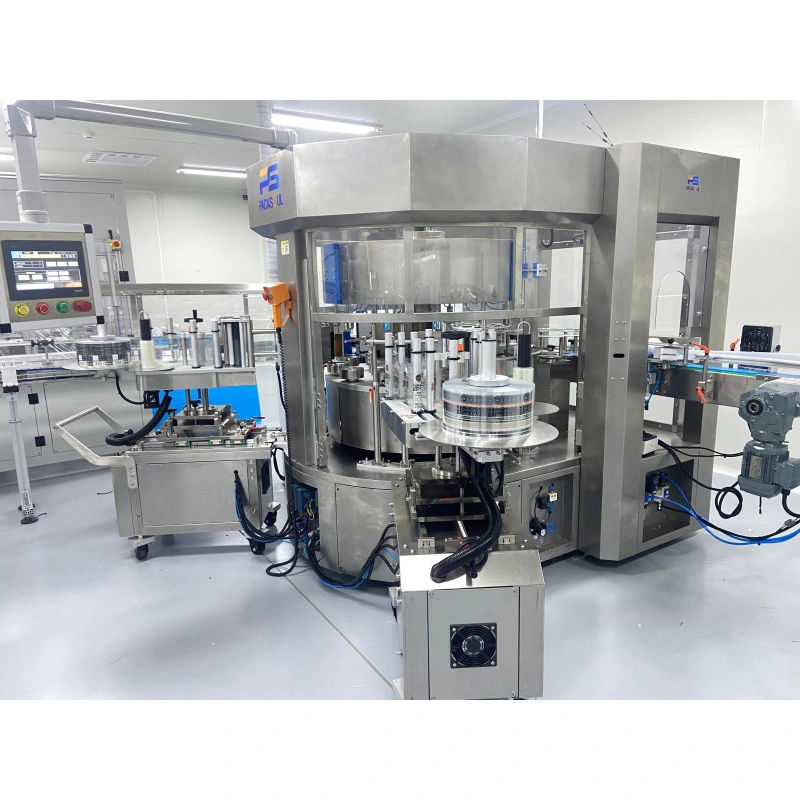

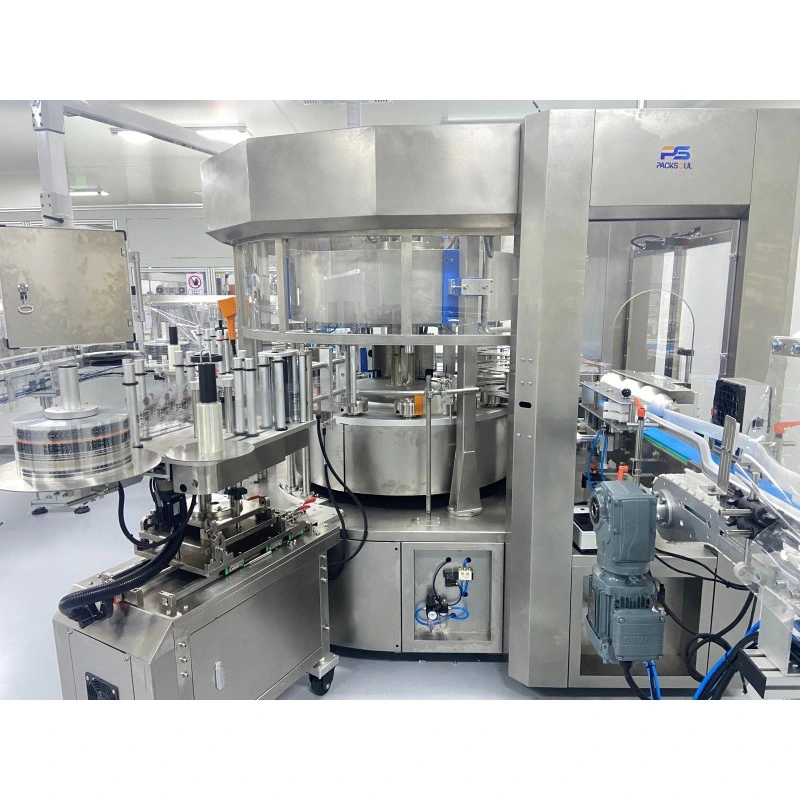

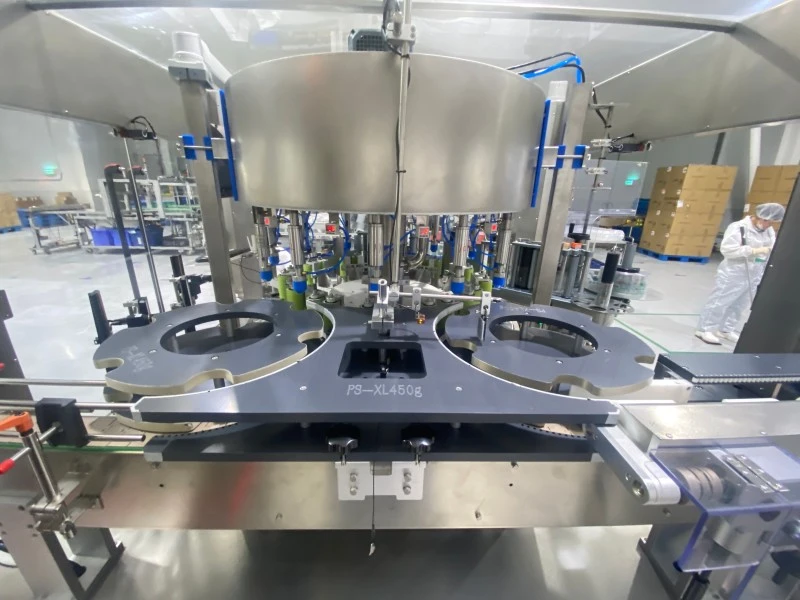

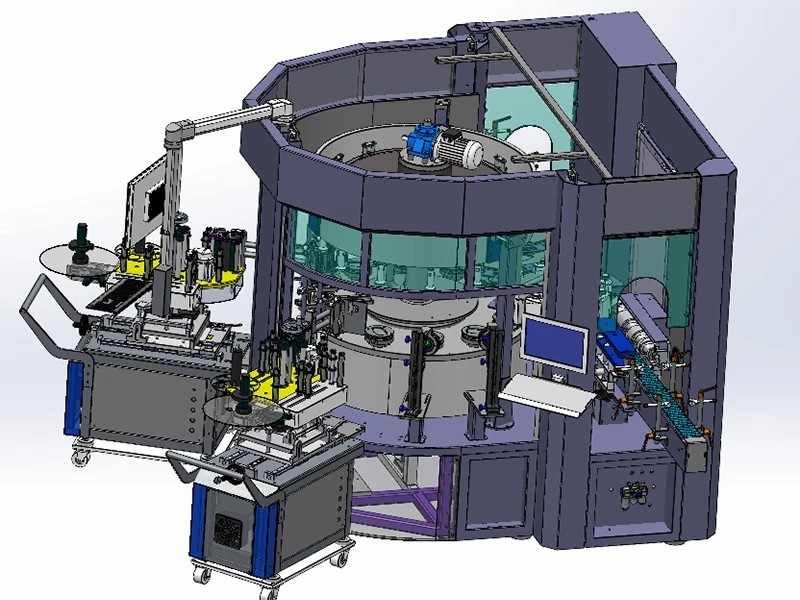

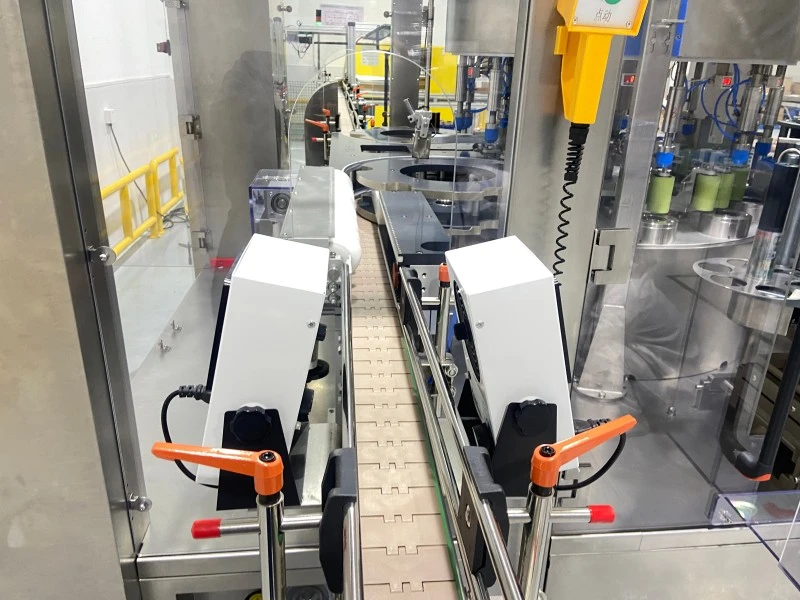

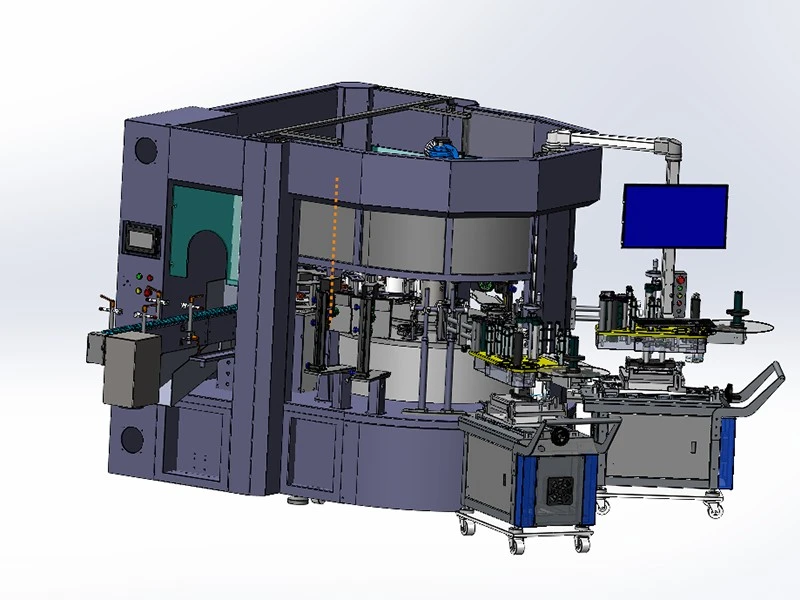

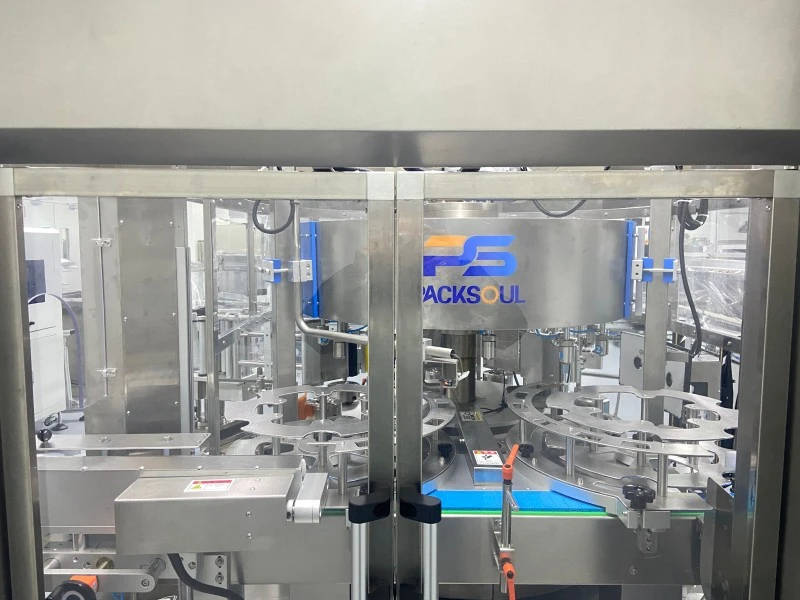

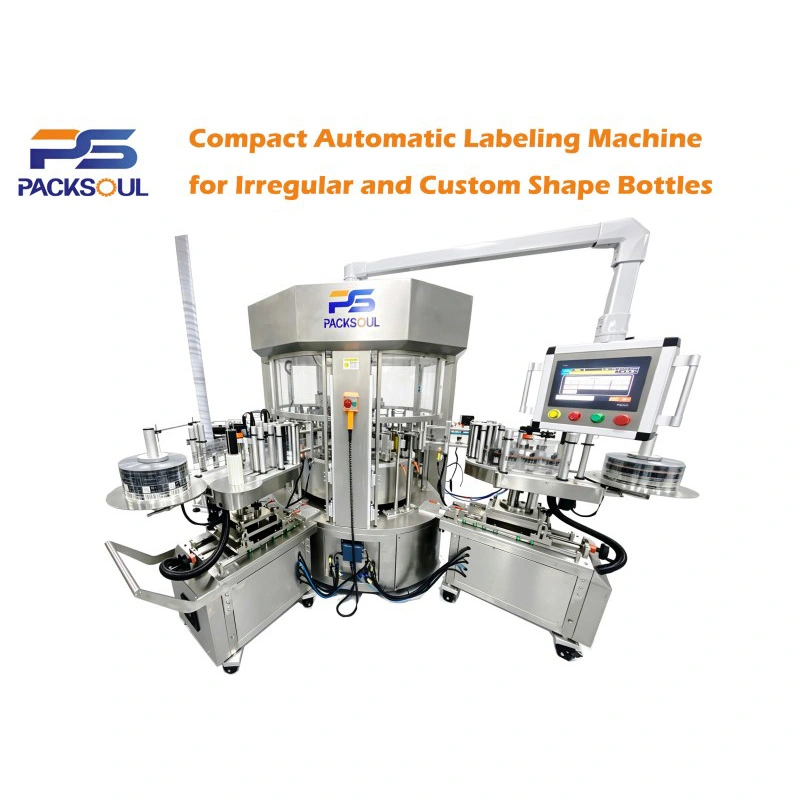

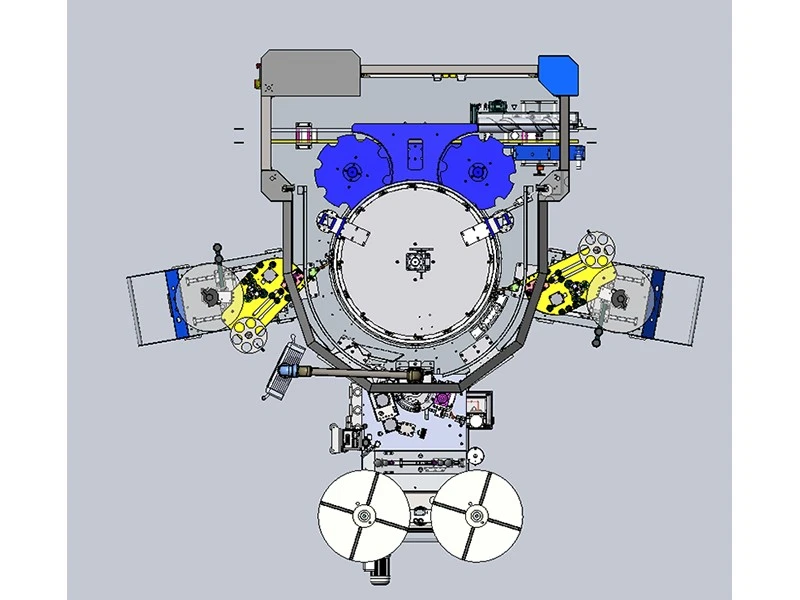

PackSoul, a factory direct supplier, supports sample testing and custom solutions. This Custom Shape Bottle Labeling Machine is designed for special and irregular containers. The servo constant tension system helps reduce bubbles, lifted edges and label shifting. Made of 304 stainless steel, it is easy to operate and can run independently or connect with filling lines.
The small machine takes up little space and is easy to install in small and medium size factories.
The servo system works with shaped pressure rollers to keep labels smooth and reduce bubbles and wrinkles on irregular bottles.
Parameters are easy to adjust on the touch screen. Clear fault messages make the machine simple for regular operators.
The machine can handle different custom irregular bottles. Bottle and label settings are easy to adjust for multiple products.
The machine is resistant to corrosion and moisture and is easy to clean and maintain in different production environments.
It can work as a standalone machine or connect with filling, capping and coding equipment to form a complete automatic production line.
| Parameter Item | Modular Labeling Machine |
| Model | PSRX‑200/300/400 |
| Labeling Speed | 24000 BPH |
| Container Diameter | 30–100 mm (can be customized if exceed) |
| Container Height | 100‑400mm |
| Label Max Height | 200mm |
| Label Max Width | 300mm |
| Label Roll Diameter | Inner: Φ76.2mm Outer : φ400mm |
| Whole Machine Size | 4000L*2600W*2000H mm |
| Working Table Height | 1000±50 mm（can be customized） |
| Power | 380V/50Hz/30KW |

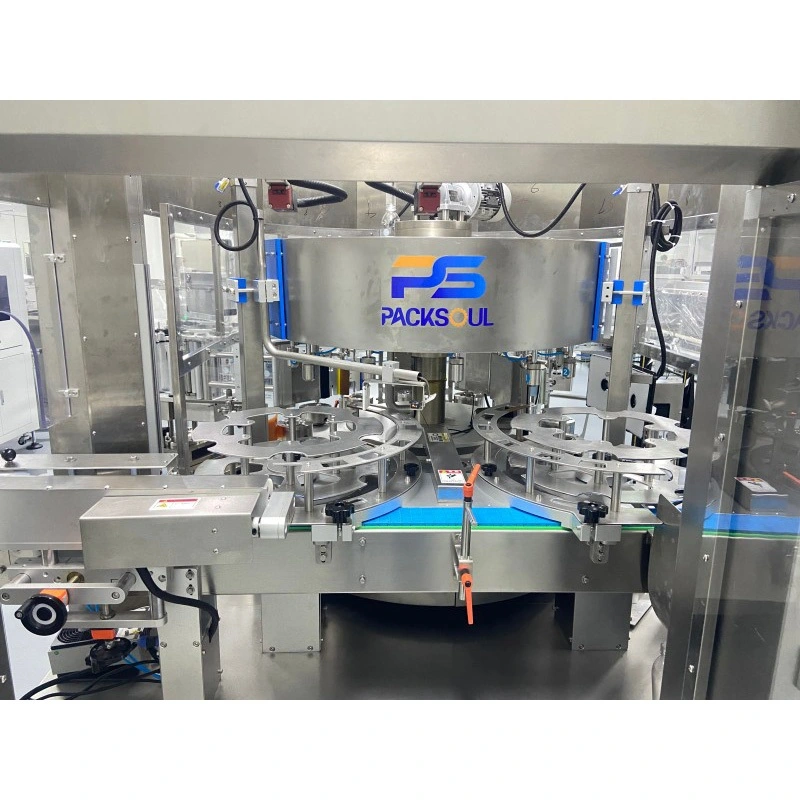

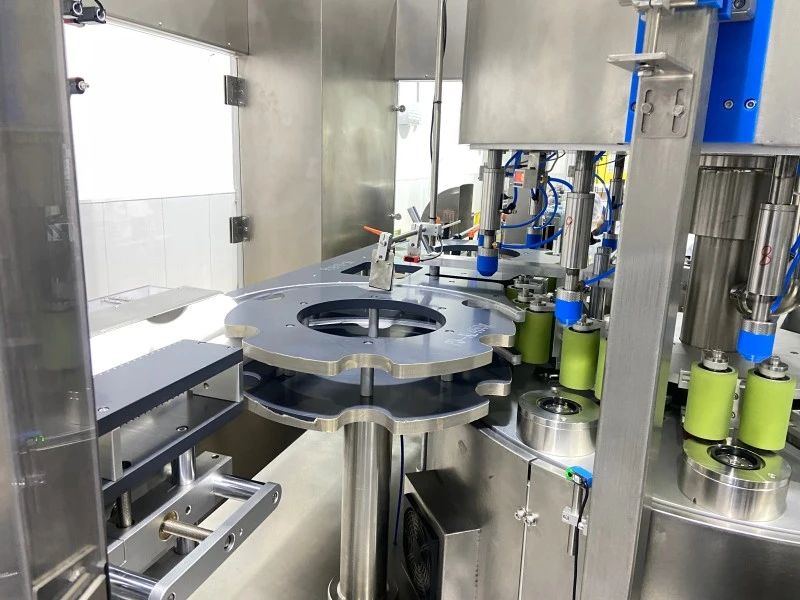

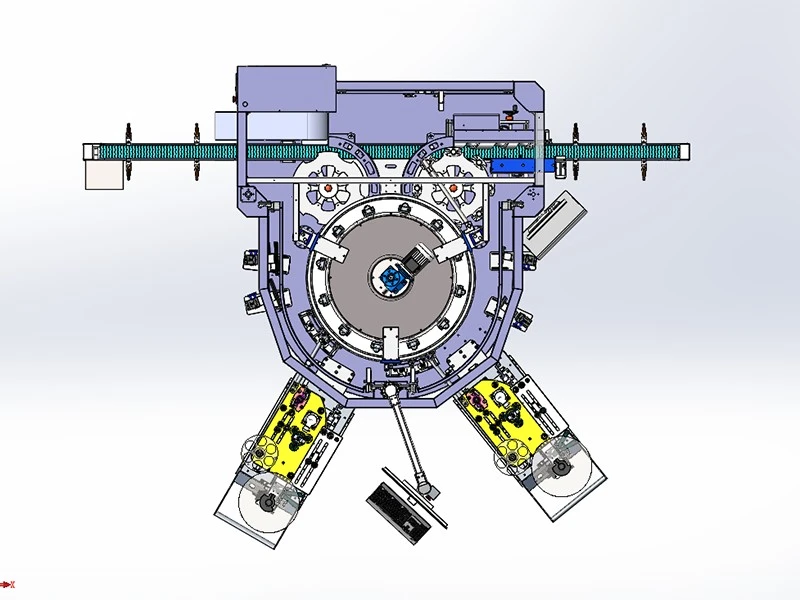

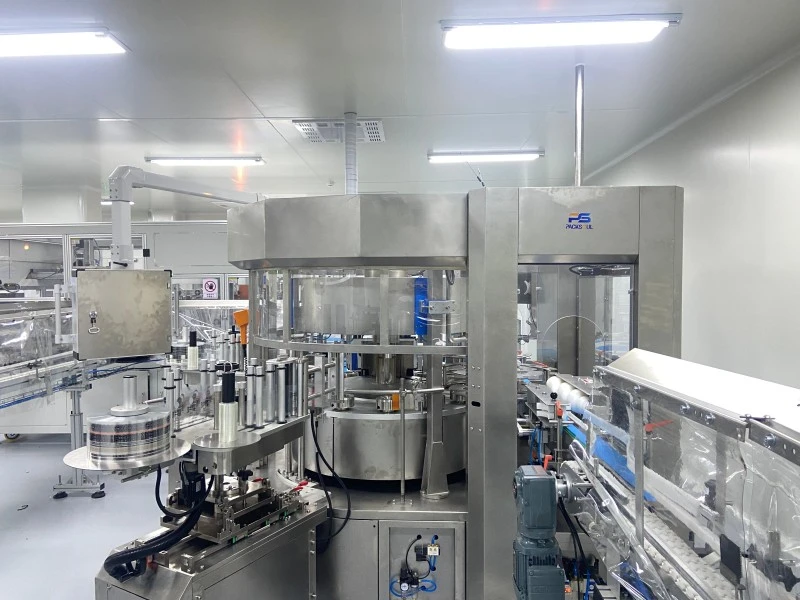

The Custom Shape Bottle Labeling Machine uses sensors to detect irregular bottles on the conveyor and sends the signal to the PLC control system. The servo system feeds labels with stable tension. The flexible guide positions the bottle, while the shaped pressure roller follows the bottle surface, removes air and presses the label firmly. The machine then continues the labeling cycle automatically.
Suitable for irregular plastic bottles and containers in daily chemical, food, condiment and chemical industries. It is also suitable for small and medium size factories, workshop automation upgrades and new product packaging production.
Clean glue and dust from the pressure rollers and machine body after production. Wipe the photoelectric sensor regularly. Lubricate moving parts, tighten screws and check the servo system and electrical control box. Calibrate labeling accuracy when needed.
Always stop the machine and disconnect the power before maintenance. Do not wash the machine directly with water.
| No. | Component Name | Brand |
| 1 | HMI | Schneider (France) |
| 2 | Servo Motor | Schneider (France) |
| 3 | Servo Drive | Schneider (France) |
| 4 | Main Motor | Schneider (France) |
| 5 | Conveyor Motor | TRANSTECNO (Italy) |
| 6 | PLC | Schneider (France) |
| 7 | Frequency Inverter | Schneider (France) |
| 8 | Frequency Inverter | Schneider (France) |
| 9 | Transparent Label Sensor | LEUZE (Germany) |
| 10 | Object Detection Sensor (Reflective Photoelectric Type) | SICK (Germany) |
| 11 | Detection Photoelectric Sensor (Reflective Type) | SICK (Germany) |
| 12 | Proximity Switch | SICK (Germany) |
| 13 | Switching Power Supply | MW (Taiwan, China) |
| 14 | Universal Change‑over Switch | MOELLER (Germany) |
| 15 | Emergency Stop Switch | Schneider (France) |
| 16 | Earth Leakage Circuit Breaker | Schneider (France) |
| 17 | Miniature Circuit Breaker | Schneider (France) |
| 18 | AC Contactor | Schneider (France) |
| 19 | Rotary Encoder | Nemicon (Japan) |
| 20 | Electrical Slip Ring | Senring |
| 21 | Pressure Gauge | Panasonic (Japan) |
| 22 | Vision Camera | Hikvision |
Turn on the machine and complete the self check.
Adjust the conveyor width and roller pressure according to the perfume bottle size.
Install the label roll and set the label tension.
Run a sample bottle and fine tune the label position and roller pressure.
Make sure the label has no lifted edges or bubbles, then start automatic production.
Stop the machine and clean it after production.

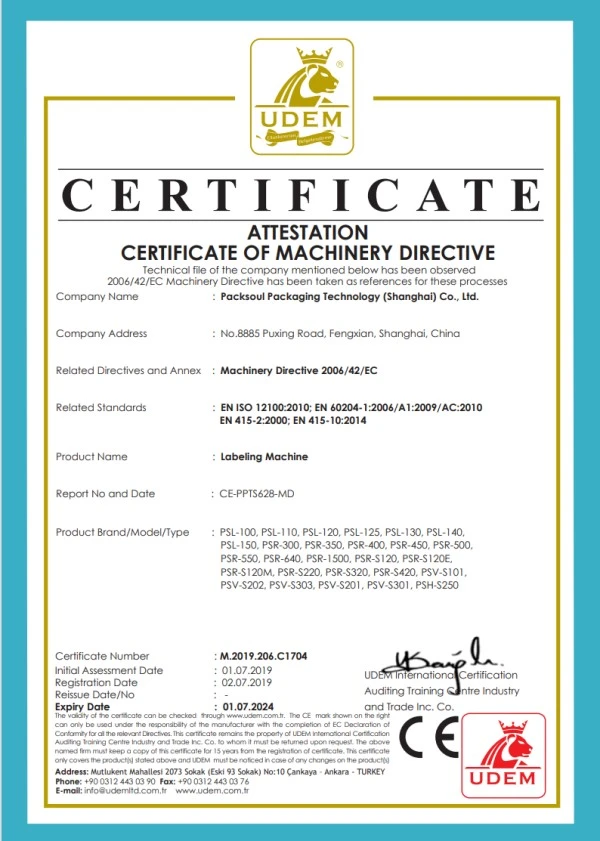

PACKSOUL has ISO 9001 quality certification and meets export requirements for different markets. All key components are inspected before assembly, and the complete machine is controlled during production. Each machine completes a 24 hour aging test and is tested with customer bottle samples before shipment. We also support custom machines for irregular bottles.
Special Bottle Design: The machine is optimized for irregular and custom bottle shapes to reduce label shifting and wrinkles.
Compact and Cost Effective: The small machine requires less workshop space and offers good value.
Stable Servo Labeling: The servo system maintains accurate labeling during continuous production.
Custom Solutions: We can adjust the machine according to bottle samples, workshop space and production capacity.
Factory Direct Supply: We have extensive overseas experience with irregular bottle labeling projects and provide fast after sales support.
Before Order: Free solution evaluation and sample labeling tests are available. Custom machine designs can be discussed according to customer needs.
During Order: Chinese and English operation manuals are provided, together with remote technical guidance for setup and commissioning.
After Delivery: The complete machine has a 1 year warranty. Parts damaged by non human factors and technical support are free during the warranty period, except consumable parts. Overseas engineers can be arranged for onsite commissioning. Long term technical support and spare parts supply are available.

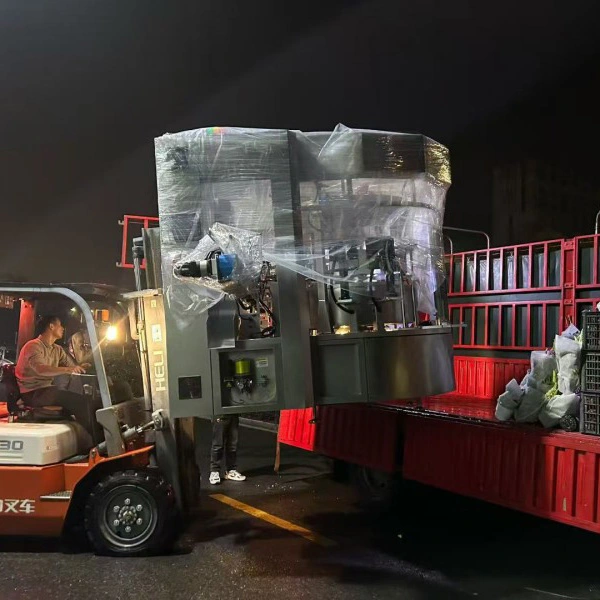

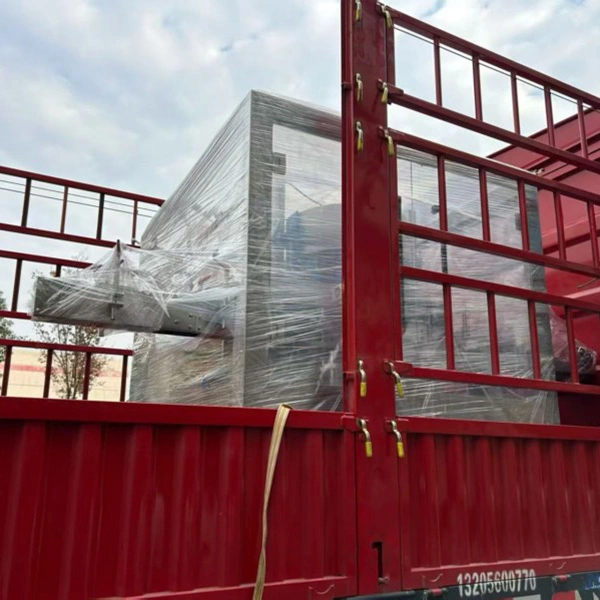

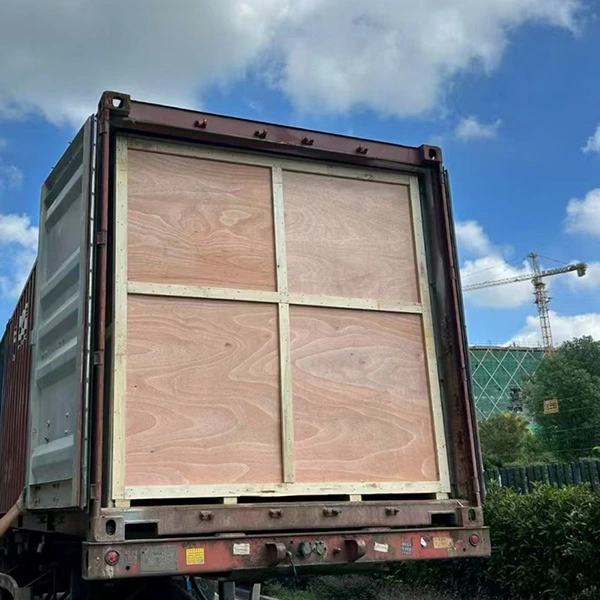

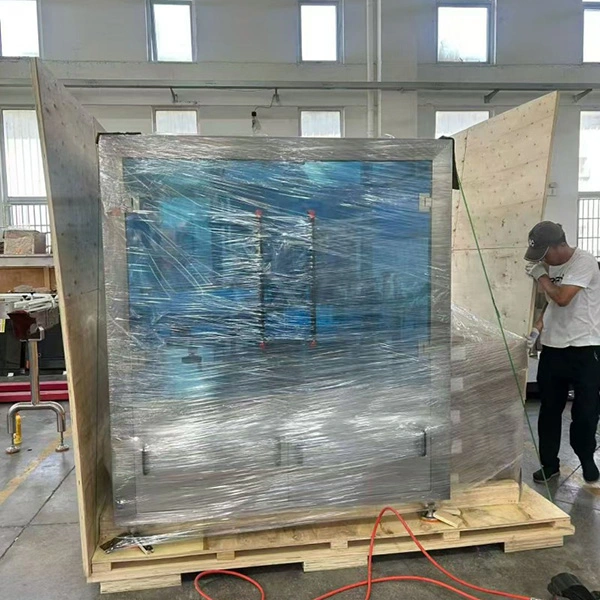

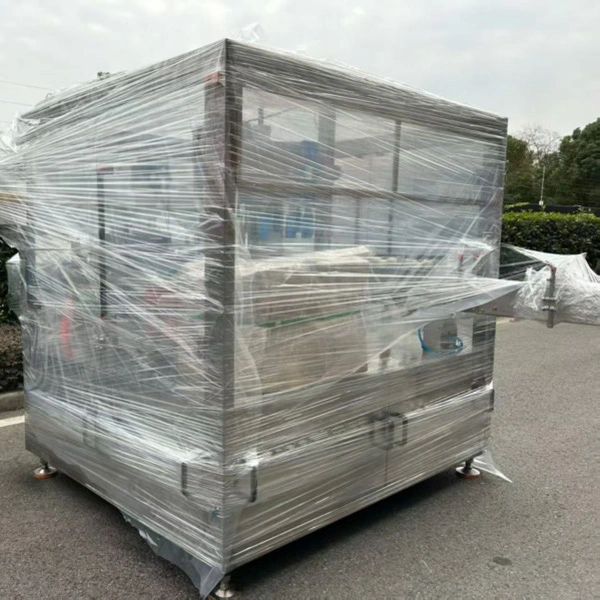

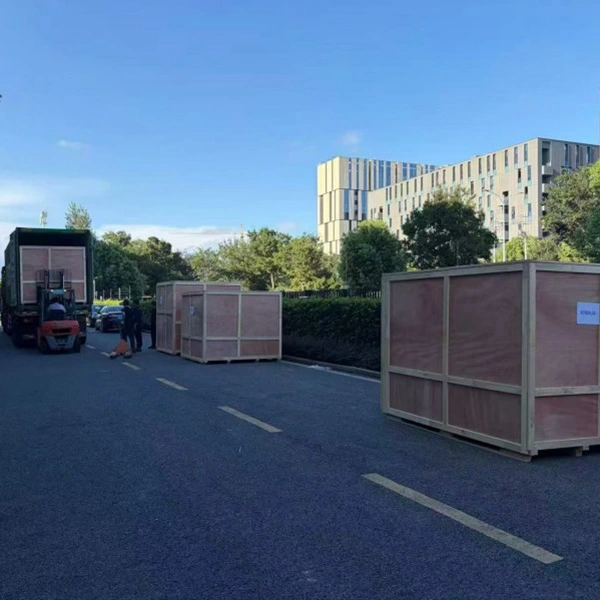

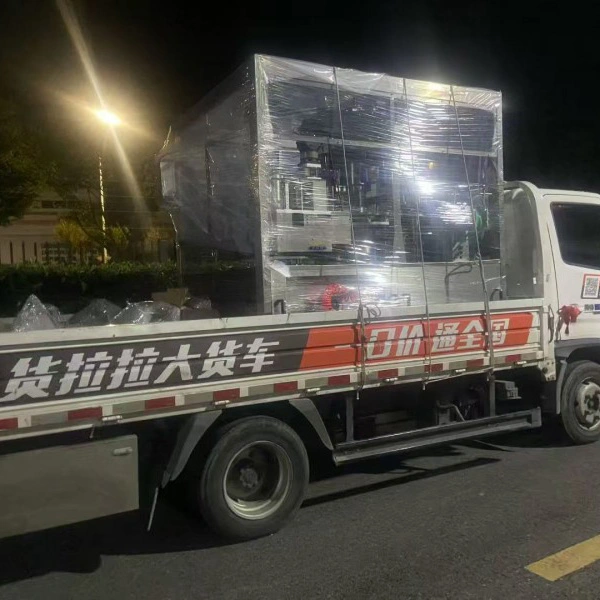

The machine is packed in fumigation free export wooden crates with foam and waterproof protection to reduce impact and moisture during shipping. Sea and air transportation are available, and complete export customs documents can be provided. Standard machines usually take 30 to 60 days. Customized delivery time is agreed and stated in the contract.

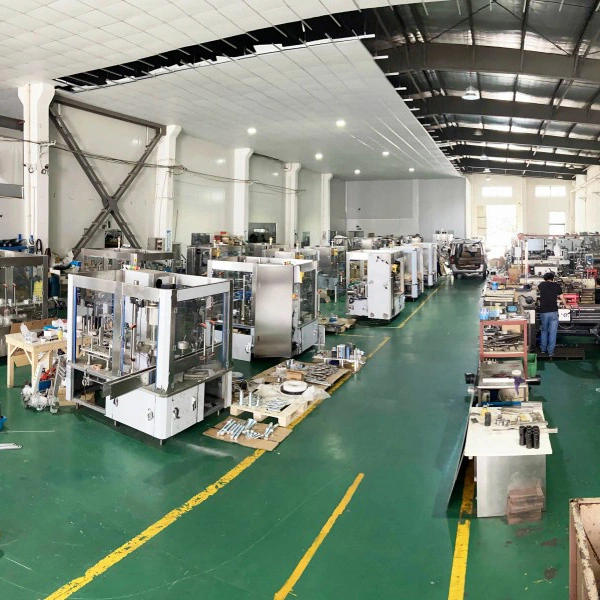

PackSoul labeling machines are exported to Russia, Brazil, Southeast Asia and other markets. We have completed many projects for irregular and custom bottle labeling. With our own standardized production workshop, we work with customers from different industries worldwide.
A: The servo constant tension system works with shaped pressure rollers to remove air during labeling. This helps keep labels smooth and reduce bubbles, wrinkles and shifting.
A: Yes. Please provide bottle samples, label specifications, production capacity and workshop conditions. Our engineers can prepare a suitable custom solution.
A: A standalone machine usually takes about 1 day for installation and 6 to 9 days for commissioning. The schedule can be adjusted according to the production line.
A: The complete machine has a 1 year warranty. Parts damaged by non‑human factors are free during the warranty period, except consumable parts.
A: All machines use international fumigation free wooden crates with shock and moisture protection. The packaging meets sea freight and export requirements.
A: We provide a 1 year warranty and free online technical support during the warranty period. Consumable parts are excluded. For overseas projects, onsite engineer service can be arranged, with visa, travel, accommodation and related costs paid by the buyer. After the warranty, long term technical consultation, troubleshooting and original spare parts supply remain available.
