We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

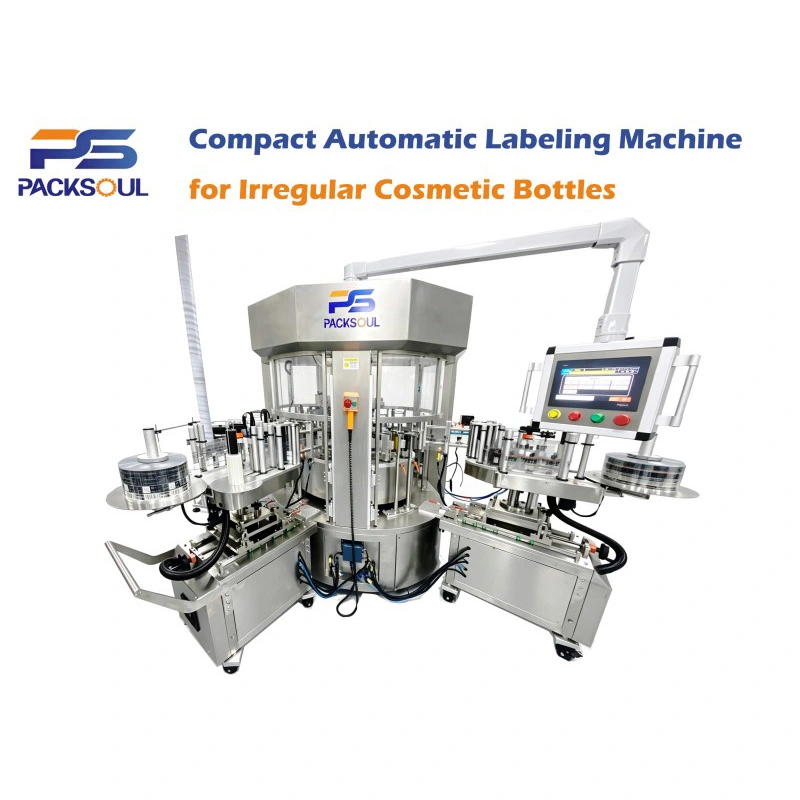

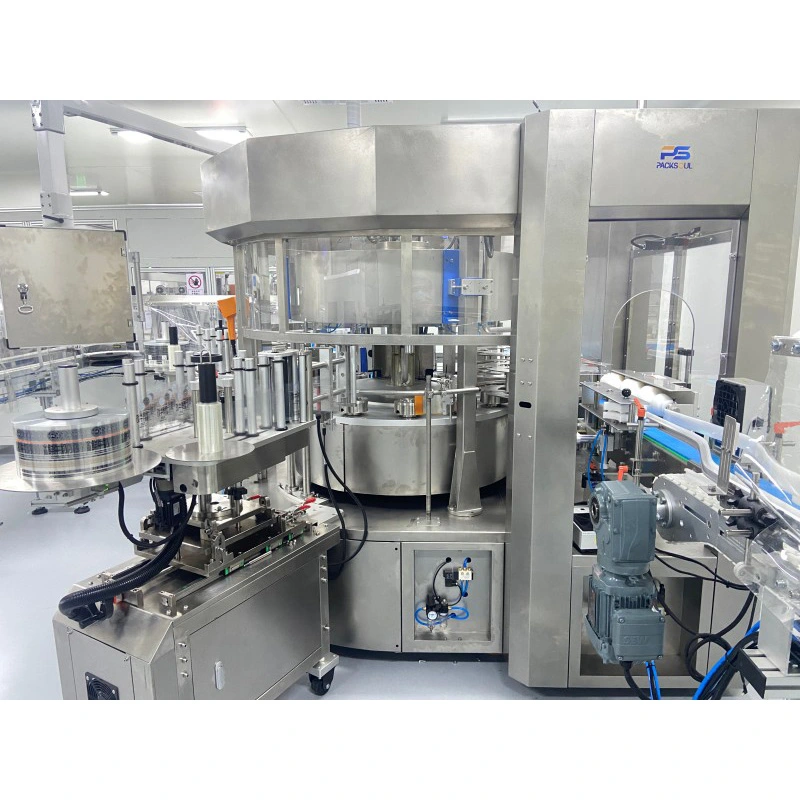

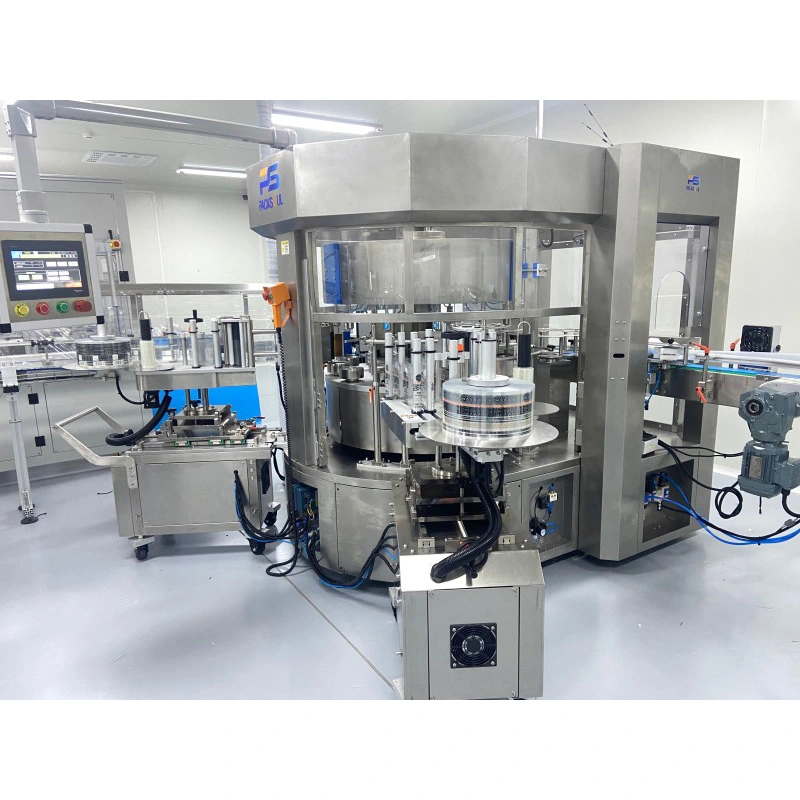

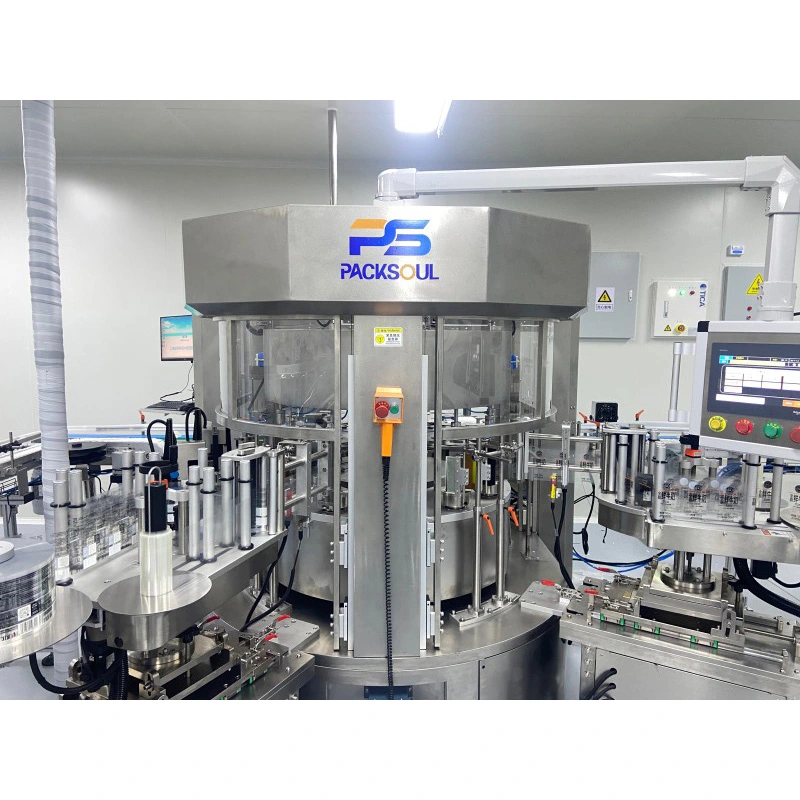

The Irregular Cosmetic Bottle Labeling Machine is a small rotary self‑adhesive labeling machine designed for irregular and curved glass or plastic cosmetic bottles. It automatically handles bottle feeding, positioning, label peeling, curved surface labeling, pressing and discharge. The machine helps solve labeling problems caused by complex bottle shapes. Single and double side labeling are available, reducing manual work and improving packaging consistency.

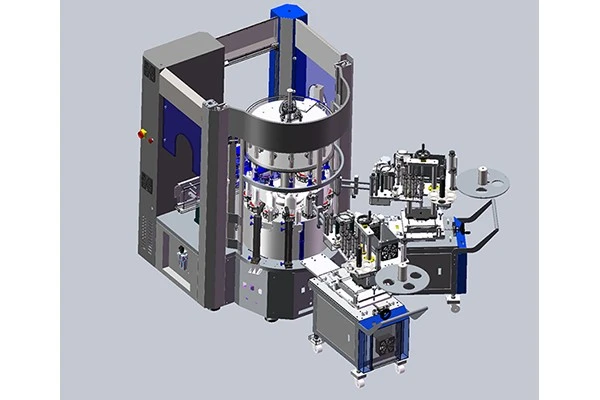

The Irregular Cosmetic Bottle Labeling Machine has a small footprint and is suitable for cosmetic production workshops with limited space.

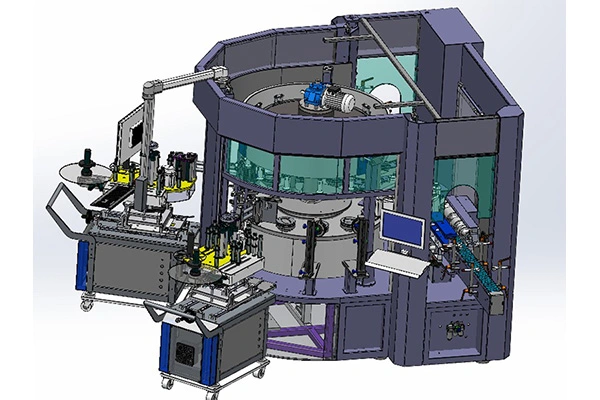

The servo labeling system follows the curved bottle surface and makes real‑time adjustments, helping reduce bubbles and lifted labels.
The touch screen provides clear parameter settings and fault alerts, making the machine simple to operate.

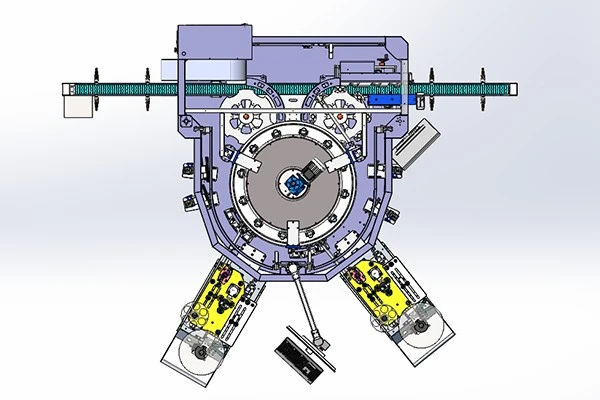

Different irregular cosmetic bottles can be changed with simple adjustments and without replacing many parts, making the machine suitable for different products.
The machine is corrosion resistant, easy to clean and suitable for clean cosmetic production areas.
The machine can run independently or connect with upstream and downstream packaging equipment to form a complete automatic production line.
| Parameter Item | Modular Labeling Machine |
| Model | PSRX‑200/300/400 |
| Labeling Speed | 24000 BPH |
| Container Diameter | 30–100 mm (can be customized if exceed) |
| Container Height | 100‑400mm |
| Label Max Height | 200mm |
| Label Max Width | 300mm |
| Label Roll Diameter | Inner:Φ76.2mm Outer : φ400mm |
| Whole Machine Size | 4000L*2600W*2000H mm |
| Working Table Height | 1000±50 mm（can be customized） |
| Power | 380V/50Hz/30KW |

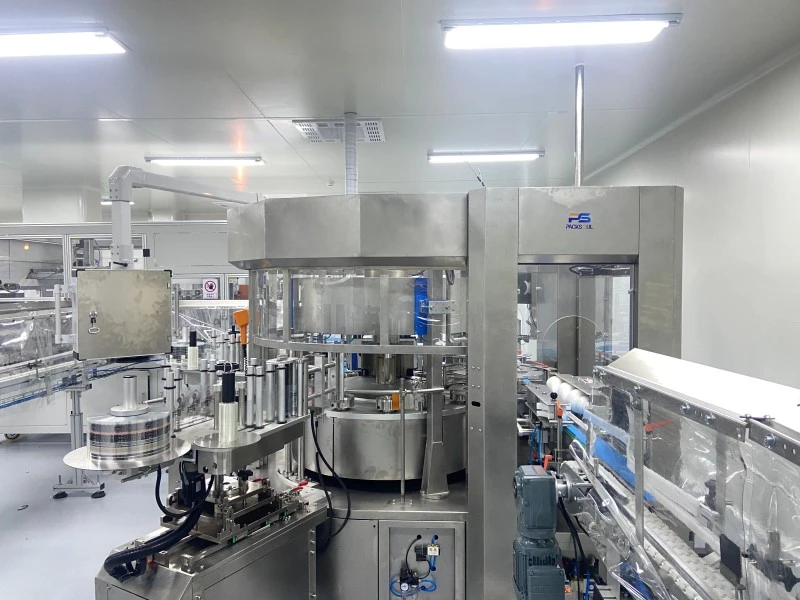

Irregular cosmetic bottles are transferred to the rotary labeling station by conveyor. The photoelectric sensor detects the bottle position and sends the signal to the PLC control system. The servo system feeds the label with stable tension. The tracking labeling module follows the bottle surface and adjusts automatically. Flexible pressure rollers follow the bottle shape, press the label firmly and remove air. Finished bottles are then discharged for continuous automatic operation.
The machine is suitable for self adhesive labeling of perfume bottles, irregular serum bottles, makeup bottles, skincare sample bottles and other irregular cosmetic containers. It is widely used in cosmetic factories and cosmetic OEM/ODM production plants.
Daily Cleaning: After production, remove oil, label waste and glue residue. Wipe the 304 stainless steel body to keep the machine clean.
Servo System Check: Check the servo positioning motor and drive system every day. Lubricate the moving parts weekly to maintain smooth and accurate operation.
Labeling System Care: Clean glue and dust from the labeling head, pressure rollers and rewinding unit regularly. This helps prevent label shifting, broken labels and poor adhesion.
Electrical Maintenance: Clean dust from the electrical control cabinet every month. Check the PLC system and wiring connections to help prevent problems caused by oil or moisture.
Replace Wear Parts: Check and replace consumable parts such as conveyor belts, rubber rollers, sensors and bottle guides every 6 to 12 months as needed.

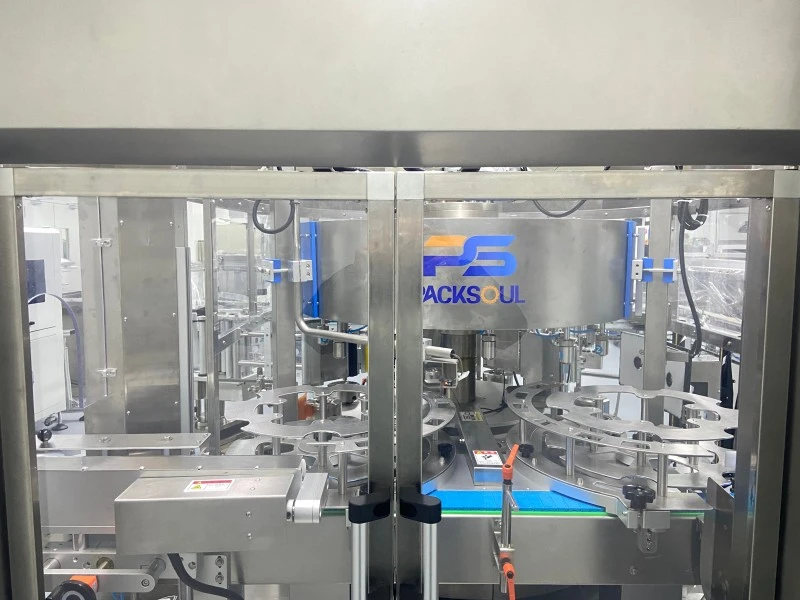

Automatic Bottle Feeding and Separation: Irregular cosmetic bottles enter the machine from the production line. The bottle separator organizes and spaces the bottles before labeling, helping prevent jams, stacking and bottle movement.

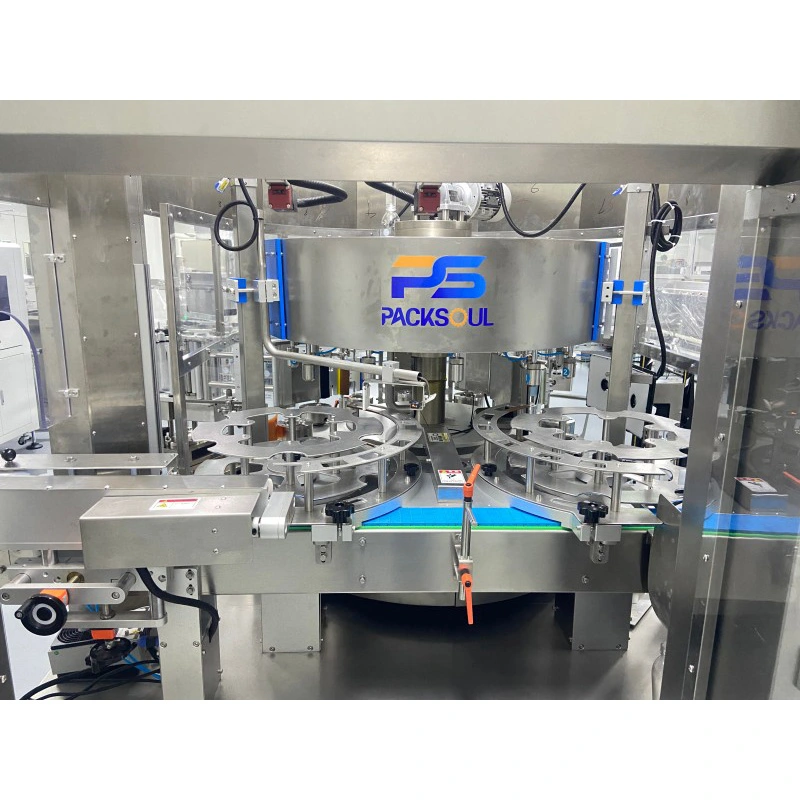

Servo Positioning: The star wheel and servo system work together to position round, flat, square and irregular cosmetic bottles. Flexible anti slip holders help keep plastic and glass bottles stable and correct the bottle angle.
Constant Tension Label Feeding: The system adjusts label tension according to the bottle type, label size and label material. Labels are fed at a stable speed to reduce stretching, deformation, wrinkles and broken labels.
Automatic Precision Labeling: Single side, double side and wrap labeling modes can be selected easily. The system follows the bottle feeding speed and applies labels accurately to serum, cream, makeup and lotion containers.

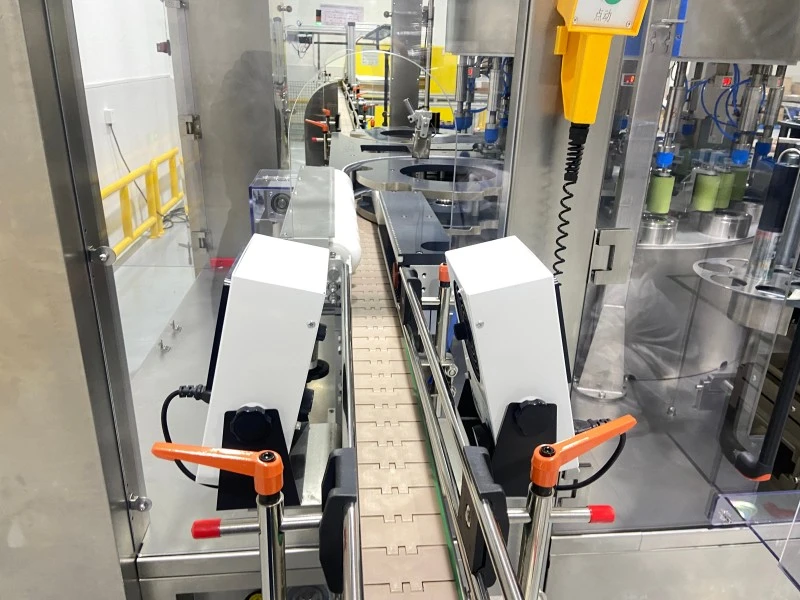

Flexible Roller Pressing: High elasticity pressure rollers follow the irregular bottle surface and press out the air between the label and bottle. This helps reduce bubbles, lifted edges, loose areas and label peeling.
Automatic Product Discharge: Finished bottles leave the machine automatically and can connect directly to coding, film wrapping, packing and sorting processes for continuous automatic production.
The machine has CE and ISO 9001 certifications and meets the requirements of overseas cosmetic production. All key components are inspected before assembly, with quality control throughout production. Each machine passes a 24‑hour continuous running test before shipment. Customer bottle samples can also be used for pre‑shipment labeling tests to confirm the actual result.
| No. | Component Name | Brand |
| 1 | HMI | Schneider (France) |
| 2 | Servo Motor | Schneider (France) |
| 3 | Servo Drive | Schneider (France) |
| 4 | Main Motor | Schneider (France) |
| 5 | Conveyor Motor | TRANSTECNO(Italy) |
| 6 | PLC | Schneider (France) |
| 7 | Frequency Inverter | Schneider (France) |
| 8 | Frequency Inverter | Schneider (France) |
| 9 | Transparent Label Sensor | LEUZE (Germany) |
| 10 | Object Detection Sensor (Reflective Photoelectric Type) | SICK (Germany) |
| 11 | Detection Photoelectric Sensor (Reflective Type) | SICK (Germany) |
| 12 | Proximity Switch | SICK (Germany) |
| 13 | Switching Power Supply | MW (Taiwan, China) |
| 14 | Universal Change‑over Switch | MOELLER (Germany) |
| 15 | Emergency Stop Switch | Schneider (France) |
| 16 | Earth Leakage Circuit Breaker | Schneider (France) |
| 17 | Miniature Circuit Breaker | Schneider (France) |
| 18 | AC Contactor | Schneider (France) |
| 19 | Rotary Encoder | Nemicon (Japan) |
| 20 | Electrical Slip Ring | Senring |
| 21 | Pressure Gauge | Panasonic (Japan) |
| 22 | Vision Camera | Hikvision |
Specially optimized for complex curved cosmetic bottles, helping reduce lifted edges and bubbles.
Compact machine design with low space requirements, suitable for small and medium size cosmetic factories.
Custom solutions are available according to bottle samples, workshop space and production capacity.
Extensive experience in cosmetic packaging projects and clean workshop production.
Factory direct supply with one stop service from solution design to manufacturing and technical support.
Operation Support: Chinese operation manuals, installation guides and training videos are provided. One to one remote support is also available.
Free Sample Testing: Send your cosmetic bottles and labels for free machine testing. Real labeling videos can be provided before ordering.
Overseas Service: Onsite installation, commissioning and operator training can be arranged for overseas customers.
Long Term Support: We provide maintenance solutions, software updates and original spare parts for long term stable operation.
Export machines are packed in fumigation free wooden crates with shockproof and moisture protection. Sea and air shipping are available, together with complete export documents. Standard machines usually take 30 to 60 days. Custom delivery time is confirmed in the contract.
PackSoul labeling machines are exported to many countries and serve cosmetic brands and OEM factories worldwide. With our own standardized production workshop, we can provide factory photos and project references.
Send actual bottles and labels for testing before ordering.
Confirm power supply, available space and production line connection requirements.
Label material and tolerance can affect the final labeling result.
Provide the required output per hour so we can match the machine settings.
A: The servo tracking system follows the bottle surface, while the pressure roller removes air during labeling. Sample testing is available before ordering.
A: Most bottle types only require simple adjustment of parameters and guides. For larger differences, optional changeover parts are available.
A: Yes. The holding pressure can be adjusted for different materials to help protect the bottle surface.
A: Overseas standalone machines usually take about 1 day for installation and 6 to 9 days for commissioning. The schedule can be adjusted according to the production line.
A: Yes. Please provide bottle samples, labels, production capacity and workshop information. Our engineers will prepare a suitable solution.
A: The complete machine has a 1 year warranty. Parts damaged by non‑human factors and online technical support are free during the warranty period, except consumable parts. Original spare parts are available after the warranty.
