We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

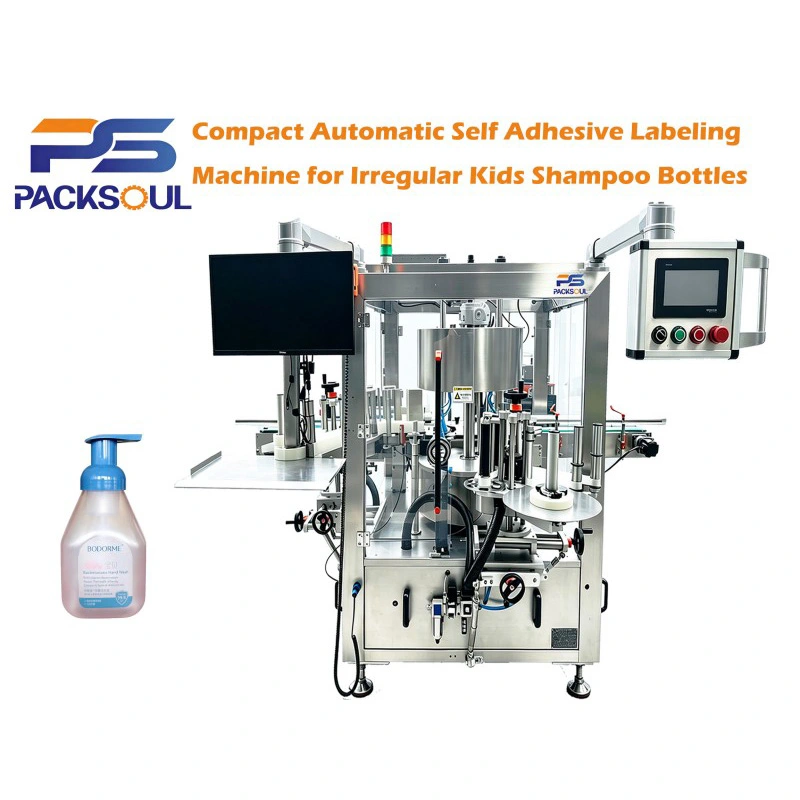

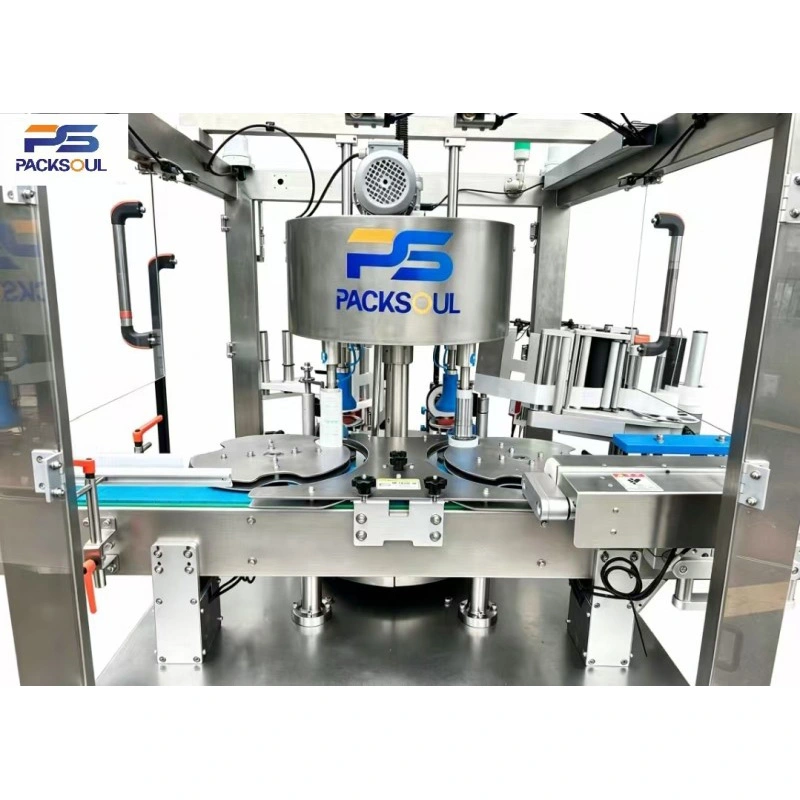

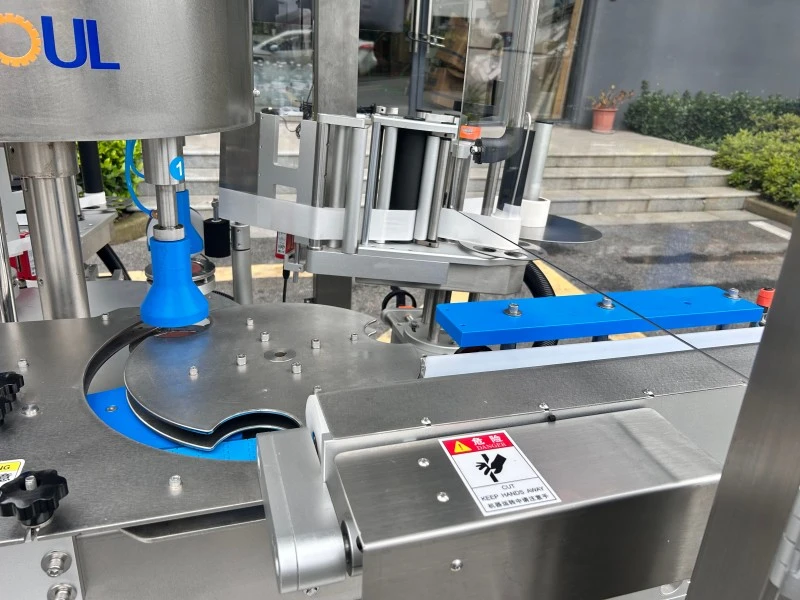

The Irregular-Shaped Kids Shampoo Bottle Labeling Machine is a fully‑auto labeling unit. It is engineered for irregular plastic containers such as kids shampoo and body wash bottles.
It completes bottle feeding positioning labeling pressing and discharging without manual intervention. Optimized for curved special‑shaped bottles, it fixes common defects including label lifting wrinkling and misalignment caused by ordinary labelers, supporting high‑volume automated labeling for daily‑chemical manufacturers.
Adopting space‑saving construction, the machine takes little floor space and fits flexibly in small and medium‑size workshops.
Servo constant‑tension control works with profile‑following press rollers. Labels stick closely to curved bottle surfaces free of bubbles wrinkles and position deviation.
Controlled by PLC human‑machine touch panel. Adjustable parameters and clear fault alerts allow operators to run the equipment with basic training.
Compatible with various special‑shaped children’s care bottles. Adjustments for label dimension and bottle size enable multi‑purpose machine use.
Main frame constructed of 304 stainless steel. Rust and corrosion resistant for humid daily‑chemical production workshops and easy to clean.
Capable of standalone operation. It can also link with filling capping and coding lines to realize fully integrated automated production.
| Parameter Item | 4‑Station Rotary Adhesive Sticker Labeling Machine | 6‑Station Rotary Adhesive Sticker Labeling Machine |
| Model | PSR‑B040 | PSR‑B060 |
| Labeling Speed | 4000 BPH (bottles per hour) | 6000 BPH (bottles per hour) |
| Container Diameter | 30–100 mm (can be customized if exceed) | 30–100 mm (can be customized if exceed) |
| Container Height | 50–300 mm | 100–400 mm |
| Label Max Height | 200 mm | 200mm |
| Label Max Width | 300 mm | 300mm |
| Label Roll Diameter | Inner:Φ76.2mm Outer : φ360mm | Inner:Φ76.2mm Outer : φ360mm |

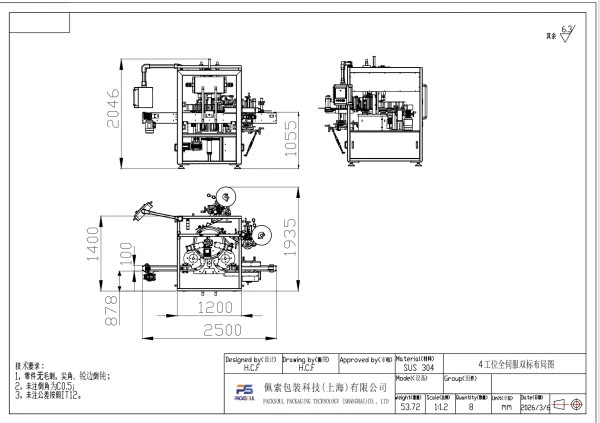

| Whole Machine Size | 2600L*1900W*1850H mm | 2600L*1900W*1850H mm |
| Working Table Height | 900±50mm（can be customized） | 900±50mm（can be customized） |
| Power | 380V/50Hz/10KW | 380V/50Hz/10KW |
The Irregular-Shaped Kids Shampoo Bottle Labeling Machine is designed for irregular and curved children’s personal care bottles. It uses a precision rotary positioning system and dual servo label control to provide automatic and accurate labeling with minimal manual work.

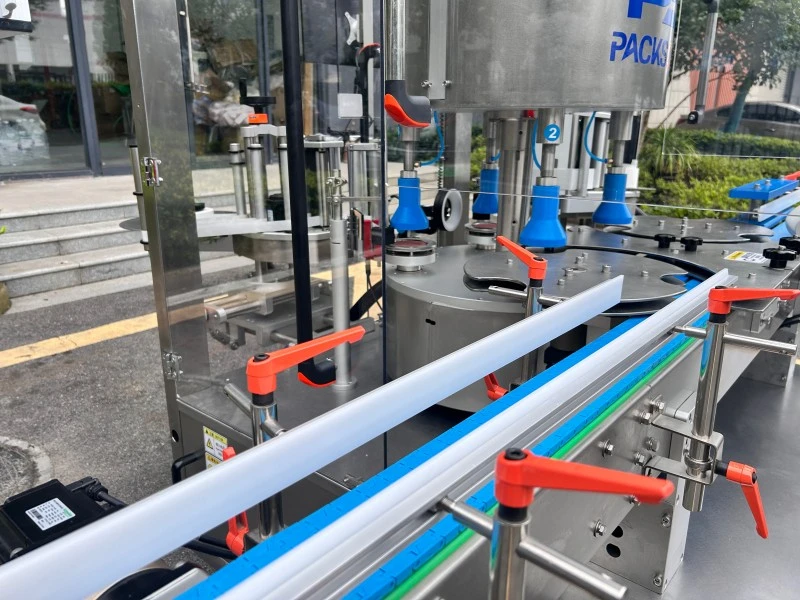

Production Line Feeding: Filled bottles are moved into the machine by conveyor at a steady speed.
Bottle Separation: The feeding screw separates the bottles evenly and helps prevent collision or pressure between irregular bottles.

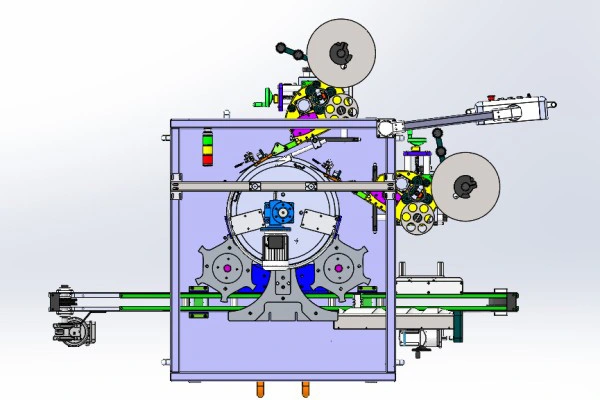

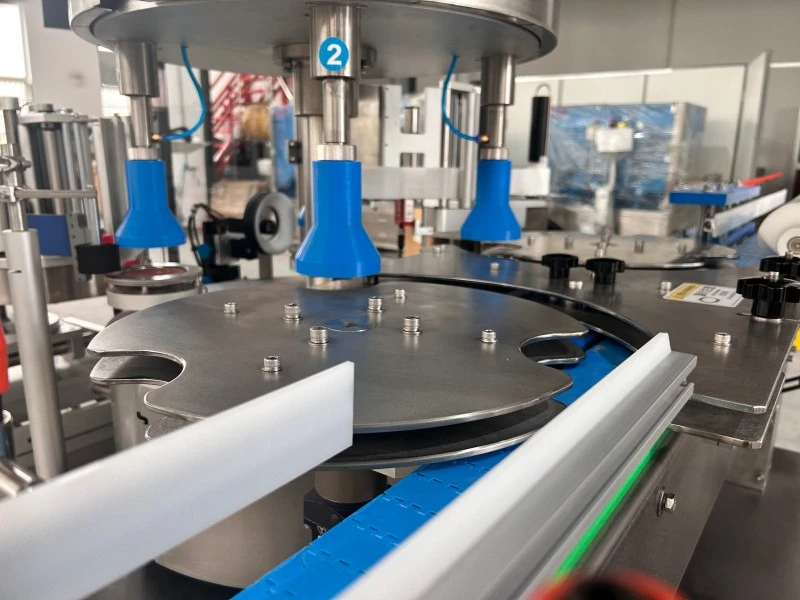

Rotary Positioning: The star wheel transfers each bottle to the rotary stations and keeps the bottle spacing consistent.
Flexible Bottle Holding: The soft holding system secures the irregular bottle without excessive pressure. It helps prevent tipping, movement and scratches.
Vision Detection: The servo vision system identifies the bottle shape and reference points and sends the positioning data to the control system.
Angle Adjustment: The servo bottle holder adjusts the bottle angle according to the detected position and aligns the labeling area accurately.

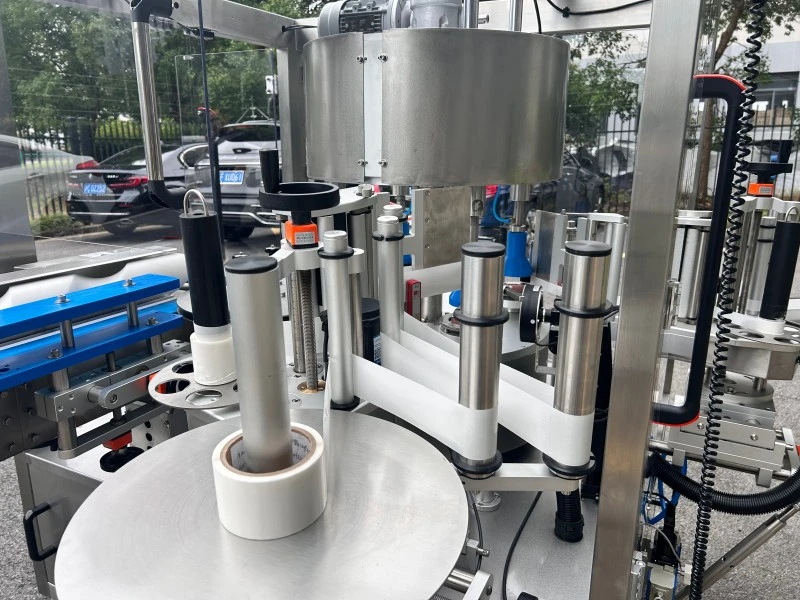

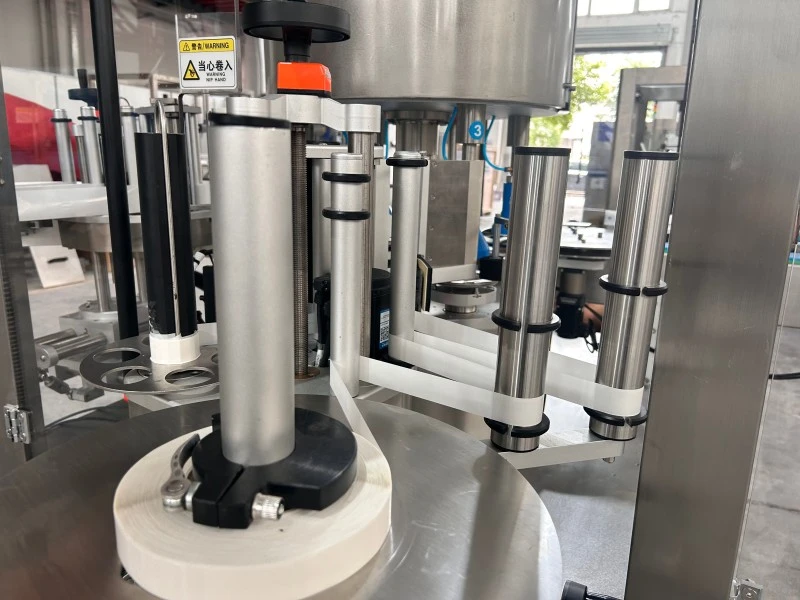

Servo Labeling: The servo system feeds the self adhesive label at a stable speed. The flexible brush and roller press the label onto curved and irregular surfaces, helping reduce bubbles, wrinkles and lifted edges.
Automatic Discharge: Finished bottles are transferred out by the discharge star wheel and move to the next process, such as packing or sealing.
Suitable for irregular bottle labeling in children’s personal care, daily chemical and personal care products.
Suitable Products: Kids shampoo bottles, kids body wash bottles, 2 in 1 shampoo and body wash bottles and other irregular plastic personal care containers.
Suitable for small and medium factory production, new packaging projects, e-commerce product packaging and workshop automation upgrades.
Daily Cleaning: Clean the conveyor chain, labeling head and sensors. Remove glue, dust and other residue to keep the machine clean.
Regular Calibration: Check the servo motor and drive system weekly and verify bottle positioning accuracy.
Electrical Protection: Keep the electrical control box dry, especially in humid personal care workshops.
Cleaning Rules: Do not use a high pressure water gun on the control box or servo motor. Wipe the stainless steel body with a soft cloth.
Long Term Shutdown: Release the label roll tension before long periods of non use to prevent adhesive buildup on the rollers.
Safety Check: Inspect the safety covers and door interlock system monthly to ensure reliable machine protection.
The machine has CE and ISO 9001 certifications and meets export requirements.
All key components are inspected before assembly. Each machine goes through controlled assembly and testing, including a 24 hour aging test and a real bottle labeling test before shipment.
Specially designed for irregular children’s personal care bottles, with better curved surface labeling than standard machines.
Compact and cost effective, suitable for small and medium size factories.
Servo controlled labeling provides stable accuracy and helps reduce labeling defects during long term production.
Custom designs are available according to bottle shape, workshop space and production capacity.
Factory direct supply without unnecessary middlemen, with complete delivery and after sales support.
The machine is packed in fumigation free export wooden crates with foam and waterproof film protection. Sea, air and international express shipping are available. Complete customs clearance documents can be provided.
PACKSOUL has participated in packaging exhibitions and exports labeling equipment to more than 30 countries, including Russia, Brazil and Southeast Asia. We have completed many irregular bottle labeling projects and work with personal care manufacturers worldwide.
Our factory has standardized production facilities and professional assembly and foreign trade teams, providing complete support from production to delivery and after sales service.
A: The servo constant tension system works with the synchronized pressure roller. The roller follows the bottle curve and removes air during application, helping keep the label smooth and reducing bubbles and wrinkles.
A: Yes. We can design the machine according to bottle size, label specifications, workshop space and production capacity. Bottle samples and detailed product information can be provided for solution design.
A: For overseas customers, a standalone machine usually takes about 1 day for installation and 6 to 9 days for commissioning. The actual schedule depends on the site and production line.
A: During the 1 year warranty, replacement parts and technical service are free for non human caused problems, except consumable parts. After the warranty, spare parts are charged separately.
A: Yes. Complete Chinese and English manuals are provided for machine assembly, parameter adjustment, daily maintenance and common troubleshooting. Online technical support is also available.
A: A standard standalone machine usually takes 30 to 60 days. Customized machines and complete production lines may require more time depending on the design. The final delivery time will be confirmed before the order and included in the contract.
