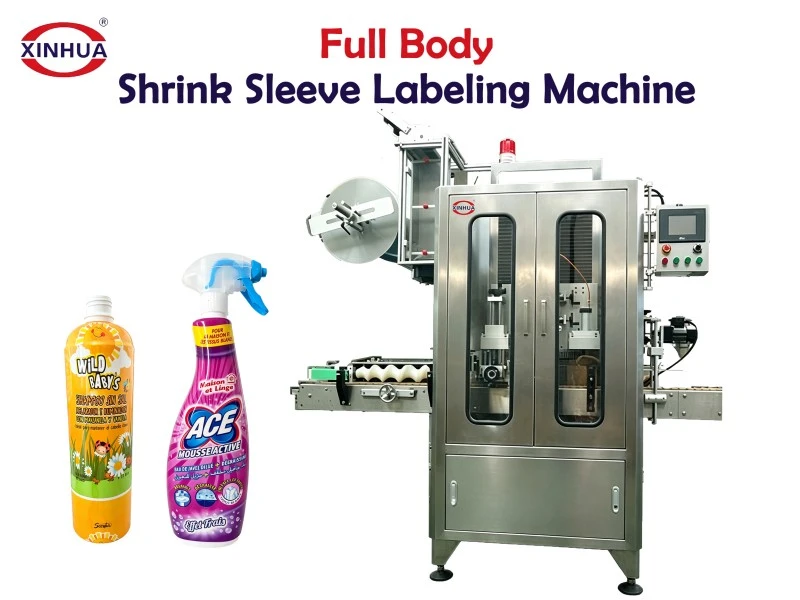

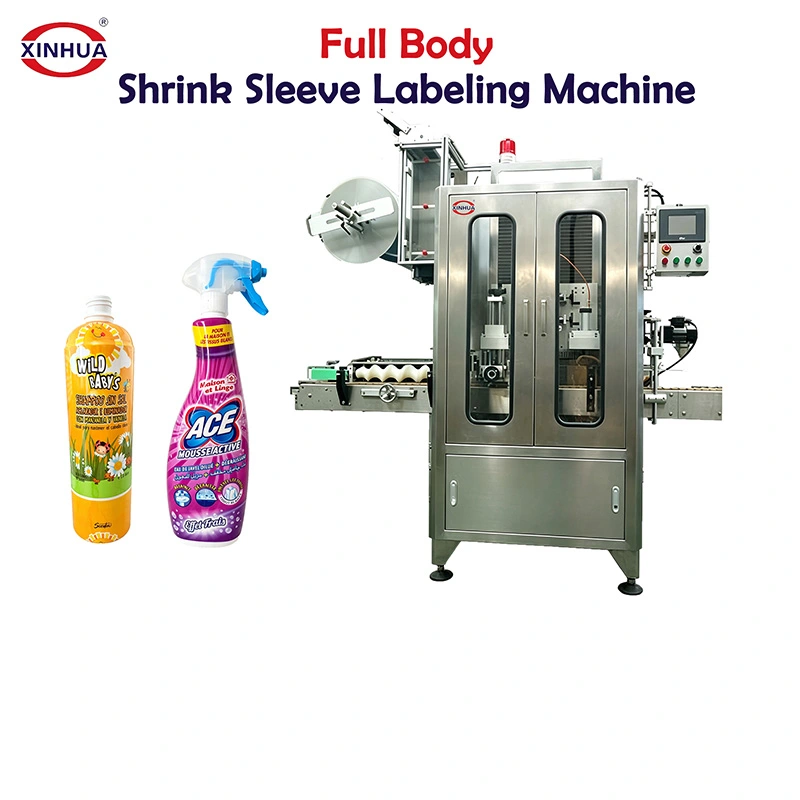

Full-Body Shrink Sleeve Labeling Machine

The Full-Body Shrink Sleeve Labeling Machine is a fully automatic shrink sleeve labeling system designed for full‑body film application on various bottles and containers. It is widely used for high‑volume sleeve labeling production in the beverage, daily chemical, food, and pharmaceutical industries.

Key Features

1. Stainless Steel Machine Structure

The entire machine adopts a stainless‑steel frame, providing strong support and stable fixation for the main unit and conveyor system.

2. Servo‑Driven Cutting System

The cutting unit is driven by a servo motor through a belt transmission system. It remains idle without bottle detection, extending service life and improving safety. The cutting blade uses standard utility blades, which are easy and cost‑effective to replace.

3. Synchronized Bottle Conveying System

The dual‑side synchronized conveyor provides stable bottle transport. Bottle height and positioning can be easily adjusted with handwheels, ensuring smooth conveying and accurate sleeve positioning.

4. Bottle Separation Screw

The separating screw evenly spaces bottles before they enter the sleeve positioning system, ensuring stable and continuous operation.

5. Center Film Expansion System

The center column expands the sleeve film, enabling smooth film feeding and precise cutting.

6. Safety Protection System

The machine is equipped with a safety alarm system. When abnormal operation occurs, the warning light and alarm sound are activated to ensure safe operation.

Technical Specifications

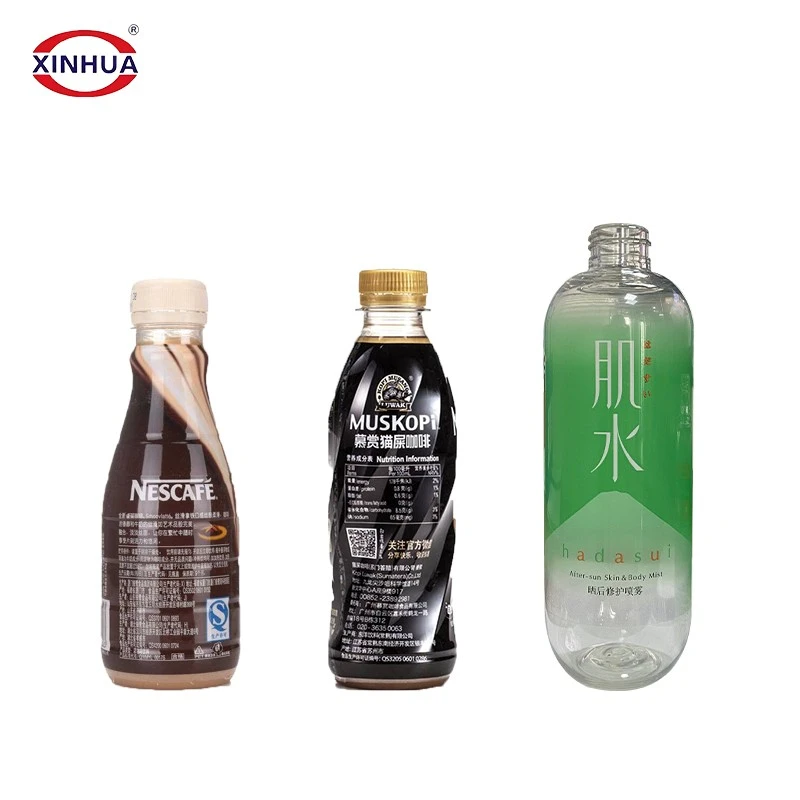

Application Range

Compatible Materials: PET, PE, HDPE, PP, glass, and other container materials.

Compatible Container Shapes: Round bottles, square bottles, and various irregular‑shaped containers.

Application Conditions: Suitable for both empty containers and filled finished products.

Applicable Industries: Beverage, food, personal care, household chemicals, and pharmaceutical industries.

Standard Spare Parts and Components

The PackSoul Full-Body Shrink Sleeve Labeling Machine is supplied with a complete set of commonly used spare parts, including cutting belts, utility blades, timing belts, drive rollers, brush rollers, conveyor belts, bottle‑separating belts, linear bearings, bearings, buttons, emergency stop switches, and relays. These spare parts help simplify future maintenance, reduce downtime, and ensure stable production.

Standard Tools Included

The machine comes with a full maintenance tool kit, including a toolbox, ball‑end hex key set, combination wrenches, adjustable wrench, Phillips screwdriver, flat‑head screwdriver, screws, and diagonal pliers. The tools support equipment installation, adjustment, and routine maintenance.

Installation, Commissioning & Training

1. Equipment Installation

Preparation: PackSoul handles equipment delivery to the designated location. The customer prepares the installation area and provides power supply, air supply, and necessary connections. Lifting tools such as forklifts and carts should be arranged on site.

Installation Location & Schedule: Determined according to the customer’s production plan.

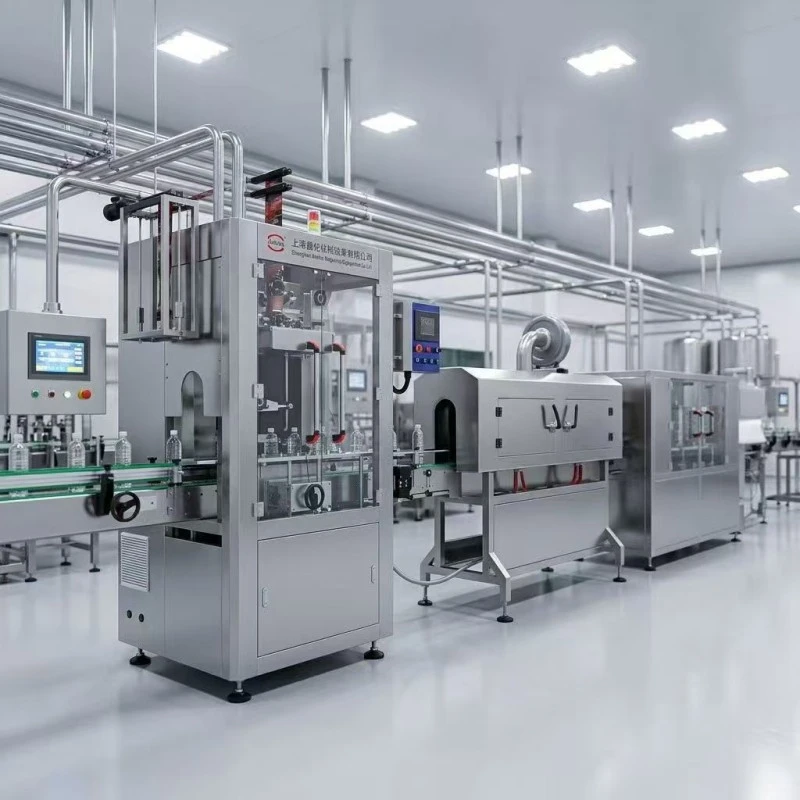

Line Integration: For connection with other machines, the customer provides on‑site coordination to ensure smooth line operation.

2. Equipment Commissioning

Commissioning Process: After installation, the machine undergoes individual testing followed by complete production line commissioning. Customer operators participate throughout the process.

Technical Support: PackSoul provides an engineer for commissioning support, with customer personnel assisting and learning.

Adjustment Scope: The machine is adjusted according to different bottle sizes and shapes provided by the customer to ensure stable production.

3. On‑site Training

PackSoul provides practical operation training, covering machine start‑up/shutdown, label replacement, bottle changeover, troubleshooting, and routine maintenance to help operators use and maintain the equipment efficiently.

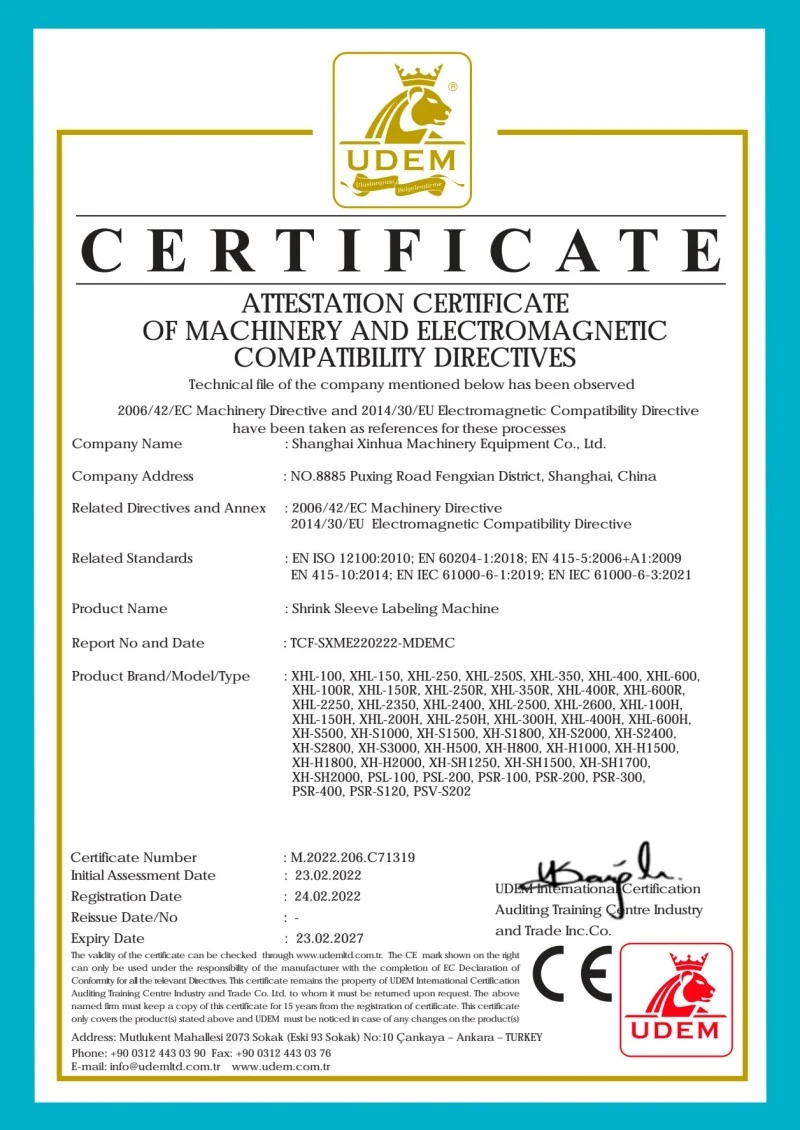

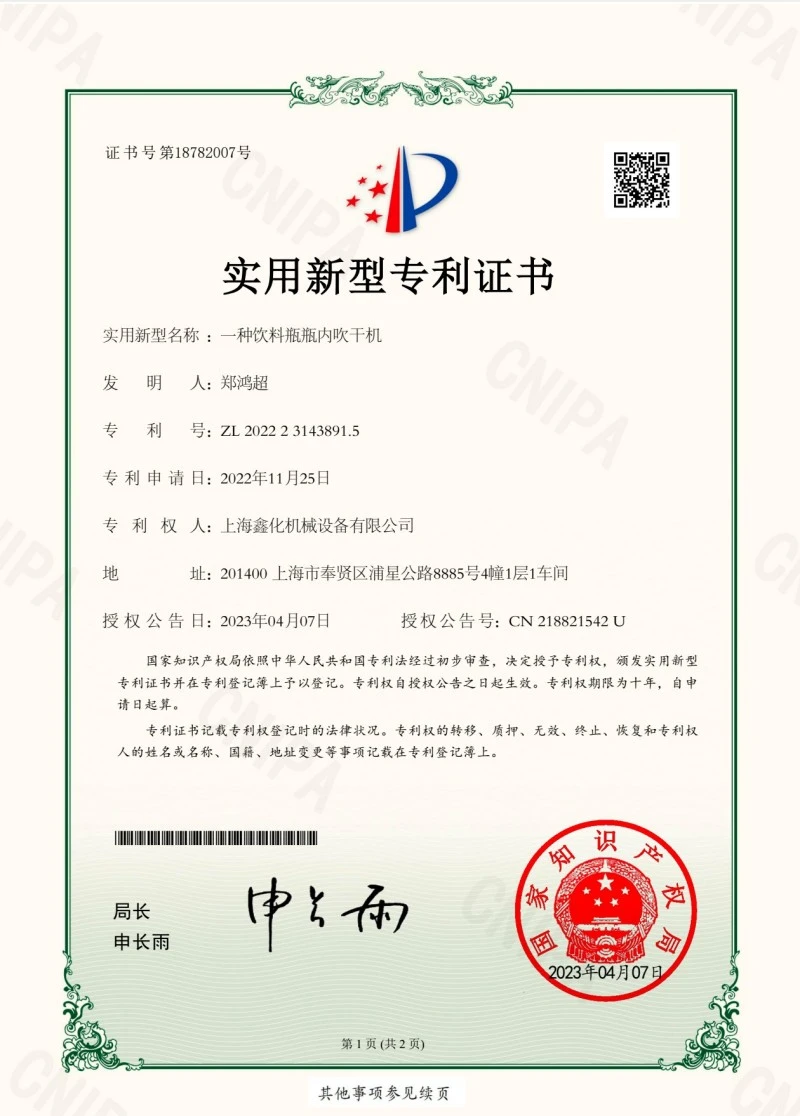

Certification & Assurance

These certifications demonstrate that thePackSoul Full-Body Shrink Sleeve Labeling Machine meets advanced technical standards and global market requirements, ensuring reliable operation and compliance.

Partners

PackSoul serves both domestic and global markets, building long‑term partnerships worldwide through advanced technology, reliable equipment, and professional service. Together, we drive packaging innovation and achieve mutual success.

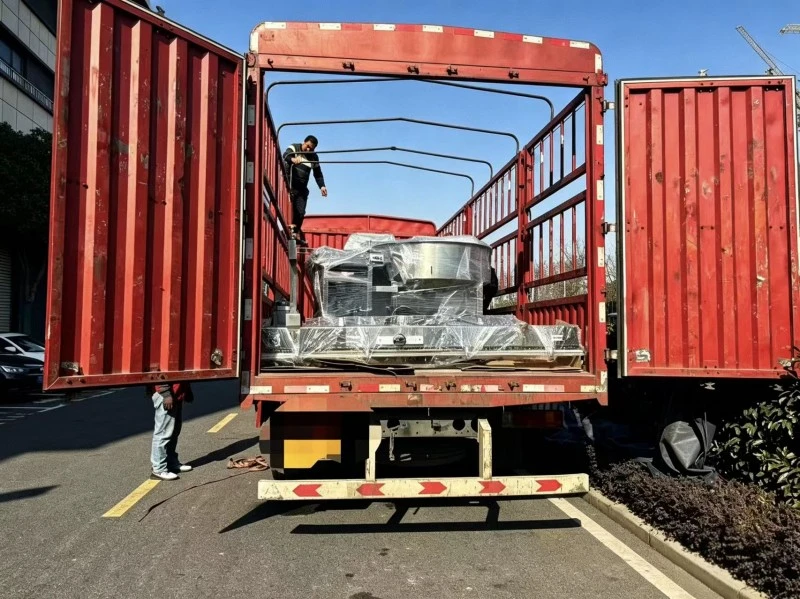

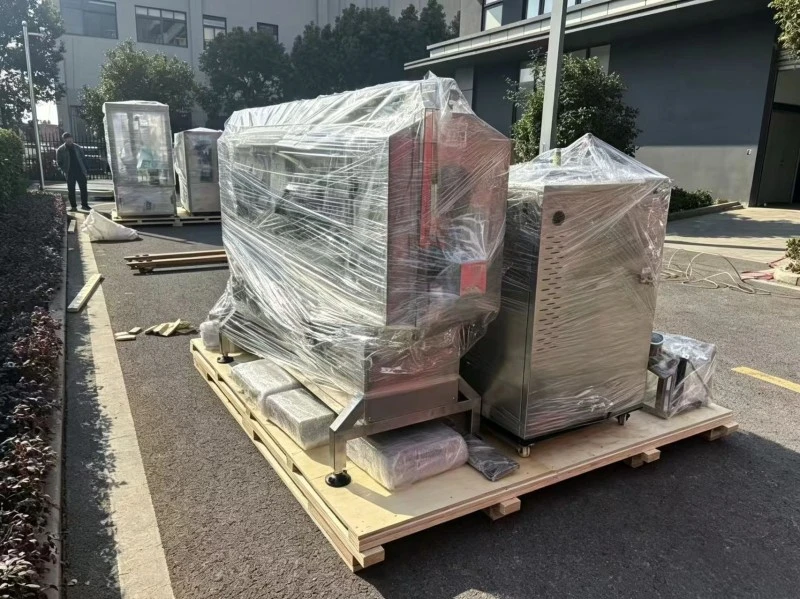

Loading & Shipping

PackSoul ensures safe delivery through standardized packaging and professional handling, providing reliable support for quick installation and production start‑up.

FAQ

1. What is the maximum production speed?

A: Up to 15,000 bottles/hour (BPH), suitable for high‑volume continuous production.

2. What label height and thickness are supported?

A: Label height: 25–300mm; film thickness: 0.03–0.13mm. Compatible with PVC, OPS, PET, and other shrink films.

3. How is the cutting unit driven? Does it run without bottles?

A: Driven by a servo motor and belt transmission system. The cutter automatically stops when no bottle is detected, extending blade life and improving safety.

4. Are the cutting blades easy to replace?

A: Yes. Standard utility blades are used for quick replacement and lower maintenance costs.

5. How does the machine ensure stable bottle conveying?

A: The dual‑side synchronized conveying system provides stable transport and precise sleeve positioning through simple handwheel adjustment.

6. What is the function of the bottle separation screw?

A: It spaces bottles evenly before sleeving to prevent overlap and ensure continuous operation.

7. What is the function of the center column?

A: It expands and guides the sleeve film for smooth feeding and cutting, ensuring accurate positioning without wrinkles or shifting.
