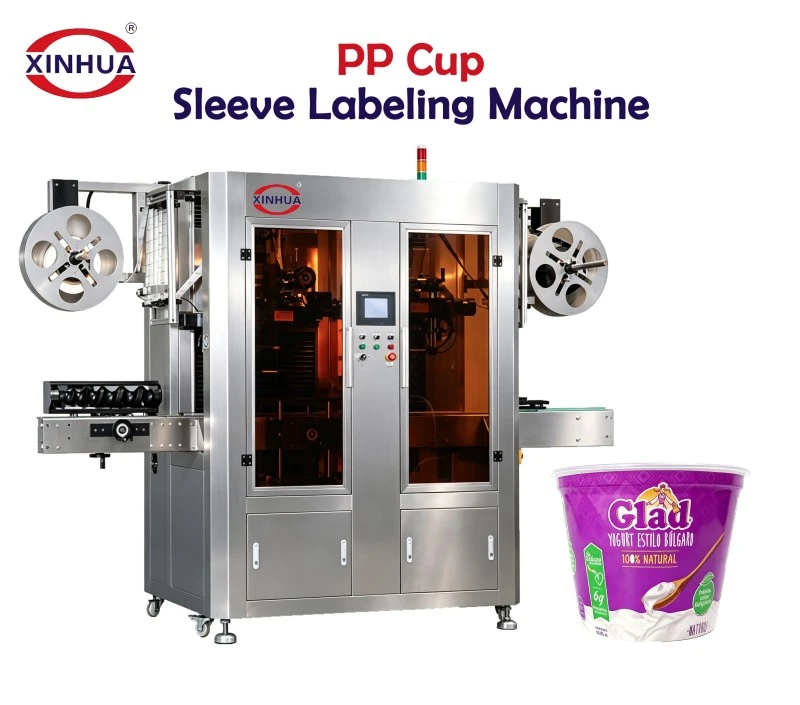

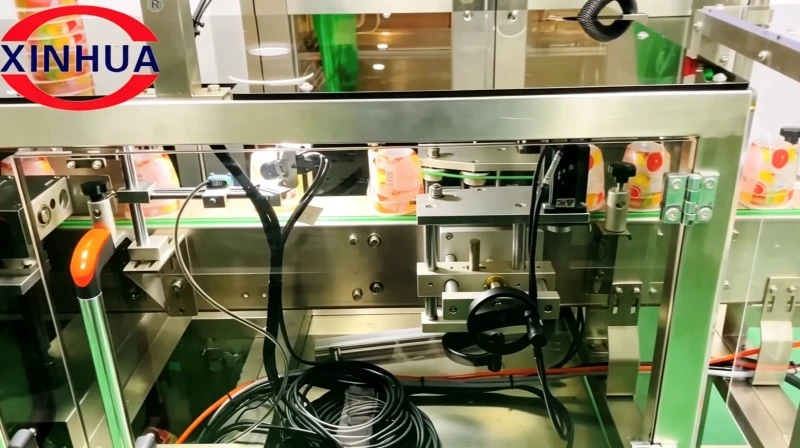

The PackSoul PP Cup Sleeve Labeling Machine is a fully automatic shrink sleeve labeling system developed for PP cup characteristics. It is specially designed for sleeve labeling applications on PP containers such as yogurt cups and jelly cups.
PP cups may cause sleeve loosening after shrinking. The machine uses cooling shaping and secondary heating processes to tighten the sleeve and maintain a smooth, secure fit.
Multi‑zone independent temperature control and adjustable airflow prevent thin‑wall cup deformation while protecting container structure and printed graphics.
Localized pre‑heating at the cup rim locks the sleeve position, preventing upward shifting and ensuring consistent labeling height.
The fully automated system integrates feeding, vision inspection, and automatic stacking. The steam‑free hot air solution eliminates boiler and water costs, reducing energy consumption.
By replacing the center column, bottle separation screw, and cutting unit, the machine can quickly adapt to different products and sleeve labeling requirements.
| Model | XHL‑2450 |
| Main machine size | 2500mm（L）*860mm（W）*2000mm（H） |
| Machine body& Weight | 1000KGS(Approx) |
| Main machine power | AC 3‑PHASE 220V/380V |
| Power | 8KW |
| Production speed | Max 45000BPH |
| Bottle diameter range | φ20mm‑φ130mm |
| Knife plate range | φ20mm‑φ50mm. φ50mm‑φ95mm.φ95‑φ130mm |
| Label height | 25mm‑300mm |
| Label material | PVC/OPS/PET |
| Label thickness | 0.03mm‑0.13mm |
| Paper tube inner diameter | 5"‑10"is available |
| Shrink tunnel | Heat or steam shrink tunnel is optional |
With professional production facilities, PackSoul completes equipment assembly, parameter adjustment, and production line integration testing, verifying machine performance in advance to ensure smooth connection with customer production lines.

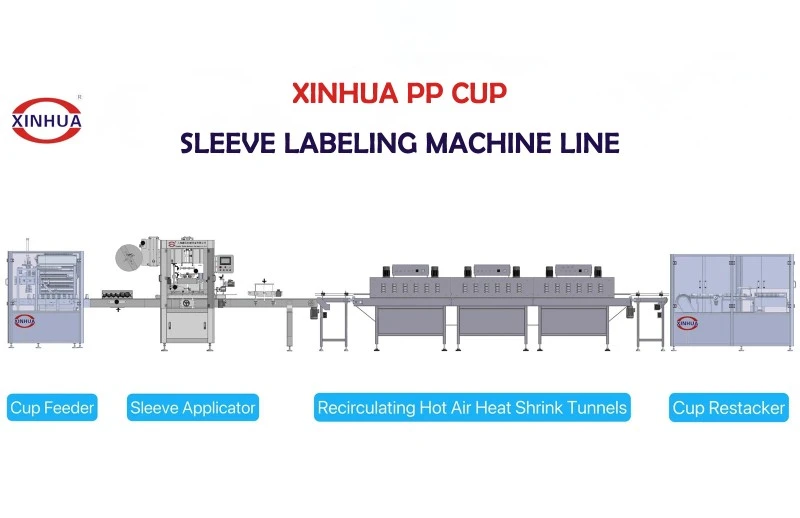

1. Automatic cup feeding system

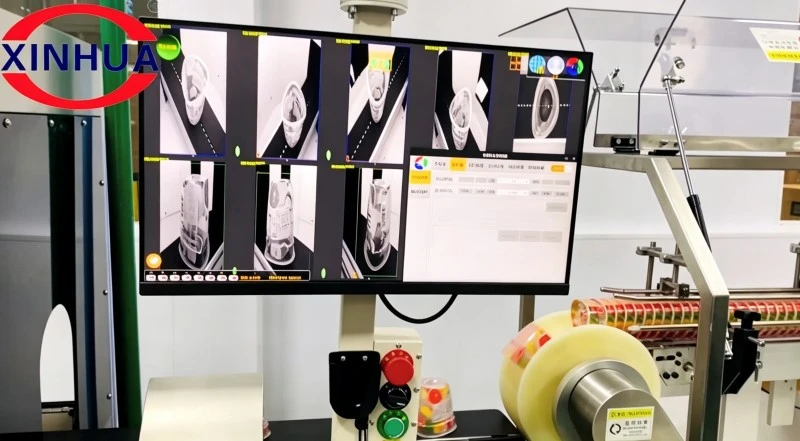

2. Vision camera inspection system for cup defect rejection
3. Multiple shrink label rolls unwinder Station
4. Automatic cup restacking system
5. Coding & date printing module
6. Cooling air tunnels for cooling cups from heat tunnels

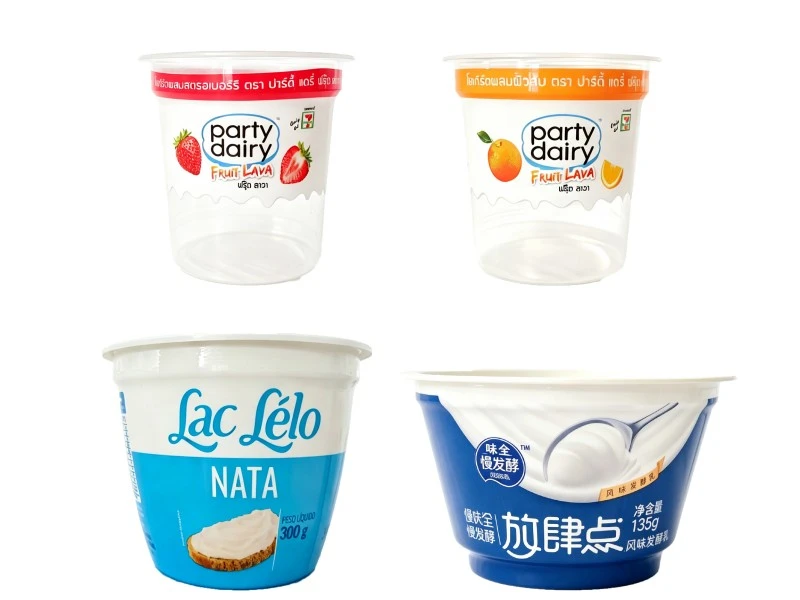

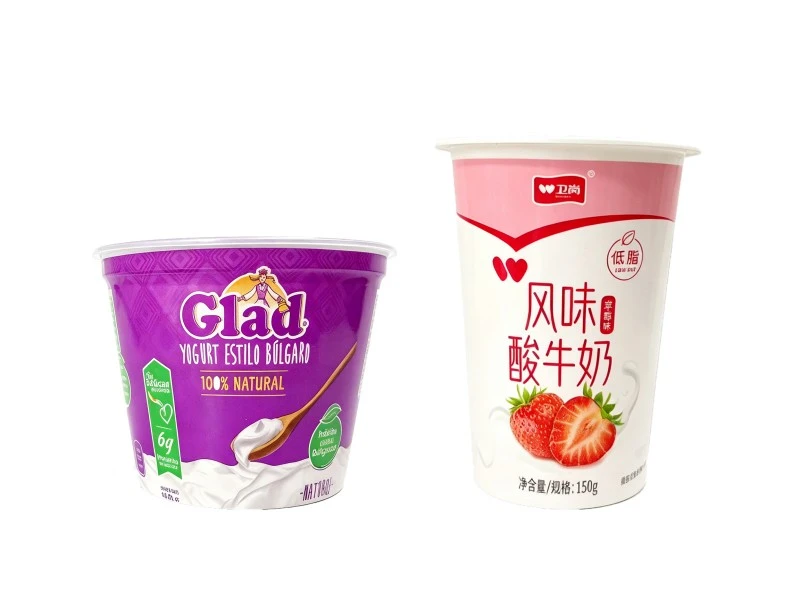

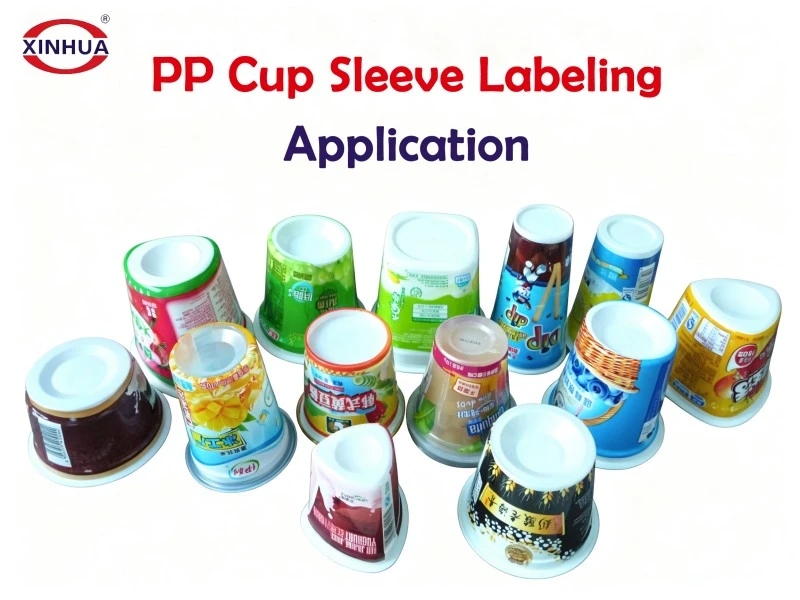

Dairy Industry: Ambient yogurt, fermented milk, probiotic drinks, and cream desserts.
Dessert Packaging: Pudding, jelly, and dairy‑based desserts.
PackSoul works closely with industry partners, combining technical expertise and market experience to deliver comprehensive labeling solutions.

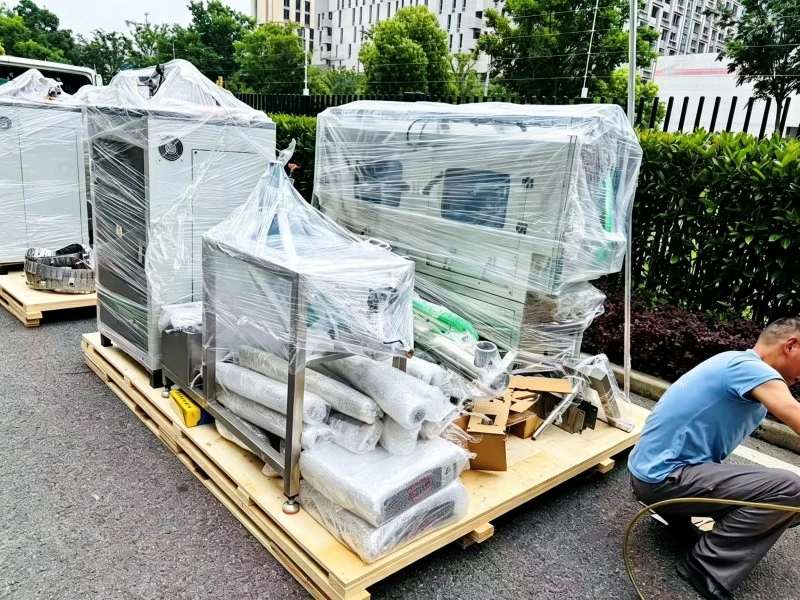

From equipment completion to customer delivery, PackSoul provides a complete shipping support system, reducing preparation time before installation and helping customers start production quickly.
A: It is mainly designed for PP cup shrink sleeving, including yogurt cups, dairy cups, jelly cups, probiotic cups, and cream dessert cups. Custom solutions are available based on cup and label requirements.
A: PP materials are sensitive to heat and may deform during shrinking. The machine uses cooling shaping and secondary heating processes to improve sleeve fitting and prevent rebound.
A: The cooling shaping and secondary heating process stabilizes the sleeve after shrinking, ensuring a tighter and more durable fit.
A: The cup rim pre‑heating positioning system fixes the sleeve position after application, preventing label shifting and maintaining consistent height.
A: Yes. Multiple film unwinding stations can be configured for different film materials and label specifications according to production requirements.
A: Yes. A cooling air system can be added to quickly reduce cup temperature, stabilize the sleeve effect, and minimize deformation or label shifting.
