We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

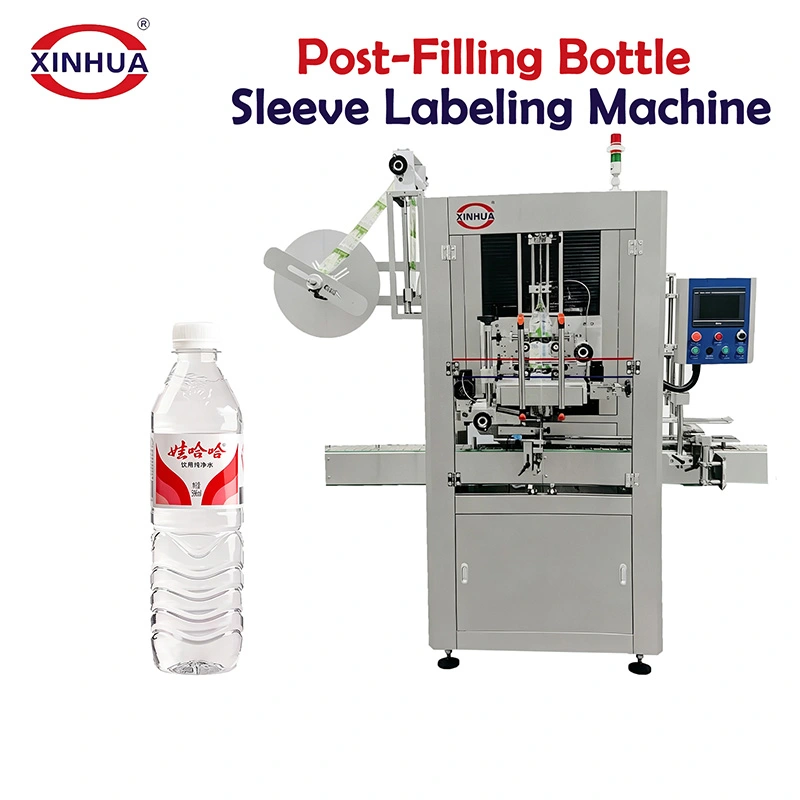

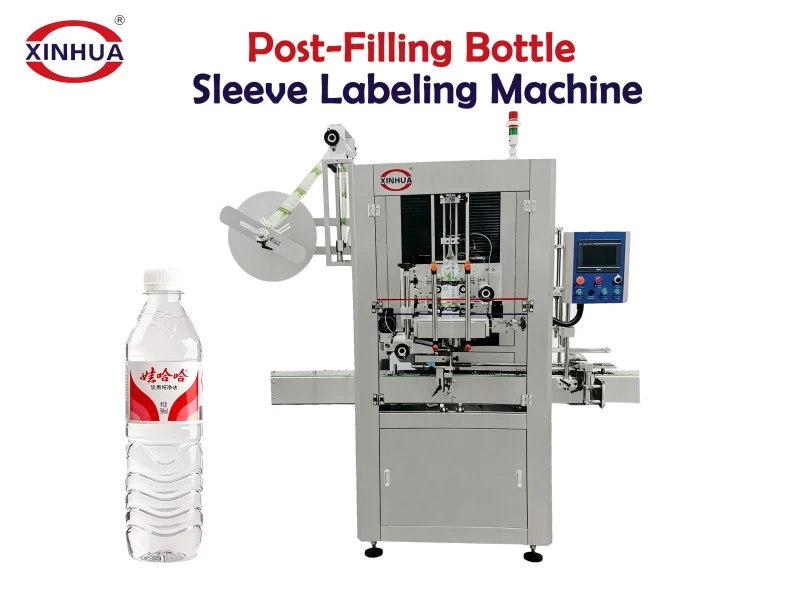

The Post-Filling Bottle Sleeve Labeling Machine is a fully automatic shrink sleeve labeling system designed for filled and capped bottles. It works with a shrink tunnel to complete label forming and is widely used for high‑volume sleeve labeling in daily chemical, cosmetics, and food industries.

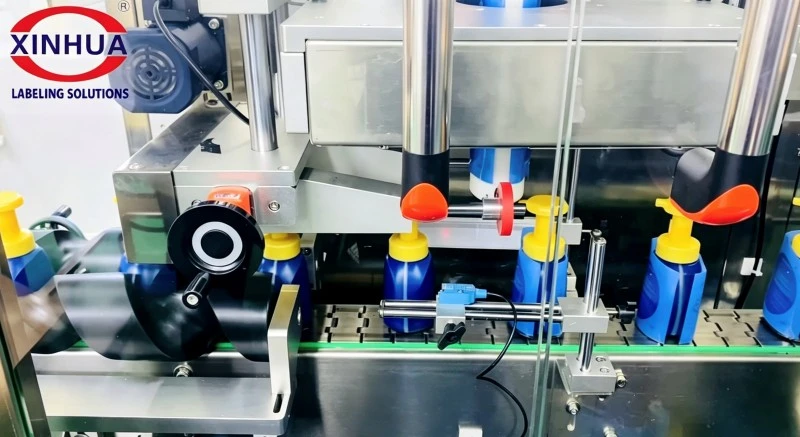

Filled bottles have increased weight and require higher conveying stability. The optimized guide and conveying structure ensures smooth bottle transfer and reduces labeling deviation caused by shaking.
The adjustable high‑speed sensor accurately detects label marks and prevents sleeve misalignment, ensuring consistent positioning.
The dedicated cutting system controls sleeve length according to bottle shape and label specifications, delivering smooth cuts and consistent sizing.
The sleeve film is accurately fed, cut, and applied onto bottles, reducing jams and shifting while ensuring continuous production.
Equipped with a dual film roll feeding system, the machine enables automatic roll switching without stopping, reducing changeover time and ensuring continuous production efficiency.
| Model | XHL‑150 |
| Sleeve Labeling Type | Vertical |
| Main Machine Size | 1000L*860W*2100H |
| Main Body Material | SUS 304 |
| Label Diameter Cutting | Φ12‑φ150mm |
| Label Length Cutting | Max 300mm |
| Label Material | PVC,PETG,OPS,PE,PLA |
| Thickness of Label | 0.025mm~0.13mm |
| Sleeving speed | Max 6000/hour |
| Voltage | AC 3P 220/380V,50/60HZ |
Suitable for filled containers such as beverage bottles, sauce bottles, detergent bottles, disinfectant bottles, skincare bottles, and fragrance bottles. It is compatible with round bottles and some irregular‑shaped containers, supporting PET, PVC, PP, glass, and other materials.

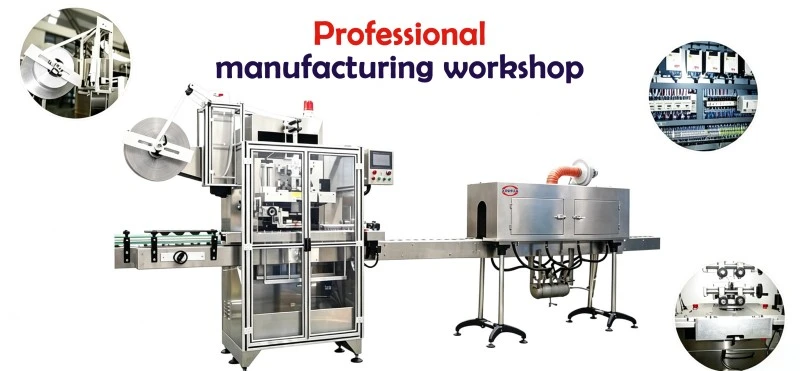

PackSoul operates a professional production facility with full control over the entire manufacturing process.
Conveyor belt for stable transport of sleeving products.
Moves the film supply unit to ground level for easier operation and maintenance.
Used with the floor‑standing rack to maximize film buffering capacity.
Allows label film direction adjustment with 0–90° rotation.
Enables simultaneous horizontal and vertical perforation directly on the machine.
Presses sleeves into the correct position for accurate application.
Uses Swiss imported hot air guns to pre‑position and partially shrink sleeves before final shrinking.
Removes water from bottle surfaces before and after sleeve labeling.
Automatically places cups onto the conveyor for continuous production.
Automatically stacks finished cups for efficient collection.
The PackSoul Post-Filling Bottle Sleeve Labeling Machine is equipped with multiple utility model patents and manufactured in strict accordance with industry standards.
Over the years, PackSoul has built long‑term partnerships with many well‑known food, beverage, and daily chemical companies through reliable equipment performance and professional services, helping leading brands achieve efficient packaging production.
PackSoul values every equipment delivery and ensures product quality reaches the customer’s production site through strict packaging standards and professional logistics management.
Designed for filled and capped bottles, with optimized conveying structures to reduce bottle shaking and ensure accurate, stable sleeve labeling.
Equipped with high‑speed sensors and a unique sleeve guiding system for accurate positioning, smooth sleeving, and reduced defects.
Supports automatic switching between two film rolls without stopping, ensuring continuous production with a maximum capacity of 6,000 bottles/hour.
Compatible with PVC, PETG, PE, and other shrink films, as well as round and irregular bottles. Optional functions include perforation, drying, and automatic cup loading.
Long‑term partners of leading brands such as Jiaduobao, Mengniu, and Liby. Multiple utility model patents ensure reliable quality.
A: The XHL‑150 is mainly designed for filled and capped bottles. It can process empty bottles, but its key advantage is stable sleeving for heavier filled containers.
A: The maximum speed can reach 6,000 bottles/hour, depending on bottle size and sleeve length.
A: No. The dual film roll system allows roll switching without stopping, enabling continuous production.
A: It supports various shrink films, including PVC, PETG, OPS, PE, and PLA.
A: Yes. An optional perforation unit can create horizontal and vertical tear lines for easy label removal.
A: Yes. An optional drying system can remove surface water before sleeving to ensure better label adhesion and positioning.
