We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

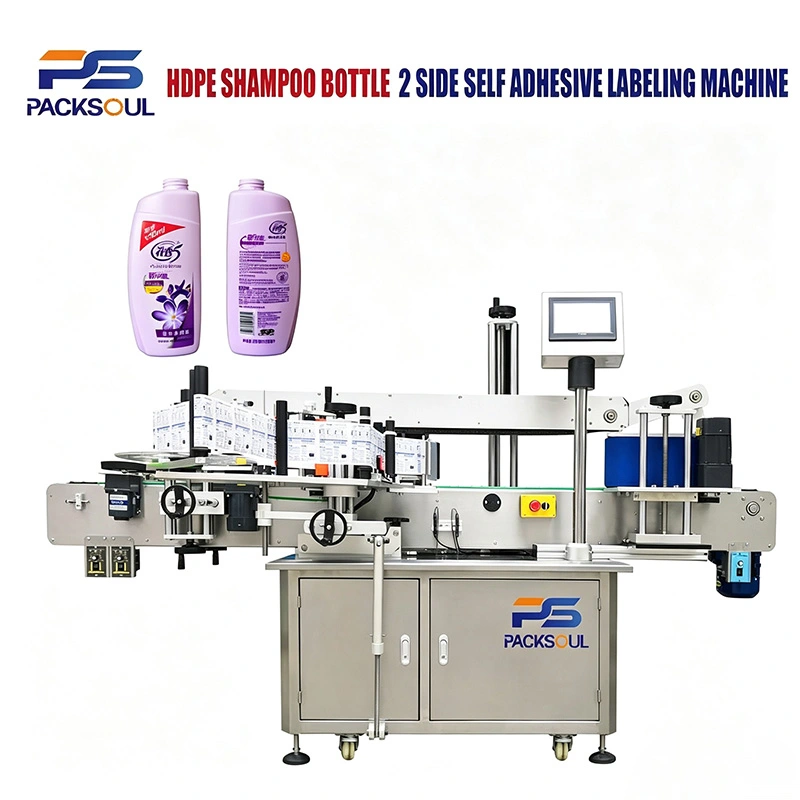

The HDPE Shampoo Bottle Double Side Labeling Machine is a fully automatic inline labeling system designed for HDPE shampoo bottles, flat body wash bottles and irregular‑shaped personal care containers. It automatically performs bottle conveying, positioning, synchronized double‑sided labeling, label pressing and product discharge.
The machine is specially optimized for flat and irregular bottles that are prone to shifting or misalignment, ensuring fast, smooth and symmetrical double‑sided labeling. It can operate independently or integrate with existing filling and packaging lines, making it ideal for standardized high‑volume production in the personal care and daily chemical industries.
Intuitive HMI interface for easy parameter adjustment and real‑time fault alerts, helping reduce troubleshooting time.
Dual servo‑driven labeling systems independently control both labels, ensuring accurate positioning and smooth application with minimal bubbles, wrinkles and lifting.
Dedicated side‑guiding and positioning system keeps flat and lightweight HDPE bottles stable during high‑speed conveying, reducing shifting, tipping and bottle jams.
Suitable for standalone operation with manual loading or integration with filling, capping and coding machines for a complete automated packaging line.
Supports paper, printed, transparent PVC and PET self‑adhesive labels, providing flexibility for different packaging designs.
Corrosion‑resistant construction is suitable for humid personal care production environments, with easy‑to‑clean surfaces for reliable long‑term operation.
| Parameter Item | Specification Value |
| Machine Model | PS‑S202 HDPE Shampoo Bottle Front & Back Sticker Labeling Machine |
| Labeling Object | Round / Square / Rectangular / Triangular / Flat cups |
| Labeling Station | Front & back double‑sided labeling |
| Labeling Speed | 60‑200 pcs/min (varies with product and label size) |
| Labeling Accuracy | ±1.0mm |
| Label Type | Self‑adhesive stickers, transparent labels, printed labels |
| Label Size Range | Length: 10‑300mm, Height: 10‑150mm |
| Product Size Range | Width: 20‑200mm, Height: 30‑350mm |
| Label Roll Inner Diameter | Φ76mm |
| Max Outer Diameter of Label Roll | Φ380mm |
| Machine Overall Dimension | L2000 × W1300 × H1500mm |
| Power Supply | AC110V/220V, 1.5HP, 50Hz/60Hz |
The HDPE Shampoo Bottle Double Side Labeling Machine uses a continuous inline conveying system, with the main PLC coordinating bottle conveying, positioning, labeling and pressing throughout the process.
HDPE personal care bottles are smoothly conveyed through the machine and centered by a dedicated side‑guiding and positioning system. Once the bottle is detected, two servo‑driven labeling heads simultaneously dispense and apply labels to the front and back sides. Synchronized pressure rollers press the labels firmly onto the bottle surface and help remove trapped air, ensuring a smooth and secure finish.
The machine continuously monitors the labeling process. Automatic alarms are triggered in case of missing bottles, label shortage or bottle jams, helping ensure stable, efficient and fully automatic double‑sided labeling for shampoo and personal care bottles.
Process: Bottle Feeding → Centering & Positioning → Double‑Sided Labeling → Pressure Rolling → Automatic Inspection → Product Discharge
Suitable Bottle Types:

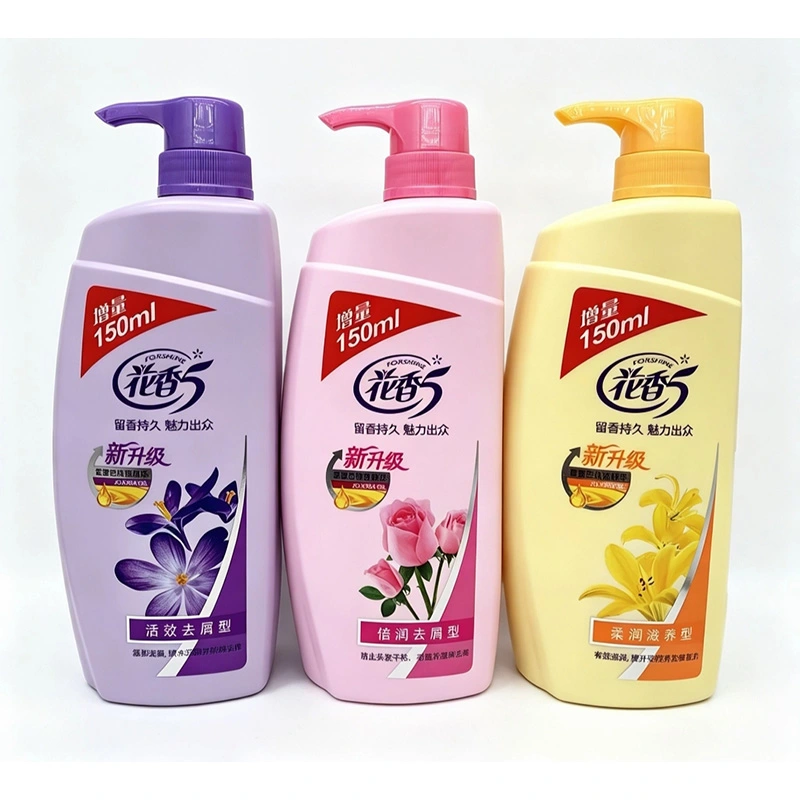

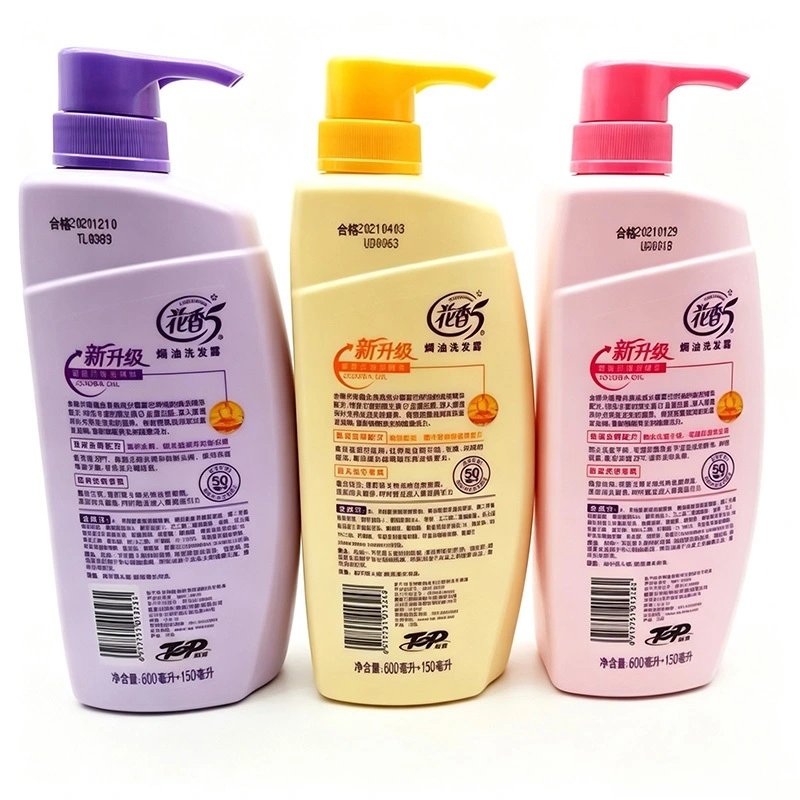

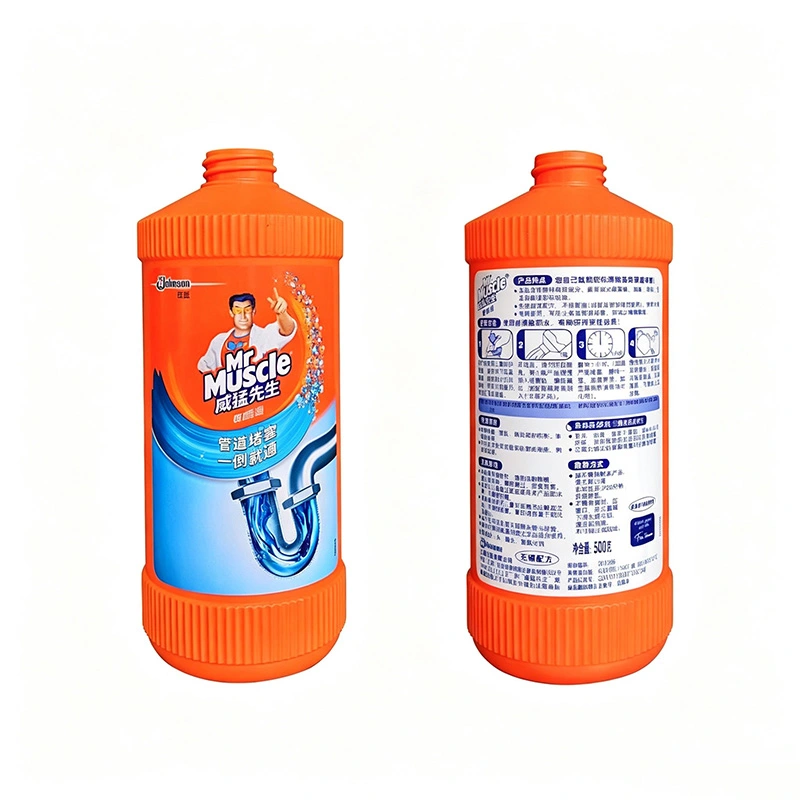

HDPE shampoo bottles, PE body wash bottles, flat personal care bottles, conditioner bottles, irregular‑shaped body lotion bottles, and other flat plastic containers for daily chemical products.
Suitable Industries:
Personal care and daily chemical products, shampoo and body wash manufacturers, cosmetic processing factories, daily chemical OEM/ODM manufacturers, and household cleaning product production lines
After shutting down and disconnecting the power, clean the machine with a soft cloth, including the conveyor belt, side guides, labeling heads and pressure rollers. Do not spray high‑pressure water directly onto the electrical control cabinet or servo motors.
Regularly clean adhesive residue and dust from the pressure rollers and label feeding rollers to prevent label slipping and inaccurate positioning.
When the machine will be unused for an extended period, release the label roll tension to prevent adhesive from sticking to the rollers and shafts.
Keep photoelectric sensors and detection eyes clean and free from dust to ensure stable detection and reduce missed or incorrectly positioned labels.
Regularly lubricate chains, transmission bearings and other moving components with suitable machine lubricant to reduce wear and extend equipment service life.
Bottles are manually loaded or connected to an automatic bottle unscrambler, then conveyed smoothly and continuously into the labeling machine.
The dedicated side‑guiding system automatically aligns flat HDPE bottles, keeping them centered and properly oriented for accurate labeling.
Photoelectric sensors detect the bottle position, while two servo‑driven labeling heads simultaneously apply labels to the front and back sides.
Elastic pressure rollers firmly press the labels onto the bottle surface, helping remove trapped air and minimizing bubbles, wrinkles and edge lifting.
Finished bottles are automatically conveyed out of the machine and can be connected to a collection table or downstream production line.
The control system automatically detects missing bottles, label shortages, bottle jams and equipment abnormalities, with real‑time alarm prompts to support stable production.

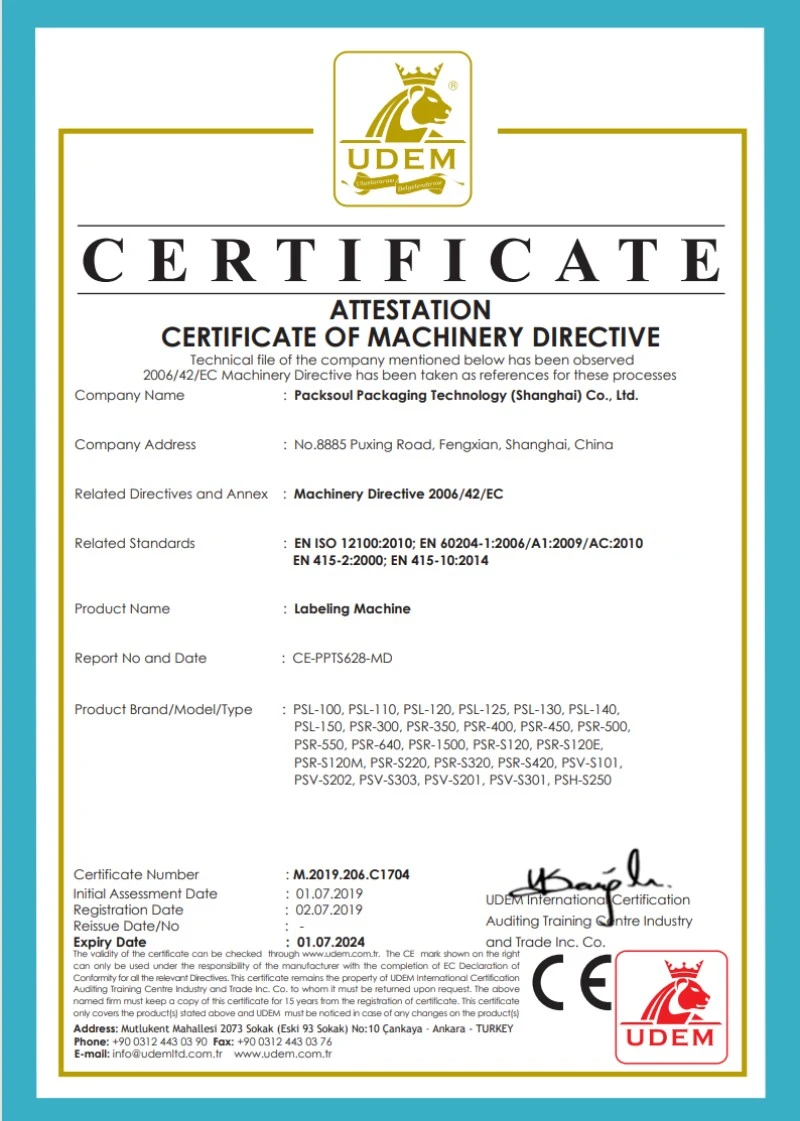

The HDPE Shampoo Bottle Double Side Labeling Machine is manufactured and assembled according to industrial packaging machinery standards. Key electrical components are sourced from reputable brands. Before shipment, each machine undergoes extended no load testing and full load labeling trials to verify labeling accuracy, operating stability and overall safety. CE certification is available upon request. The machine is designed to meet the production requirements of personal care and daily chemical manufacturers in domestic and overseas markets.
The machine is specially designed for flat HDPE bottles. Its dedicated side guiding and positioning system helps prevent bottle shifting, misalignment and label lifting during high speed labeling.
Two independent servo driven labeling heads allow separate adjustment of front and back label positions, ensuring accurate and symmetrical double sided labeling.
The PLC and HMI control system provides an intuitive interface and clear fault alerts. Operators can quickly set parameters and perform adjustments without extensive technical training.
The machine can be integrated with filling, capping and coding equipment for complete automated packaging lines. We provide labeling solutions for shampoo, body wash and other personal care bottles.
The modular machine structure makes inspection, component replacement and routine maintenance easier, helping reduce maintenance time and long term operating costs.
The machine can be configured for different voltage standards according to the destination market, making it suitable for customers in Southeast Asia, the Middle East, Europe and other overseas markets.
Packsoul specializes in packaging and labeling automation equipment, focusing on automated labeling solutions for the personal care and daily chemical industries. We serve daily chemical OEM factories, shampoo and body care manufacturers, and personal care product companies, with extensive experience in double‑sided labeling projects for HDPE shampoo bottles, flat body wash bottles and similar containers. Our machines have been exported to Southeast Asia, the Middle East, Latin America and other overseas markets, providing us with extensive experience in international project delivery and technical support.
After delivery, we provide remote video guidance for machine positioning, electrical connection, installation and commissioning. On‑site service can also be arranged when required.
We provide complete operation manuals in Chinese and English, along with practical training videos to guide operators through parameter settings, machine adjustment and routine maintenance.
The complete machine is covered by a one‑year warranty, excluding standard wear parts such as sensors, rubber rollers and belts. Online technical support is available 24/7.
Provide long‑term technical guidance for bottle changes, label size adjustments and production speed changes, including parameter setting and machine adjustment support.
Customized solutions are available for special bottle sizes, label designs and production requirements, including machine modifications and configuration adjustments.

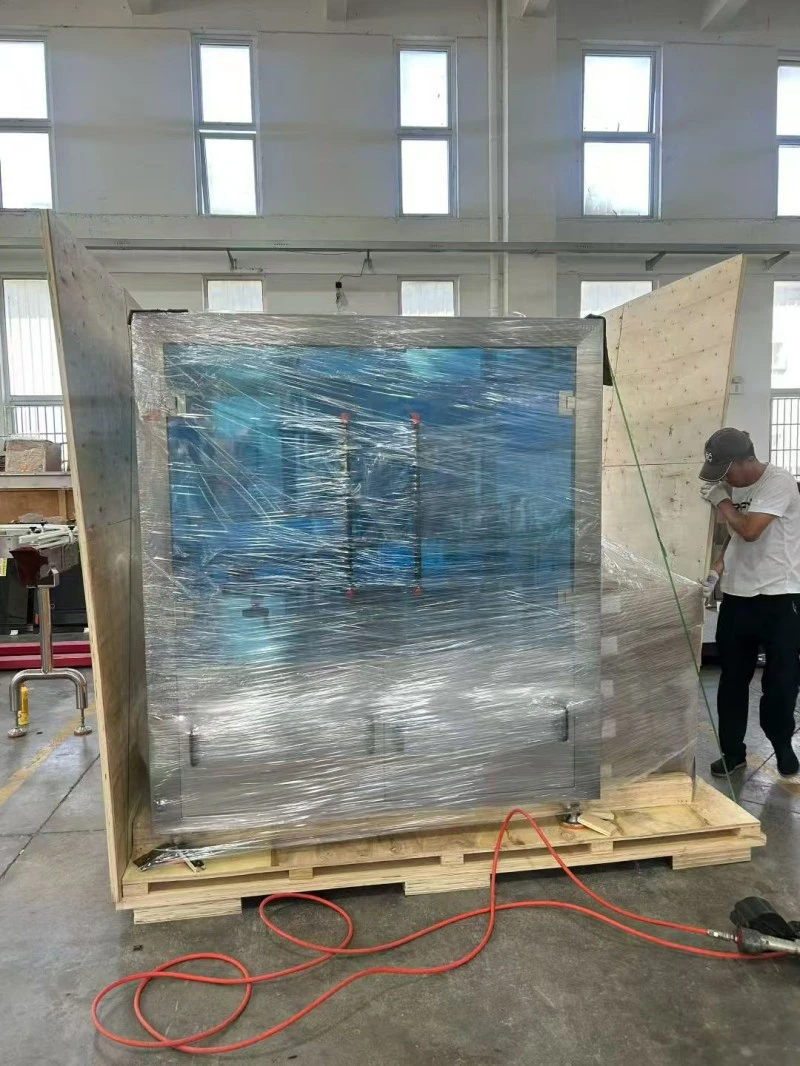

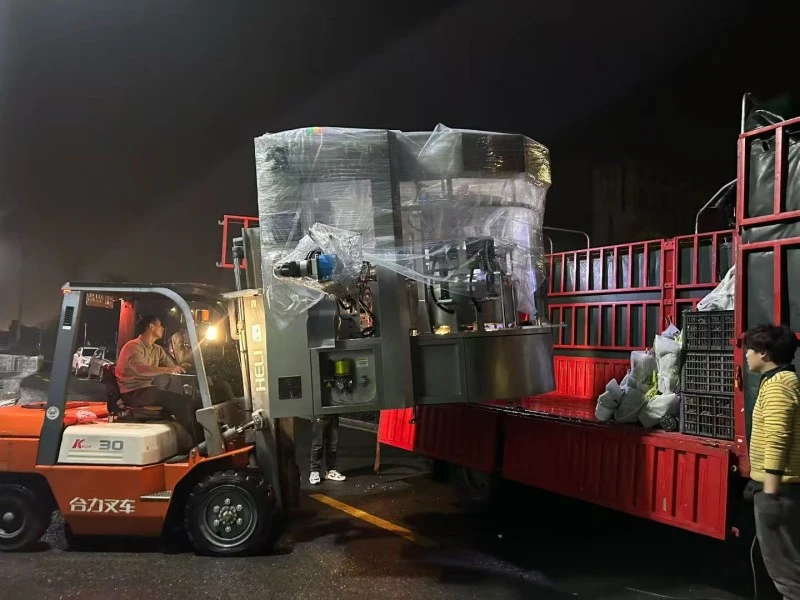

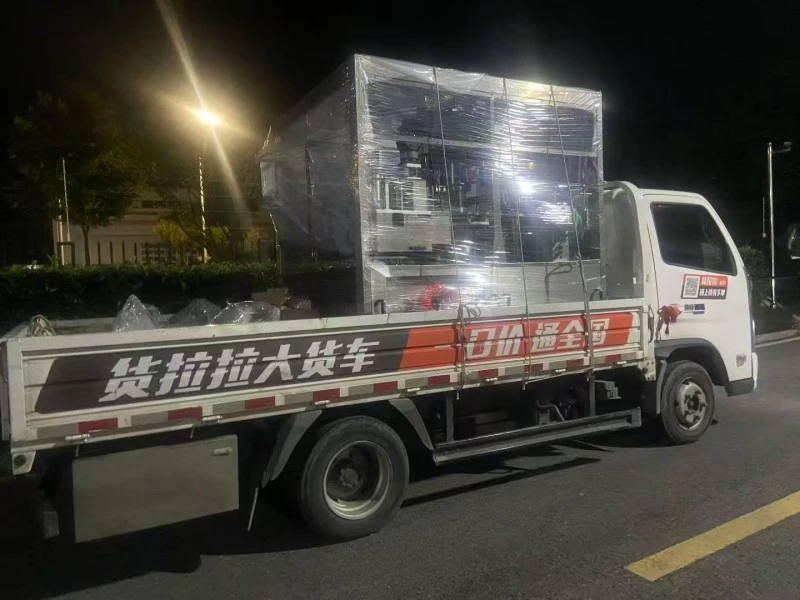

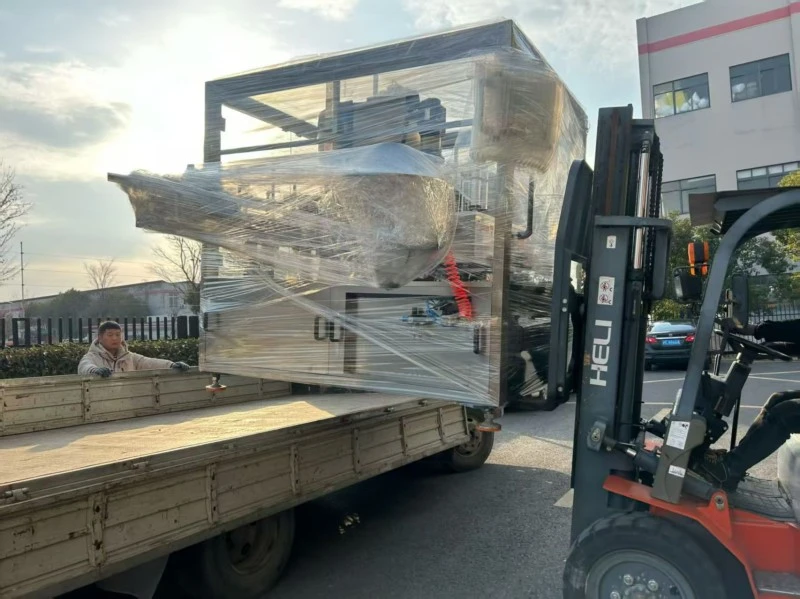

All machines are packed in export standard fumigation free solid wood crates with internal shock absorbing foam and reinforced strapping for secure transportation. Electrical control components are professionally wrapped for moisture and dust protection, helping prevent damage, moisture exposure and deformation during sea or land transportation. The packaging is designed to meet international shipping and export customs requirements.
A: The machine is mainly designed for HDPE shampoo bottles and flat body wash bottles. It can also handle various flat and irregular‑shaped PE and PET containers for personal care and daily chemical products, providing flexible labeling for multiple product types.
A: Yes. The machine uses a dual servo independent labeling system, allowing separate adjustment of the front and back label positions, speed and tension. With labeling accuracy of up to plus or minus 1 mm, it helps maintain consistent and symmetrical double‑sided labeling.
A: The machine uses servo controlled constant label tension and flexible pressure rollers. The rollers adapt to the bottle surface and press the labels evenly while helping remove trapped air, resulting in smooth and secure label application with reduced bubbles, wrinkles and edge lifting.
A: Yes. The labeling speed can be continuously adjusted through the HMI to match different production line speeds. The machine can be integrated with bottle unscramblers, filling machines, capping machines and coding equipment for fully automated production.
A: Yes. The machine can be equipped with high precision photoelectric sensors and supports standard self adhesive labels, color printed labels and transparent PVC or PET labels, providing flexible options for different packaging requirements.
A: The machine features an intuitive touchscreen control system with parameter memory. Common production settings can be saved and recalled for future use, making daily operation and product changeover simple. Basic operation and adjustment can be learned quickly with the provided training materials.
