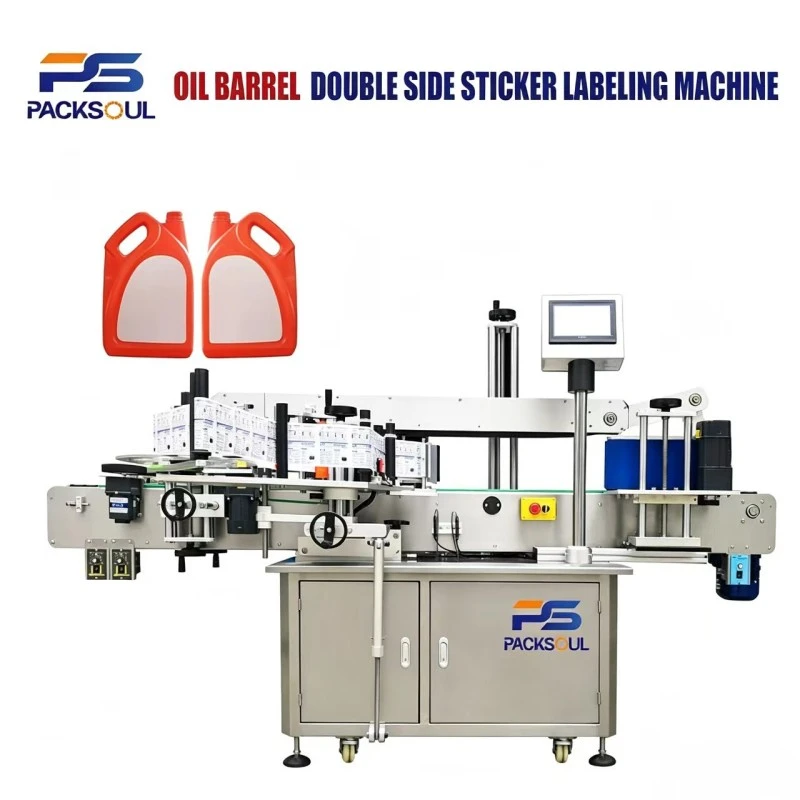

Packsoul Supplier Oil Barrel Double Side Self Adhesive Labeling Machine is a high‑performance fully automatic device made in China, suitable for handled oil pails, flat lubricant cans and chemical flat oil drums. The machine automatically completes full‑process procedures including oil drum conveying, guiding positioning, synchronous double‑side labeling, pressing and discharging without manual barrel‑holding positioning. It specially addresses production pain points like jamming, tipping and label misalignment of special‑shaped flat barrels with handles. Easy‑maintainable, it can work standalone or connect to assembly lines. Widely applied in mass‑volume assembly‑line production for lubricants, vehicle maintenance fluids and chemical additives. Factory direct supply with factory‑price quotation available.
This Oil Barrel Double Side Self Adhesive Labeling Machine adopts a linear conveying structure with an widened conveyor platform. Optimized guidance is specially designed for handled oil pails to ensure smooth transit and prevent jamming on handles or barrels.
Equipped with two independent servo labeling heads. The front and back labels can be fine‑tuned separately, delivering precise positioning. Labels stay flat, wrinkle‑free, bubble‑free and firmly attached at edges.
Flexible limiting and positioning mechanism fits special‑shaped flat barrels with handles. It keeps barrels stable at high speed and reduces defects like tipping and offset.
The whole machine is built with SUS304 stainless steel, oil‑resistant and anti‑corrosive, easy to clean, meeting the working requirements of chemical and oil workshops.
Intelligent sound & light alarm system automatically alerts for missing labels, broken labels, barrel jamming and low label stock, helping quickly troubleshoot and cut downtime loss.
Reserved interface for production line connection. It can work with filling machines and capping machines to build a fully automatic packaging line.
| Parameter Item | Specification Value |
| Machine Model | PS‑S202 Linear Double‑sided Self‑adhesive Labeling Machine for Oil Drums |
| Labeling Objects | Round / Square / Rectangular / Triangular / Flat Cans |
| Labeling Station | Double‑sided Labeling |
| Labeling Speed | 60‑200 pcs/min (varies with product and label size) |
| Labeling Accuracy | ±1.0 mm |
| Label Type | Self‑adhesive stickers, transparent labels, printed labels |
| Label Size Range | Length: 10‑300 mm, Height: 10‑150 mm |
| Product Size Range | Width: 20‑200 mm, Height: 30‑350 mm |
| Inner Diameter of Label Roll | Φ76 mm |
| Max Outer Diameter of Label Roll | Φ380 mm |
| Overall Machine Dimension | L2000 × W1300 × H1500 mm |
| Power Supply | AC110V/220V, 1.5HP, 50Hz/60Hz |

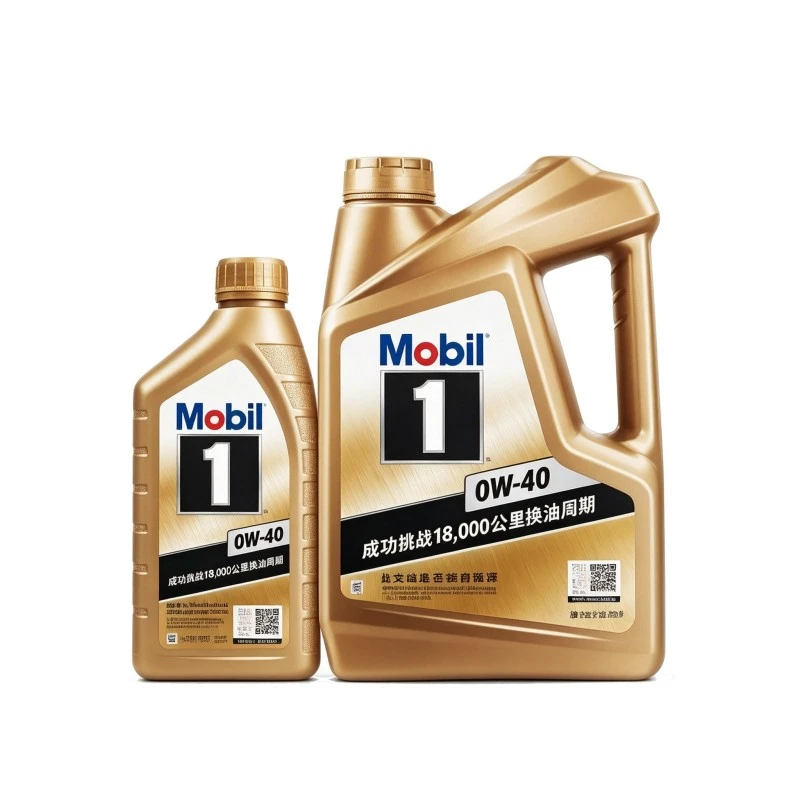

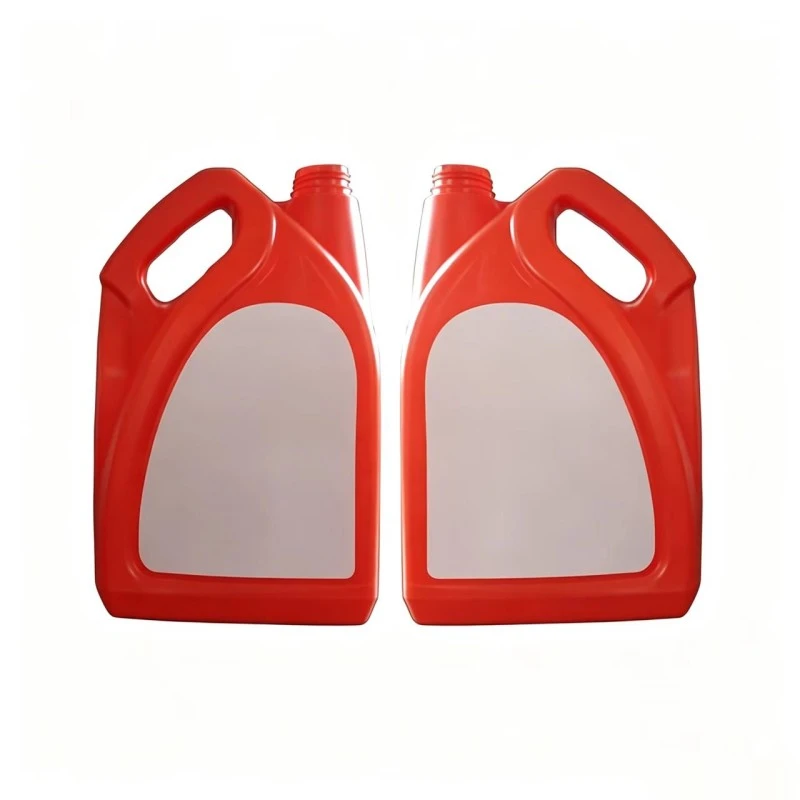

Oil industry: Edible oil pails, lubricant pails, engine oil pails, hydraulic oil pails, industrial antifreeze pails, rust preventive oil pails, etc.
Material compatibility: Mainstream pail types including HDPE plastic pails, PET pails, metal pails, matte film‑coated pails.
Production scenarios: Small and medium‑sized oil processing plants, daily chemical oil manufacturers, industrial consumable factories, mass automatic labeling production lines for OEM production.
Our Oil Barrel Double Side Self Adhesive Labeling Machine supports automatic labeling for all the above types of oil containers.
Wipe oil stains on the machine body, conveyor belt and pressing roller surface with a soft cloth after daily production. Do NOT spray high‑pressure water directly onto the electric control box and servo motor to avoid short circuit caused by water ingress.
Regularly check the tightness of transmission components and apply lubricating grease as required.
Release the tension of the label feeding roller when the equipment will be out of service for a long time, to prevent self‑adhesive glue from sticking to the roller shaft.
Due to heavy oil contamination in oil workshops, regularly clean the heat dissipation air duct of the electric control box to prevent accumulated oil dirt from affecting heat dissipation.

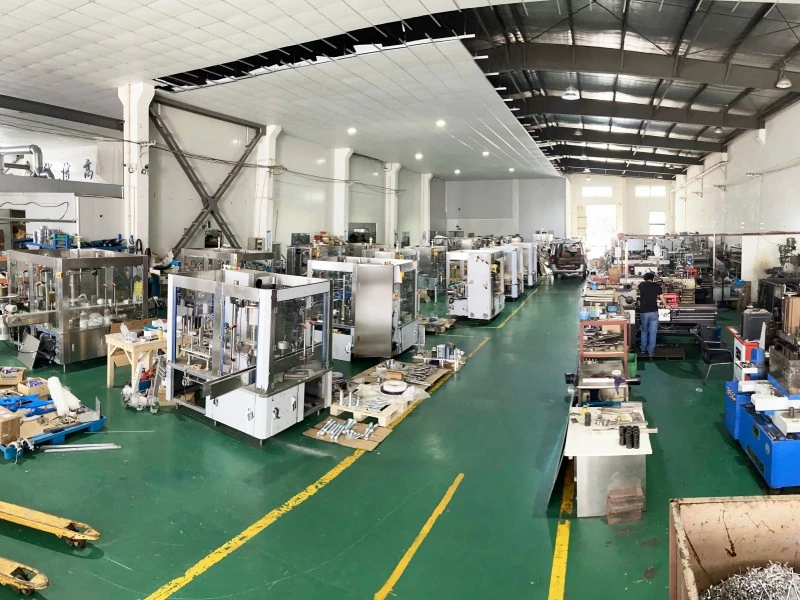

The machine is assembled and manufactured in accordance with China's packaging machinery industry standards. Every unit undergoes full‑load testing and labeling effect inspection before delivery to strictly control factory quality.
Specially optimized structure for special‑shaped oil pails with handles. Ordinary general double‑sided labeling machines are prone to handle jamming and barrel tipping. This machine adopts a flexible guiding and limiting mechanism to greatly reduce jamming rate with better adaptability.
Two independently adjustable servo labeling heads. The positions of front and back labels can be adjusted separately to solve label misalignment issues. Simple setup lowers the operational requirement for workers.
The whole machine is made of 304 stainless steel, oil‑resistant and anti‑corrosive, ideal for harsh working environments in oil and chemical workshops.
Sample testing with customers' oil pails is available before delivery to verify labeling performance in advance and reduce on‑site commissioning pressure.
Comprehensive after‑sales system with Chinese & English operation documents and timely remote technical support.
① After machine arrival, once the customer prepares the site and power supply, we provide remote video guidance for installation and commissioning. On‑site service can be negotiated separately if needed.
② Complete graphic and video tutorials are supplied to train operators on parameter setting, routine adjustment and basic maintenance.
③ 1‑year warranty for the whole machine. Consumable parts such as sensors and rubber rollers are excluded from the warranty.
④ 7×24 online technical support to troubleshoot various machine faults.
⑤ Partial structural modification can be provided according to oil pail size, label specification and production capacity requirements.

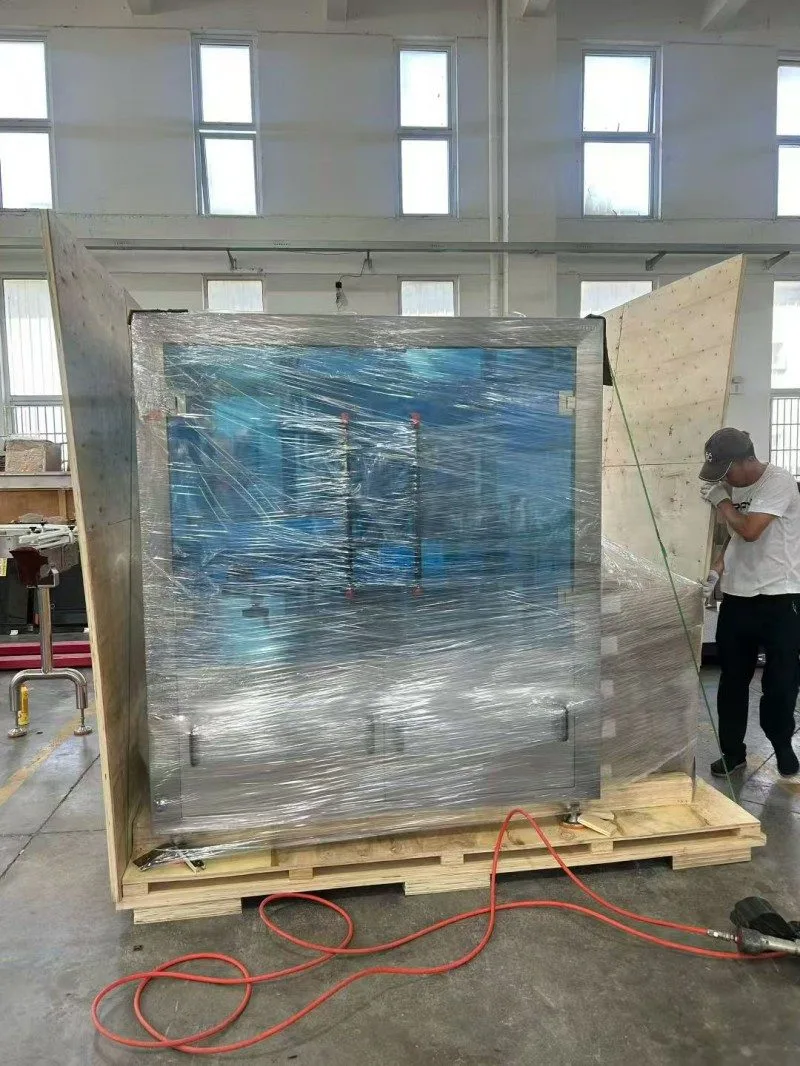

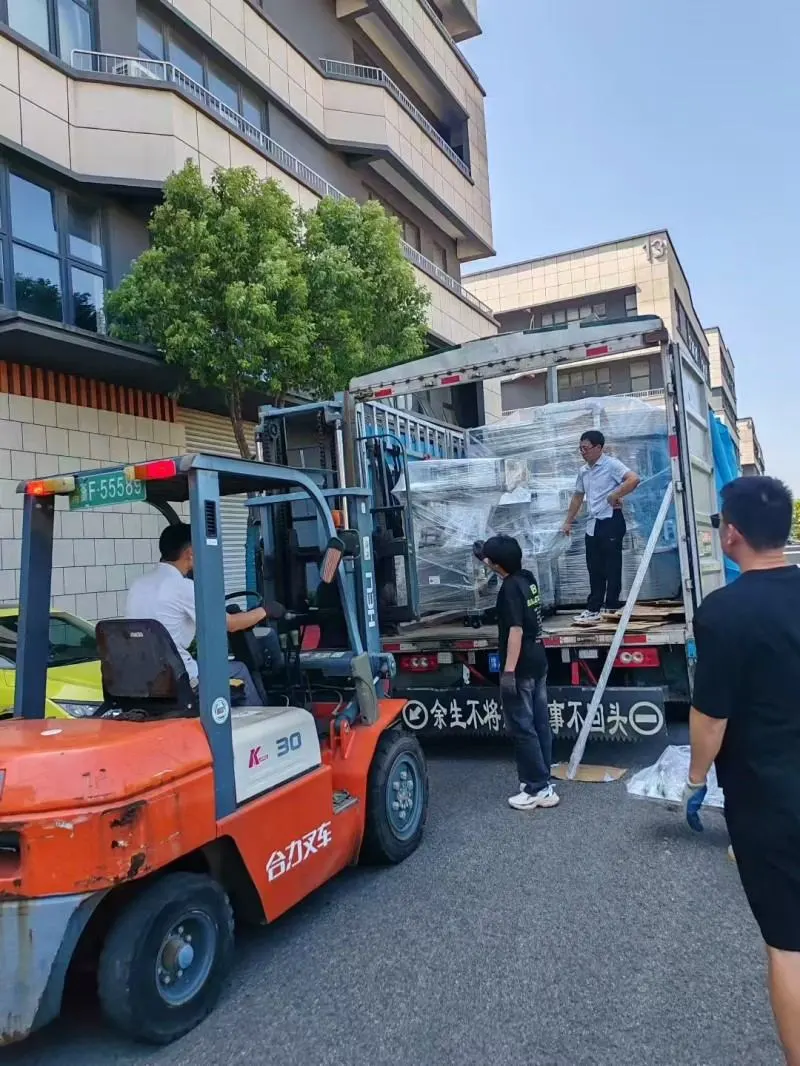

All machines for export are securely packed in fumigation‑free solid wood crates to ensure safe transportation and protection against shock and impact. The packaging meets international shipping and customs clearance requirements.
We have served numerous manufacturers in the lubricant, automotive care, and chemical additive industries, with extensive experience in oil drum labeling production lines. Our labeling machines have been successfully installed and used in multiple production facilities and exported to customers in various overseas markets.
A: No. The machine can be adjusted to accommodate various standard round and square oil drums. For special or irregular‑shaped containers, customized fixtures can be provided to ensure stable positioning and accurate labeling for different container shapes and sizes.
A: Yes. The labeling speed is adjustable and can be synchronized with different production line speeds. The machine can also be integrated with filling, conveying, capping and other packaging equipment to support fully automated production.
A: For overseas single‑machine installations, installation typically takes about 1 day, while commissioning generally takes 6–9 days. The actual time may vary depending on the site conditions and the configuration of the connected production line.
A: Yes. The machine can be configured with a high‑precision label detection sensor and supports common paper, PVC and synthetic paper labels. With the appropriate sensor configuration, it can also handle transparent and die‑cut labels for a variety of labeling applications.
A: The rotary labeling system is designed to minimize bubbles and wrinkles during application. The rotary star wheel securely positions the container while the container and label move at a synchronized speed, reducing label stretching and wrinkles. The servo‑driven constant‑tension system maintains consistent label tension, while the synchronized pressure roller presses the label firmly onto the container and helps remove trapped air, resulting in a smooth and clean labeling finish.
