We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

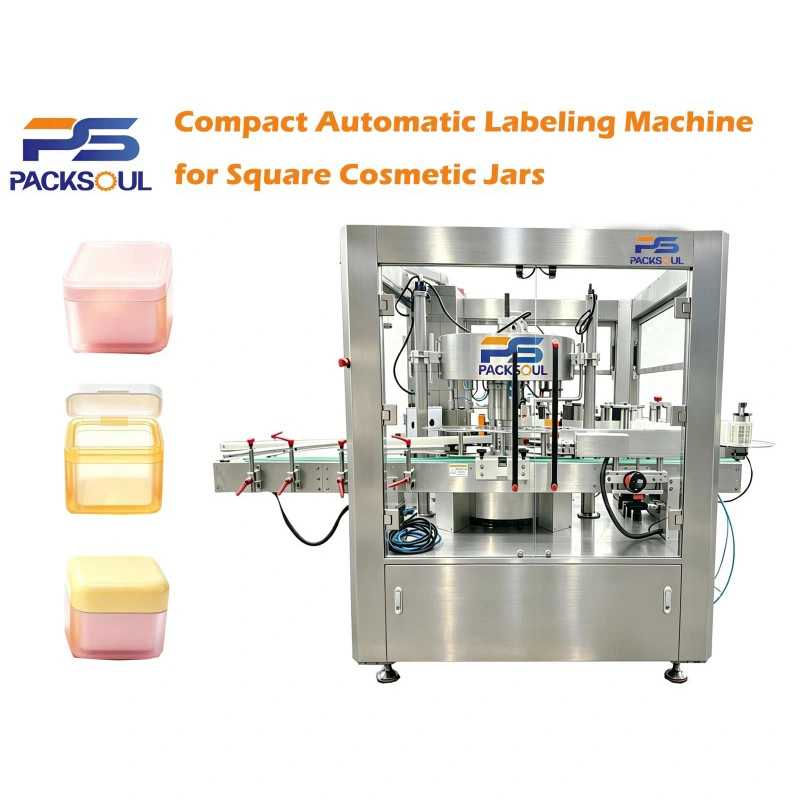

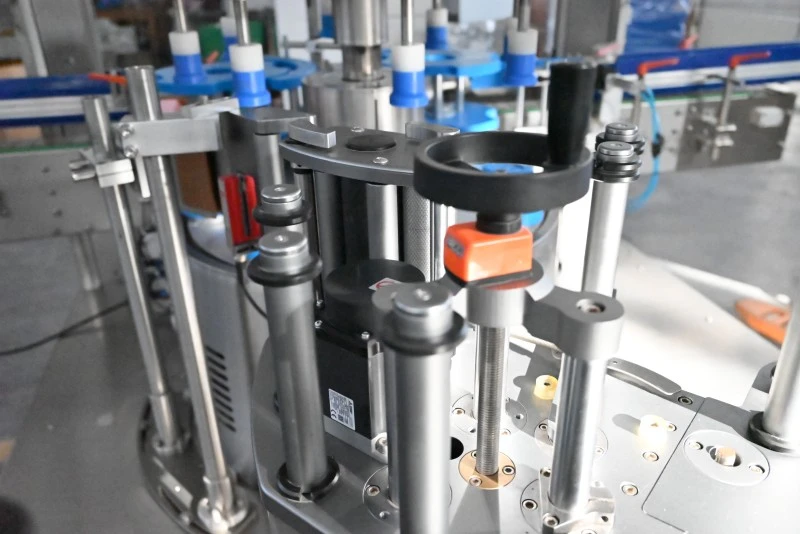

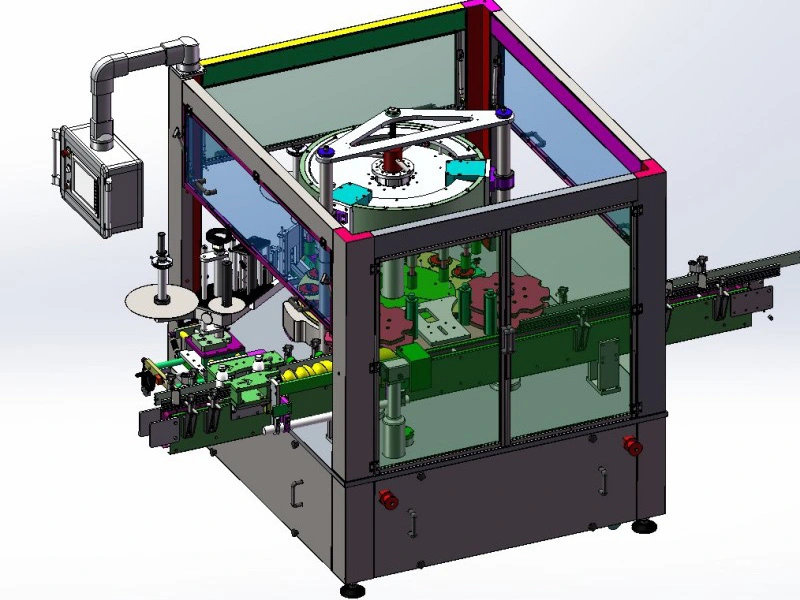

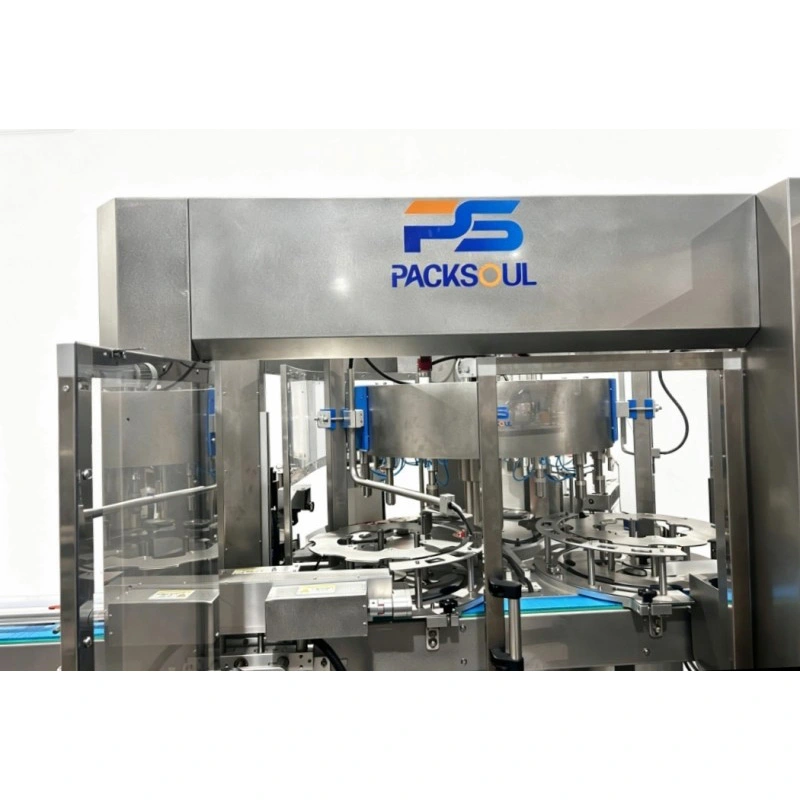

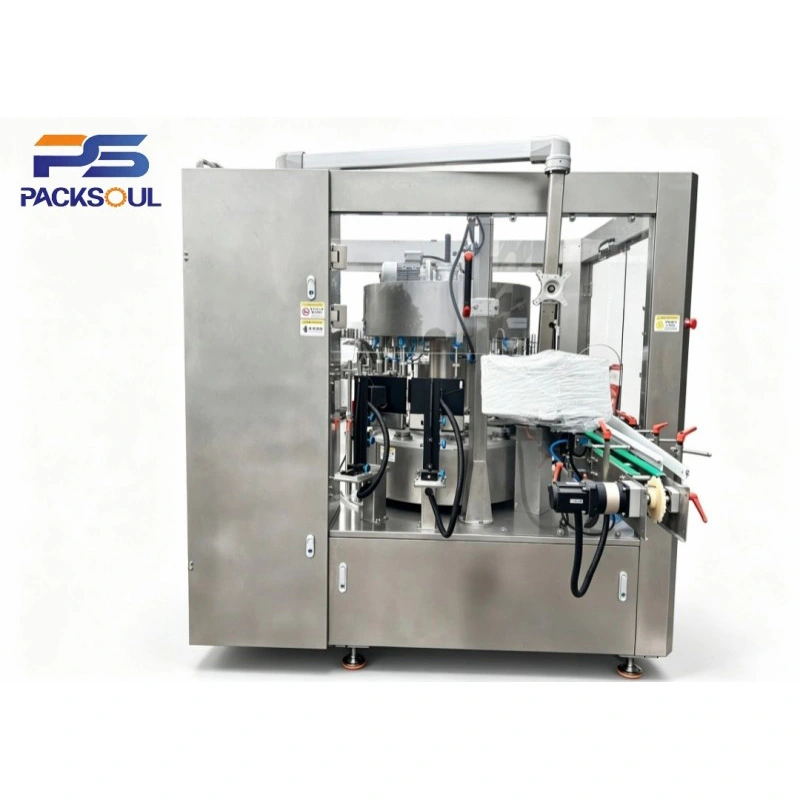

The Square Cosmetic Jar Labeling Machine is designed for automatic labeling of square cosmetic containers. It completes jar feeding, positioning, multi‑side labeling, pressing and discharge automatically. It is suitable for cream jars, serum jars, loose powder jars and other square cosmetic containers. The machine reduces manual work and provides smooth, clean labeling for cosmetic packaging.
1.Accurate Labeling for Square Jars:The Square Cosmetic Jar Labeling Machine is optimized for flat surfaces and square edges. It helps reduce lifted edges and wrinkles and provides a clean finish for premium cosmetic packaging.
2.Compact Design:The small machine takes up little space and can be placed flexibly in small and medium size cosmetic workshops.
3.High Labeling Accuracy:The servo control system provides labeling accuracy of ±0.5 mm. Transparent, holographic and printed cosmetic labels can be applied smoothly.
4.Clean 304 Stainless Steel Design:The machine uses 304 stainless steel with a smooth surface that is easy to clean. It is suitable for clean cosmetic production areas.
5.Simple Operation:PLC touch screen control makes parameter adjustment easy. The system also supports production counting and fault alarms.
6.Flexible Labeling Options:Single side, double side and four side labeling are available. The machine can handle different square cosmetic jars and connect with filling and capping lines.
| Parameter Item | 8‑Station Rotary Adhesive Sticker Labeling Machine |
| Model | PSR‑B080 |
| Labeling Speed | 8000 BPH (bottles per hour) |
| Container Diameter | 30–100 mm (can be customized if exceed) |
| Container Height | 100–400 mm |
| Label Max Height | 200 mm |
| Label Max Width | 300 mm |
| Label Roll Diameter | Inner:Φ76mm; Outer: Φ400mm |
| Whole Machine Size | 3000L*2500W*2000H mm |
| Working Table Height | 1000±50 mm (can be customized) |
| Power | 380V/50Hz/14KW |

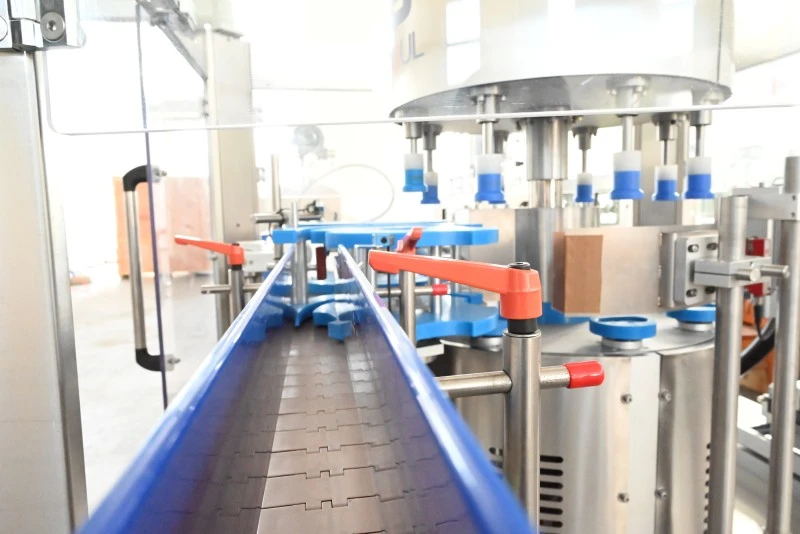

The Square Cosmetic Jar Labeling Machine moves the jars steadily by conveyor. The feeding system keeps the jars evenly spaced, and the photoelectric sensor detects each jar and starts labeling. The servo system feeds the label accurately, while the special fixture keeps the square jar in the correct position. Flexible rollers press the label onto the flat surfaces and edges and remove air. The whole process runs automatically for consistent labeling results.
Suitable Industries: Cosmetic and skincare factories, cosmetic packaging companies and beauty OEM/ODM factories.
Suitable Products: Square cream jars, serum cream jars, face cream jars, loose powder jars and other square cosmetic containers.
Project Cases: The machine is used by many cosmetic manufacturers for different square jar sizes. It also provides stable results with transparent and holographic labels.
Daily Cleaning: Remove label waste and glue residue. Wipe the conveyor and pressure rollers to keep the machine clean.
Weekly Check: Clean the photoelectric sensor and check the conveyor belt and positioning fixture.
Monthly Maintenance: Tighten machine screws, lubricate the drive bearings and clean glue from the label peeling unit.
Long Term Shutdown: Disconnect the power, clean the machine and cover it for dust protection. Remove the label roll and store it in a dry place away from light.
1.Parameter Setup: Set the jar size, label size, labeling mode and production speed on the touch screen.
2.Automatic Feeding: Square cosmetic jars enter the machine evenly.

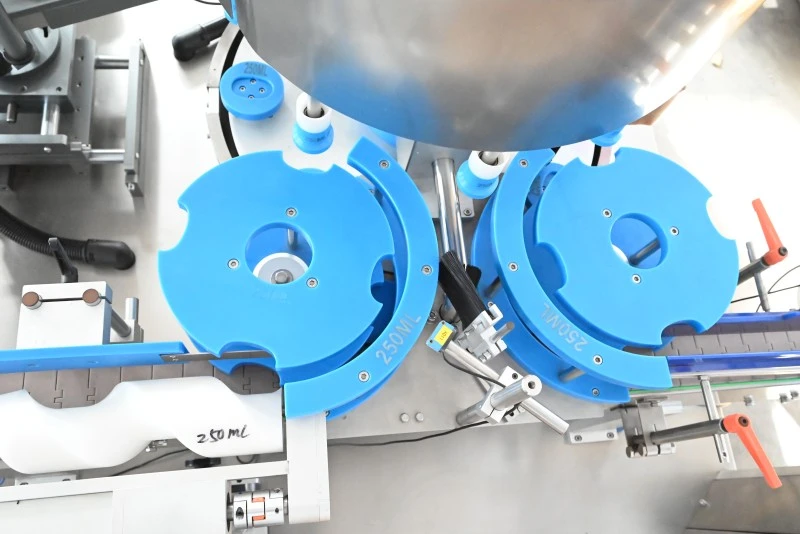

3.Accurate Positioning: The special fixture holds each jar and adjusts the labeling position.
4.Automatic Labeling: The servo system feeds the labels accurately and completes multi-side labeling.
5.Label Pressing: Flexible rollers press the labels and remove air, helping reduce bubbles and wrinkles around the edges.
6.Automatic Discharge: Finished jars are smoothly discharged for continuous batch production.
| No. | Component Name | Brand |
| 1 | HMI | Schneider (France) |
| 2 | Servo Motor | Schneider (France) |
| 3 | Servo Drive | Schneider (France) |
| 4 | Main Motor | Schneider (France) |
| 5 | Conveyor Motor | Transky (Italy) |
| 6 | PLC | Schneider (France) |
| 7 | Frequency Inverter | Schneider (France) |
| 8 | Frequency Inverter | Schneider (France) |
| 9 | Transparent Label Sensor | LEUZE (Germany) |
| 10 | Object Detection Sensor (Reflective Photoelectric Type) | SICK (Germany) |
| 11 | Detection Photoelectric Sensor (Reflective Type) | SICK (Germany) |
| 12 | Proximity Switch | SICK (Germany) |
| 13 | Switching Power Supply | MW (Taiwan, China) |
| 14 | Universal Change‑over Switch | MOELLER (Germany) |
| 15 | Emergency Stop Switch | Schneider (France) |
| 16 | Earth Leakage Circuit Breaker | Schneider (France) |
| 17 | Miniature Circuit Breaker | Schneider (France) |
| 18 | AC Contactor | Schneider (France) |
| 19 | Rotary Encoder | Nemicon (Japan) |
| 20 | Electrical Slip Ring | Senring |
| 21 | Pressure Gauge | Panasonic (Japan) |
| 22 | Vision Camera | Hikvision |
The machine has CE certification and uses branded electrical components for stable and reliable operation. Each Square Cosmetic Jar Labeling Machine passes a 72 hour continuous production test before shipment. Labeling accuracy is checked under simulated cosmetic production conditions.
Designed for Cosmetic Jars: The machine is specially adjusted for square cosmetic jars and meets the needs of premium cosmetic packaging.
Better Labeling Results: The labeling system helps reduce bubbles and lifted edges, especially when using transparent and holographic labels.
Clean Production Design: The machine is easy to clean and suitable for clean cosmetic workshops.
Fast Product Changeover: Different square jar settings can be saved for quick changeover and flexible production.
Free Sample Testing: Send us your jars and labels for free testing. We provide real labeling results before order confirmation.
The complete machine has a 12 month warranty. Key parts damaged by non human factors are replaced free during the warranty period. Long term technical support is also available.
Chinese and English manuals and training videos are provided. One to one remote installation and commissioning support is available.
Online after sales support is available within 24 hours to help solve machine problems quickly.
Original spare parts are supplied for long term use and can be shipped quickly.
The machine is packed in reinforced export wooden crates with waterproof film and shockproof foam. Manuals, spare parts and special tools are included. Sea, air and land shipping are available worldwide.
PackSoul focuses on high quality packaging and labeling equipment and has many years of experience in cosmetic packaging. Compact Automatic Labeling Machines for Square Cosmetic Jars are exported to Southeast Asia, the Middle East, Europe and other markets. We have our own production workshop and professional R&D and after sales teams, with many real cosmetic factory projects.
A: Yes. It can switch between single, double and four side labeling for different square cosmetic packaging needs.
A: The servo constant tension system and flexible pressing structure help keep labels smooth and firmly attached, including around square edges.
A: Yes. The parameters can be adjusted through the touch screen for different glass or plastic square jars.
A: Yes. We can customize the machine according to jar size, label specifications, workshop space and production requirements.
A: During the 1 year warranty, non consumable parts and technical service are free for non human caused problems. After the warranty, original spare parts are supplied at cost.
A: Standard machines usually take 7 to 15 working days. Custom machines and complete production lines depend on the required design and configuration. The confirmed delivery time will be included in the contract.
