We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

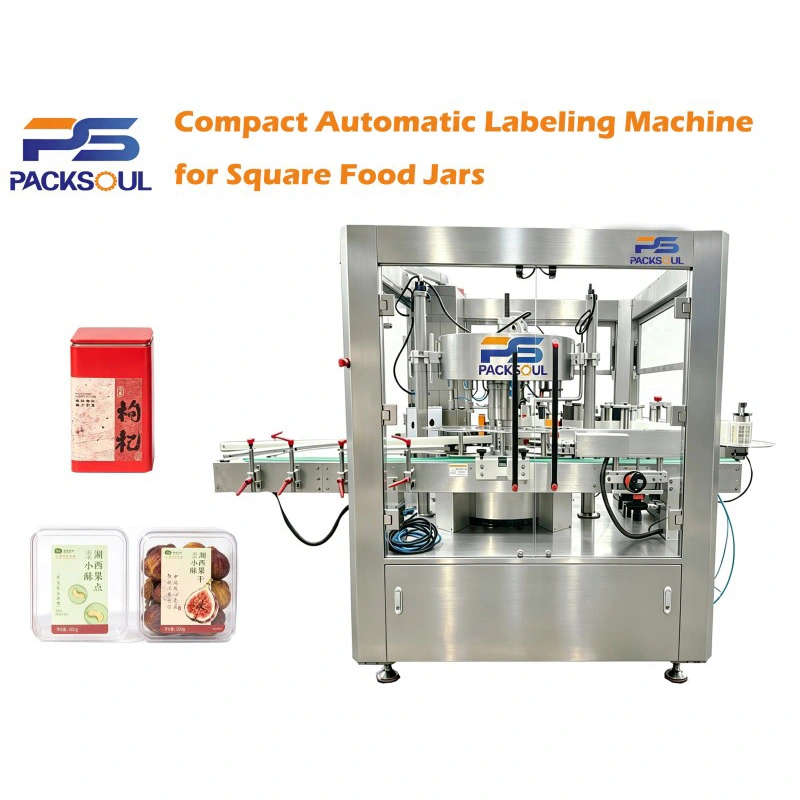

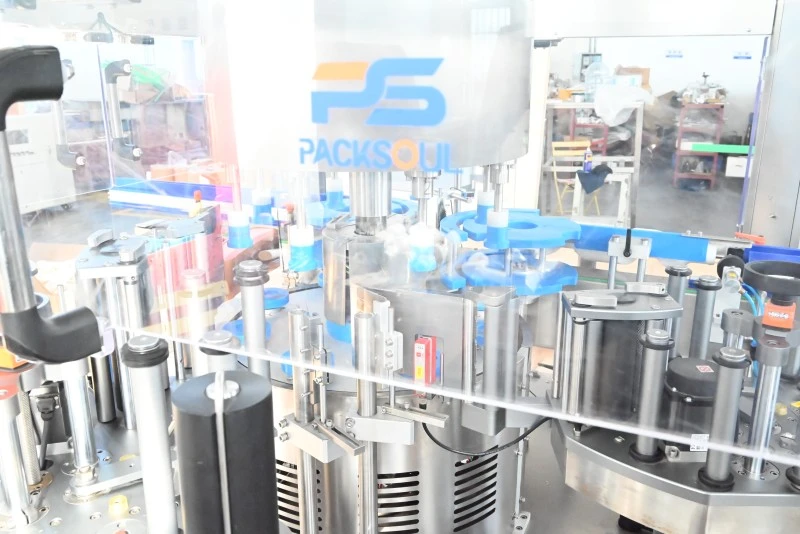

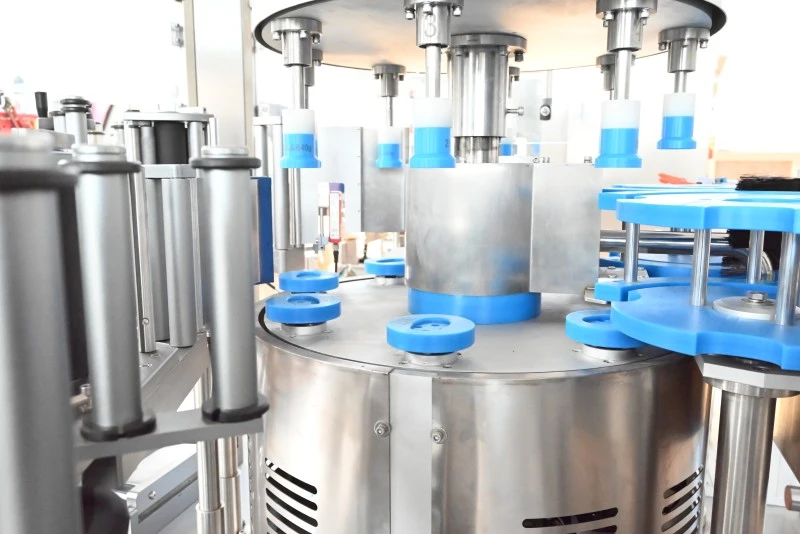

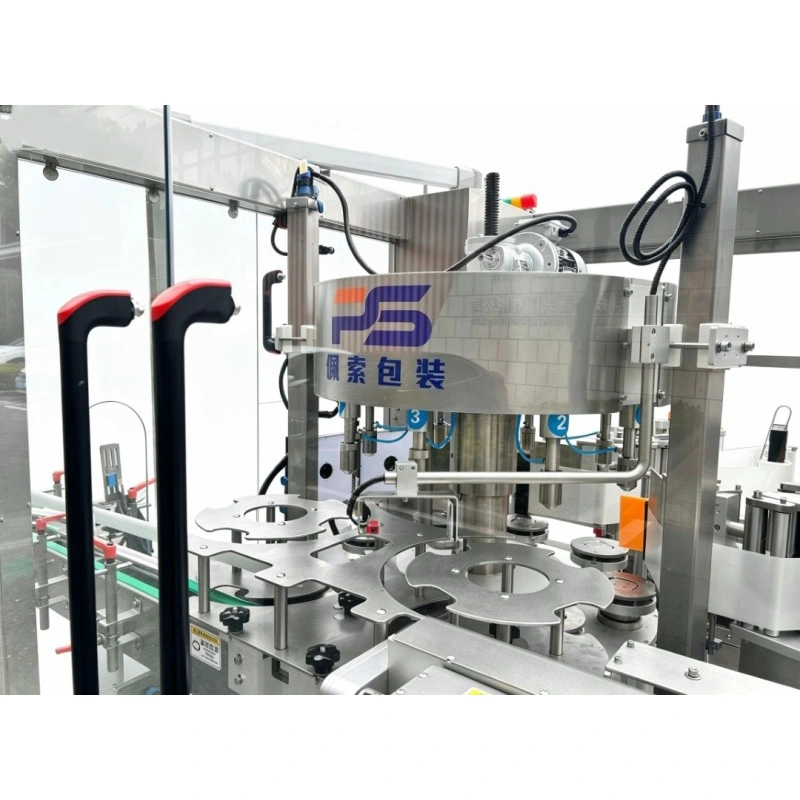

The Square Food Jar Labeling Machine is designed for automatic labeling of square food containers. It handles bottle feeding, positioning, multi‑side labeling, pressing and discharge in one process. It is suitable for sauce jars, honey jars, preserved fruit jars, cans and other square food containers. The machine helps reduce label misalignment and lifted corners and supports packaging automation in food factories.
Pecial Positioning for Square Jars：The holding system is designed for square food jars and their edges. It keeps each jar stable and helps prevent label shifting and lifted corners.

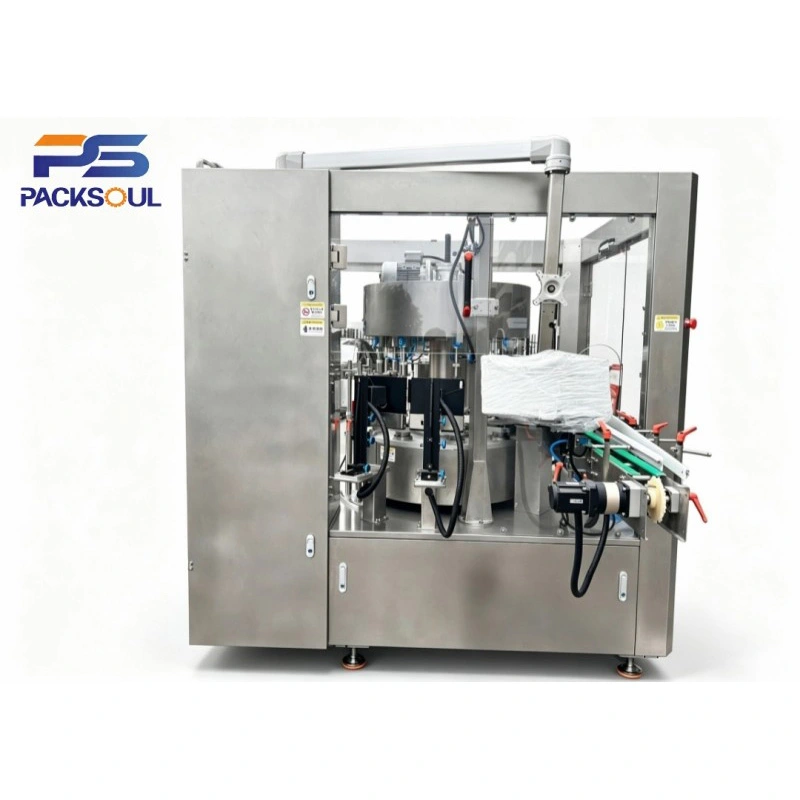

Compact Machine Design：The machine has a small footprint and is easy to install in small and medium size food factories. It helps save valuable workshop space.
High Precision Servo Labeling：The servo system controls label tension for accurate labeling up to ±0.5 mm. It works with food labels, transparent labels and synthetic paper labels.
Food Grade 304 Stainless Steel：The machine uses 304 stainless steel. It is oil resistant, easy to clean and suitable for food production areas.
Flexible Labeling Modes：Single, double and four side labeling are available. One machine can handle different packaging requirements for square food jars.
Easy Smart Operation：The PLC touch screen makes setup simple. Preset parameters help speed up product changeover. The machine can work independently or connect with filling, capping and coding equipment for a complete automatic production line.
| Parameter Item | 8‑Station Rotary Adhesive Sticker Labeling Machine |
| Model | PSR‑B080 |
| Labeling Speed | 8000 BPH (bottles per hour) |
| Container Diameter | 30–100 mm (can be customized if exceed) |
| Container Height | 100–400 mm |
| Label Max Height | 200 mm |
| Label Max Width | 300 mm |
| Label Roll Diameter | Inner:Φ76mm; Outer: φ400mm |
| Whole Machine Size | 3000L*2500W*2000H mm |
| Working Table Height | 1000±50 mm (can be customized) |
| Power | 380V/50Hz/14KW |

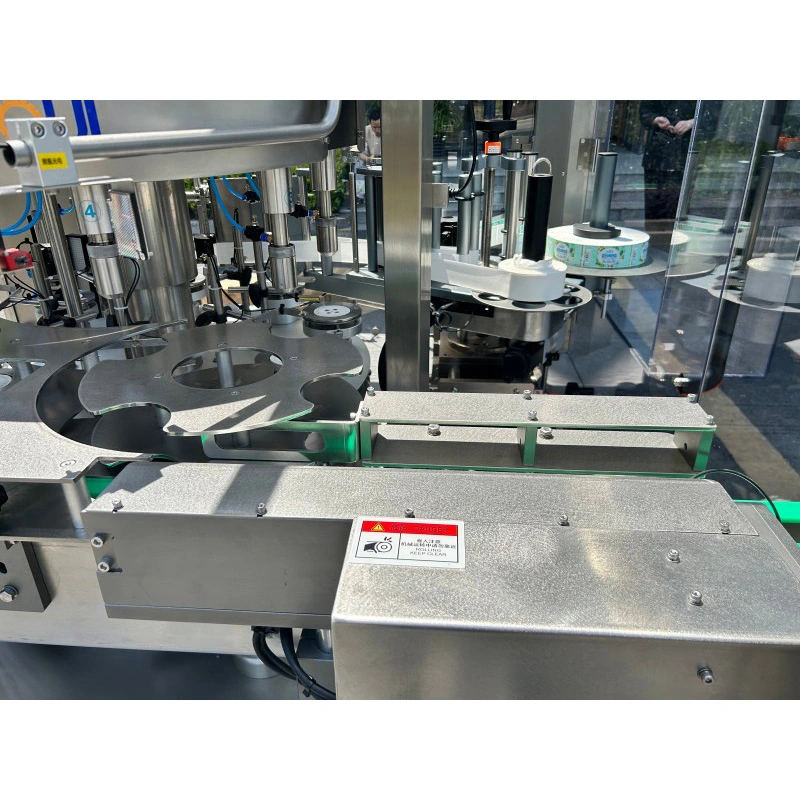

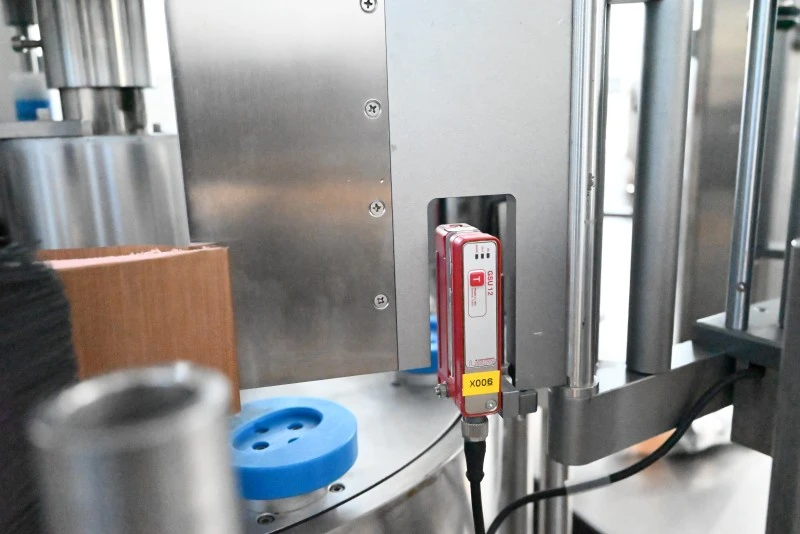

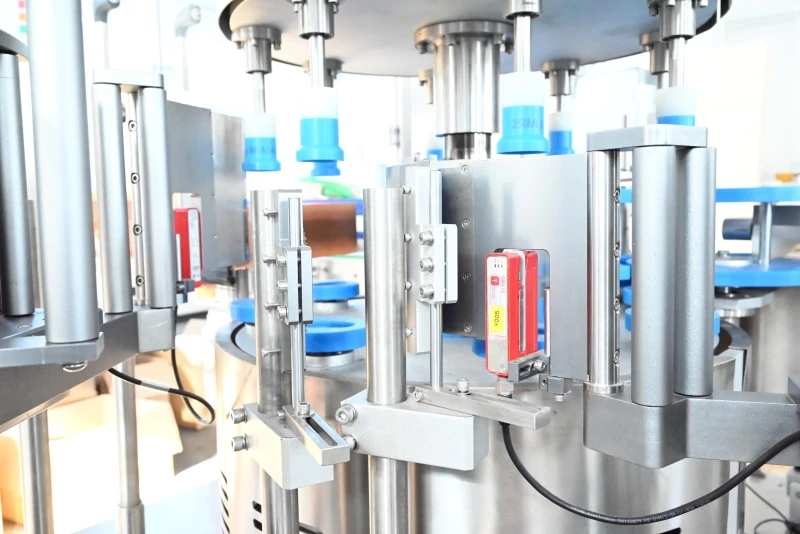

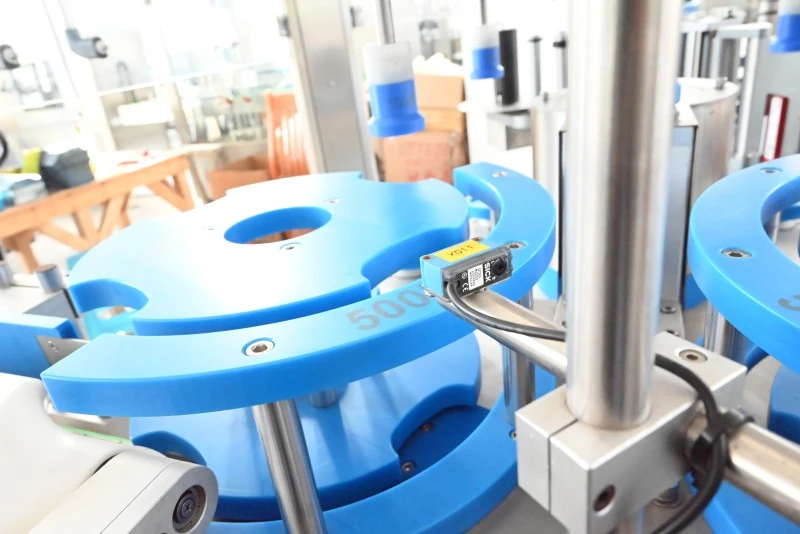

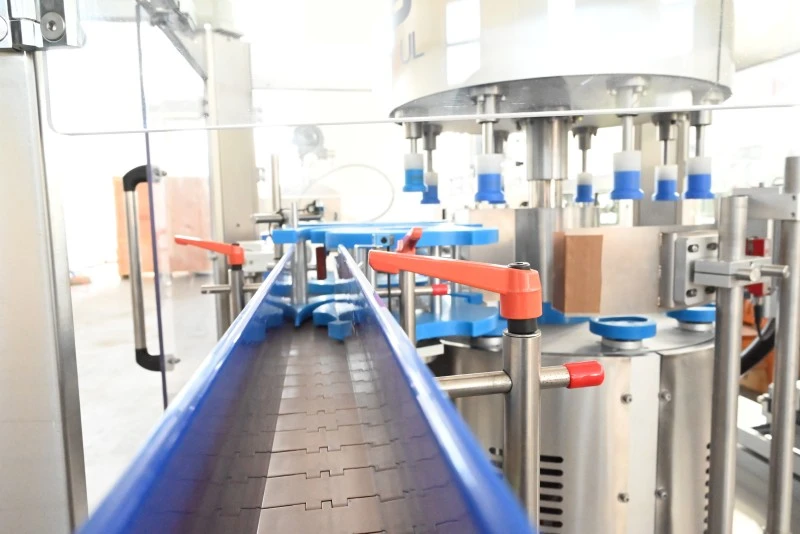

The Square Food Jar Labeling Machine moves the jars steadily by conveyor. The feeding system keeps an even distance between jars. When the photoelectric sensor detects a jar, the positioning fixture holds it firmly and adjusts the angle. The servo system feeds the label accurately onto the correct surface. Flexible rollers press the label and remove air. The finished jar is then discharged automatically for continuous production.
Suitable Industries: Condiment factories, jam and sauce processing plants, canned food companies and food OEM/ODM factories.
Suitable Products: Square sauce jars, honey jars, preserved fruit jars, condiment jars and other square food containers.
Project Cases: The machine has been used by food manufacturers for stable mass production. It works with common food self adhesive labels and supports continuous operation.
Daily Cleaning: Remove label waste and glue residue. Wipe the conveyor and pressure rollers to keep the machine clean.
Weekly Maintenance: Clean the photoelectric sensor and check the positioning fixtures and conveyor belt tension.
Monthly Check: Tighten machine screws, lubricate the drive bearings and clean glue from the label peeling unit.
Long Term Shutdown: Disconnect the power and clean the machine completely. Cover it for dust protection. Remove the label roll and store it in a dry place away from light.
Parameter Setup: Enter the square jar size and label specifications on the touch screen. Select the labeling mode and set the machine speed.
Automatic Feeding: Square food jars enter the machine continuously.

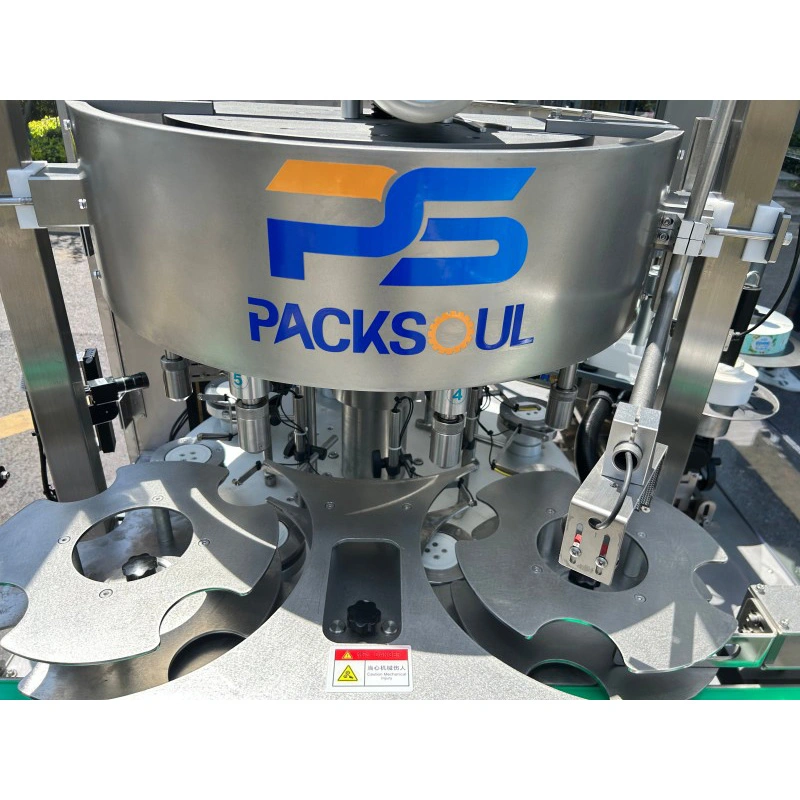

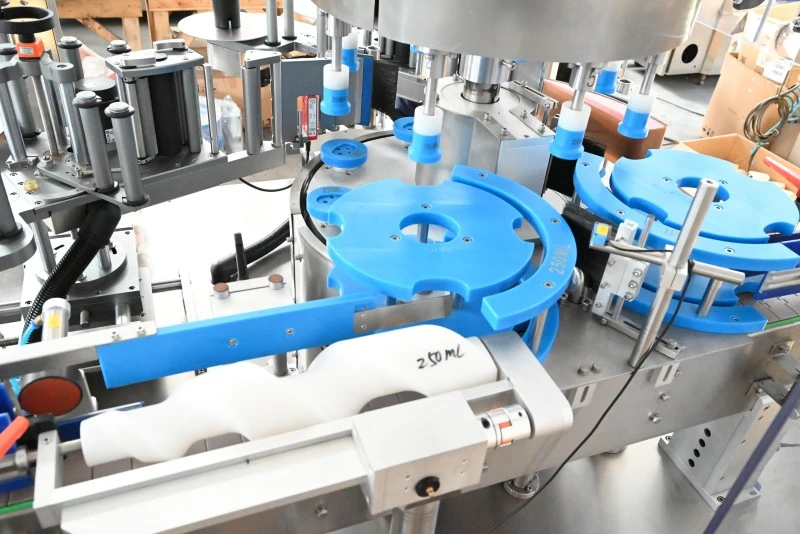

Positioning: The special fixture holds the jar and adjusts its angle to keep the label in the correct position.
Automatic Labeling: The servo system feeds the labels accurately for single, double or four side labeling.
Label Pressing: Flexible rollers press the label surface and remove air to reduce bubbles, wrinkles and lifted edges.
Product Discharge: Finished jars leave the machine automatically and move to the next production process.
The Square Food Jar Labeling Machine has CE certification and uses branded electrical components. Each machine passes a 72 hour continuous production test under simulated food factory conditions. Labeling accuracy is checked and adjusted before shipment to ensure stable and reliable operation.
Designed for Square Food Jars: The PACKSOUL machine is specially optimized for square jar edges and uses a dedicated positioning system to provide more stable labeling.
Suitable for Food Production: The 304 stainless steel body is oil resistant, easy to clean and suitable for food workshops.
Compact and Cost Effective: Compared with large rotary labeling machines, this model takes up less space and requires a lower investment, making it suitable for small and medium size food companies.
Fast Product Changeover: Preset parameters make bottle changeover easy. No complicated part replacement is needed for different square jars.
Free Sample Testing: Customers can send jars and labels to our factory for free testing before placing an order.
The complete machine has a 12 month warranty. Core parts damaged by non human factors are replaced free during the warranty period. Lifetime technical support is available.
Chinese and English operation manuals are provided, together with installation, commissioning and maintenance videos. One to one remote technical guidance is available.
7 days 24 hours online support is provided to help solve machine problems quickly and reduce downtime.
Original spare parts are supplied for long term machine maintenance.
All export machines are packed in fumigation free wooden crates with waterproof film and shockproof foam protection. Manuals, special tools and spare parts are included. Sea, air and land shipping are available worldwide.
Packsoul focuses on the development and production of packaging and labeling equipment. Our Compact Automatic Labeling Machines for Square Food Jars are exported to Southeast Asia, the Middle East, Europe and other markets. We have completed many food factory automation projects and have professional R&D, production and after sales teams.
A: The special positioning fixture keeps the jar stable, while the flexible pressure rollers press the label closely around the flat surfaces and edges. This helps reduce bubbles, wrinkles and lifted corners.
A: Yes. The main settings can be adjusted through the touch screen. Different jar sizes can be changed without complicated part replacement.
A: Yes. We can adjust the machine height and conveyor speed according to the production line. Our engineers can check the site conditions and prepare a suitable connection solution.
A: Yes. We can design the machine according to your jar size, label specifications, workshop space and production capacity. Product samples and detailed requirements help us prepare the right solution.
A: During the 1 year warranty, replacement parts and technical service are free for non human caused problems, except consumable parts. After the warranty, spare parts are supplied at cost.
A: Yes. Complete Chinese and English manuals are provided for machine assembly, parameter adjustment, commissioning, maintenance and common troubleshooting. Online technical support is also available.
A: A standard standalone machine usually takes 30 to 60 days. Customized machines and complete production lines may require more time depending on the design. The confirmed delivery date will be stated in the contract.
A: All export machines use fumigation free wooden crates with waterproof and shockproof protection. The packaging meets sea freight and export requirements.
A: Overseas orders are usually paid in full before shipment. After payment is received, we complete final testing, packing and shipping arrangements. Flexible terms can be discussed for long term customers.
