We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

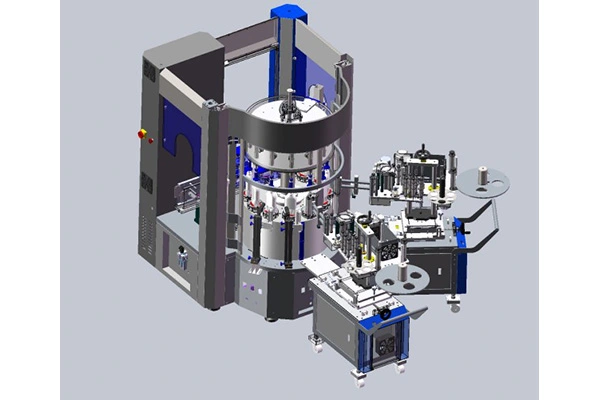

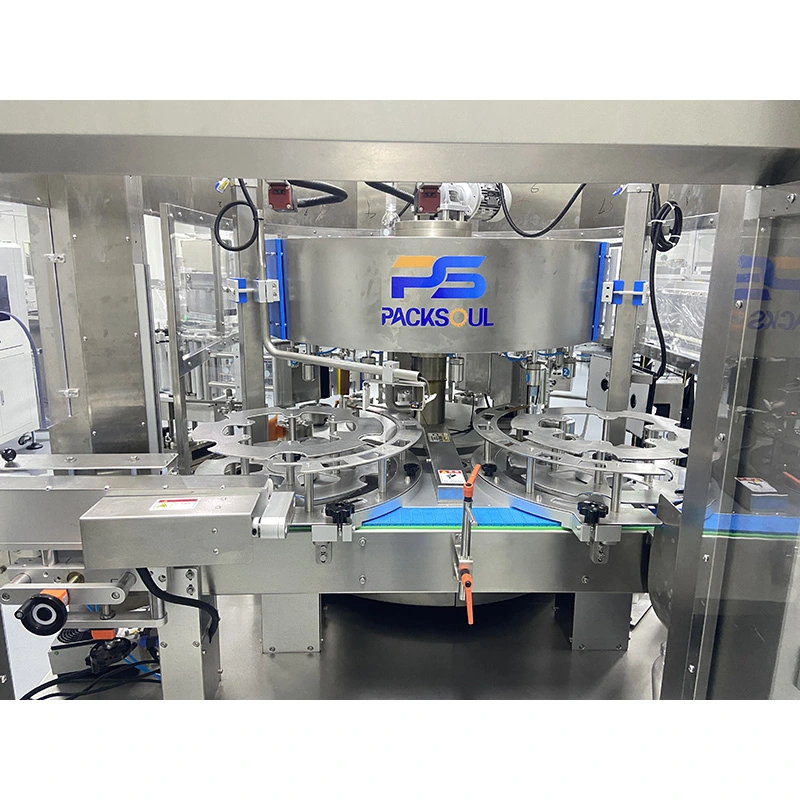

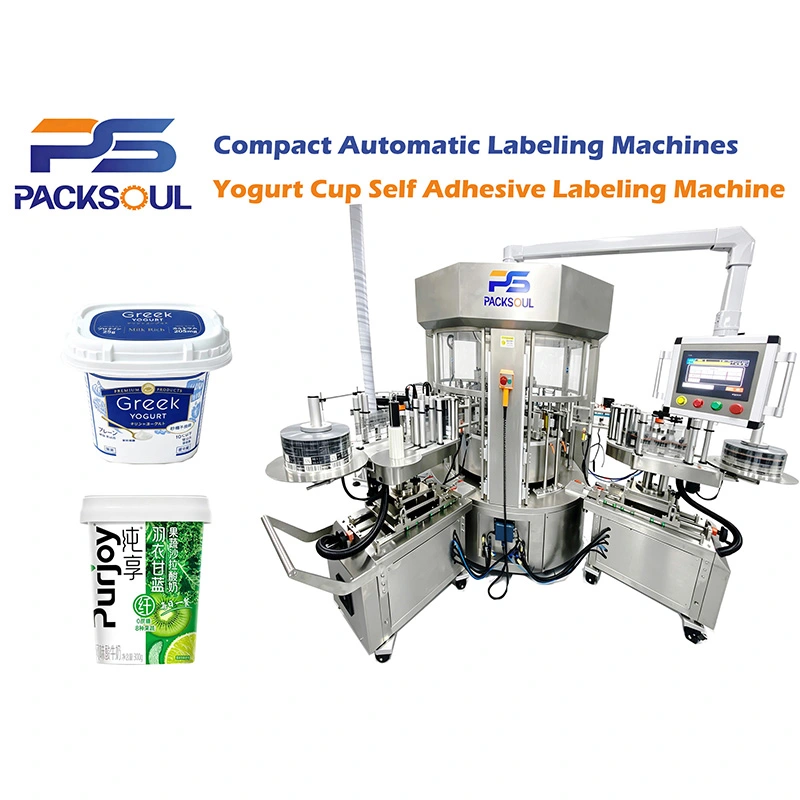

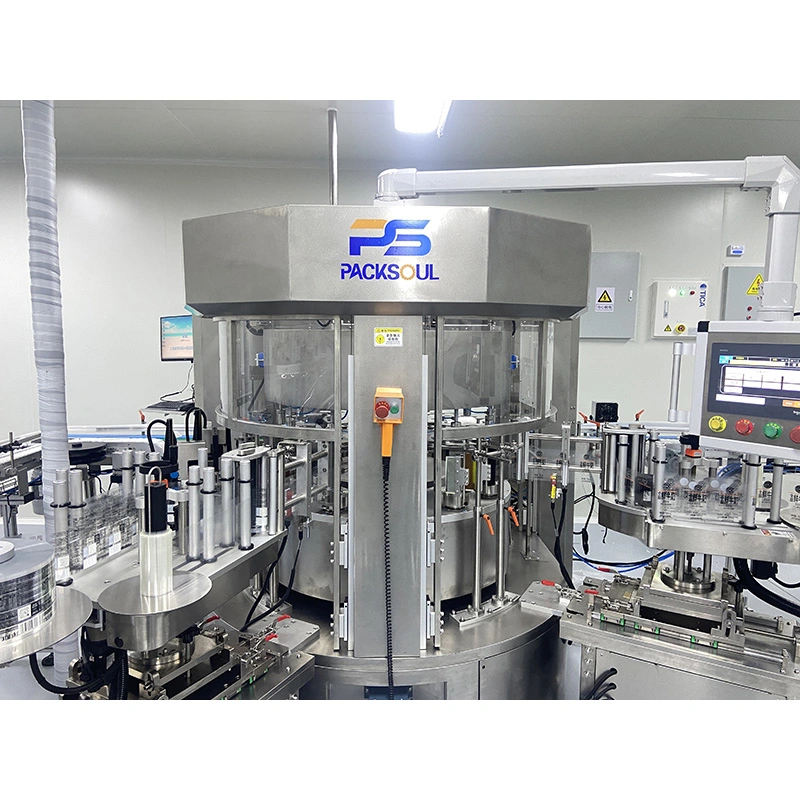

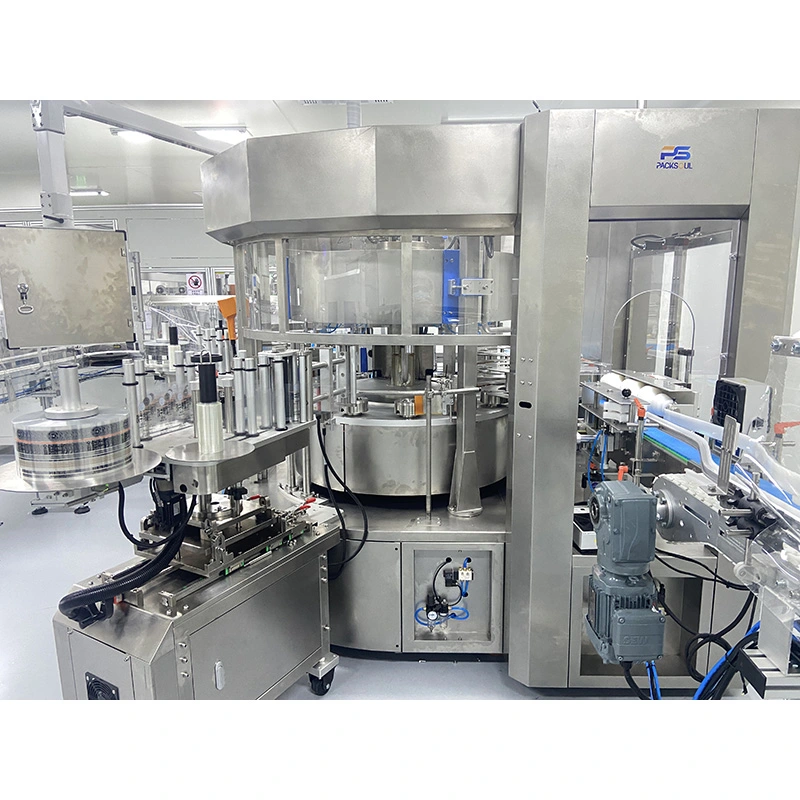

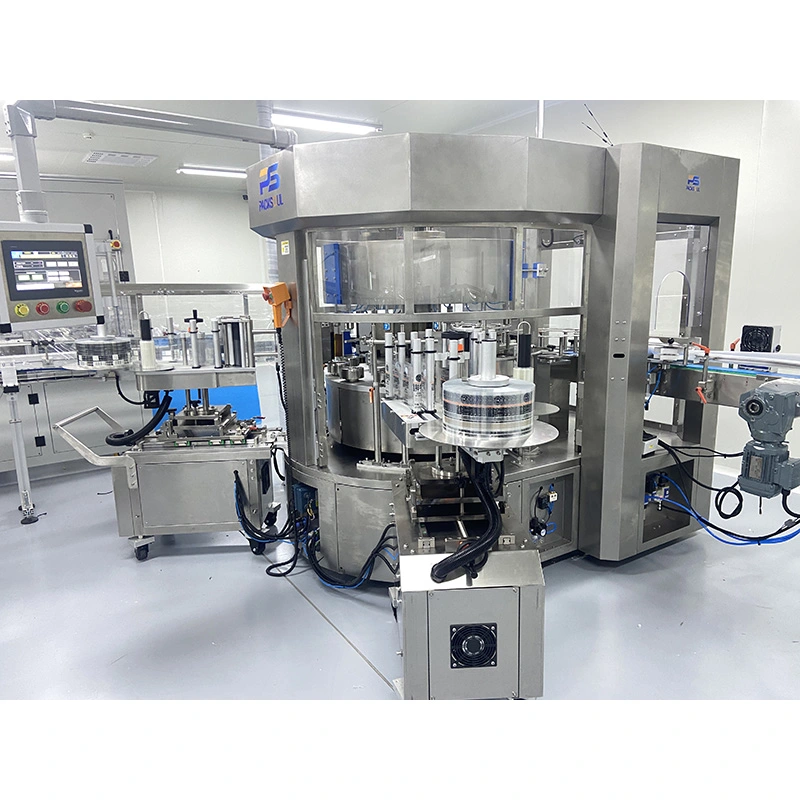

PackSoul Compact Automatic Round Bottle Labeling Machine for Yogurt Cups is an automatic self‑adhesive labeling device dedicated to square and round plastic yogurt cups. This yogurt cup labeling machine automatically completes cup separation, positioning, wrap‑around labeling, pressing and discharging. It solves low‑efficiency and skewed‑label issues caused by manual labeling, and is well‑suited for dairy packaging in small‑and‑medium‑sized food processing factories.
1. Compact Automatic Round Bottle Labeling Machine for Yogurt Cups saves floor space, ideal for layout in small‑and‑medium factories.
2. 304 stainless steel contact components comply with food hygiene production requirements, applicable for low‑temperature workshops.
3. Servo constant‑tension labeling ensures no bubbles or wrinkles for thin transparent labels.
4. PLC+HMI touch‑screen control, easy for adjustment when changing cup types.
5. Supports standalone operation and can connect with automatic production lines for filling and sealing.
| Parameter Item | PSRX‑200 | PSRX‑300 | PSRX‑400 |
| Model | PSRX‑200 | PSRX‑300 | PSRX‑400 |
| Labeling Speed | 12000 BPH | 18000 BPH | 24000 BPH |
| Container Diameter | 30‑100 mm (can be customized if exceed) | 30‑100 mm (can be customized if exceed) | 30‑100 mm (can be customized if exceed) |
| Container Height | 100‑400 mm | 100‑400 mm | 100‑400 mm |
| Label Max Height | 200 mm | 200 mm | 200 mm |
| Label Max Width | 300 mm | 300 mm | 300 mm |
| Label Roll Diameter | Inner:Φ76.2mm Outer:Φ400mm | Inner:Φ76.2mm Outer:Φ400mm | Inner:Φ76.2mm Outer:Φ400mm |
| Whole Machine Size | 4000L*2600W*2000H mm | 4000L*2600W*2000H mm | 4000L*2600W*2000H mm |
| Working Table Height | 1000±50 mm (can be customized) | 1000±50 mm (can be customized) | 1000±50 mm (can be customized) |
| Power | 380V/50Hz/30KW | 380V/50Hz/30KW | 380V/50Hz/30KW |

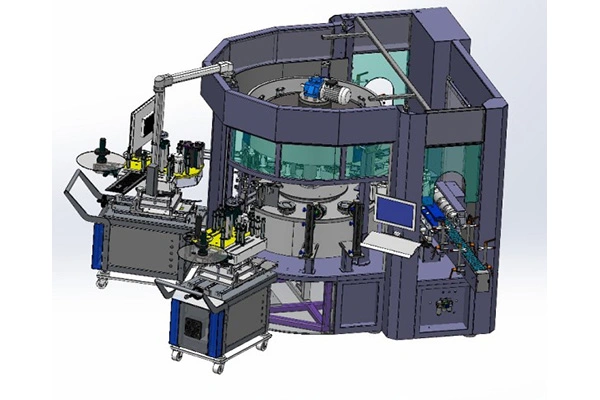

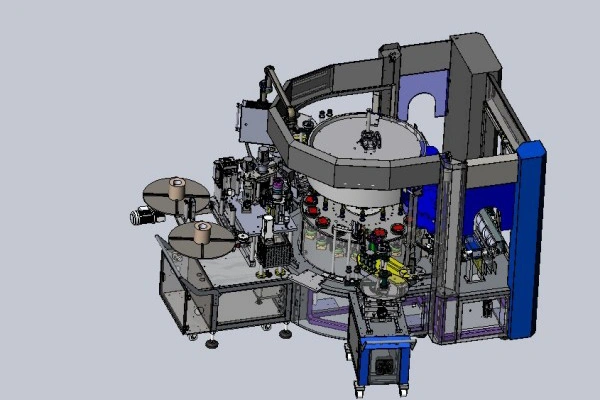

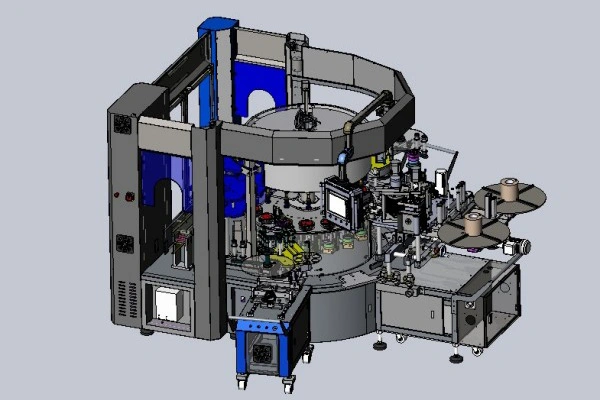

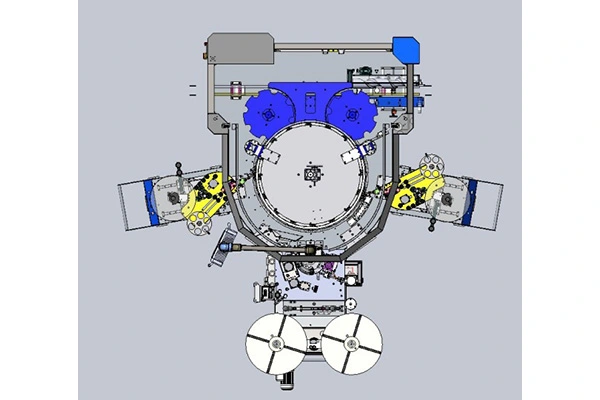

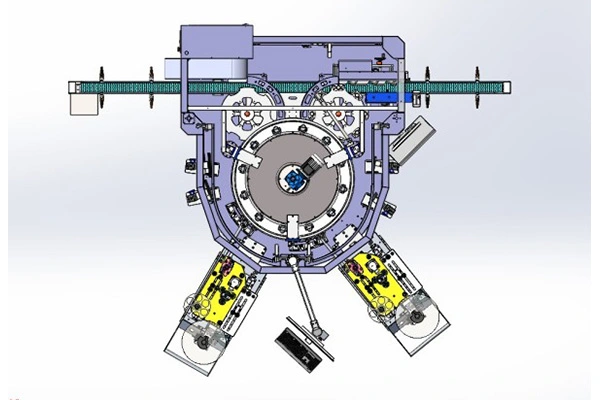

The PackSoul Compact Automatic Yogurt Cup Labeling Machine adopts conveyor‑driven cup transportation. The cup separator evenly spaces incoming yogurt cups. The photoelectric sensor sends trigger signals for servo label feeding. Labels follow the curved cup surface to complete wrap‑around labeling. Flexible pressure rollers press labels tightly and exhaust trapped air. Finished yogurt cups are automatically discharged for continuous cyclic production.
Applicable Industries: Dairy factories, dessert and pudding processing plants, and food packaging companies.
Suitable Containers: Plastic yogurt cups, fermented milk cups, mousse cups and pudding cups.
Project Cases: Used for mass production of various low temperature yogurt cups and dessert cups.
Daily: After production, clean label waste and glue residue. Wipe the pressure roller and conveyor belt.
Weekly: Clean the photoelectric sensor and check the tension of the drive parts.
Monthly: Tighten the machine screws, lubricate the bearings and remove glue buildup from the label peeling unit.
Long Term Shutdown: Cover the machine to keep it dust free. Remove the label roll and store it away from direct light.
| No. | Component Name | Brand |
| 1 | HMI | Schneider (France) |
| 2 | Servo Motor | Schneider (France) |
| 3 | Servo Drive | Schneider (France) |
| 4 | Main Motor | Schneider (France) |
| 5 | Conveyor Motor | Transky (Italy) |
| 6 | PLC | Schneider (France) |
| 7 | Frequency Inverter | Schneider (France) |
| 8 | Frequency Inverter | Schneider (France) |
| 9 | Transparent Label Sensor | LEUZE (Germany) |
| 10 | Object Detection Sensor (Reflective Photoelectric Type) | SICK (Germany) |
| 11 | Detection Photoelectric Sensor (Reflective Type) | SICK (Germany) |
| 12 | Proximity Switch | SICK (Germany) |
| 13 | Switching Power Supply | MW (Taiwan, China) |
| 14 | Universal Change‑over Switch | MOELLER (Germany) |
| 15 | Emergency Stop Switch | Schneider (France) |
| 16 | Earth Leakage Circuit Breaker | Schneider (France) |
| 17 | Miniature Circuit Breaker | Schneider (France) |
| 18 | AC Contactor | Schneider (France) |
| 19 | Rotary Encoder | Nemicon (Japan) |
| 20 | Electrical Slip Ring | Senring |
| 21 | Pressure Gauge | Panasonic (Japan) |
| 22 | Vision Camera | Hikvision |
1.Set the cup diameter, label length and machine speed on the touch screen.
2.Yogurt cups enter the feeding section.
3.The machine separates and positions the cups automatically.
4.The servo system applies the label around the cup.
5.The pressure roller smooths the label and removes bubbles and wrinkles.
6.Finished cups are discharged and collected automatically.
PackSoul Compact Automatic Yogurt Cup Labeling Machine supports CE certification and passes a 72 hour production test before shipment. Brand name electrical components are used. Each machine is also tested with customer samples to check labeling accuracy and stable operation.
The labeling program is optimized for curved yogurt cups and provides stable results with thin transparent food labels.
The compact design saves workshop space compared with traditional machines.
Food grade machine components make cleaning easier and are suitable for dairy production areas.
Customers can send samples for free labeling tests before placing an order.
We can provide a standalone machine or a complete production line solution.
1.The complete machine has a 12 month warranty. During the warranty period, replacement parts and technical service are free for non human caused problems, except consumable parts.
2.Chinese and English operation manuals and training videos are provided. Overseas onsite installation and commissioning are available, as well as one to one remote technical support.
3.Production problems can be handled online as soon as they occur. After the warranty period, original spare parts remain available at reasonable cost.
4.We regularly follow up with customers to check machine operation and maintenance and provide technical support when needed.

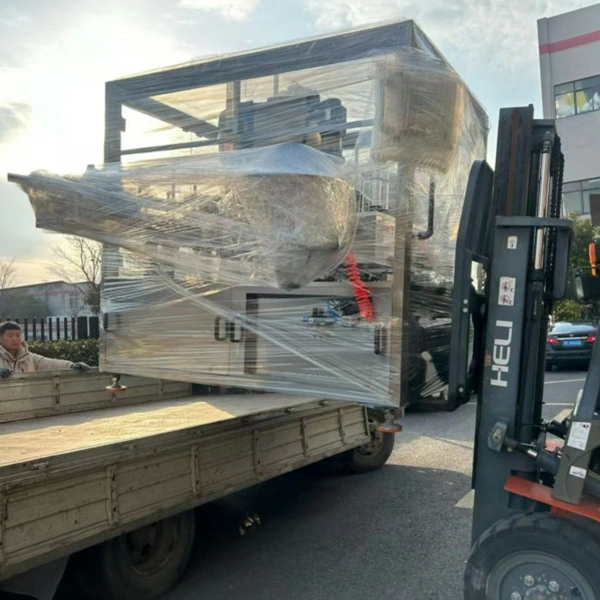

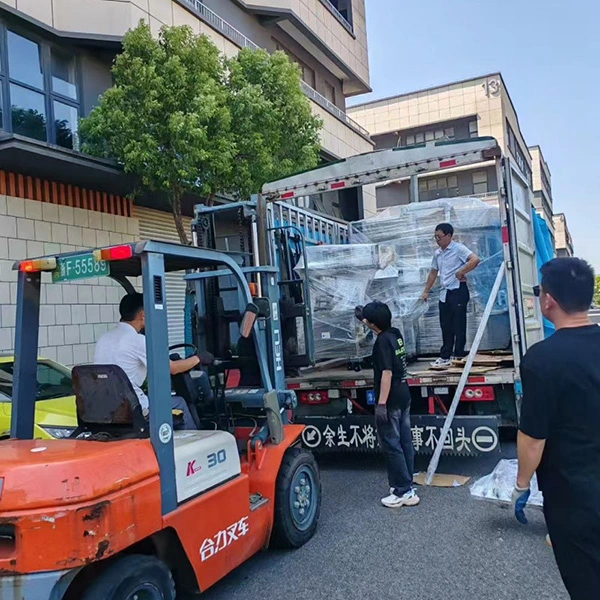

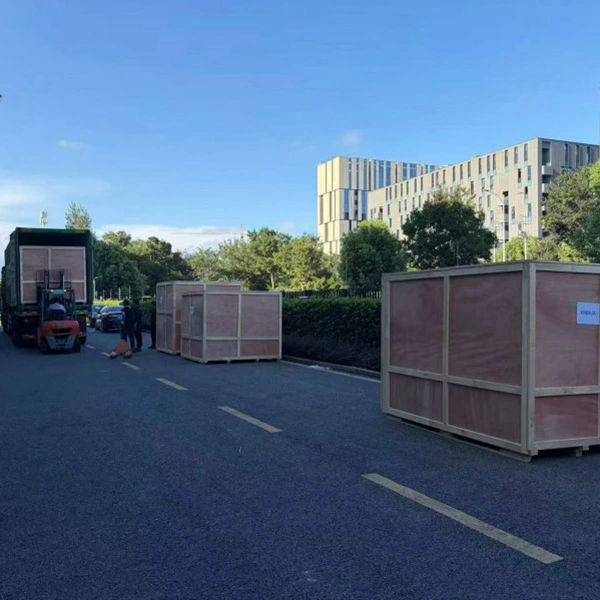

The machine is packed in fumigation‑free export‑grade solid wooden crates with foam shock‑absorbing padding to avoid transit damage. Operation manuals and spare‑parts kit are included inside each package. Sea freight, air freight and land transportation are available for global delivery.
PackSoul specializes in food‑industry labeling automation equipment. Our labeling machines are exported to Southeast Asia, the Middle East and Latin‑American markets. We have accumulated abundant real‑world dairy‑cup labeling project references and can supply production‑site photos, running‑video materials and verified customer project references upon request.
A: Yes. It supports round yogurt and pudding cups with diameter 30‑120 mm and height 40‑150 mm. Size changeover can be completed simply via touch‑screen parameter settings without complicated component replacement.
A: The servo system maintains stable label‑feeding tension. Pressure rollers press labels while exhausting trapped air, which greatly reduces bubble and wrinkle defects. Customers can send samples for pre‑order testing service.
A: Yes. The labeling and pressing assembly is optimized for chilled cups with minor surface moisture. When matched with proper food‑grade self‑adhesive labels, stable labeling results can be achieved.
A: Yes. Customization can be done based on cup dimension, label specification, workshop layout and target production capacity. Please provide cup samples and detailed product parameters for our engineering team to evaluate solutions.
A: Within 1‑year warranty period, technical support and component replacement are free except for consumable wearing parts. After warranty expires, spare parts will be charged separately.
A: Stand‑alone standard machines require 30‑60‑day lead‑time. Custom‑modified machines and complete production lines take longer time depending on project scope. Final delivery date will be confirmed in sales contract before order placement.
