We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

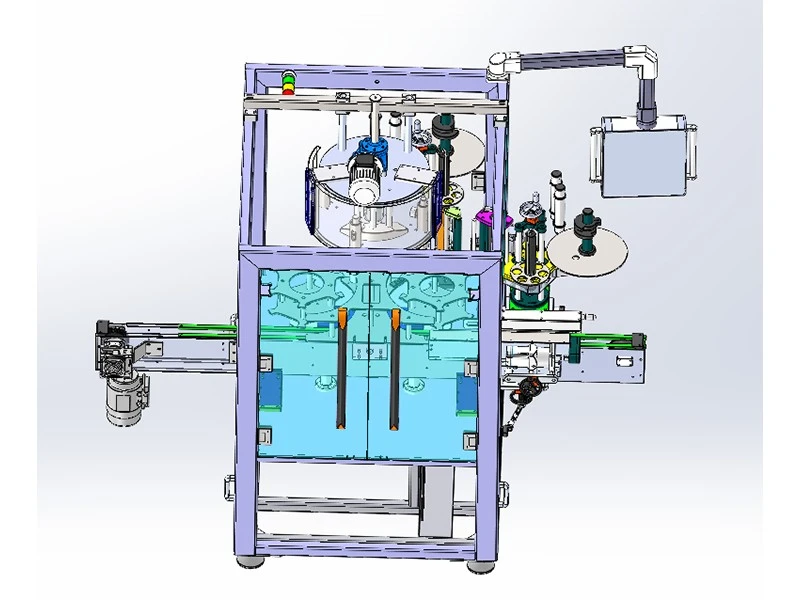

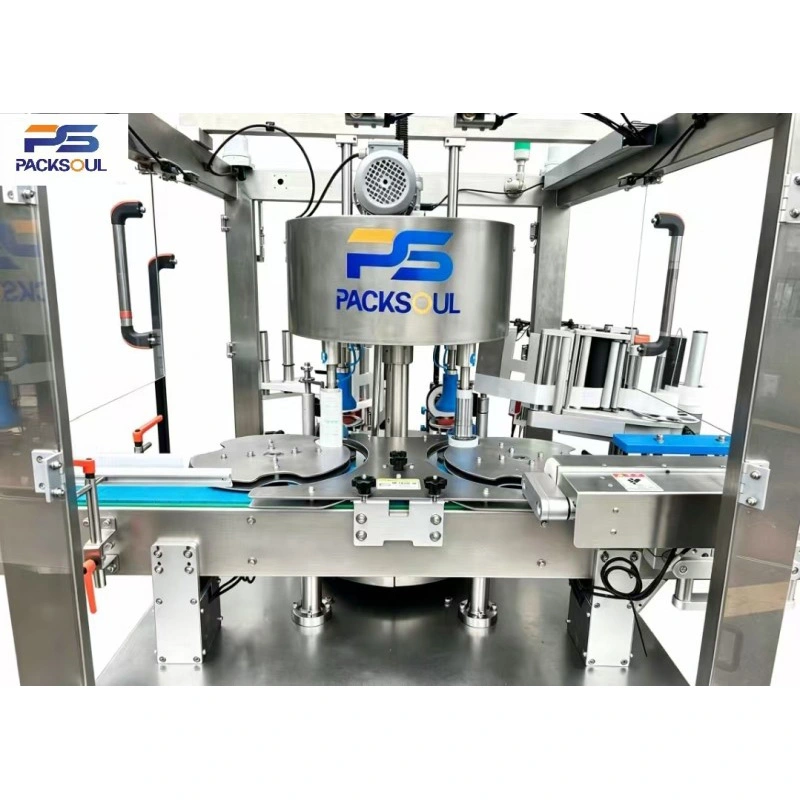

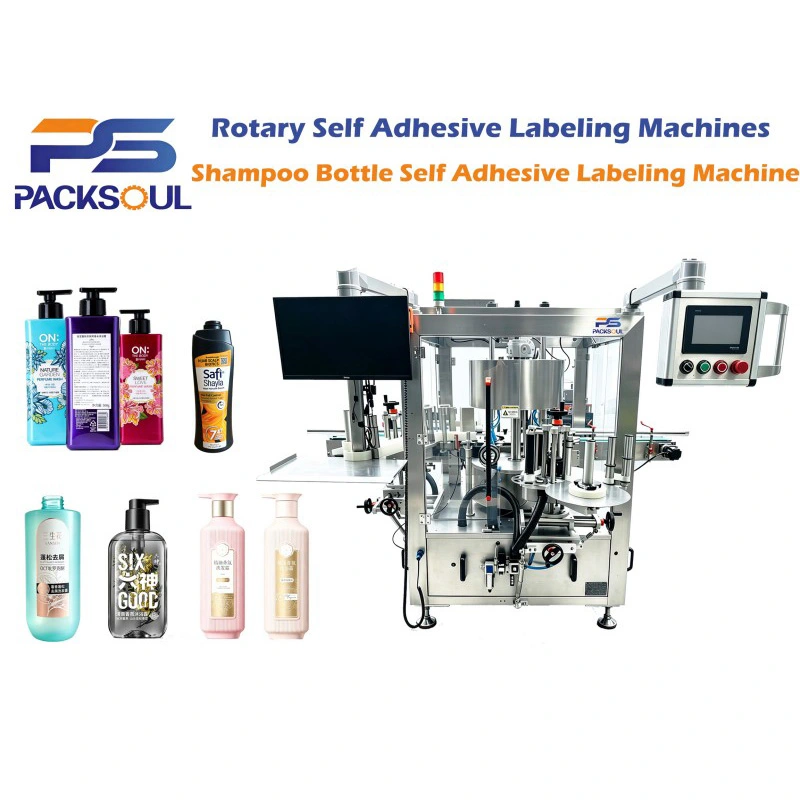

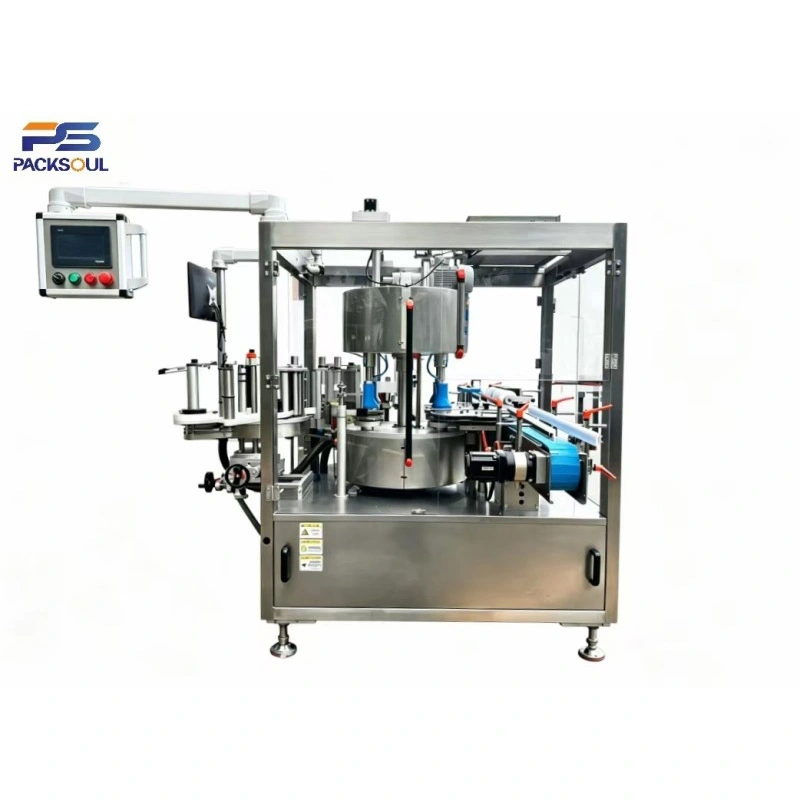

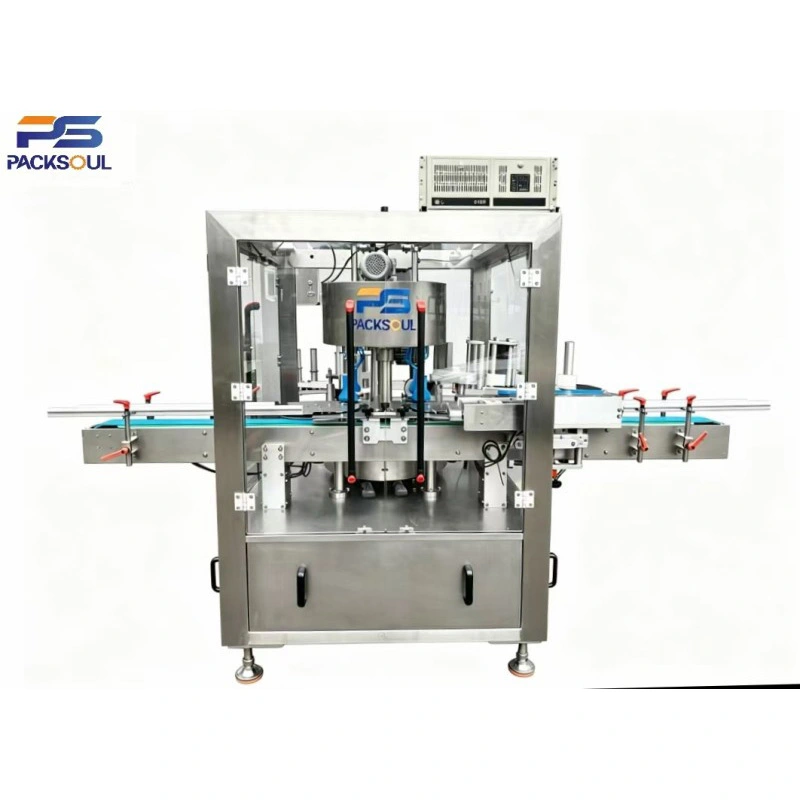

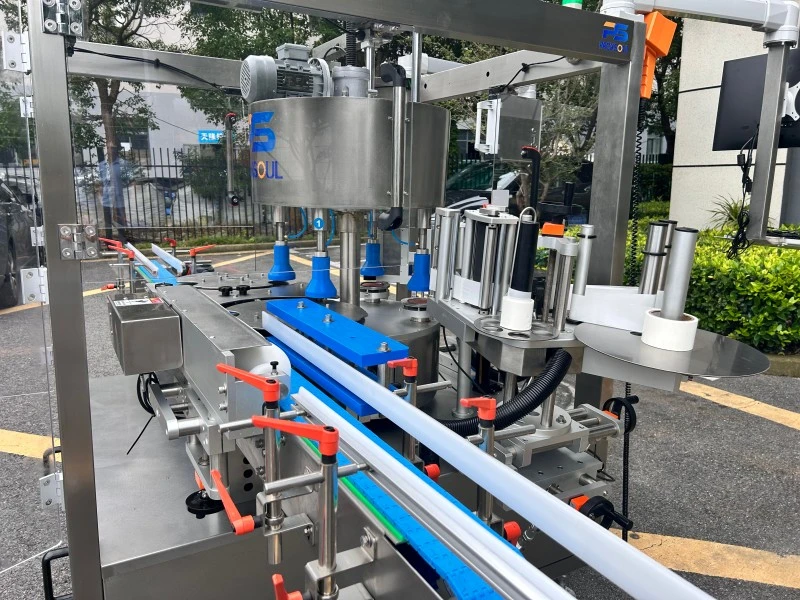

The Shampoo Bottle Self Adhesive Labeling Machine is designed for high speed automatic labeling of shampoo, conditioner and shower gel bottles. It is suitable for round and flat HDPE bottles. The rotary star wheel provides stable bottle positioning and completes bottle separation, positioning, single or double side labeling, pressing and discharge automatically.
The machine replaces manual labeling and helps reduce bubbles, wrinkles and label shifting while improving production efficiency. It can work independently or connect with filling, capping, coding and packing lines. It is suitable for large scale production in daily chemical factories.
1.The machine is designed for shampoo bottles, flat bottles and conditioner bottles. The flexible bottle holders keep bottles in place without scratching or squeezing them and help prevent jams, tipping and slipping.
2.The servo control system provides stable labeling accuracy of ±1 mm. The label stays smooth and firmly attached, with less risk of bubbles, wrinkles and lifted edges.
3.The machine uses 304 stainless steel. It is waterproof, oil resistant, corrosion resistant and easy to clean, making it suitable for daily chemical production areas.
4.The PLC control system and touch screen make operation simple. Operators can easily adjust parameters and switch between single and double side labeling. The machine also provides automatic fault alarms.
5.The machine works with coated paper labels, transparent PVC labels and printed self adhesive labels. Bottle and label changes are simple and do not require major machine modifications.
| Parameter Item | 4‑Station Rotary Adhesive Sticker Labeling Machine | 6‑Station Rotary Adhesive Sticker Labeling Machine |
| Model | PSR‑B040 | PSR‑B060 |
| Labeling Speed | 4000 BPH (bottles per hour) | 6000 BPH (bottles per hour) |
| Container Diameter | 30–100 mm (can be customized if exceed) | 30–100 mm (can be customized if exceed) |
| Container Height | 50–300 mm | 100–400 mm |
| Label Max Height | 200 mm | 200mm |
| Label Max Width | 300 mm | 300mm |
| Label Roll Diameter | Inner:Φ76.2mm Outer : φ360mm | Inner:Φ76.2mm Outer : φ360mm |

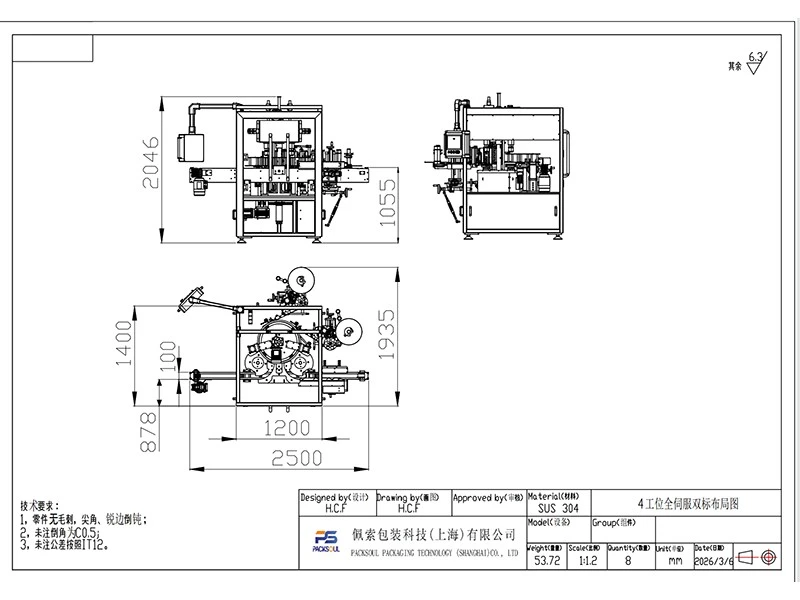

| Whole Machine Size | 2600L*1900W*1850H | 2600L*1900W*1850H |
| Working Table Height | 900±50mm（can be customized） | 900±50mm（can be customized） |
| Power | 380V/50Hz/10KW | 380V/50Hz/10KW |

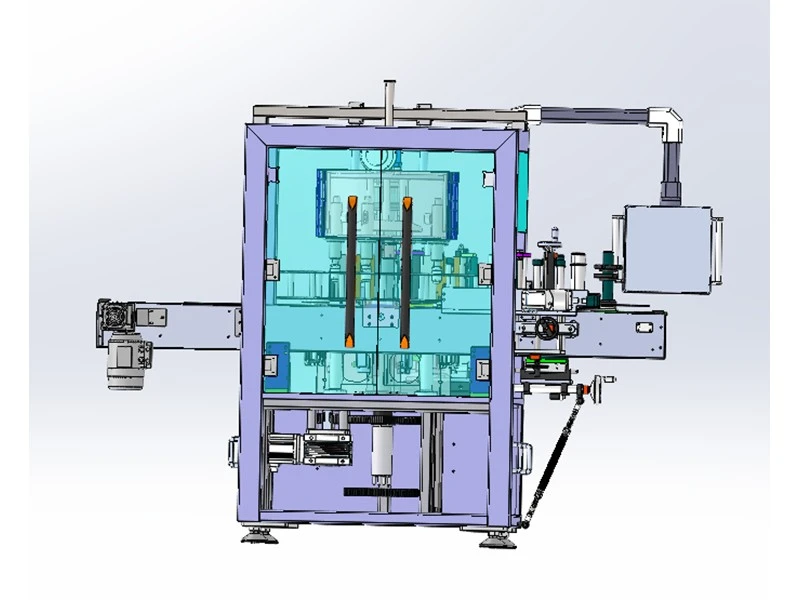

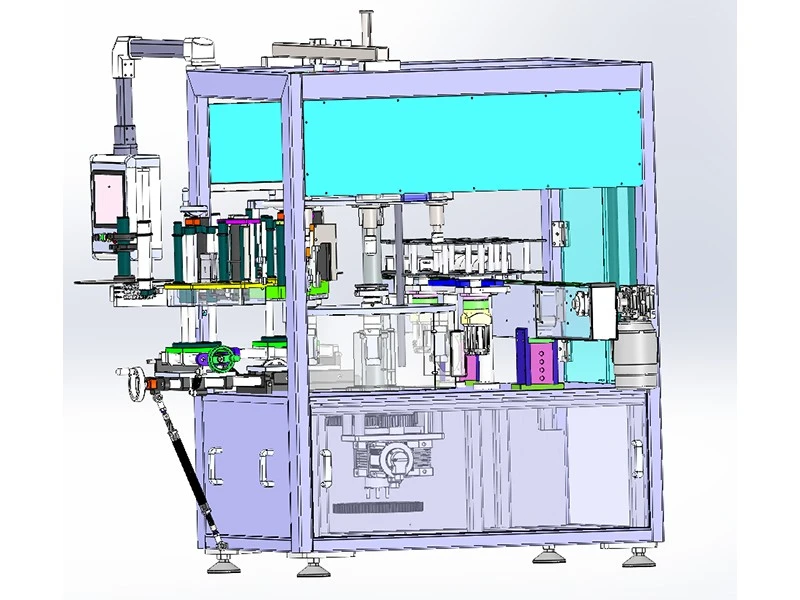

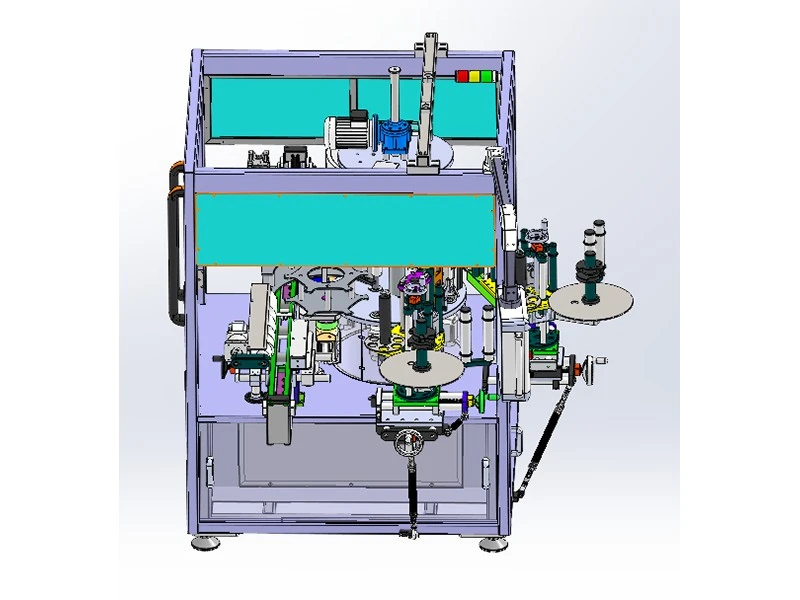

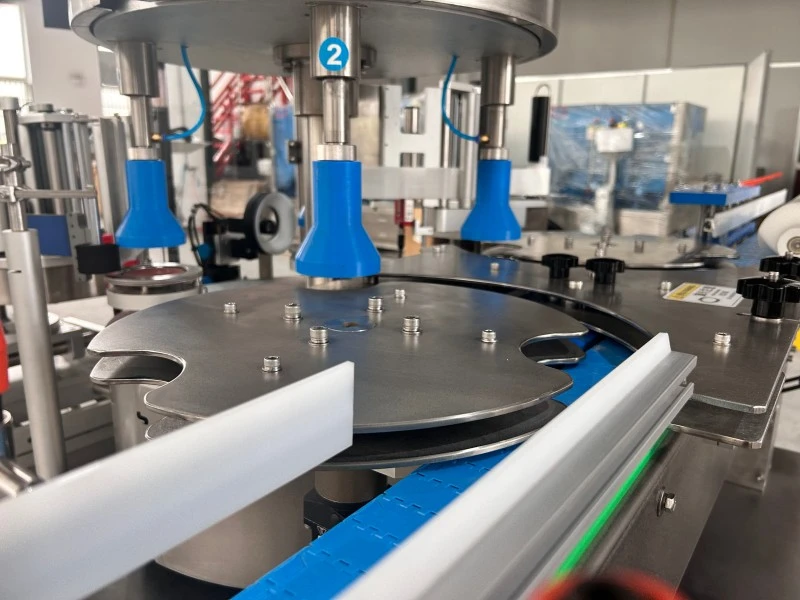

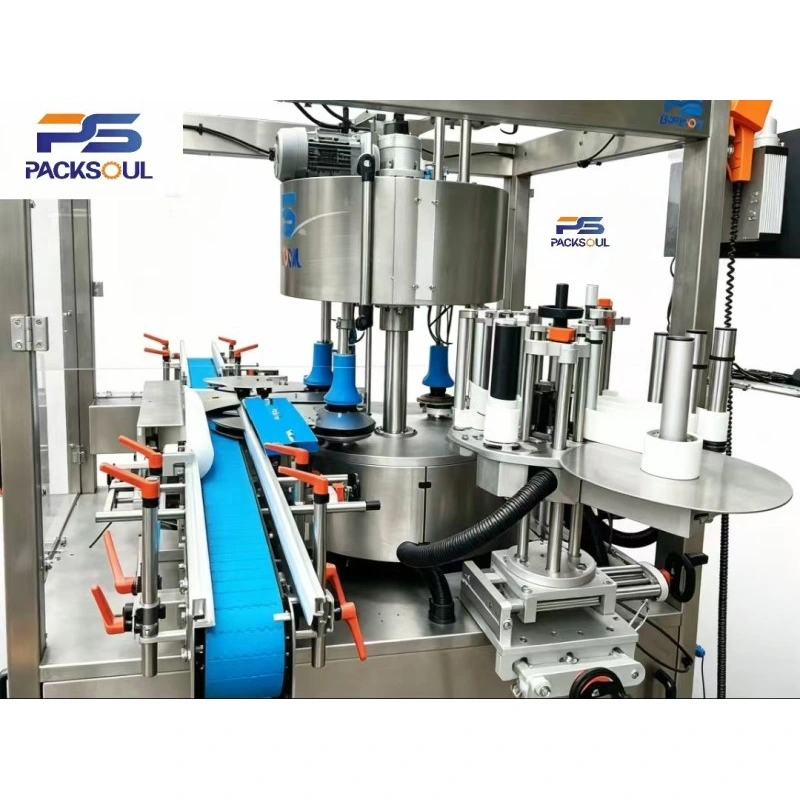

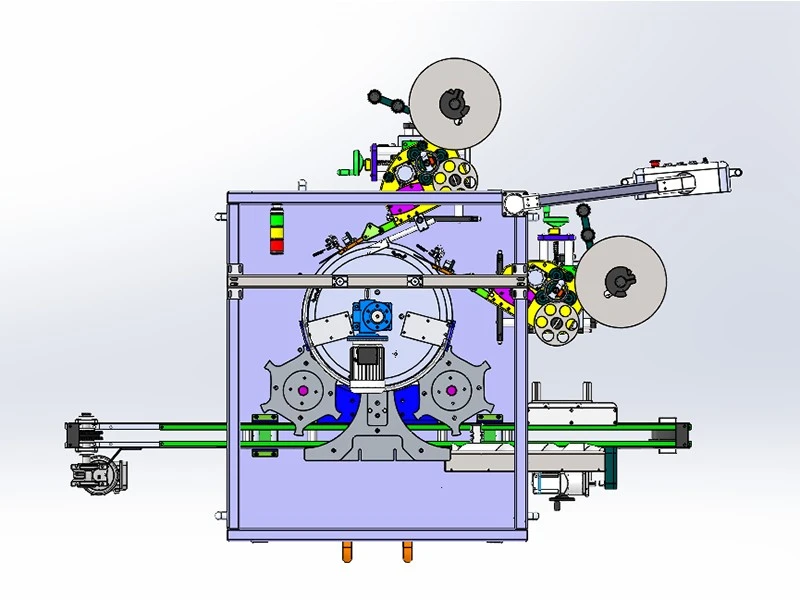

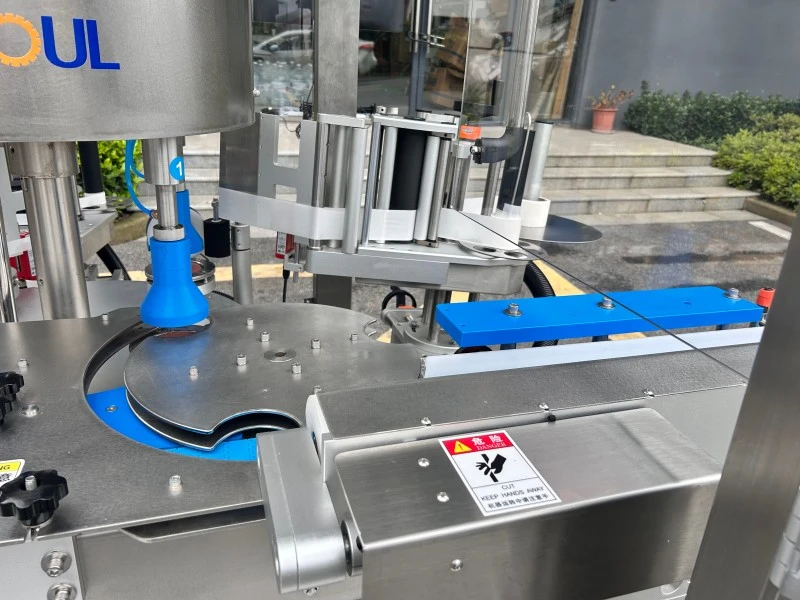

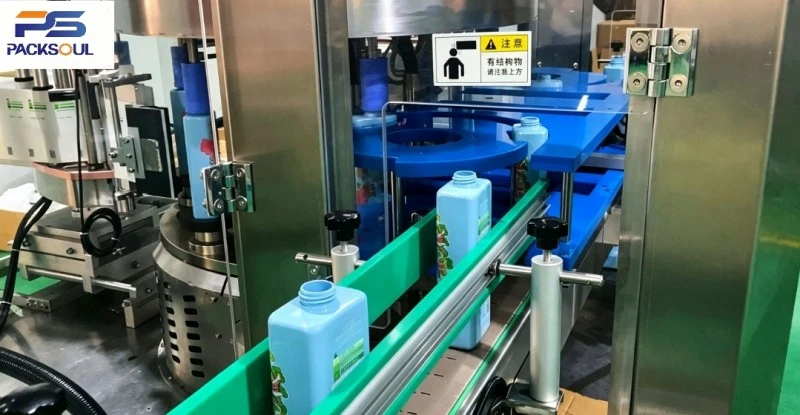

The Shampoo Bottle Self Adhesive Labeling Machine uses a rotary star wheel system for stable bottle feeding and positioning. Bottles are separated evenly and held by flexible bottle holders. The labeling head runs in sync with the bottles, while the constant tension system feeds labels smoothly. Precision rollers press the labels onto the bottles and remove air.
The rotary design provides smoother and faster operation than traditional linear labeling machines. It is especially suitable for light and soft plastic shampoo bottles.

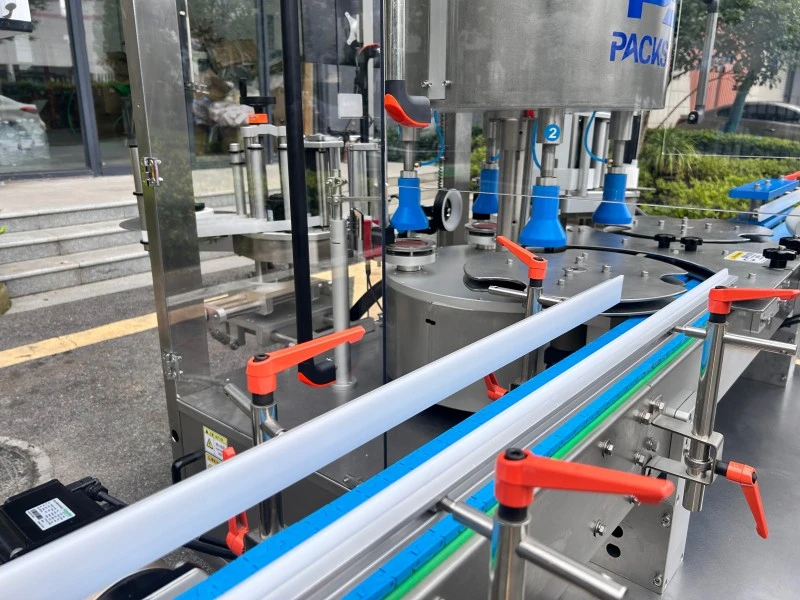

1.Automatic Feeding and Separation: Bottles are fed manually or by conveyor and enter the rotary stations in an orderly way.
2.Bottle Positioning: The star wheel and flexible holders secure each bottle and prevent movement during labeling.

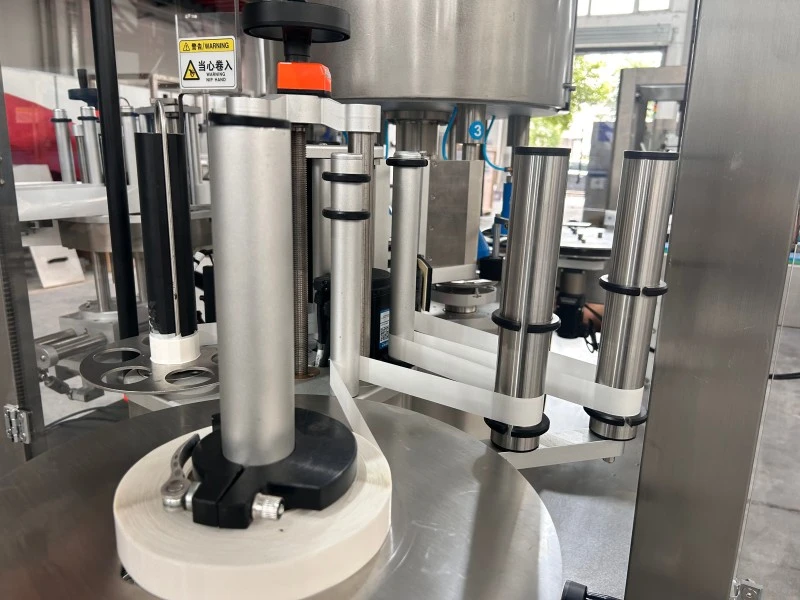

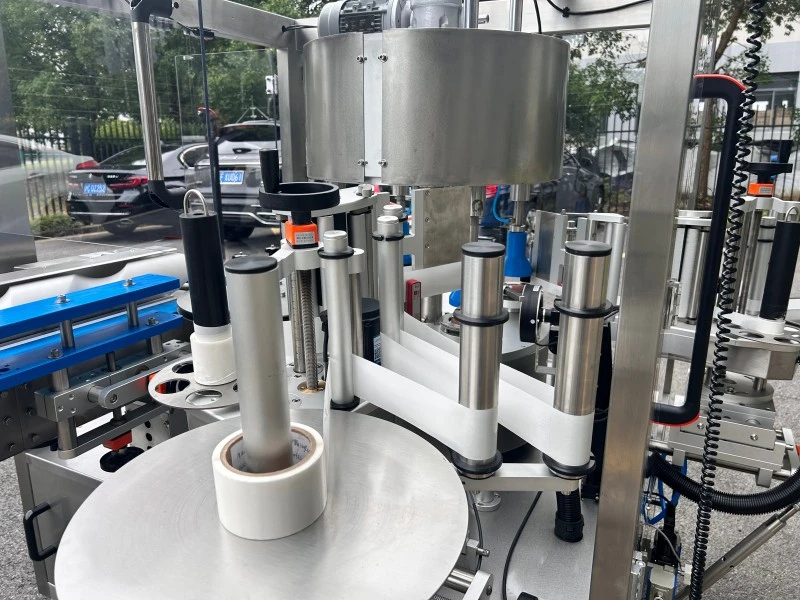

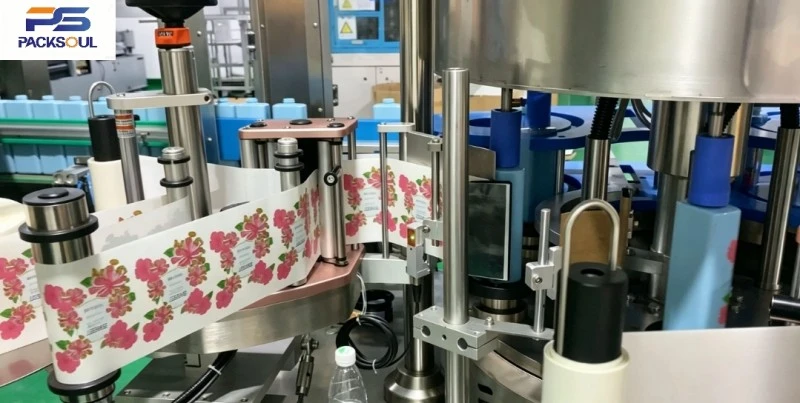

3.Servo Label Feeding: The system feeds the labels according to the bottle size and keeps stable label tension.

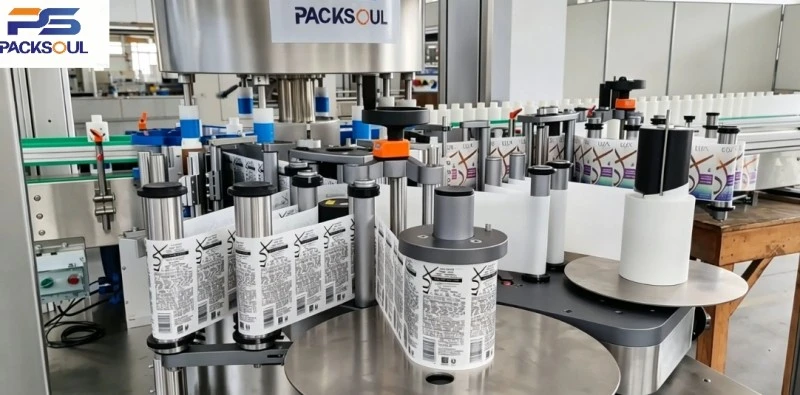

4.Single or Double Side Labeling: The bottle rotates at a steady speed while the labeling head applies labels to the front and back sides.
5.Label Pressing: Elastic rollers press the labels firmly and remove air to reduce bubbles, wrinkles and lifted edges.
6.Automatic Discharge: Finished bottles are automatically moved to the next production process.
Daily chemical and personal care products, beauty products, daily necessities and OEM factories.
Shampoo, conditioner, hair mask, shower gel, body lotion and hand wash in round or flat HDPE bottles.
The machine can be used for new automated production lines, existing line upgrades, small batch production and export production. Custom solutions are available for different bottle shapes and sizes.
1.Daily Cleaning: Remove oil, label waste and glue from the machine after operation. Wipe the 304 stainless steel body regularly.
2.Drive System: Check the conveyor belt, rollers and star wheel every day. Add food grade lubricant to bearings and drive parts weekly.
3.Labeling Parts: Inspect the labeling head, rollers and rewinding system. Clean glue and dust to help prevent label shifting and feeding problems.
4.Electrical System: Clean the control cabinet monthly and check the wiring, servo motor and PLC system. Keep the electrical parts away from moisture and oil.
5.Wear Parts: Check belts, rollers, bottle blocks and label sensors regularly. Replace them every 6 to 12 months depending on use.

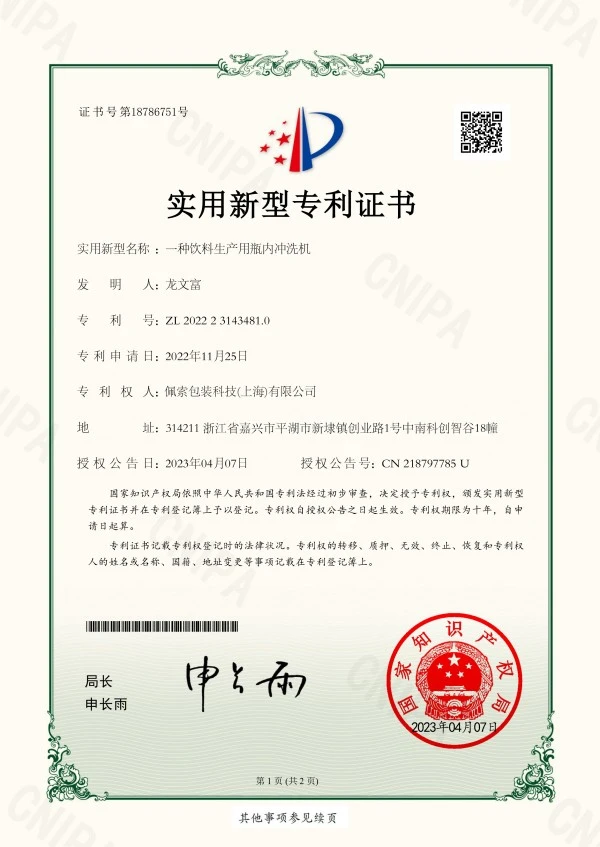

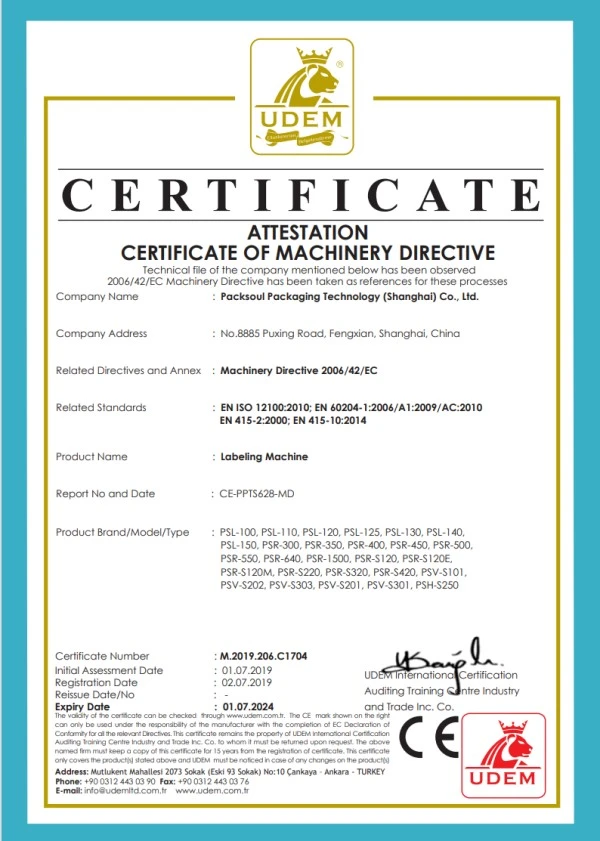

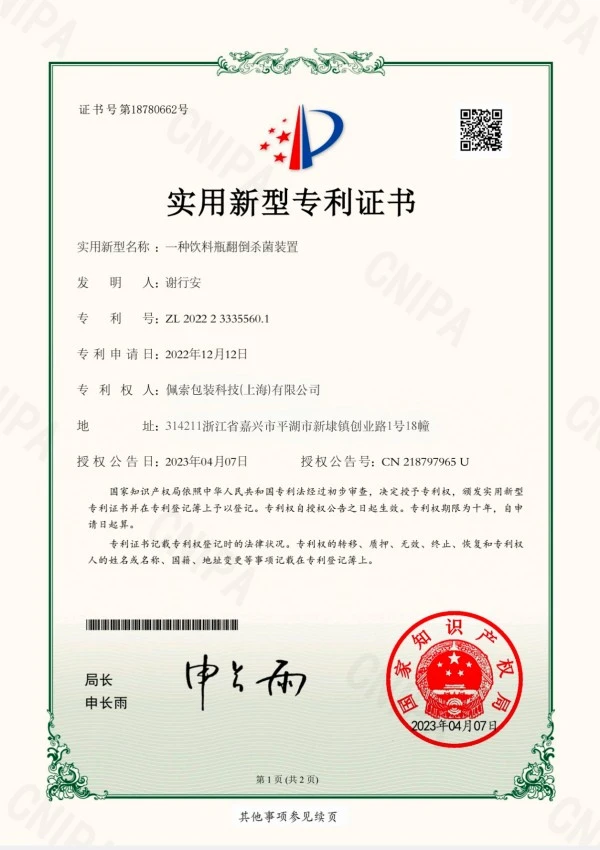

1. Certifications: The machine has CE, ISO 9001 and RoHS certifications and meets international export requirements.
2. Full Quality Control: Quality checks cover incoming materials, precision parts, machine assembly, a 72 hour continuous test and final inspection. Labeling accuracy, speed and stability are checked before shipment.

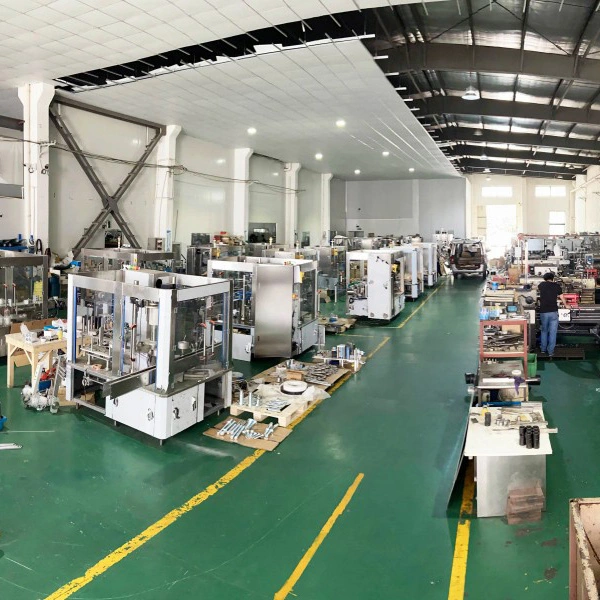

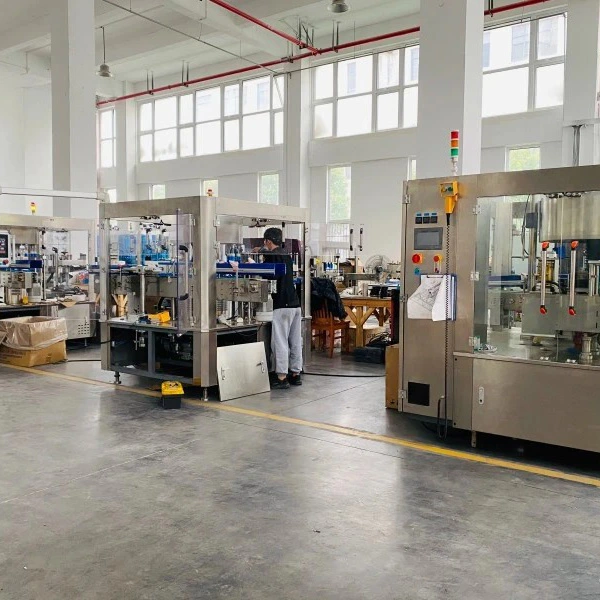

3. Factory Support: We have our own production workshop, CNC equipment, assembly area, quality team and R&D team. Machine customization, testing and sample trials are available.
The machine is optimized for flat, irregular and soft plastic shampoo bottles. The special holder design helps reduce bottle deformation and label shifting.
The full 304 stainless steel body offers good water and oil resistance. It is also corrosion resistant and easy to clean in daily chemical production areas.
The servo drive system provides accurate and stable operation during long production runs, helping reduce downtime and maintenance.
PackSoul can also supply filling, capping, coding and packing equipment for a complete daily chemical production line.
Bottle size, label size, machine layout and production capacity can all be customized to meet different production needs.
The complete machine has a 1 year warranty. Non human caused faults are repaired free during the warranty period. Technical support is available for long term use.
Operation manuals, installation instructions and training videos are provided. Remote one to one support is available for installation, setup and operation.
Onsite installation, commissioning and operator training can be arranged for overseas customers.
Customers can send bottle and label samples to our factory for testing. We provide test videos and finished labeling samples for confirmation before order.
We continue to provide maintenance advice, spare parts and upgrade solutions to support stable machine operation.

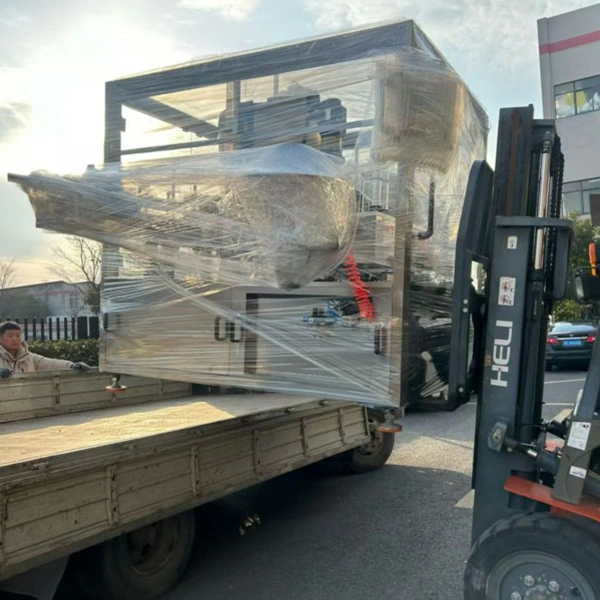

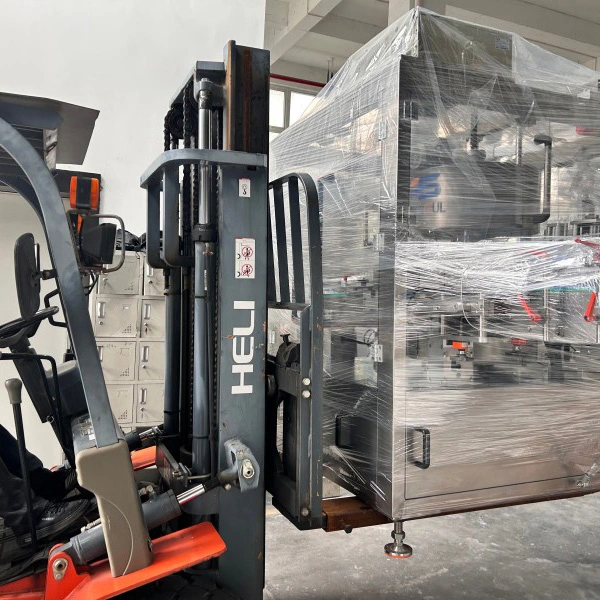

Shampoo Bottle Self Adhesive Labeling Machine is packed in fumigation free wooden crates with stretch film and foam protection. Corners are reinforced for long distance transport.
Each machine includes a certificate, operation manual, packing list, spare parts and related qualification documents.
Sea, air, road and rail shipping are available. The packing size follows international container and customs requirements.
1. Global Markets: PackSoul machines are exported to more than 30 countries and regions, including Southeast Asia, the Middle East, Europe, Australia and South America.
2. Real Production Cases: We have many shampoo and personal care bottle labeling projects. Factory photos, production videos and commissioning cases can be provided.
3. Customer Recognition: Our machines are valued for stable performance, accurate labeling and responsive service. We also have long term customers and repeat orders.
4. Professional Team: Our team covers machine design, manufacturing, assembly, commissioning and after sales service from start to finish.
A: No. Flexible silicone bottle holders are used to hold the bottles gently. The holding force can be adjusted to keep the bottles stable without causing dents or deformation.
A: Yes. Servo synchronized labeling and rear pressure rollers keep bottle movement and label feeding in sync. This helps reduce bubbles, wrinkles and label misalignment.
A: Yes. Round, flat and slightly irregular bottles can be used. Bottle holder spacing, positioning size and labeling settings can be adjusted for different products.
A: Yes. We can customize the machine according to bottle size, label type, workshop space and required production capacity.
A: Standard machines can usually be shipped in 7 to 15 days. Normal production takes about 30 to 45 days. Custom machines depend on the design and required changes.
A: Yes. After connecting the power supply and other basic connections, the machine is ready for setup. Manuals and training videos are provided, and remote support is available.
A: We provide 7 days 24 hours online technical support. Common problems can be handled remotely, while spare parts or onsite service can be arranged for more serious issues.
A: Yes. Customers can send bottle and label samples for free testing. We can provide test videos and finished samples for approval.
