We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

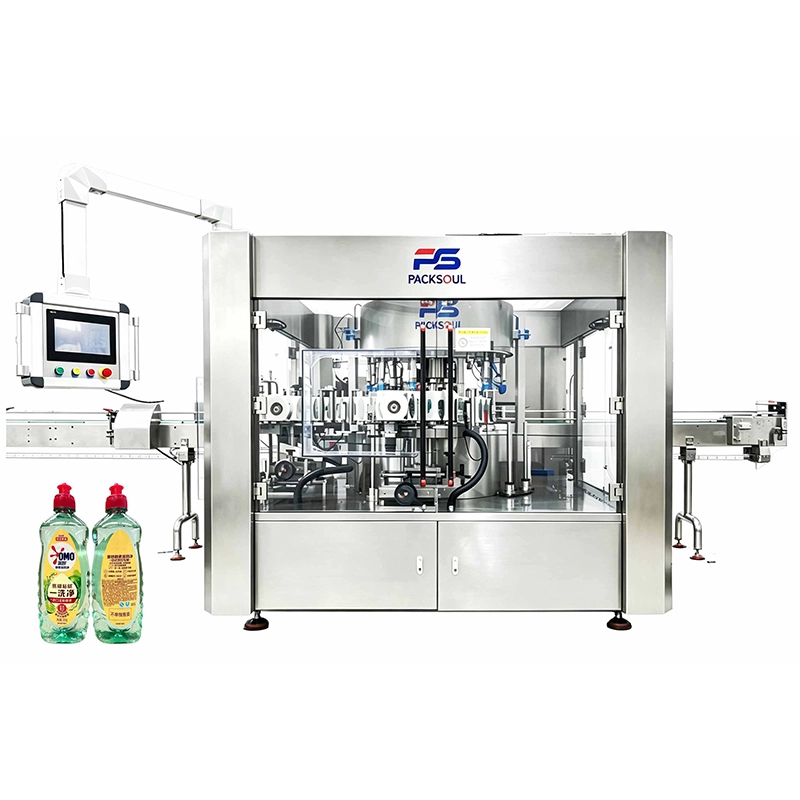

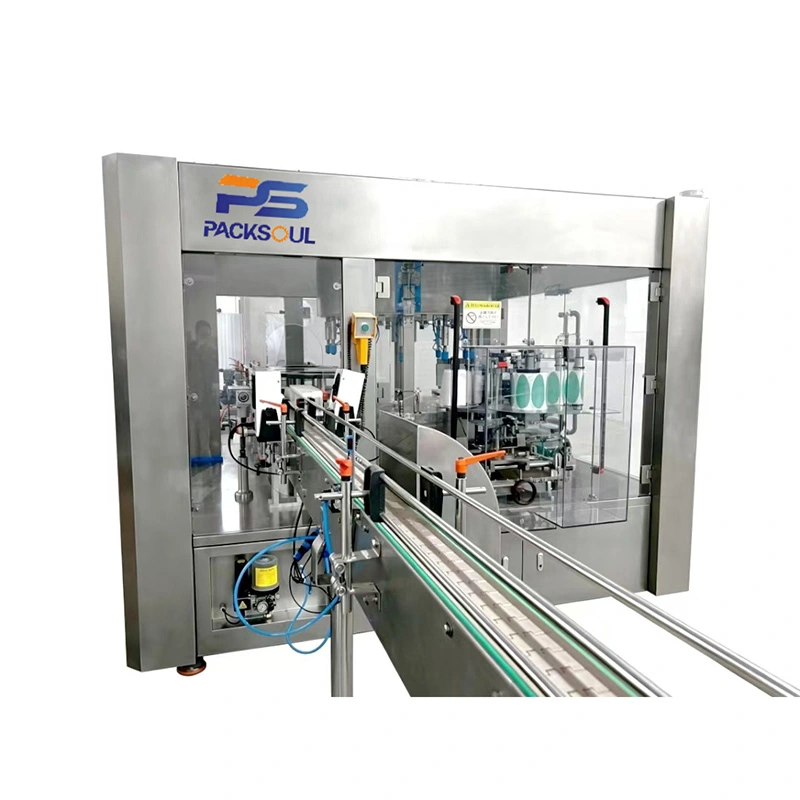

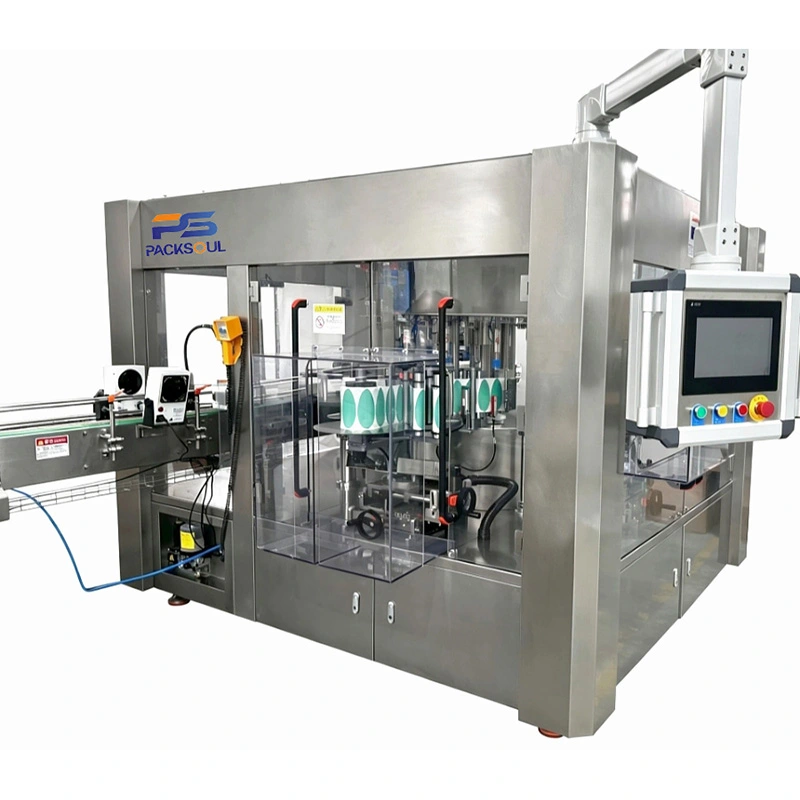

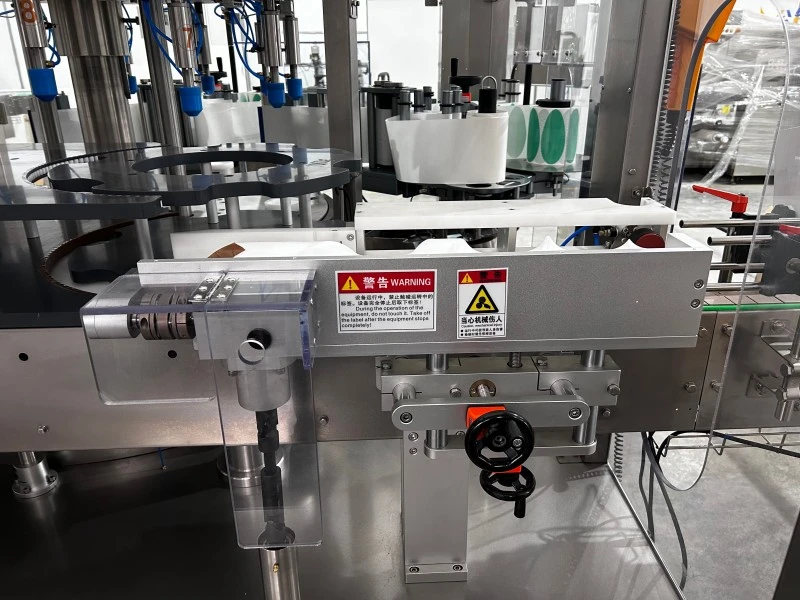

PackSoul Double Side Bottle Self Adhesive Labeling Machine uses a dual station servo labeling system to apply front and back labels in one operation. It is suitable for round, square, flat and oval bottles. The screw bottle separator and servo bottle positioning help correct bottle movement, while the pressing rollers provide smooth labeling without bubbles or lifted edges.

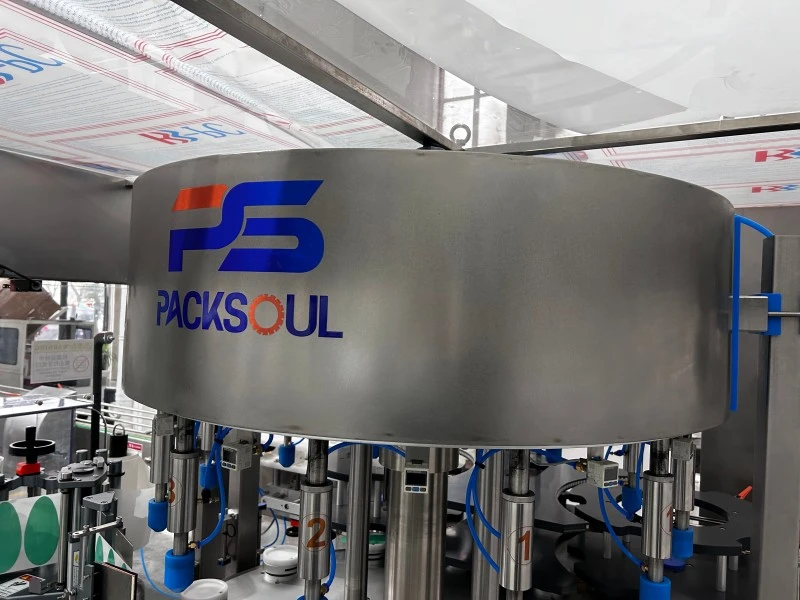

The machine uses a rotary star wheel and servo label feeding system for stable and accurate high speed labeling. It can work independently or connect with filling and capping lines, and is suitable for continuous mass production in the daily chemical, food, beauty, pharmaceutical and chemical industries.
Automatically detects bottle flow and adjusts machine speed to match the production line.

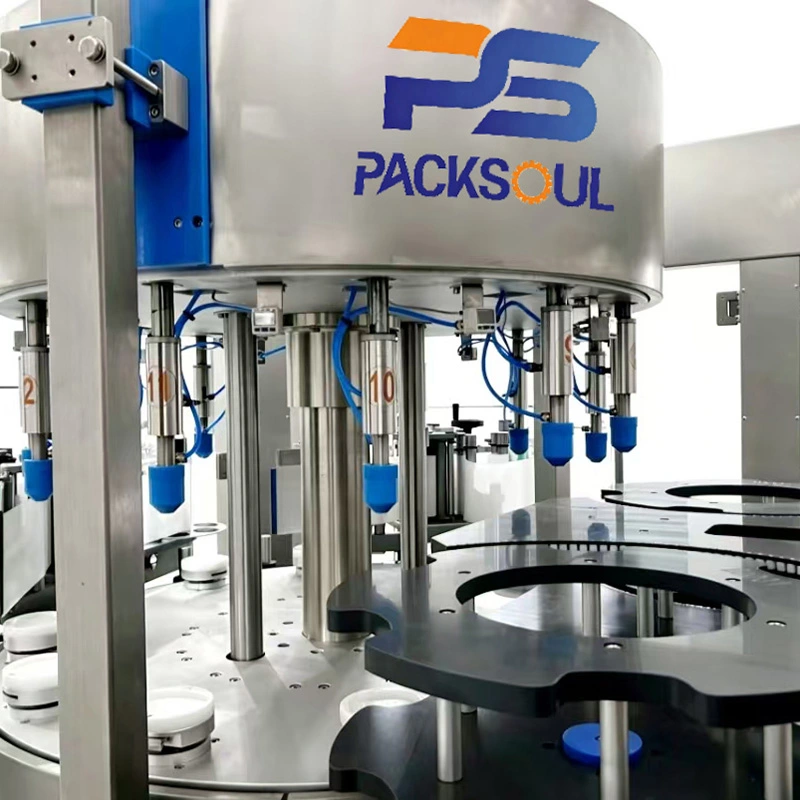

The star wheel provides stable bottle positioning for smooth and accurate high speed production.

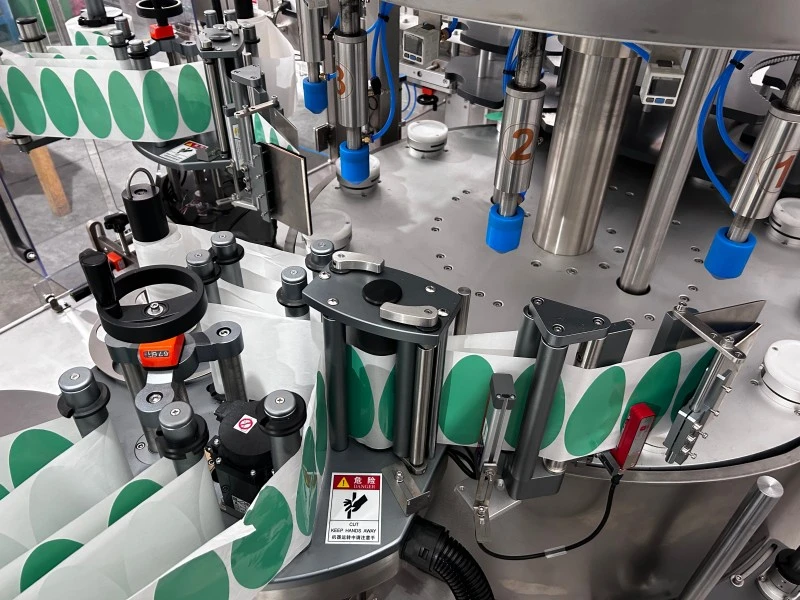

Servo tracking and the vacuum drum ensure smooth label feeding and accurate double side labeling without wrinkles or bubbles.
The machine automatically stops when abnormal torque or bottle feeding is detected, helping prevent damage and bottle jams.
The machine automatically alarms and stops when labels are missing, label supply is low, bottles are not fed or discharged properly, or a bottle jam occurs.
Centralized lubrication makes maintenance easier and helps extend machine service life.
The standard Techmach automatic correction system uses non contact ultrasonic sensors to detect label position.
An optional non contact sensor can automatically correct the label position.
Without the automatic correction system, the label seam difference is within 3 mm. With the correction system, it can be reduced to within 1 mm.
| Model | PSR‑B120 |
| Labeling Speed | 12000 BPH (bottles per hour) |
| Container Diameter | 30‑100 mm (can be customized if exceed) |
| Container Height | 100‑400 mm |
| Label Max Height | 200 mm |
| Label Max Width | 300 mm |
| Label Roll Diameter | Inner:Φ76.2mm Outer:Φ400mm |
| Whole Machine Size | 4000L*2500W*2000H |
| Working Table Height | 1000±50 mm (can be customized) |

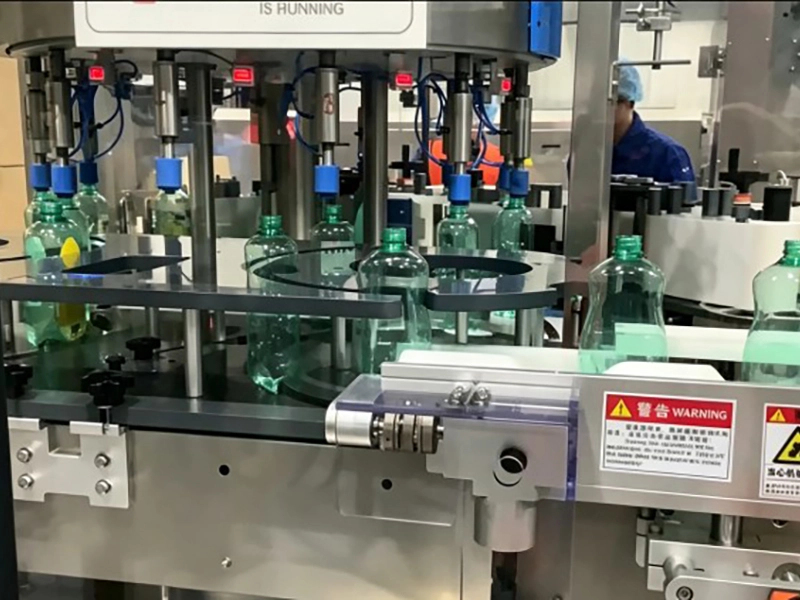

Double Side Bottle Self Adhesive Labeling Machine uses rotary star wheel positioning and servo synchronized label feeding. Bottles are separated and positioned one by one by the precision star wheel. Sensors detect the bottle and send the signal to the servo control system. The vacuum drum feeds the labels accurately, and the servo system follows the production line speed. The machine then applies labels to both sides of the bottle automatically. The whole process, from bottle feeding, positioning and labeling to bottle discharge, runs automatically and supports fully automated production line operation.

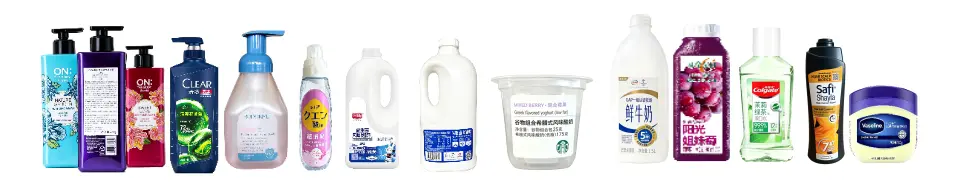

Suitable for high volume double side labeling in different industries.
Beverage Industry: Juice bottles, mineral water bottles and tea drink bottles
Daily Chemical Industry: Shampoo bottles, shower gel bottles and dishwashing liquid bottles
Beauty Industry: Flat cosmetic bottles, serum bottles and lotion bottles
Pharmaceutical and Health Products: Medicine bottles and health supplement bottles
Chemical Industry: Small chemical bottles and reagent bottles
This rotary double side self adhesive labeling machine is designed for high speed continuous production lines and supports custom labeling for irregular bottles
1.Clean the vacuum drum, sensors and star wheel daily. Remove glue and dust.
2.Add lubricant regularly through the centralized lubrication system to keep moving parts running smoothly.
3.Check the servo motor and sensors weekly and adjust labeling accuracy when needed.
4.Release the label roll tension during long machine shutdowns to prevent label sticking.
5.Keep workshop humidity below 80 percent and remove moisture from the electrical control box in humid conditions.
6.Keep water away from the electrical control box, servo motor and sensors to avoid short circuits.
1.Bottle Feeding: The conveyor sends bottles to the rotary star wheel.
2.Bottle Positioning: The star wheel holds each bottle firmly for stable operation.
3.Label Detection and Feeding: Sensors detect the label position and the servo system feeds the label accurately.
4.Vacuum Label Holding: The vacuum drum holds the label firmly and smooths out wrinkles.
5.Servo Tracking: The servo system follows the production line speed for synchronized operation.
6.Double Side Labeling: Labels are accurately applied to both sides of the bottle.
7.Fault Detection: The machine checks for missing labels, bottle jams and other faults in real time.
8.Bottle Discharge: Finished bottles leave the station and move to the next process.

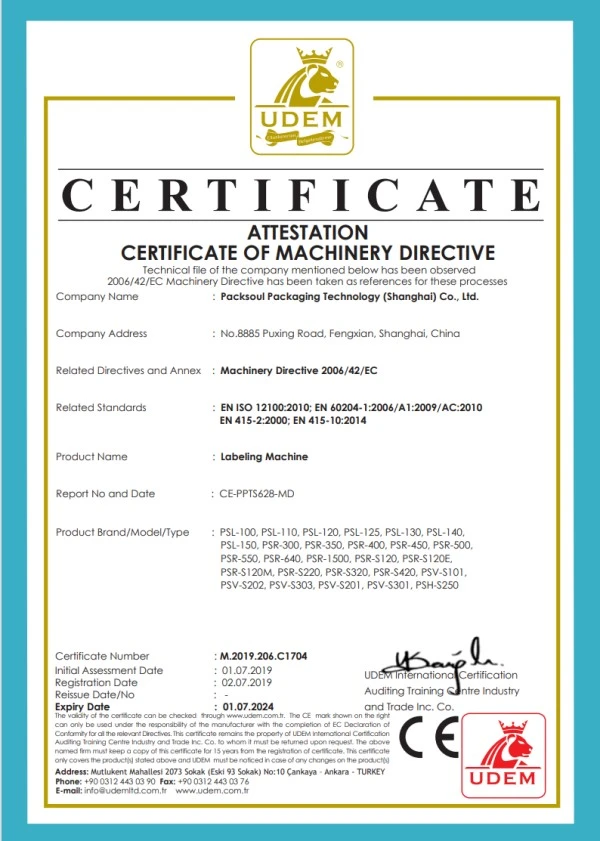

1. All electrical components meet CE standards.
2. CNC precision machining ensures low noise and stable operation.
3. Each machine undergoes a 24 hour continuous test before delivery.
4. Labeling accuracy, speed and safety alarms are fully checked before shipment.
5. High quality industrial materials provide good corrosion and dust resistance and longer service life.
| No. | Component Name | Brand |
| 1 | HMI | Schneider (France) |
| 2 | Servo Motor | Schneider (France) |
| 3 | Servo Drive | Schneider (France) |
| 4 | Main Motor | Schneider (France) |
| 5 | Conveyor Motor | Transky (Italy) |
| 6 | PLC | Schneider (France) |
| 7 | Frequency Inverter | Schneider (France) |
| 8 | Frequency Inverter | Schneider (France) |
| 9 | Transparent Label Sensor | LEUZE (Germany) |
| 10 | Object Detection Sensor (Reflective Photoelectric Type) | SICK (Germany) |
| 11 | Detection Photoelectric Sensor (Reflective Type) | SICK (Germany) |
| 12 | Proximity Switch | SICK (Germany) |
| 13 | Switching Power Supply | MW (Taiwan, China) |
| 14 | Universal Change‑over Switch | MOELLER (Germany) |
| 15 | Emergency Stop Switch | Schneider (France) |
| 16 | Earth Leakage Circuit Breaker | Schneider (France) |
| 17 | Miniature Circuit Breaker | Schneider (France) |
| 18 | AC Contactor | Schneider (France) |
| 19 | Rotary Encoder | Nemicon (Japan) |
| 20 | Electrical Slip Ring | Senring |
| 21 | Pressure Gauge | Panasonic (Japan) |
| 22 | Vision Camera | Hikvision |
The standard Techmach ultrasonic correction system improves label seam accuracy to within 1 mm, better than the 3 to 5 mm error of common rotary double side labeling machines.
PackSoul automatically adjusts the machine speed according to bottle feeding, making it easy to connect with other production line equipment.
The machine has multiple fault alarms and automatic stop functions to reduce label waste and production downtime.
The centralized lubrication system makes daily maintenance easier and helps reduce maintenance costs.
The servo system provides smooth and accurate label feeding, with less label shifting during long term high speed operation.

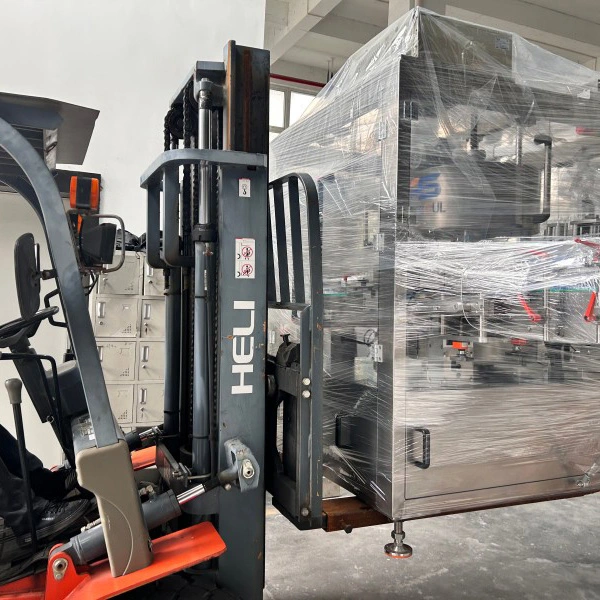

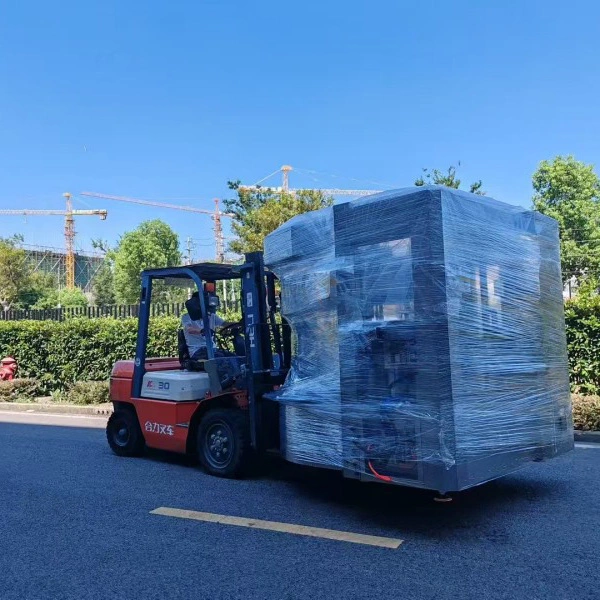

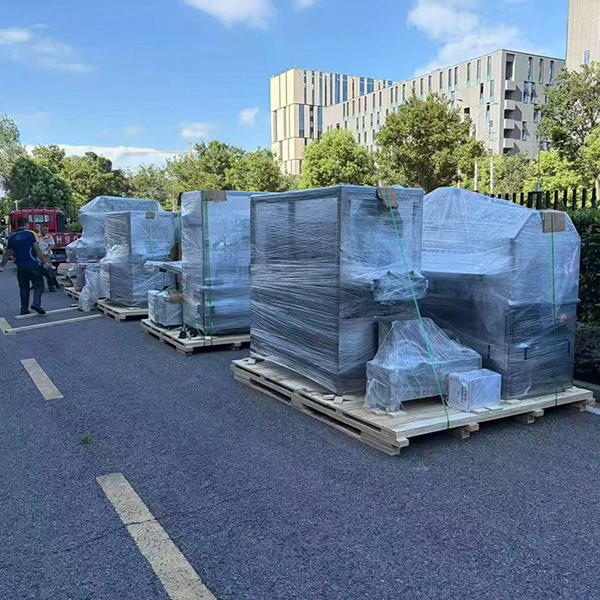

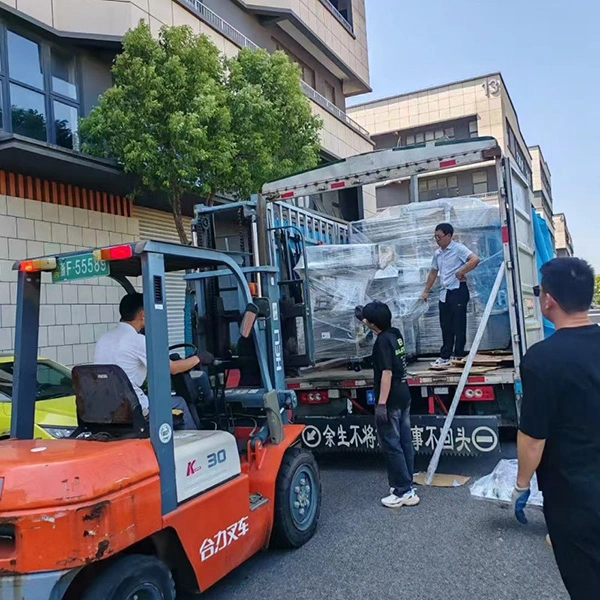

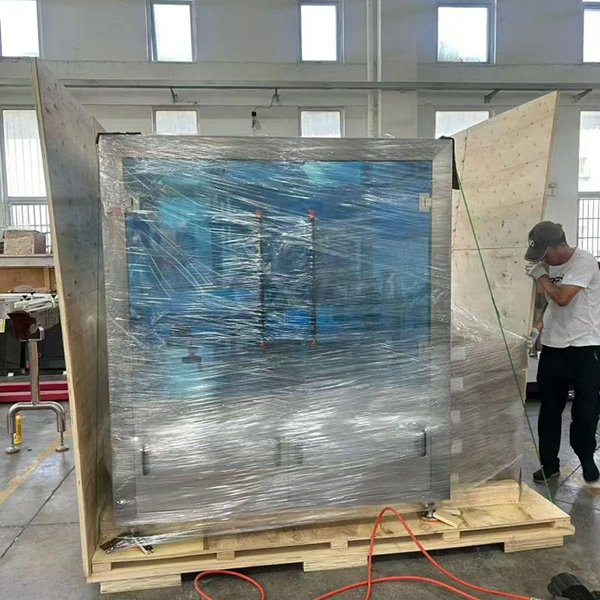

1. Export wooden crate with waterproof and shockproof protection.
2. The machine is securely fixed inside to prevent damage during sea or air transportation.
3. Packing list, inspection report and export documents are provided.
4. FOB, CIF and DDP shipping terms are available.
We provide onsite installation and adjust the machine for the customer's bottle types. Line connection and commissioning are also available.
We provide hands‑on training and an operation manual covering machine operation, label change, bottle change, troubleshooting and maintenance.
The machine has a one year warranty and lifetime maintenance. Free repair is provided for non‑human‑caused faults during the warranty period. After the warranty, only spare parts cost is charged.
Remote support is provided first. For serious problems, an engineer can be arranged onsite within 24 hours. Common spare parts are kept in stock and shipped within 3 working days after confirmation.
Our service team regularly checks machine operation and maintenance status and helps solve any problems in time.

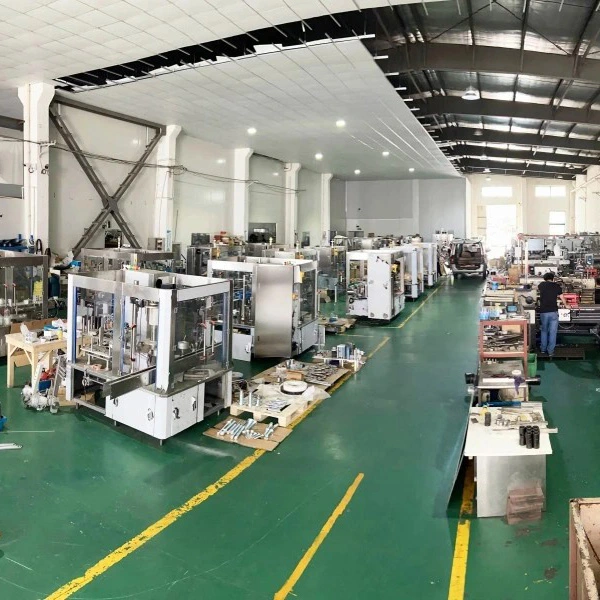

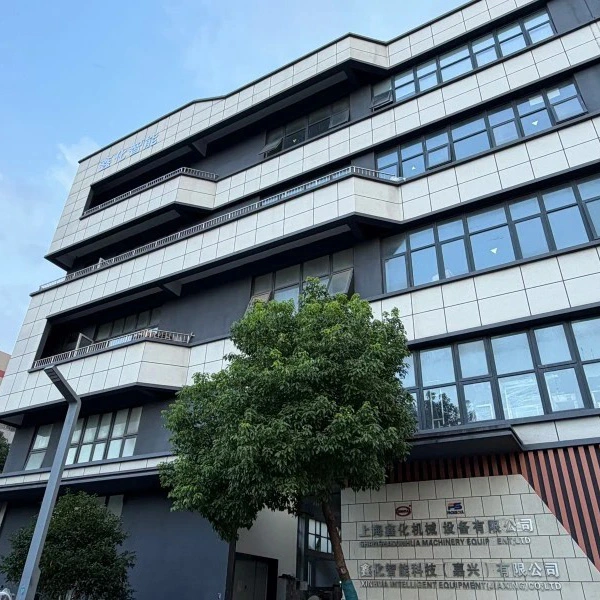

PackSoul focuses on the development and production of high speed rotary double side self adhesive labeling machines. We serve industrial packaging customers worldwide, with machines exported to Europe, Southeast Asia, the Middle East, South America and Africa. We have long term customers in the food, daily chemical and beauty industries. Our R&D, production, testing and after sales teams provide complete service.
A: It can handle round, square, flat, oval and most irregular bottles. It supports full wrap and partial self adhesive labeling.
A: Yes. The automatic speed control system adjusts the machine speed according to the bottle flow.
A: Standard labeling accuracy is within 3 mm. With the Techmach ultrasonic correction system, accuracy can reach within 1 mm.
A: For overseas standalone machines, installation usually takes 1 day and commissioning takes 6 to 9 days. The actual time depends on the site and production line.
A: During the one year warranty, replacement parts and technical support are free, except for consumable parts. After the warranty, spare parts are charged separately.
A: For a standard standalone machine, one experienced engineer is usually enough to complete installation, commissioning and training. For large customized production lines, we can send more engineers according to the project size.
