We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

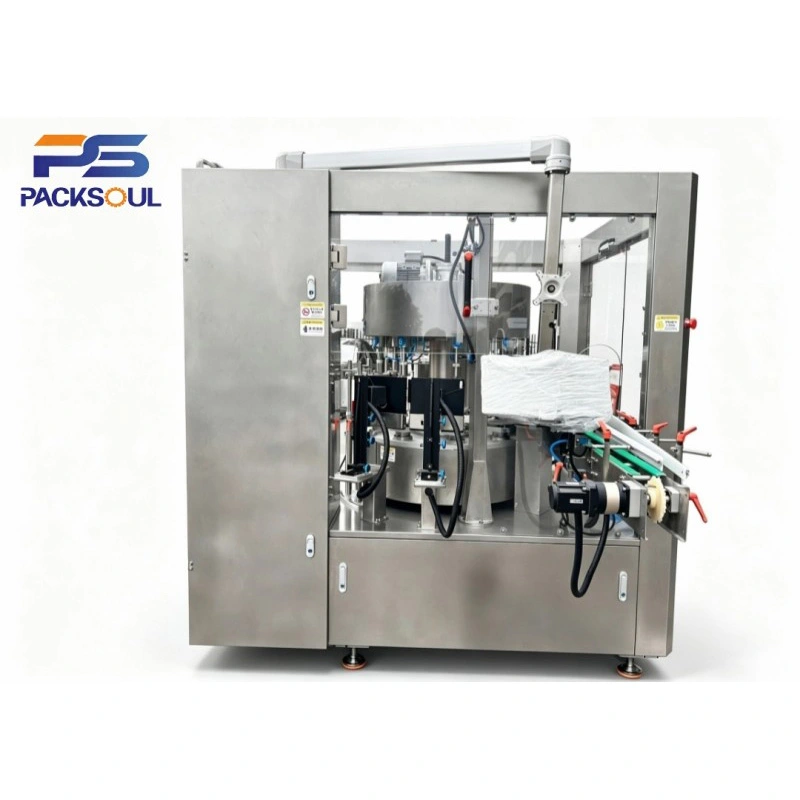

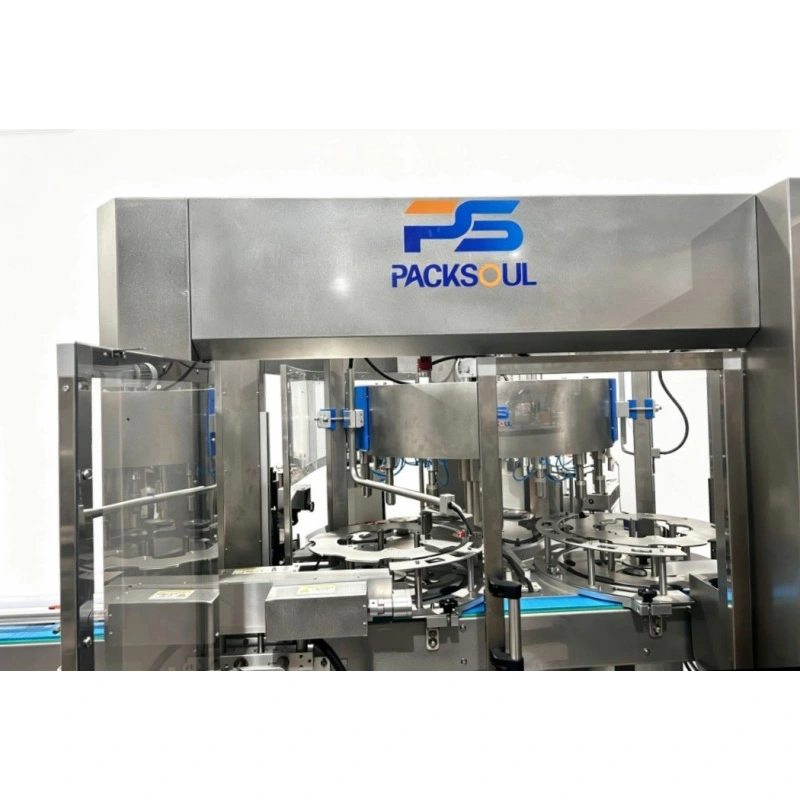

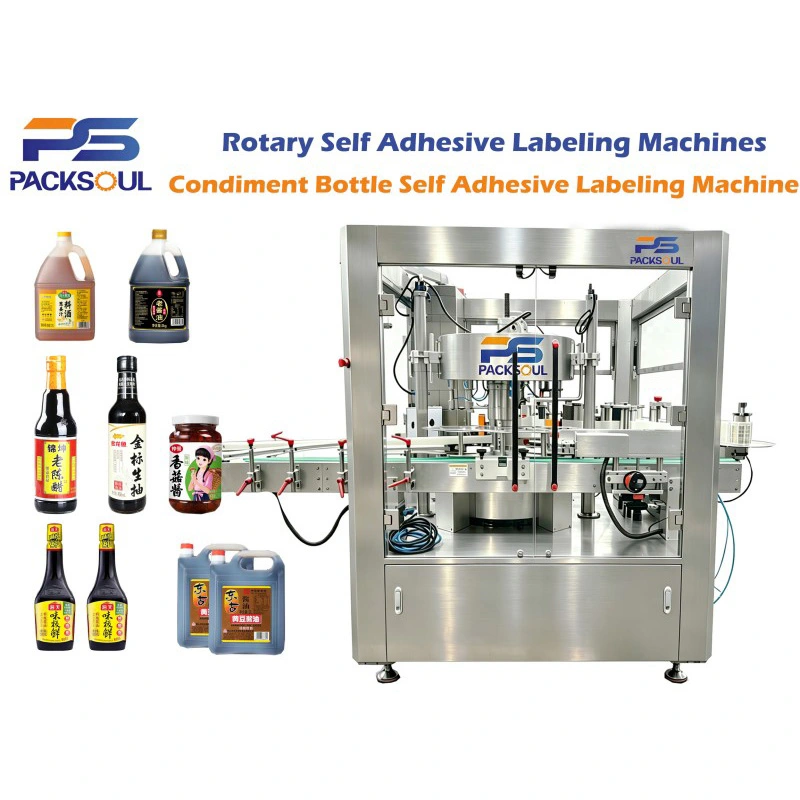

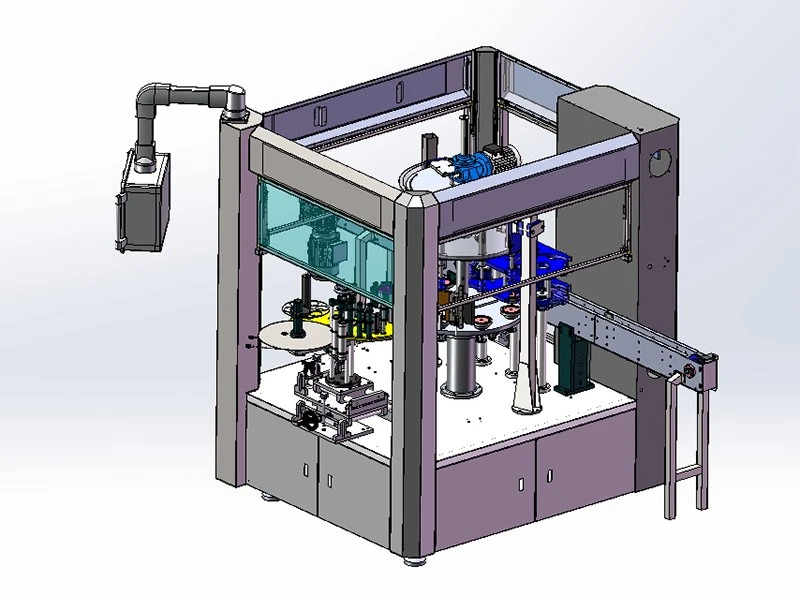

The Condiment Bottle Self Adhesive Labeling Machine is designed for food and sauce packaging. It uses rotary stations for smooth and stable labeling of glass and plastic bottles. The servo positioning system helps prevent bottle slipping and label lifting on smooth or oily surfaces. It replaces manual labeling, improves packaging quality and production efficiency, and is suitable for clean food production environments.
The machine uses a servo positioning system to keep bottle movement and label feeding in sync. It helps reduce label shifting and provides labeling accuracy of ±1 mm.
The machine is made of food grade 304 stainless steel. It is easy to clean and suitable for wet and oily food production areas.
It works with soy sauce, vinegar, oyster sauce, ketchup and chili sauce bottles. Round, flat and slightly irregular bottles can be used with simple adjustments.
The rotary station design supports speeds of up to 8000 BPH. It is suitable for continuous production and large condiment factories.
The PLC control system and touch screen make operation simple. Operators can easily adjust settings and switch between single and double side labeling. Fault alarms are also included.
The constant tension system and pressure rollers help remove air during labeling. Labels stay smooth and firmly attached, with fewer bubbles, wrinkles and lifted edges.
| Model | PSR‑B080 |
| Labeling Speed | 8000 BPH (bottles per hour) |
| Container Size | Flat bottles with a maximum diagonal size of 30 to 100 mm; larger sizes can be customized |
| Container Height | 100 to 400 mm |
| Label Max Height | 200 mm |
| Label Max Width | 300 mm |
| Label Roll Dimension | Inner Diameter Φ76 mm; Maximum Outer Diameter Φ400 mm |
| Overall Machine Dimension | 3000L × 2500W × 2000H mm |
| Working Height | 1000 ± 50 mm (Customizable) |
| Power Supply | 380 V / 50 Hz / 14 kW |

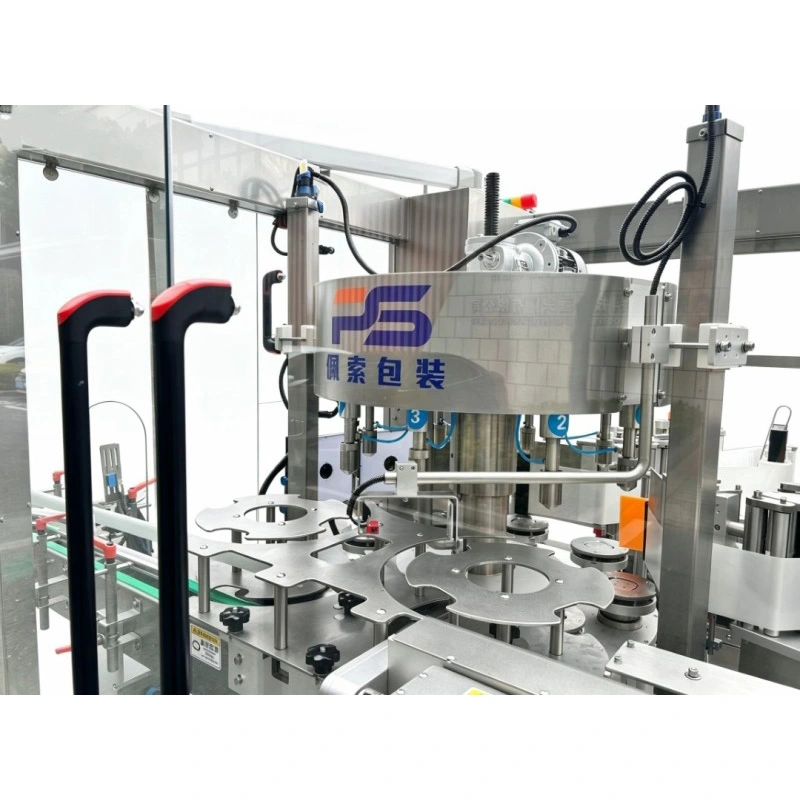

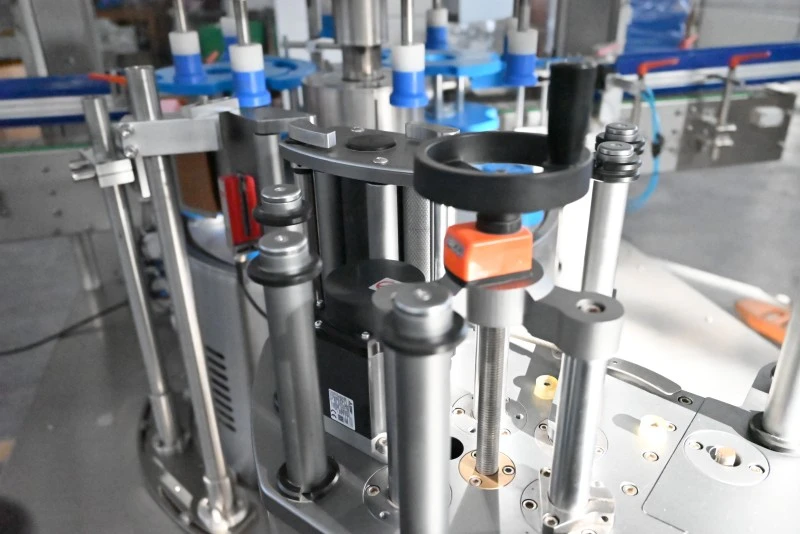

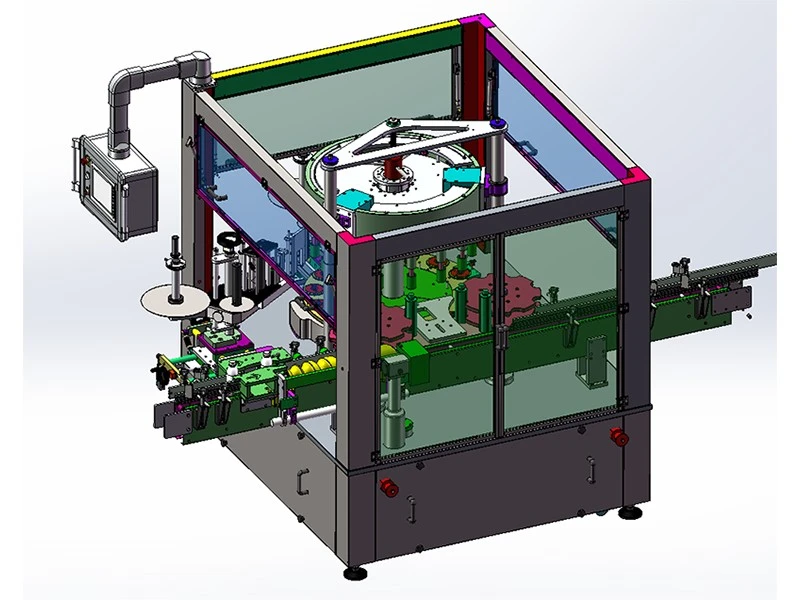

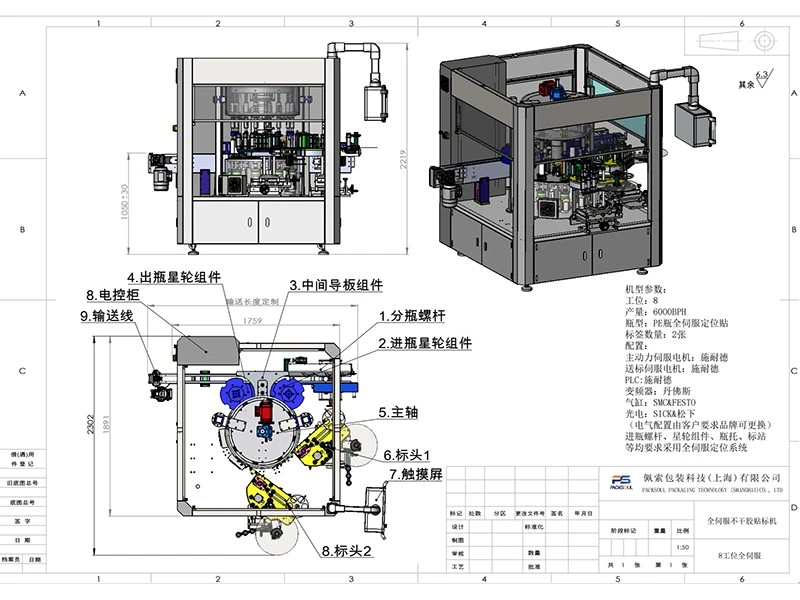

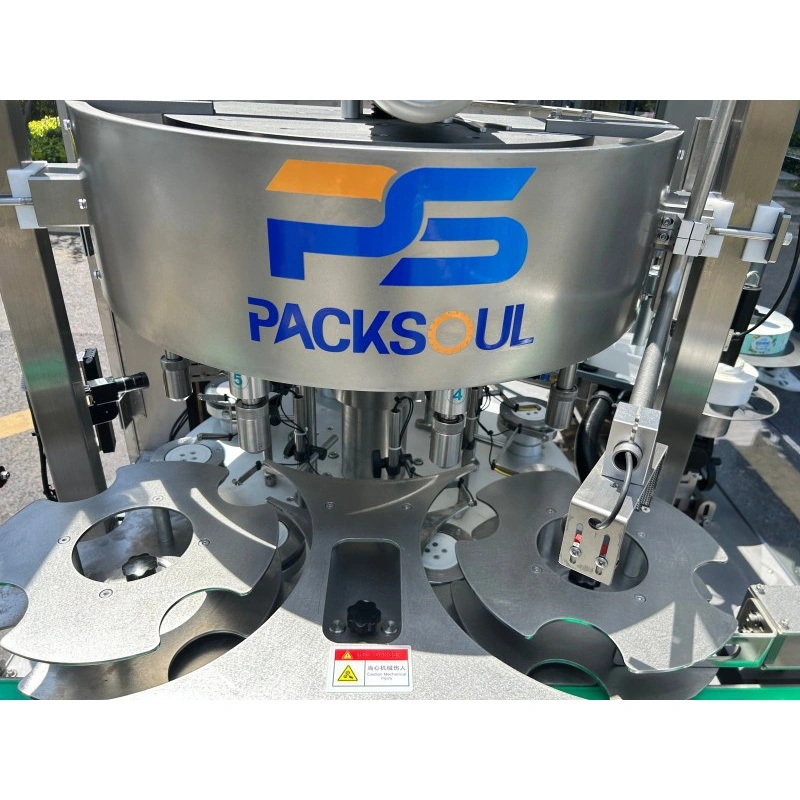

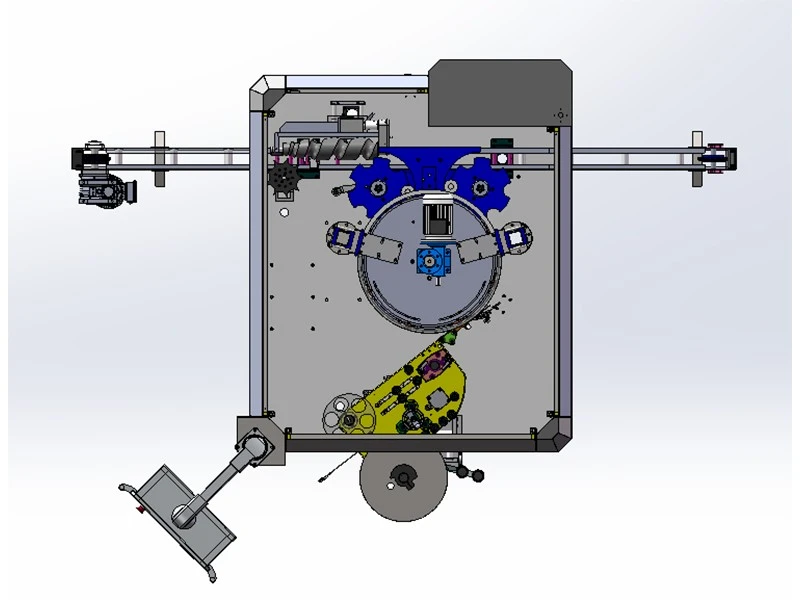

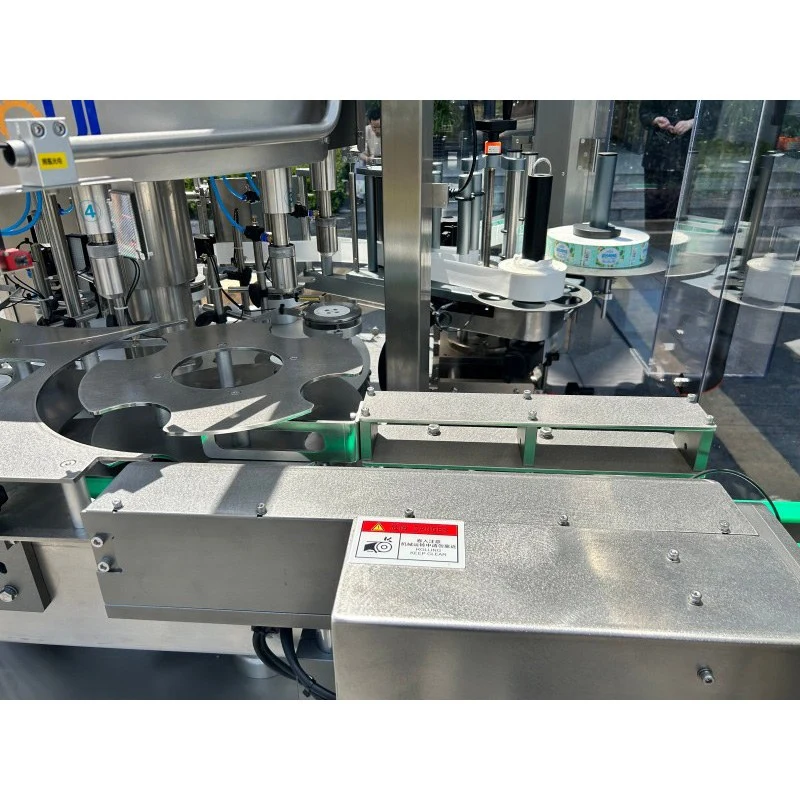

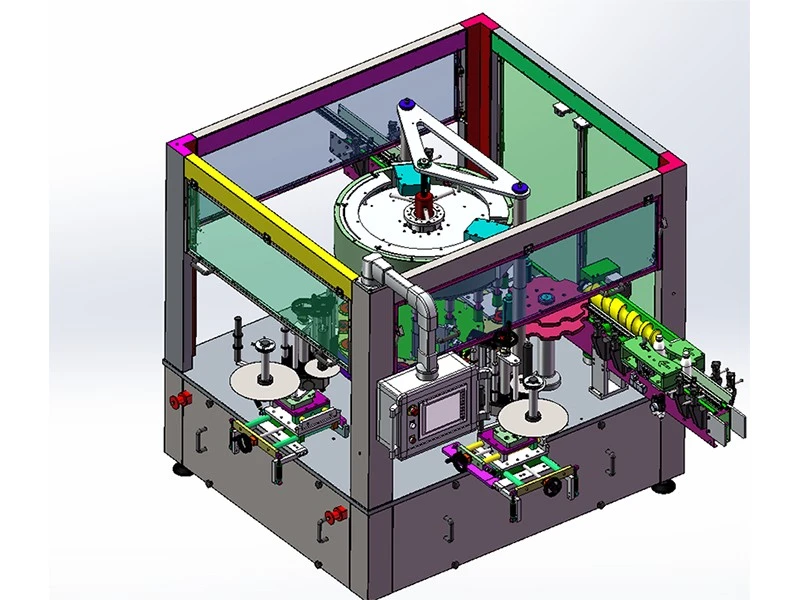

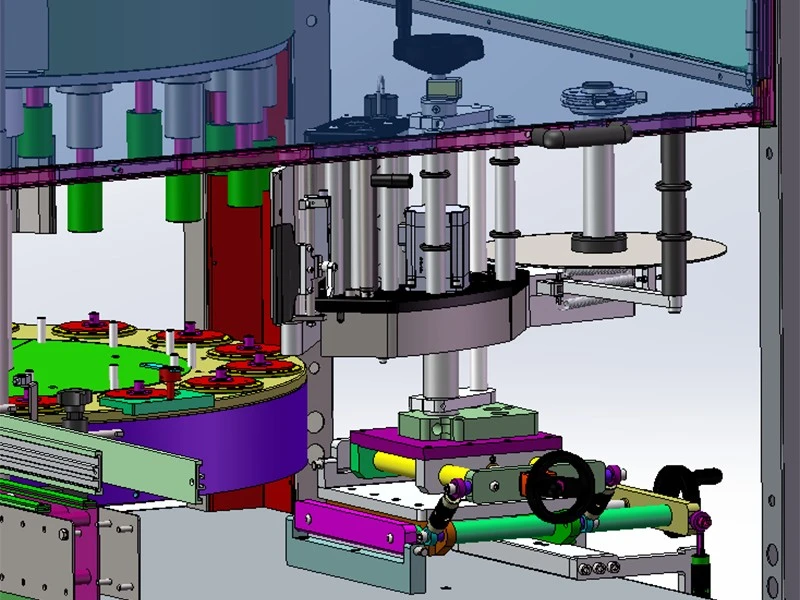

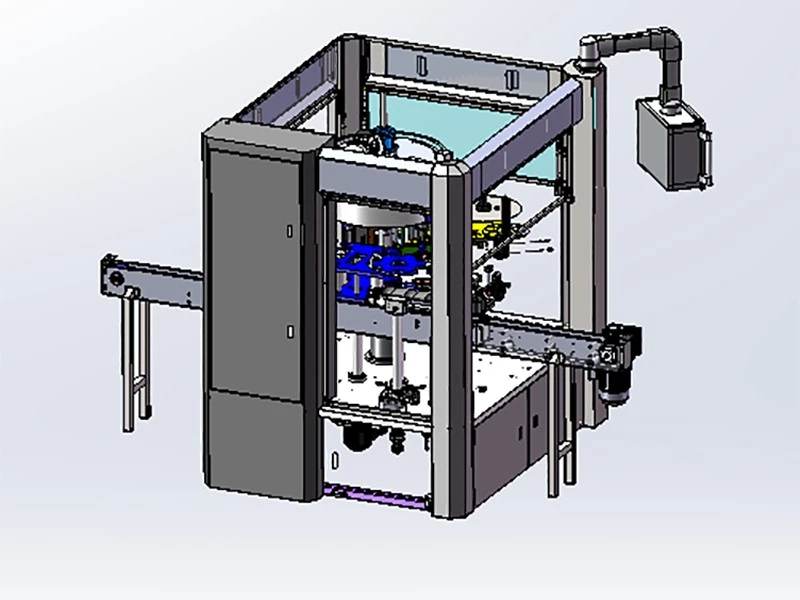

The Condiment Bottle Self Adhesive Labeling Machine uses a servo positioning system and rotary star wheel for accurate labeling. Bottles are separated and moved to each station in order. The servo bottle holders keep smooth bottles firmly in place and help prevent slipping and shifting.
The servo system controls the labeling head and keeps label feeding synchronized with bottle movement. Pressure rollers press the labels onto the bottle surface and remove air. The complete process is automatic and provides smooth and accurate labeling for food condiment bottles.

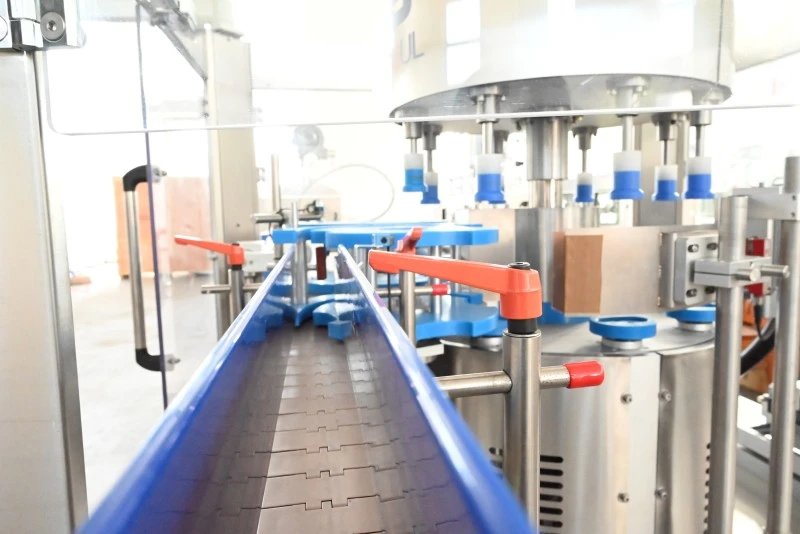

1.Automatic Feeding: Bottles enter the machine through the conveyor. The bottle separator keeps the bottles at an even distance and reduces jams.

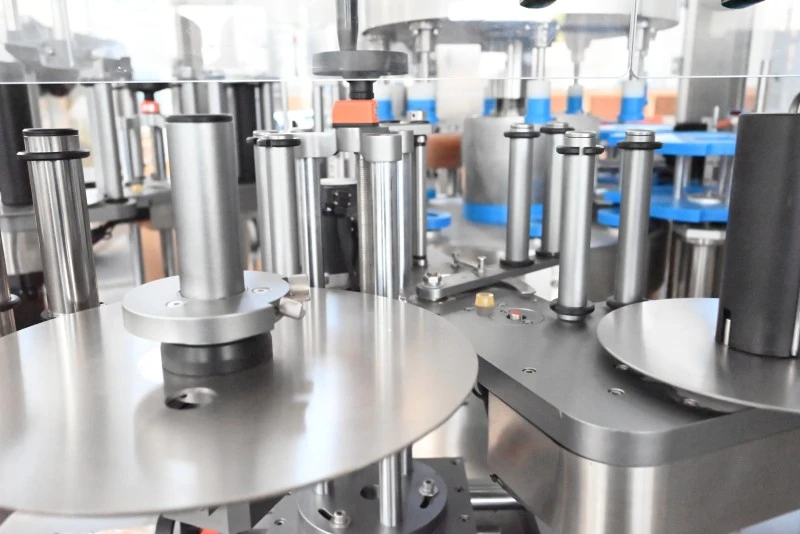

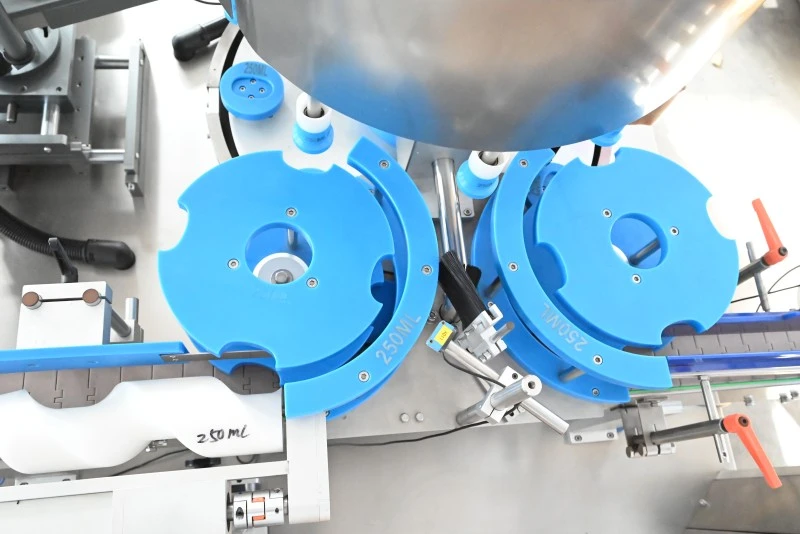

2.Servo Positioning: The star wheel positions each bottle. The servo system adjusts the bottle angle, while the flexible holder keeps the bottle stable.
3.Constant Tension Label Feeding: The system adjusts label tension according to the product settings and feeds labels smoothly.
4.Automatic Labeling: The machine applies single or double side labels according to production needs and keeps the labeling speed synchronized with the bottle.
5.Label Pressing: Elastic rollers press the label and remove air to help prevent bubbles, lifted edges and loose labels.
6.Automatic Discharge: Finished bottles leave the machine automatically and move to the next process, such as coding or packing.
Suitable for condiment factories, sauce manufacturers, food OEM factories, large scale condiment production lines and food packaging workshops.
Suitable for soy sauce, vinegar, oyster sauce, ketchup, chili sauce, bean paste, salad dressing and other glass or plastic condiment bottles.
1.Daily Cleaning: Remove oil, label waste and glue after operation. Wipe the 304 stainless steel body to keep the machine clean.
2.Servo System Check: Check the servo positioning motor and drive system daily. Add food grade lubricant weekly to keep the machine running smoothly.
3.Labeling System Care: Clean glue and dust from the labeling head, pressure rollers and rewinding system regularly to help prevent label shifting, broken labels and poor adhesion.
4.Electrical System Check: Clean the electrical control cabinet monthly and check the PLC system and wiring. Keep the electrical parts away from oil and moisture.
5.Wear Parts: Check conveyor belts, rollers, sensors and bottle holders regularly. Inspect and replace them every 6 to 12 months according to actual use.
| No. | Component Name | Brand |
| 1 | HMI | Schneider (France) |
| 2 | Servo Motor | Schneider (France) |
| 3 | Servo Drive | Schneider (France) |
| 4 | Main Motor | Schneider (France) |
| 5 | Conveyor Motor | Transky (Italy) |
| 6 | PLC | Schneider (France) |
| 7 | Frequency Inverter | Schneider (France) |
| 8 | Frequency Inverter | Schneider (France) |

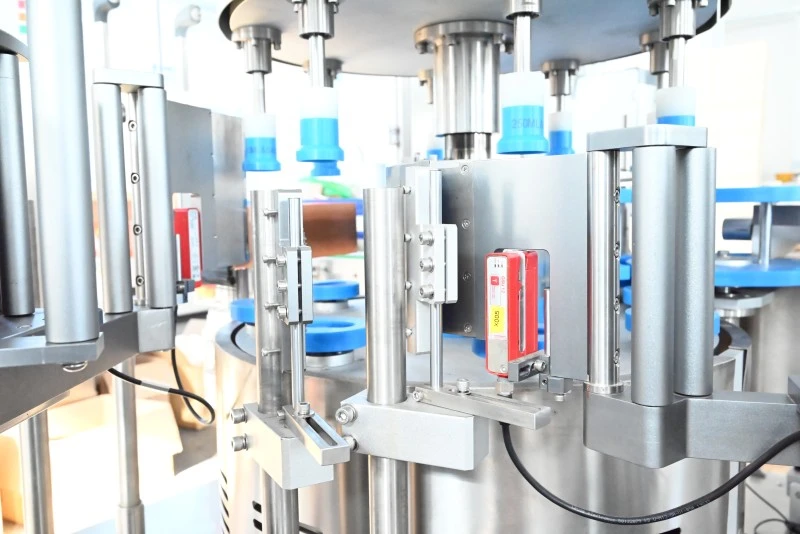

| 9 | Transparent Label Sensor | LEUZE (Germany) |
| 10 | Object Detection Sensor (Reflective Photoelectric Type) | SICK (Germany) |
| 11 | Detection Photoelectric Sensor (Reflective Type) | SICK (Germany) |
| 12 | Proximity Switch | SICK (Germany) |
| 13 | Switching Power Supply | MW (Taiwan, China) |
| 14 | Universal Change‑over Switch | MOELLER (Germany) |
| 15 | Emergency Stop Switch | Schneider (France) |
| 16 | Earth Leakage Circuit Breaker | Schneider (France) |
| 17 | Miniature Circuit Breaker | Schneider (France) |
| 18 | AC Contactor | Schneider (France) |
| 19 | Rotary Encoder | Nemicon (Japan) |
| 20 | Electrical Slip Ring | Senring |
| 21 | Pressure Gauge | Panasonic (Japan) |

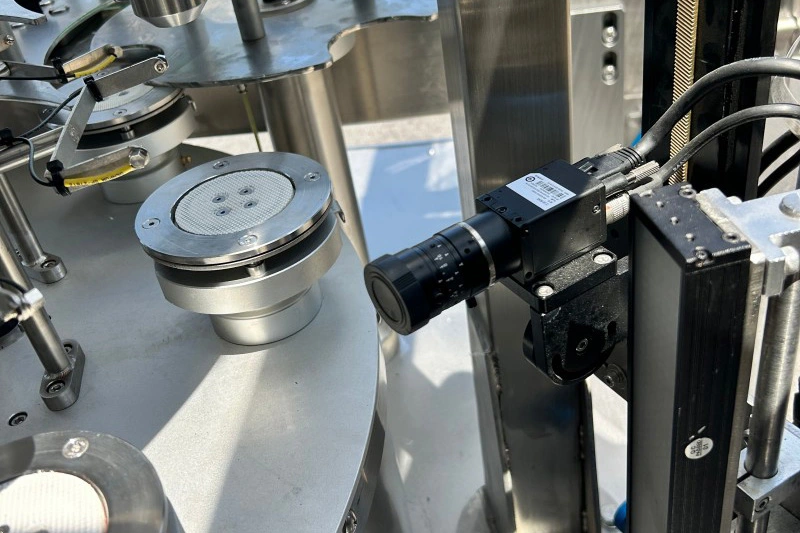

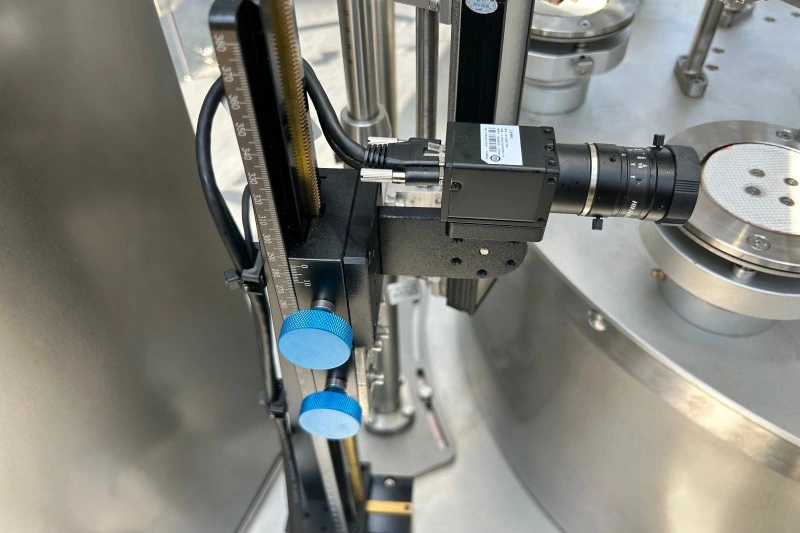

| 22 | Vision Camera | Hikvision |

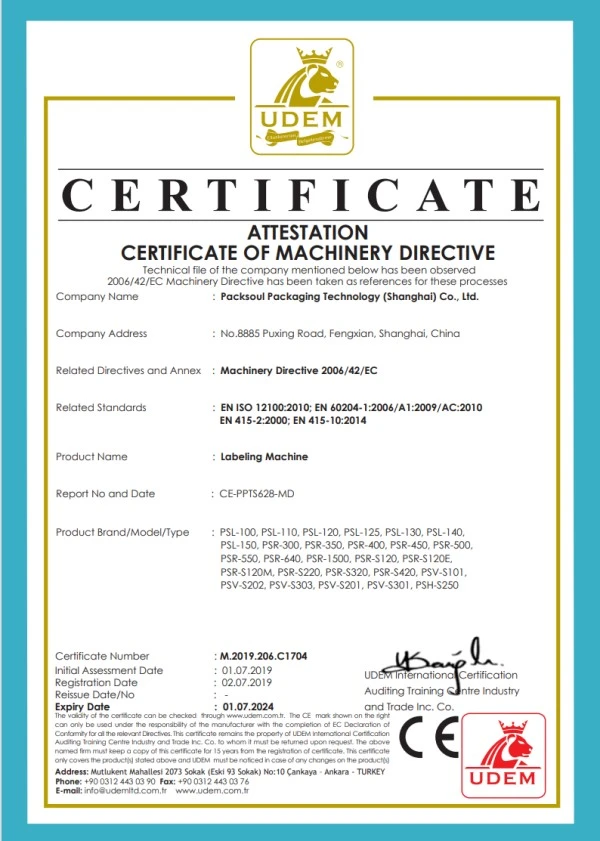

1. Certifications: The machine has CE, ISO 9001 and RoHS certifications and meets international food packaging standards.
2. Quality Control: We check raw materials, machine parts, assembly, machine operation and final accuracy. Each machine also passes a 72 hour continuous test before shipment.

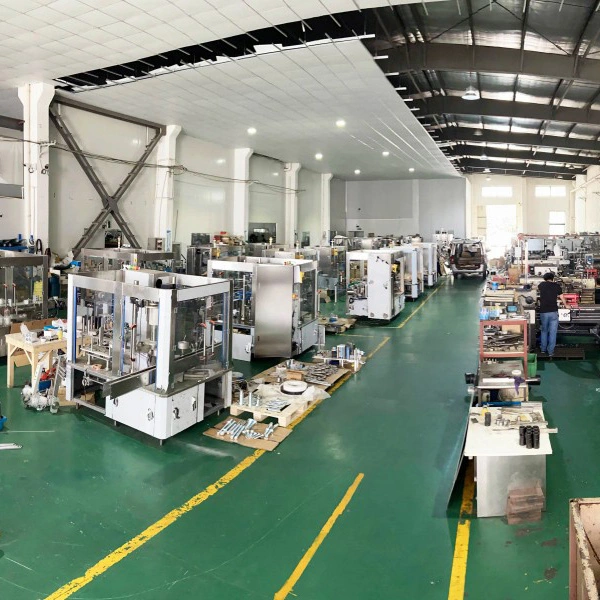

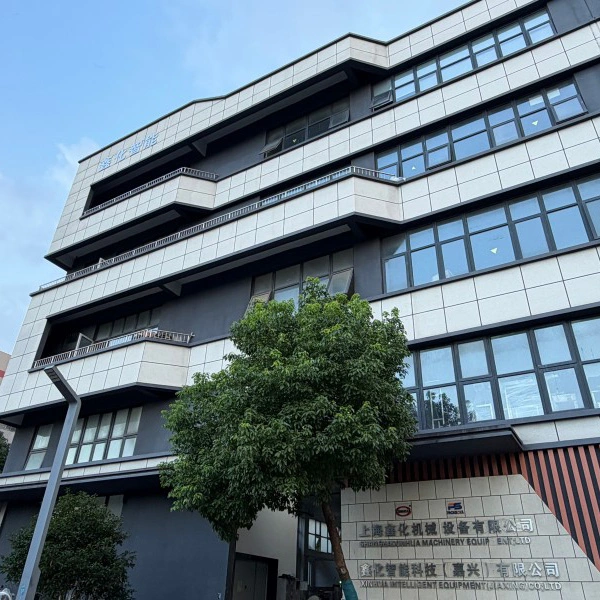

3. Factory Quality Control: We have our own production workshop, CNC machines, assembly team and quality control team. The whole production process is under our control.
4. Testing Records: Machine testing photos and videos can be provided to show the production and inspection process.
1.Accurate Servo Positioning: The servo positioning system helps prevent label shifting on smooth condiment bottles and provides more accurate labeling.
2.Food Grade Stainless Steel: The whole machine uses 304 stainless steel. It is oil resistant, easy to clean and suitable for food production areas.
3.Wide Bottle Compatibility: The machine can handle round, flat and slightly irregular condiment bottles with simple adjustments.
4.Stable Mass Production: The servo drive system supports stable high speed operation and helps reduce machine downtime.
Custom Solutions: We can design the labeling machine according to bottle size, label size, production capacity and workshop space. Complete filling and capping lines are also available.
1.Operation Support: We provide operation manuals, installation instructions and training videos. One to one online support is also available for easy setup and operation.
2.Free Sample Testing: Customers can send condiment bottles and labels to our factory. We provide free machine testing and labeling videos before order confirmation.
3.Overseas Service: Engineers can be sent to the customer's factory for installation, commissioning and operator training.
4.Lifetime Support: We provide maintenance advice, software upgrades and spare parts to keep the machine running smoothly for a long time.

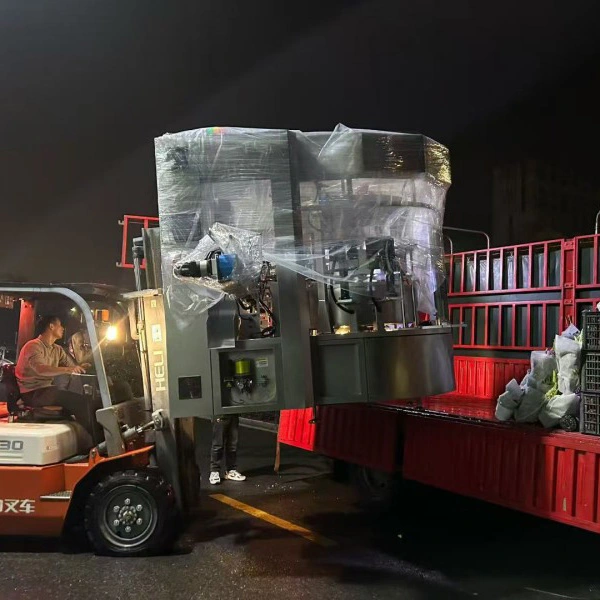

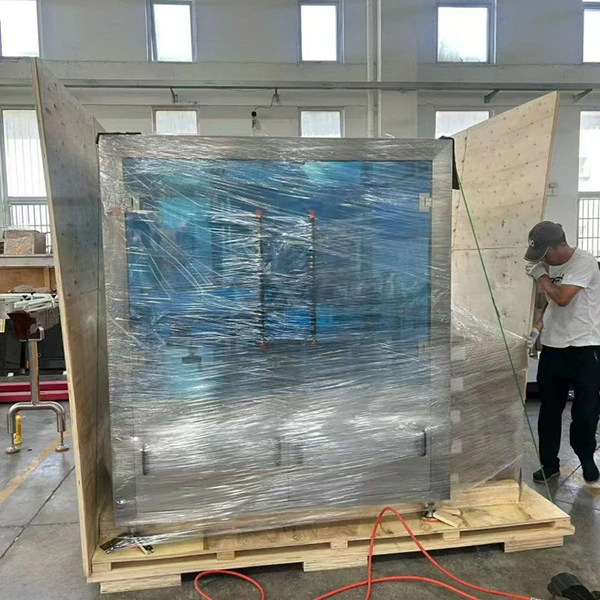

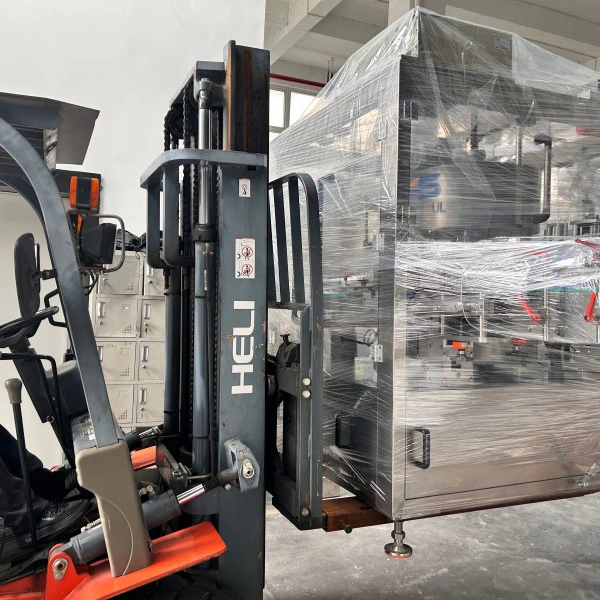

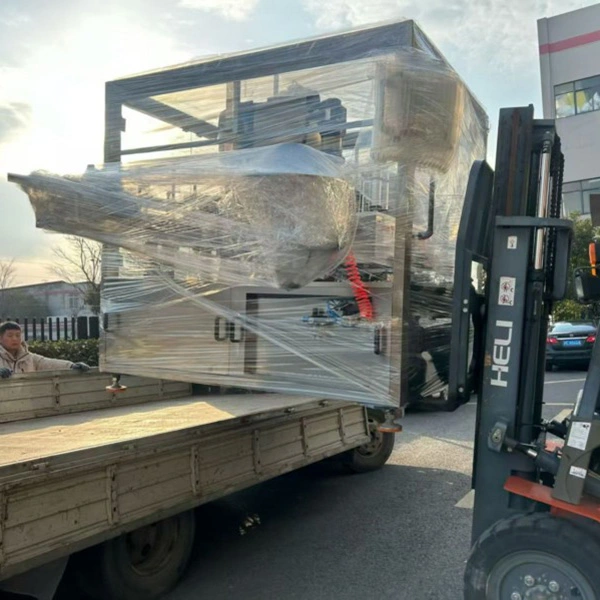

1.Export Packaging: The machine is packed in fumigation free wooden crates with stretch film and foam protection. The corners are reinforced for safe transportation.
2.Complete Documents: Each shipment includes the machine certificate, qualification documents, operation manual, packing list and spare parts.
3.Multiple Shipping Options: Sea, air, road and rail shipping are available. The wooden crate size meets standard container and customs requirements.

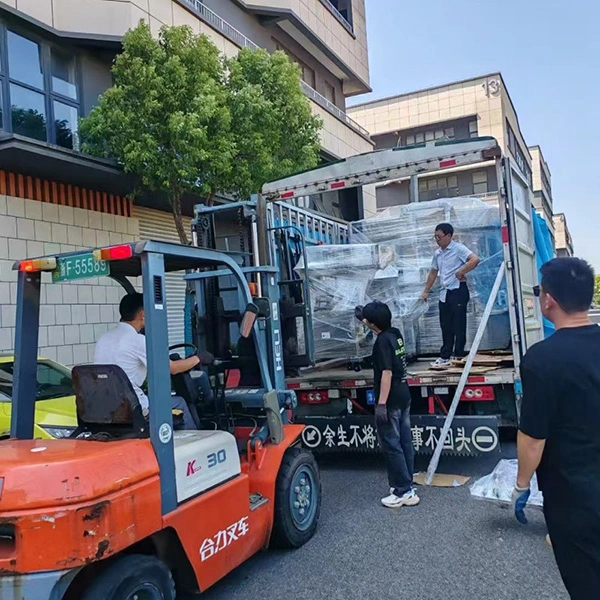

4.Shipment Tracking: We take photos and videos during packing and container loading and keep customers updated on the shipping status.
1. Global Export: Our machines are exported to more than 30 countries and regions, including Southeast Asia, the Middle East, Europe and South America. We have served more than 600 condiment manufacturers.
2. Real Production Cases: We have many labeling projects for soy sauce, sauce and oyster sauce bottles. Production videos and factory photos can be provided.
3. Customer Recognition: Our machines are valued for accurate labeling, stable operation and wide bottle compatibility. Many customers choose to work with us again.
4. Professional Team: Our R&D, production and after sales teams provide support from machine design to installation and maintenance.
A: No. The servo positioning system and flexible bottle holders keep the bottle stable and help prevent slipping and label shifting during operation.
A: Yes. The machine uses 304 stainless steel and a protected electrical system. It is easy to clean and suitable for wet and oily food production areas.
A: Yes. The machine can work with round, flat and slightly irregular condiment bottles. Simple adjustments are needed for different bottle types.
A: The rotary star wheel keeps the bottle stable, while the bottle and label move at the same speed. The servo system keeps label tension stable, and the pressure roller removes air during labeling.
A: For an overseas standalone machine, installation usually takes 1 day and commissioning takes 6 to 9 days. The actual time depends on the site and production line.
A: One experienced engineer is usually enough for a standard standalone machine. For a complete customized production line, more engineers can be arranged according to the project.
A: Yes. We can customize the machine according to your bottle size, label size, workshop space and production capacity. Please provide bottle samples, sizes and production requirements for our engineers to prepare a suitable solution.
