We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

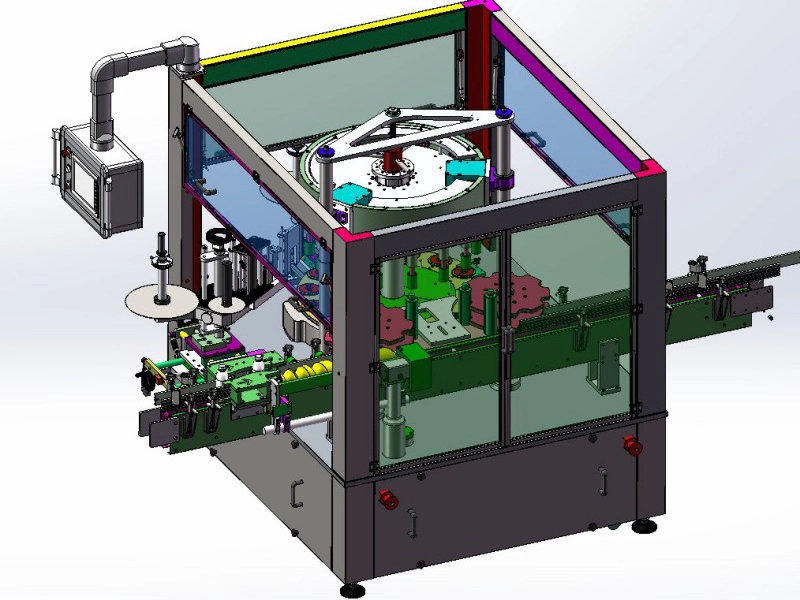

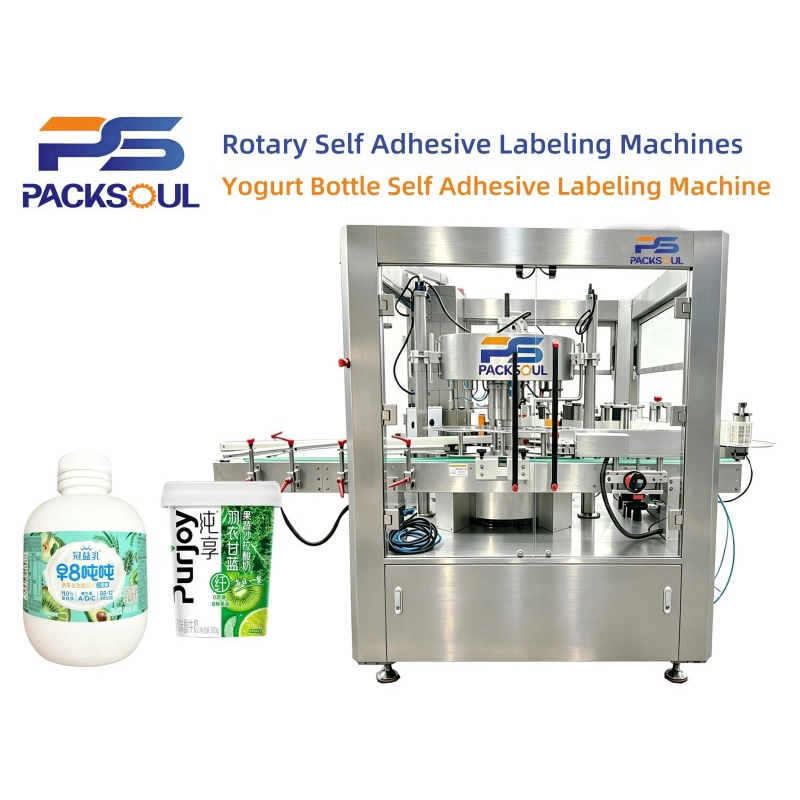

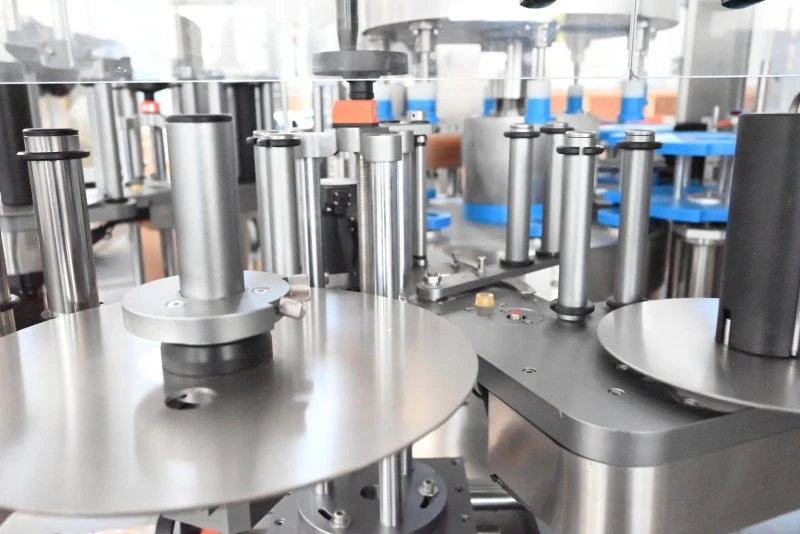

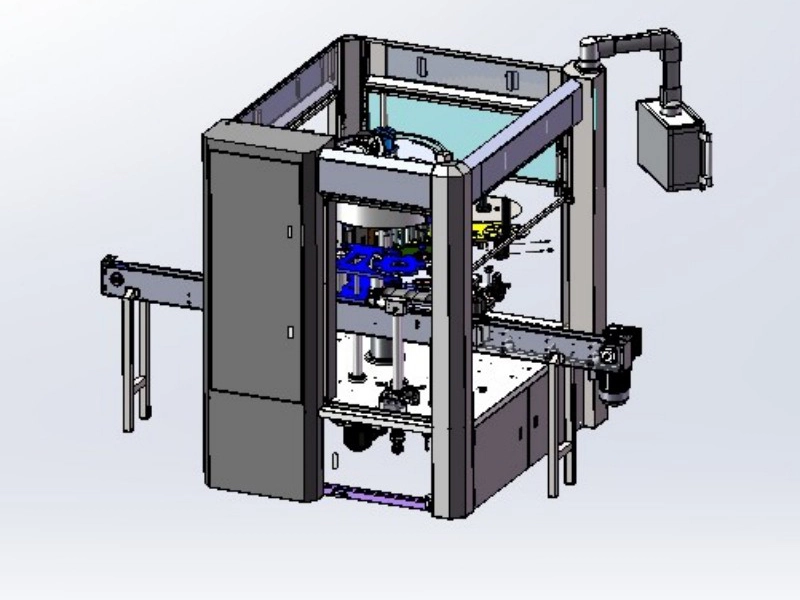

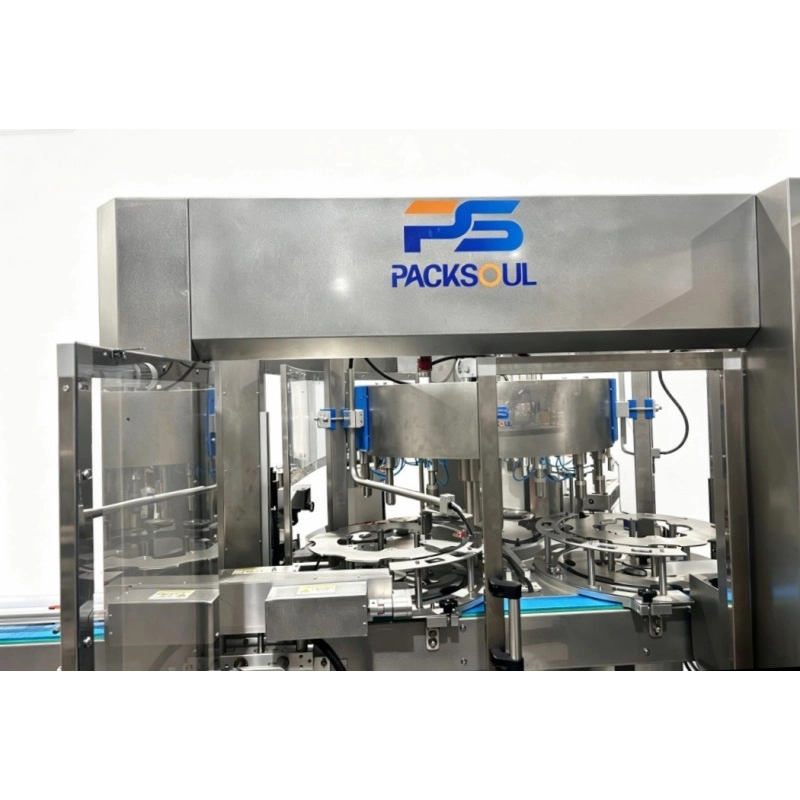

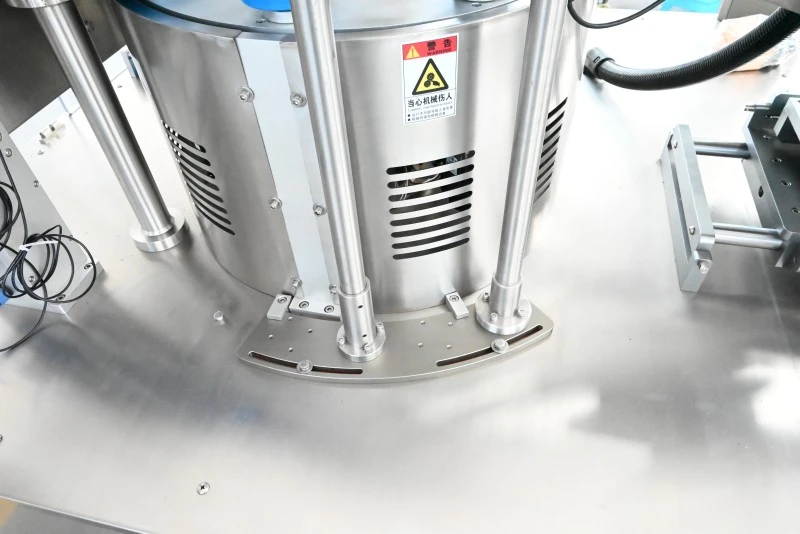

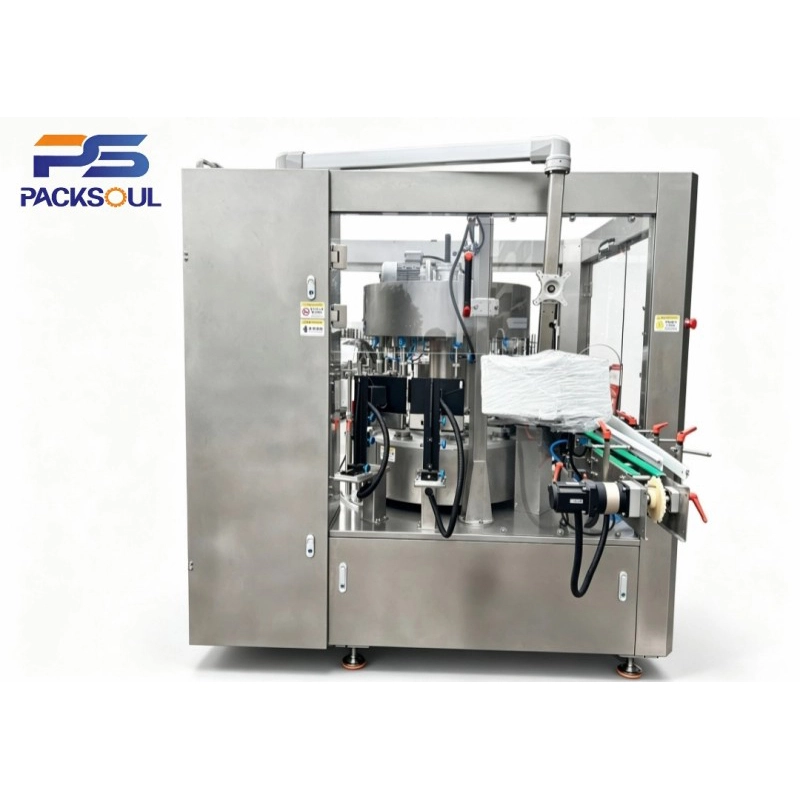

The PackSoul Yogurt Bottle Self Adhesive Labeling Machine is a fully automatic high speed rotary labeling machine designed for flat, square, large capacity and irregular yogurt bottles. Its special multi point bottle positioning system keeps bottles stable during high speed operation and helps prevent label lifting, misalignment, bubbles and wrinkles. It automatically completes bottle feeding, positioning, labeling, pressing and discharge. The machine supports single and double side labeling and can work independently or connect with a complete dairy filling line.

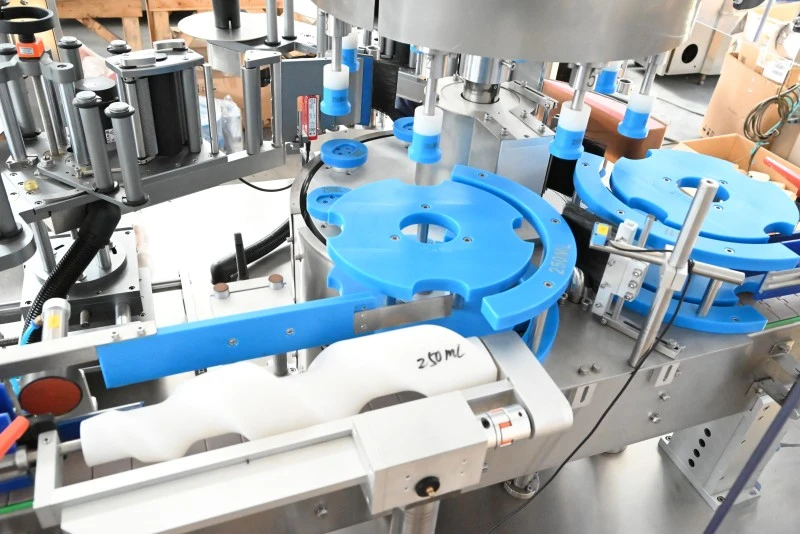

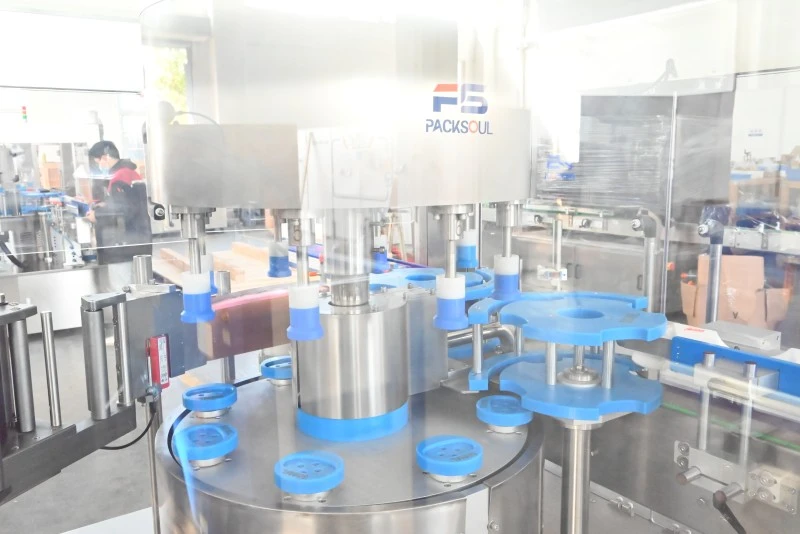

Multiple clamps hold the yogurt bottle firmly and keep it stable during high speed operation. It helps prevent label lifting and misalignment on square, flat and irregular bottles.
The machine is made of food grade 304 stainless steel. It is resistant to corrosion and moisture and is suitable for dairy production areas.
The servo system matches the rotary speed and controls label feeding smoothly. It helps prevent bubbles and wrinkles and provides accurate labeling.
The labeling head, bottle holders and bottle separation parts can be changed quickly. This makes bottle changeover, cleaning and maintenance easier.
The machine gives sound and light alarms for missing labels, bottle jams, overload and missing bottles. This helps reduce downtime and makes troubleshooting easier.
The machine can connect with filling machines, capping machines, coding machines and packing machines. It is suitable for both new dairy lines and existing line upgrades.
| Model | PSR‑B080 |
| Labeling Speed | 8000 BPH (bottles per hour) |
| Container Size | 30–100 mm (Based on Bottle Bottom Diameter; Customization Required for Larger Sizes) |
| Container Height | 100 to 400 mm |
| Label Max Height | 200 mm |
| Label Max Width | 300 mm |
| Label Roll Dimension | Inner Diameter Φ76 mm; Maximum Outer Diameter Φ400 mm |
| Overall Machine Dimension | 3000L × 2500W × 2000H mm |
| Working Height | 1000 ± 50 mm (Customizable) |
| Power Supply | 380 V / 50 Hz / 14 kW |

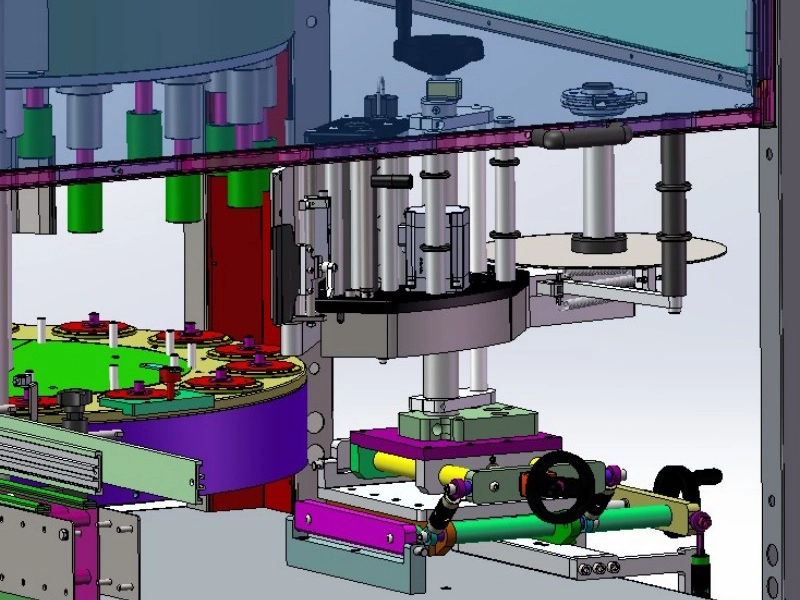

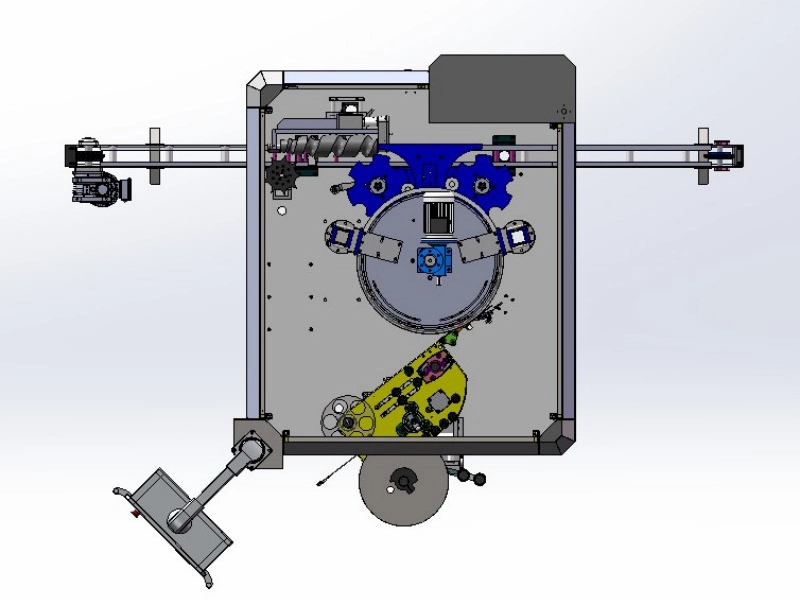

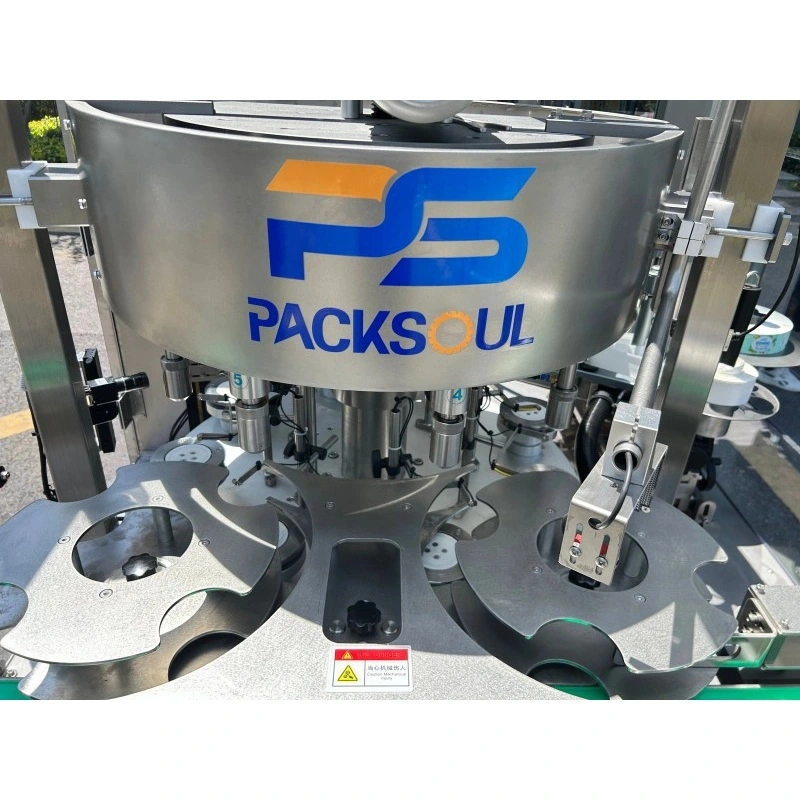

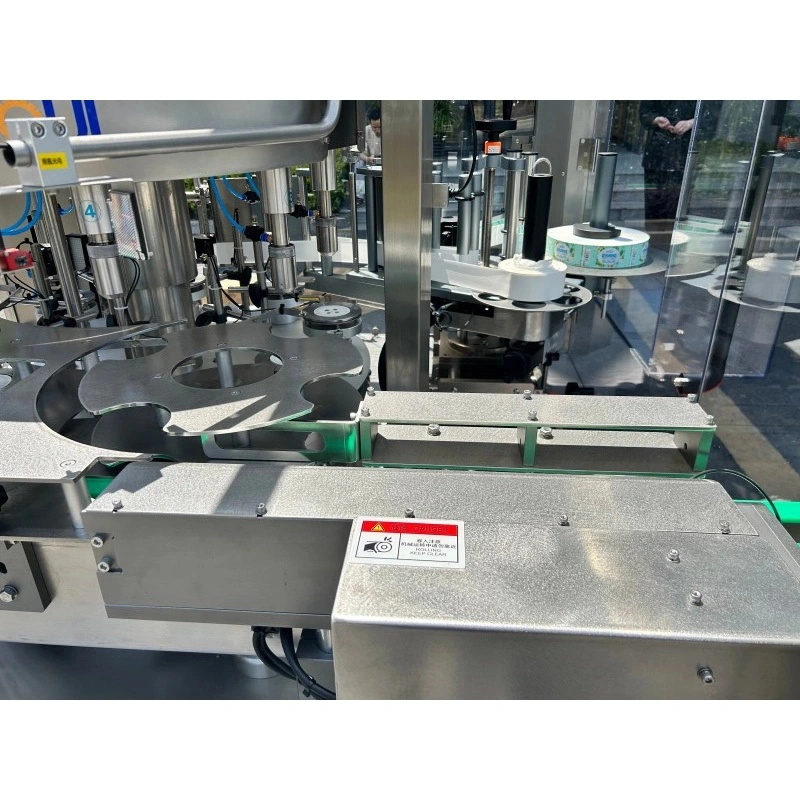

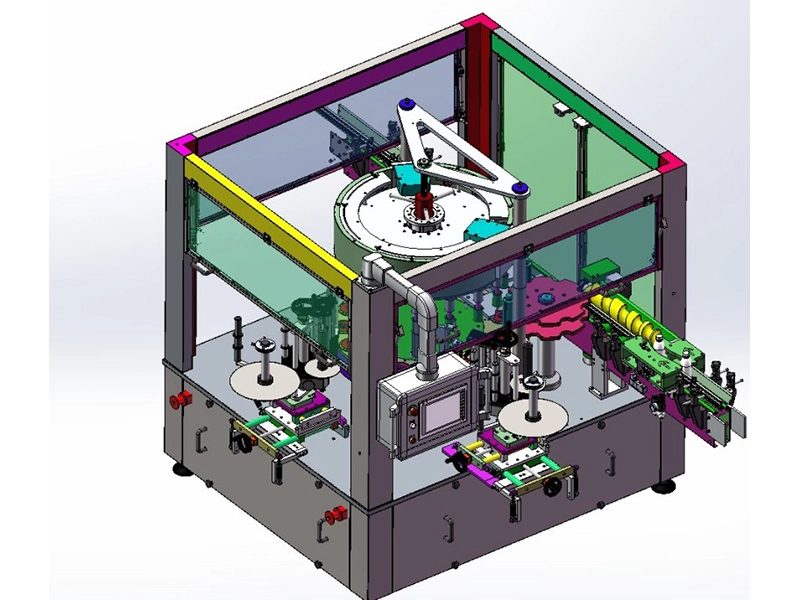

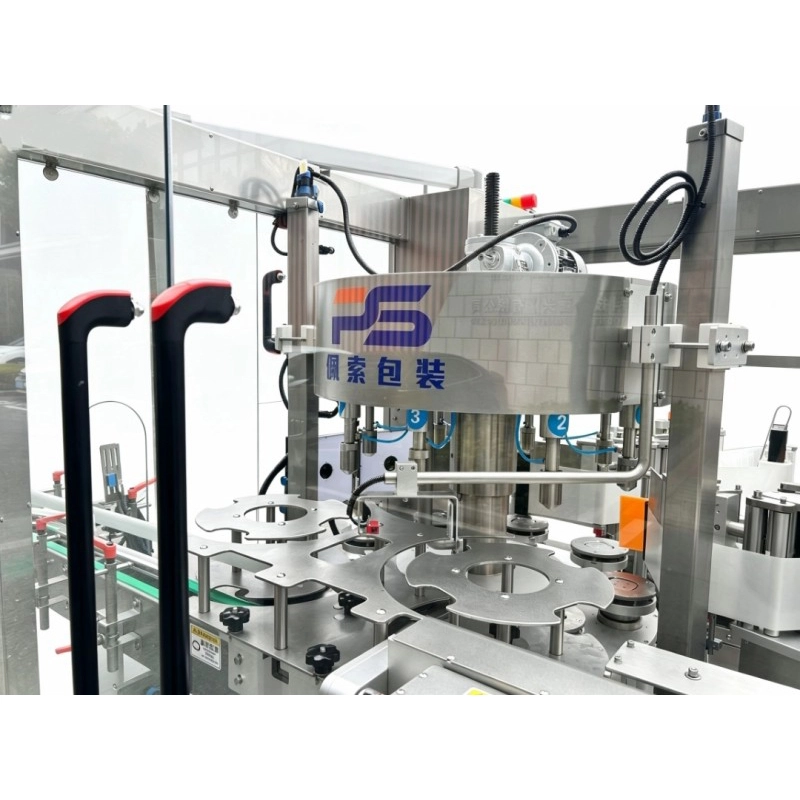

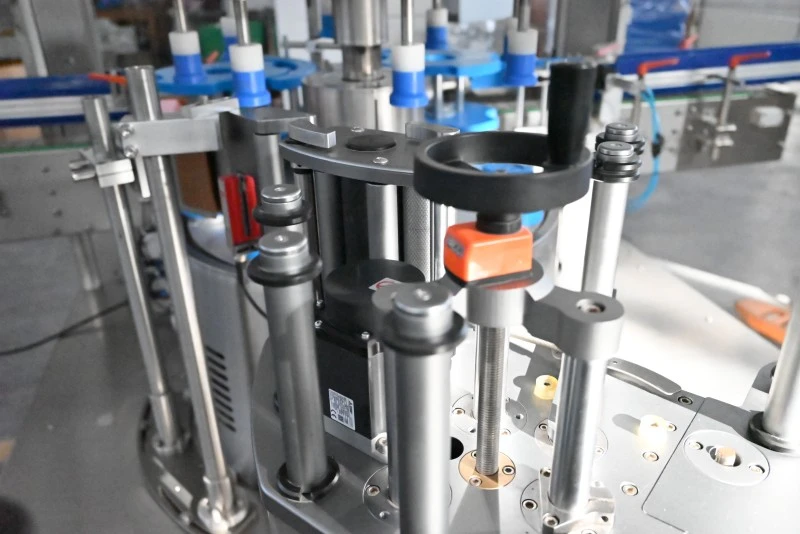

The rotary table moves the bottles through each station, while the special positioning system keeps the yogurt bottles firmly in place. Multiple servo systems track the bottle speed and keep the label feeding speed synchronized. The servo labeling head applies the label smoothly to the flat and curved areas of the bottle, and pressure rollers help secure the label.
The machine monitors each station in real time. It automatically stops and gives an alarm for bottle jams, missing labels or other problems, ensuring smooth and continuous production.
Dairy and Beverage Products：Suitable for large flat yogurt bottles, square fermented milk bottles, probiotic drink bottles, kids yogurt bottles, fresh milk bottles and other dairy containers.
Production Application：Suitable for automated dairy factories, yogurt OEM production lines, low temperature dairy plants, chain dairy production lines and dairy packaging facilities for export.
Daily Maintenance: Wipe the stainless steel body with a soft cloth and clean glue from the bottle holders and pressure rollers. Do not spray the electrical box with high pressure water.
Weekly Maintenance: Check the servo motor and drive chain. Add food grade lubricant to moving parts and release the label roller tension to prevent label sticking.
Monthly Maintenance: Clean the bottle holders and sensors. Check labeling accuracy and remove moisture from the electrical box in humid conditions.
Long Term Storage: Cover the machine, release all roller tension, remove the labels and store the machine in a dry and ventilated place.

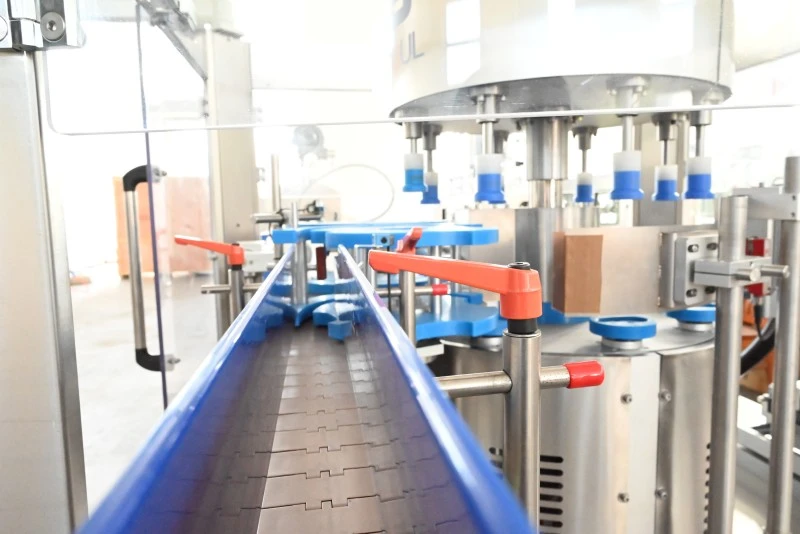

1.Bottle Feeding: Yogurt bottles enter the rotary stations through the conveyor.

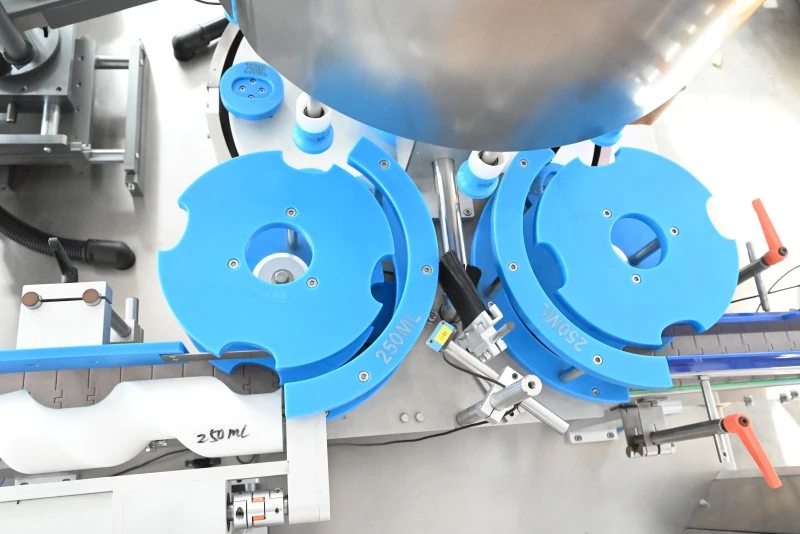

2.Bottle Positioning: Multiple clamps hold the flat surface of each bottle and keep it in the correct position.
3.Servo Label Feeding: The servo system follows the rotary speed and removes the label backing paper smoothly.
4.Edge Labeling: The label covers the flat and edge areas of the bottle. Pressure rollers smooth the label and help prevent edge lifting.
5.Product Discharge: Labeled bottles leave the rotary stations and move to the next process.
6.Automatic Monitoring: The machine checks the operation in real time. Bottle jams, missing labels and material shortages trigger an alarm and automatic stop.
| No. | Component Name | Brand |
| 1 | HMI | Schneider (France) |
| 2 | Servo Motor | Schneider (France) |
| 3 | Servo Drive | Schneider (France) |
| 4 | Main Motor | Schneider (France) |
| 5 | Conveyor Motor | Transky (Italy) |
| 6 | PLC | Schneider (France) |
| 7 | Frequency Inverter | Schneider (France) |
| 8 | Frequency Inverter | Schneider (France) |
| 9 | Transparent Label Sensor | LEUZE (Germany) |
| 10 | Object Detection Sensor (Reflective Photoelectric Type) | SICK (Germany) |
| 11 | Detection Photoelectric Sensor (Reflective Type) | SICK (Germany) |
| 12 | Proximity Switch | SICK (Germany) |
| 13 | Switching Power Supply | MW (Taiwan, China) |
| 14 | Universal Change‑over Switch | MOELLER (Germany) |
| 15 | Emergency Stop Switch | Schneider (France) |
| 16 | Earth Leakage Circuit Breaker | Schneider (France) |
| 17 | Miniature Circuit Breaker | Schneider (France) |
| 18 | AC Contactor | Schneider (France) |
| 19 | Rotary Encoder | Nemicon (Japan) |
| 20 | Electrical Slip Ring | Senring |
| 21 | Pressure Gauge | Panasonic (Japan) |
| 22 | Vision Camera | Hikvision |
Yogurt Bottle Self Adhesive Labeling Machine goes through a complete quality inspection before delivery. The machine is tested for 2 hours without load and with real yogurt bottles. Labeling accuracy, edge labeling and servo operation are fully checked. CE certification documents are available. Each machine is tested under real production conditions before packing and shipment.
The machine uses a special multi point positioning system for yogurt bottles. It firmly holds the flat surface and helps prevent label lifting and misalignment on edges during high speed production.
The clamps and labeling parts can be removed quickly. This makes bottle changeover, cleaning and maintenance easier and reduces downtime.
The machine uses standard industrial interfaces and can connect with filling, coding and other production equipment. It works with both new and existing dairy lines.
The machine has been tested on real dairy production lines. Custom bottle holders and labeling solutions are available for special bottle shapes and label sizes.
The customer prepares the working area and power supply. We provide remote installation guidance and support line connection when needed.
We provide one to one online commissioning and training. Operation manuals and videos are also provided for bottle change, label change and basic settings.
The complete machine has a 1 year warranty, excluding consumable parts such as sensors and rollers. Damaged parts caused by non human factors are provided free during the warranty period.
7 days 24 hours online technical support is available. Local service partners may be arranged in some overseas regions.

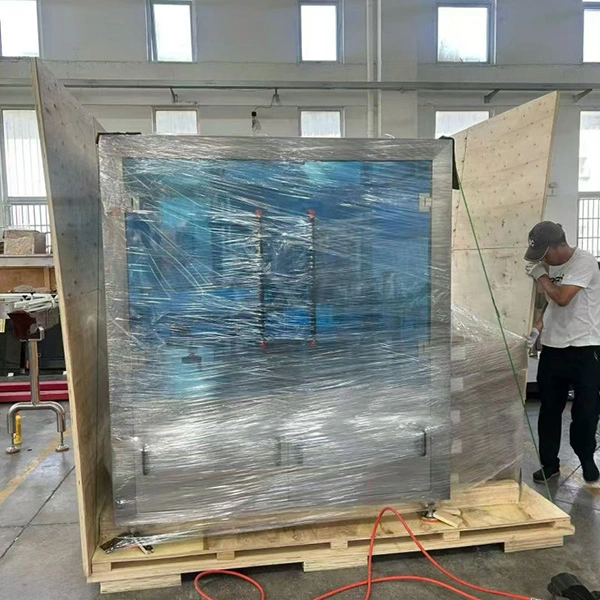

The Yogurt Bottle Self Adhesive Labeling Machine is packed in export wooden crates with foam protection for electrical and precision parts. Each machine is fully tested before shipment.
The machine can be packed in sections to reduce shipping size and fit 20GP and 40GP containers. Custom solutions are available according to bottle size, label size and production capacity. Complete export documents can be provided.
PackSoul has many years of experience in dairy packaging and labeling equipment. We work with customers in different countries and have completed yogurt labeling projects in Southeast Asia, South America, the Middle East and Australia.

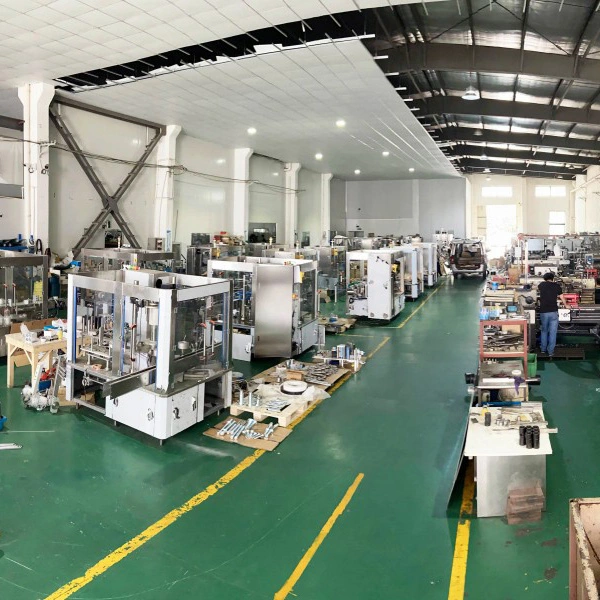

We can provide real machine photos, production line videos and overseas project references. Factory visits can also be arranged.
A: Standard round bottle machines mainly follow the curved bottle surface. This machine uses special positioning for flat and edged yogurt bottles to reduce label lifting and misalignment.
A: Yes. Custom bottle holders can be made for irregular, flat and multi edge yogurt bottles.
A: Yes. It can connect with filling, capping and coding machines for automatic production.
A: Yes. Power supplies such as AC 110 V and 415 V can be customized for different countries.
A: Yes. A transparent label sensor can be added to detect transparent PET and silver labels.
A: Yes. The servo system allows easy speed adjustment for testing, normal production and high volume production.
