We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

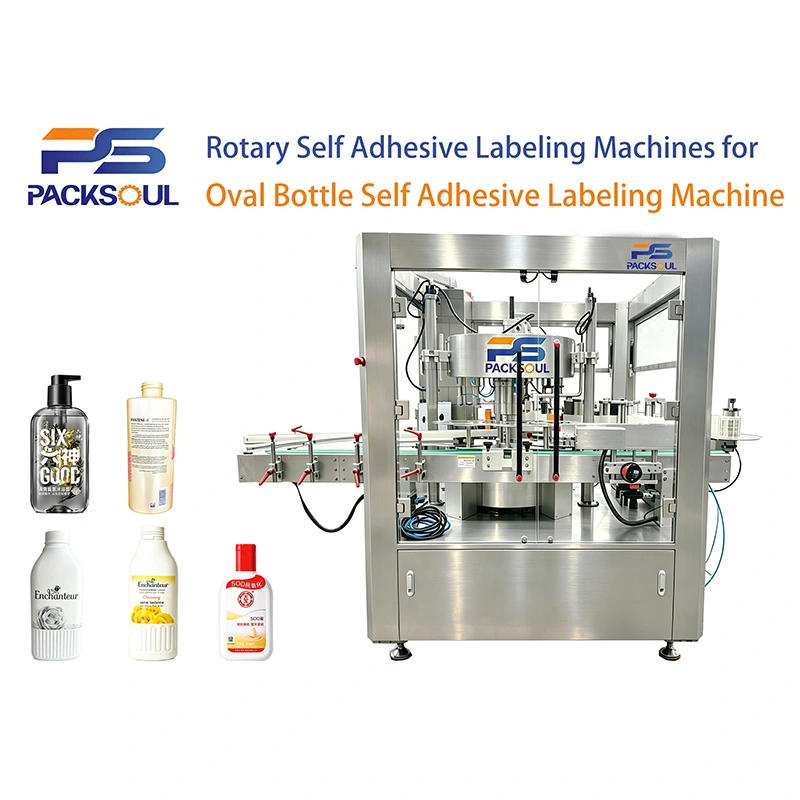

Oval and flat bottles can be processed with the Oval Bottle Self Adhesive Labeling Machine through controlled feeding and flexible bottle holding. The holding mechanism adapts to different bottle contours to limit movement and maintain label position during application. Single-side and double-side labeling are available, and PackSoul supplies the equipment for manufacturers with continuous bottle-labeling requirements.
Dedicated holding and tracking system keeps oval and flat bottles stable during labeling.
Durable, corrosion‑resistant and suitable for food and personal care production environments.
Stable label feeding and tension control for smooth and accurate labeling.
Modular parts are easy to remove, clean and adjust for different bottle sizes.
Automatic alarms for missing labels, bottle jams and motor overloads help reduce downtime.
Standard interfaces allow connection with filling, capping, coding and packing equipment.
| Model | PSR‑B080 |
| Labeling Speed | 8000 BPH (Bottles per Hour) |
| Container Diameter | 30–100 mm (Based on Bottle Bottom Diameter; Customization Required for Larger Sizes) |
| Container Height | 100–400 mm |
| Maximum Label Height | 200 mm |
| Maximum Label Width | 300 mm |
| Label Roll Size | Inner Diameter: Φ76 mm; Outer Diameter: Φ400 mm |
| Overall Machine Dimensions | 3000 L × 2500 W × 2000 H mm |
| Working Table Height | 1000 ± 50 mm (Customizable) |

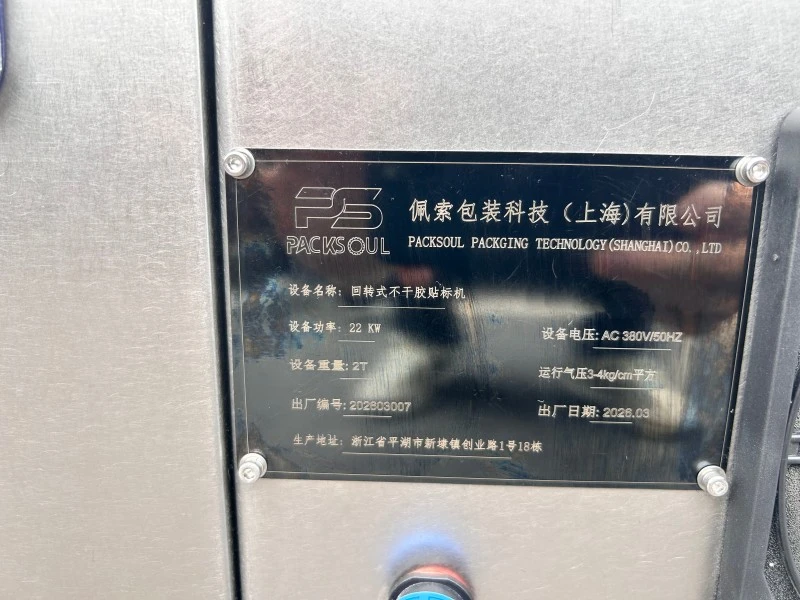

| Power Supply | 380 V / 50 Hz / 14 kW |

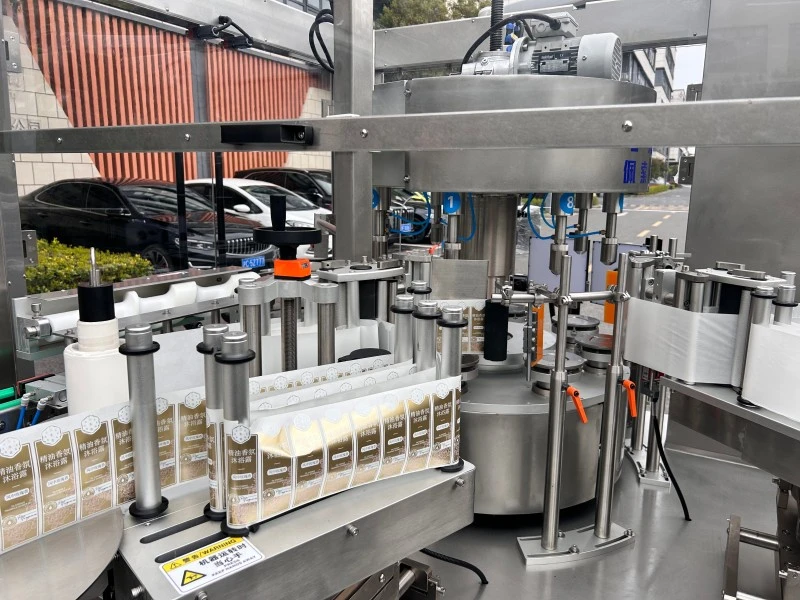

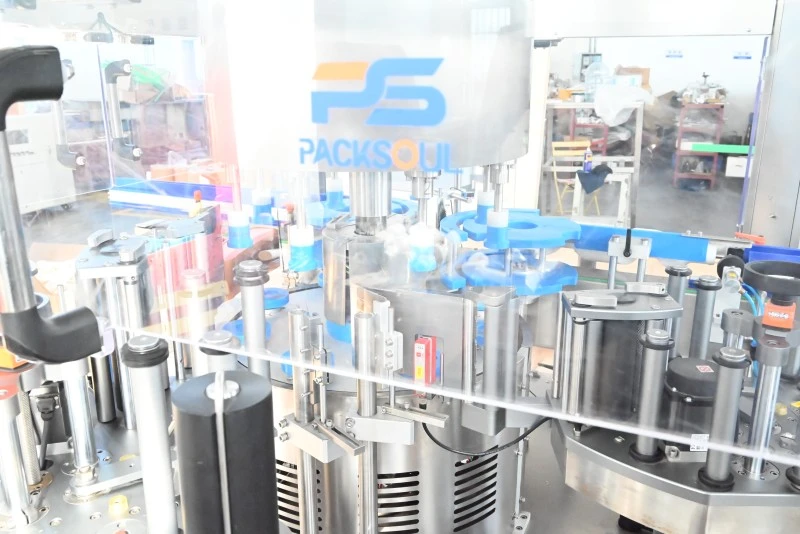

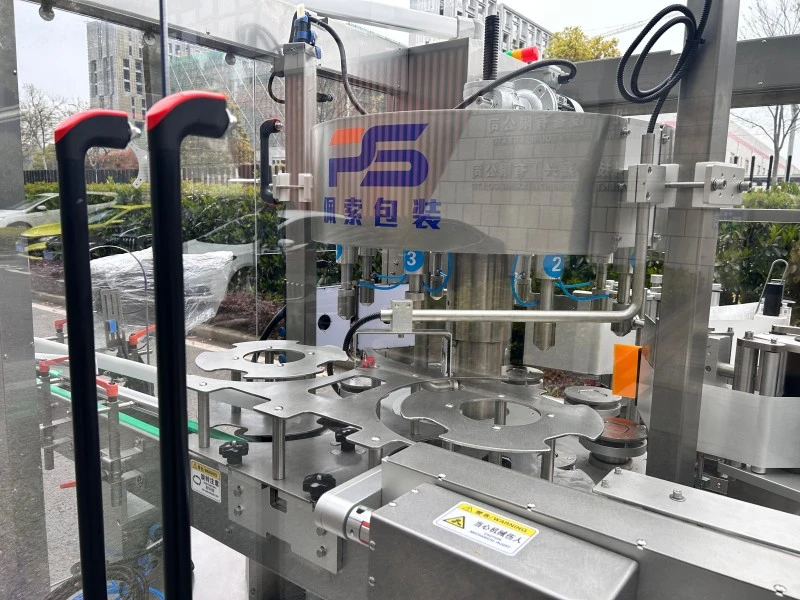

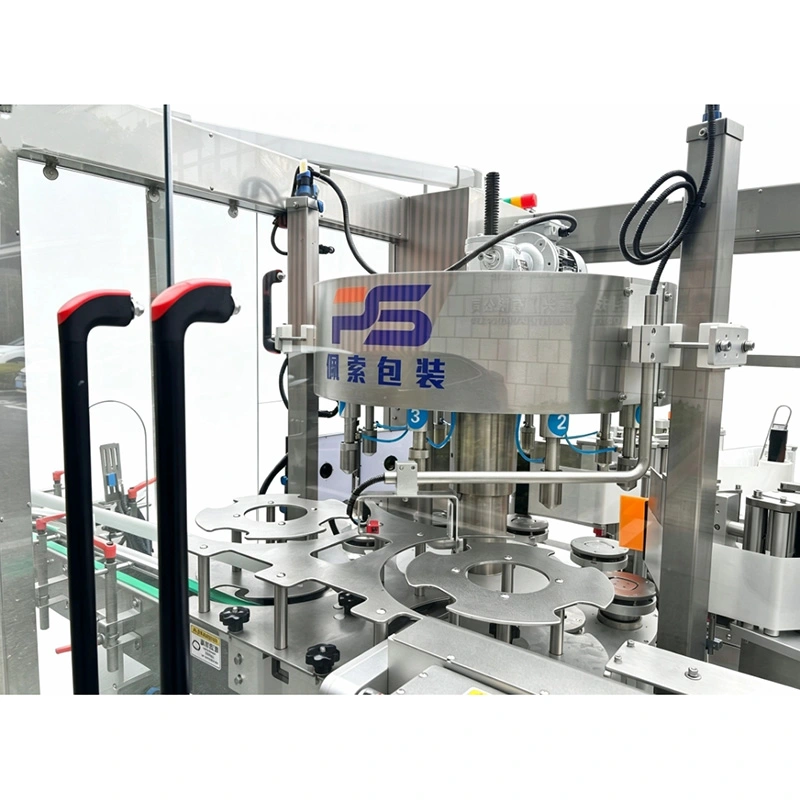

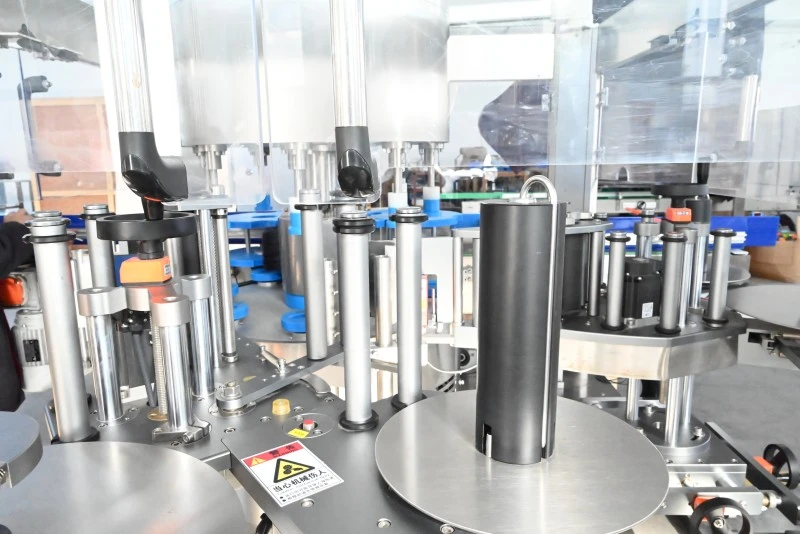

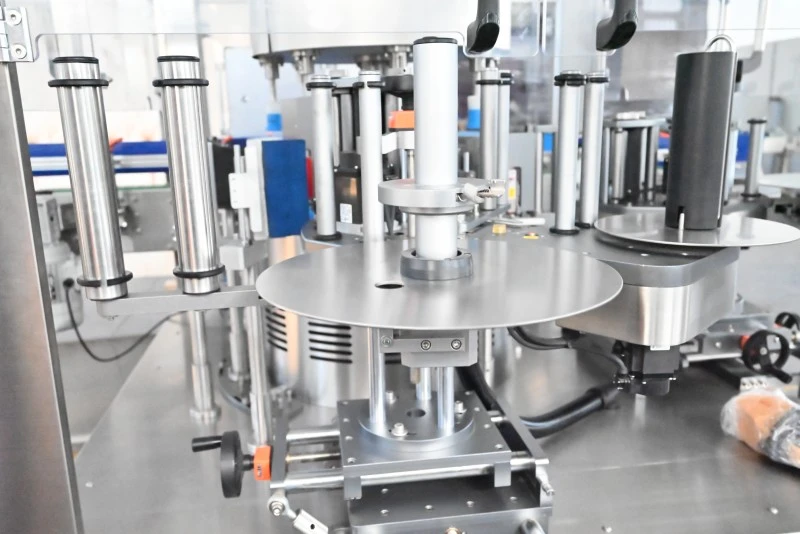

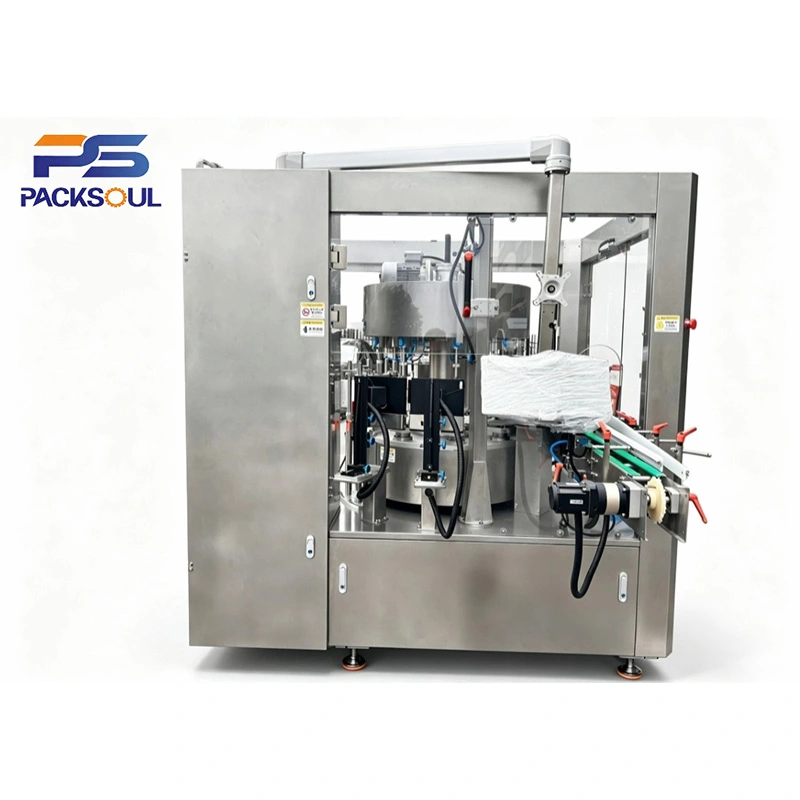

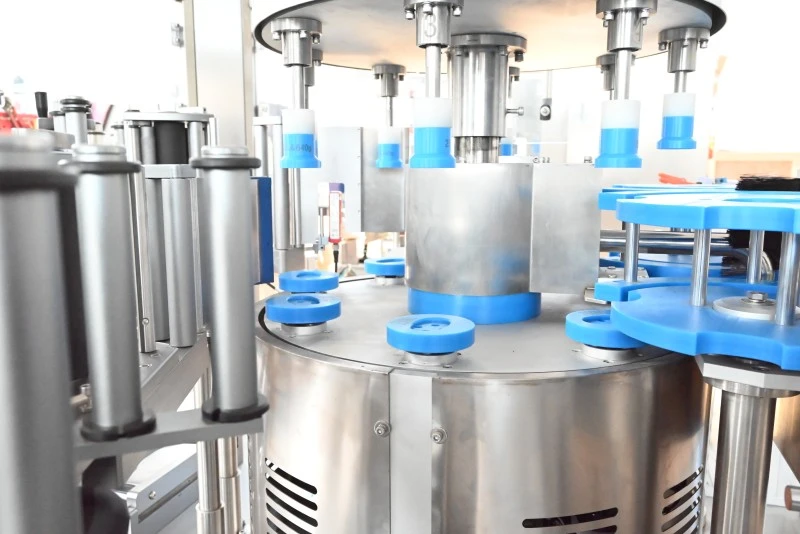

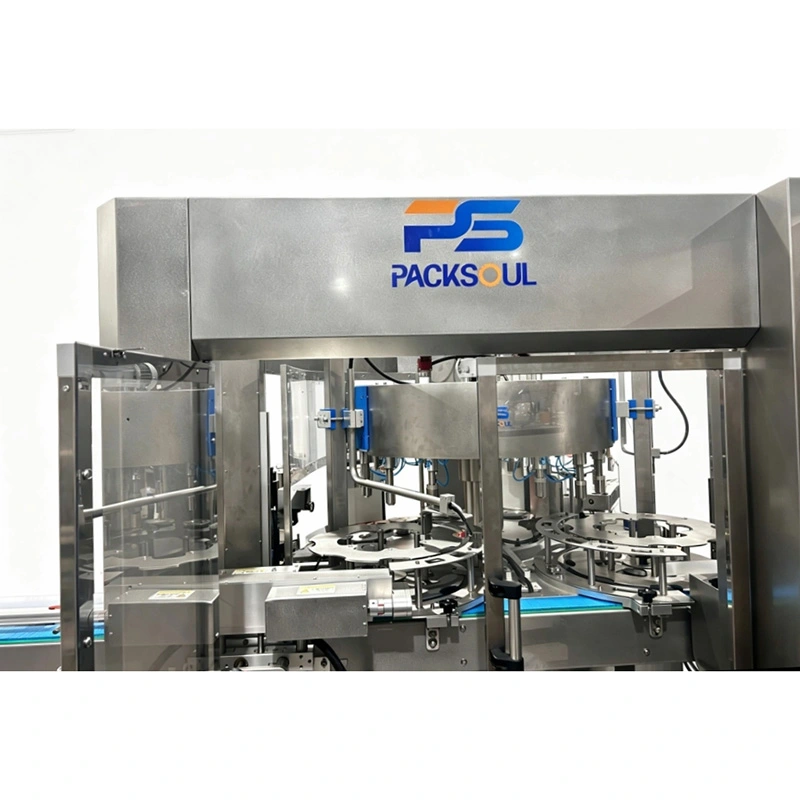

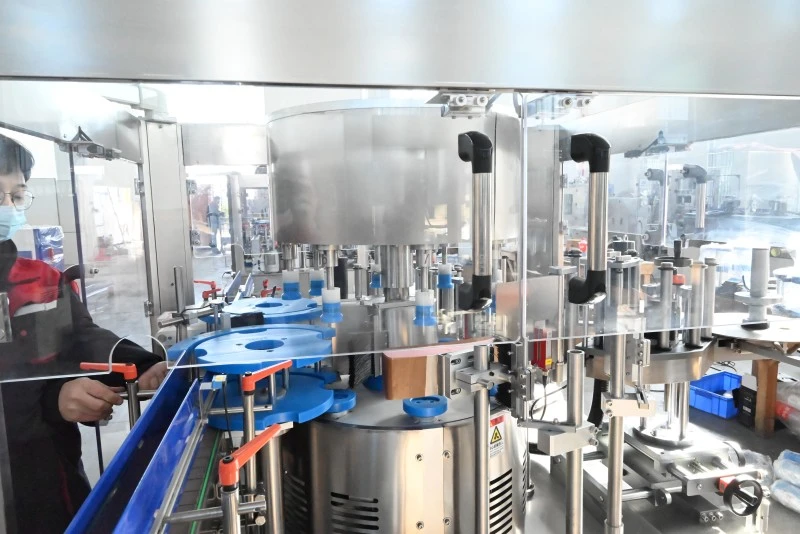

The PACKSOUL Oval Bottle Self Adhesive Labeling Machine uses a rotary conveying system with a flexible holding and tracking mechanism to keep the bottle securely positioned. The servo system synchronizes with the bottle speed, ensuring smooth and accurate labeling.
The labels are fed and peeled by the servo‑driven labeling unit, then smoothly applied to the bottle surface for single‑side or double‑side labeling. The system monitors bottle feeding and discharge in real time. In case of an abnormal condition, the machine automatically alarms and stops to ensure stable operation.
Personal Care Products: Oval shampoo bottles, oval body wash bottles, flat disinfectant bottles, oval hand wash containers and special‑shaped cosmetic bottles.
Food and Cooking Oil Products: Oval olive oil bottles, oval vinegar bottles, flat sauce bottles and food‑grade oval containers.
Applications: Automated personal care production lines, food processing plants and OEM mass production lines.
Daily: After shutdown, wipe the Rotary Self-Adhesive Labeling Machine with a soft cloth and remove adhesive residue from the holding mechanism and labeling head. Do not spray water directly onto the electrical cabinet to prevent water damage and short circuits.
Weekly: Check the servo motors and conveyor chain tension, lubricate moving parts, and release the tension of the label feeding roller to prevent adhesive from sticking to the roller shaft.
Monthly: Check and clean the holding fixtures, sensors and photoelectric sensors, and calibrate the labeling position. In humid workshops, regularly dehumidify the electrical cabinet.
Long-Term Shutdown: Cover the machine to protect it from dust, release all tension, remove the label materials, and store them in a dry and well-ventilated environment.

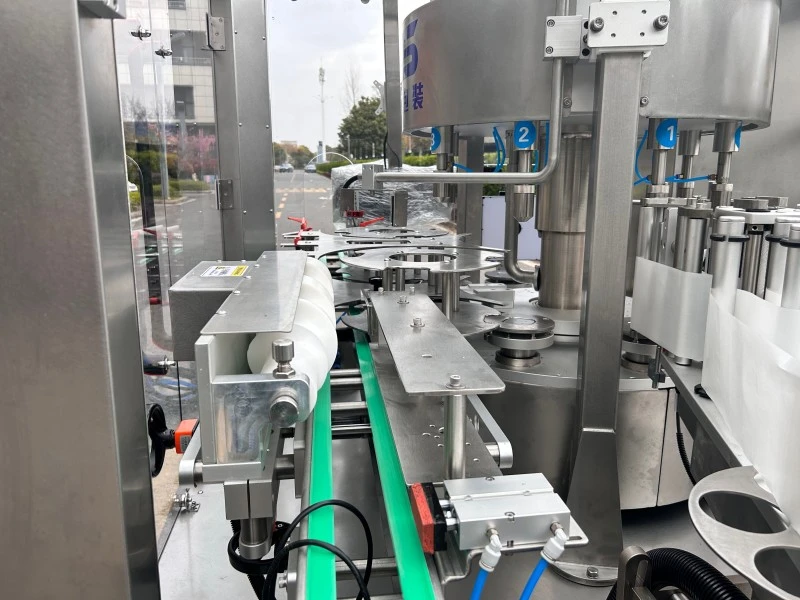

Oval bottles are fed into the rotary labeling station through the conveyor system.

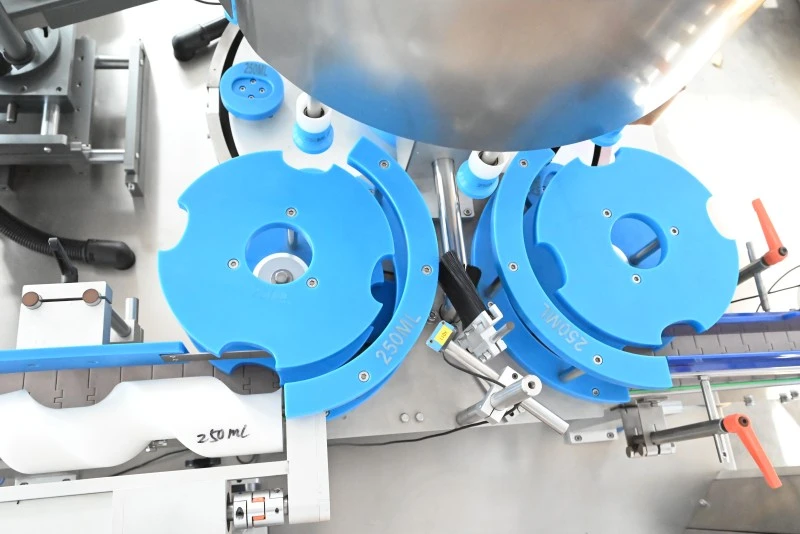

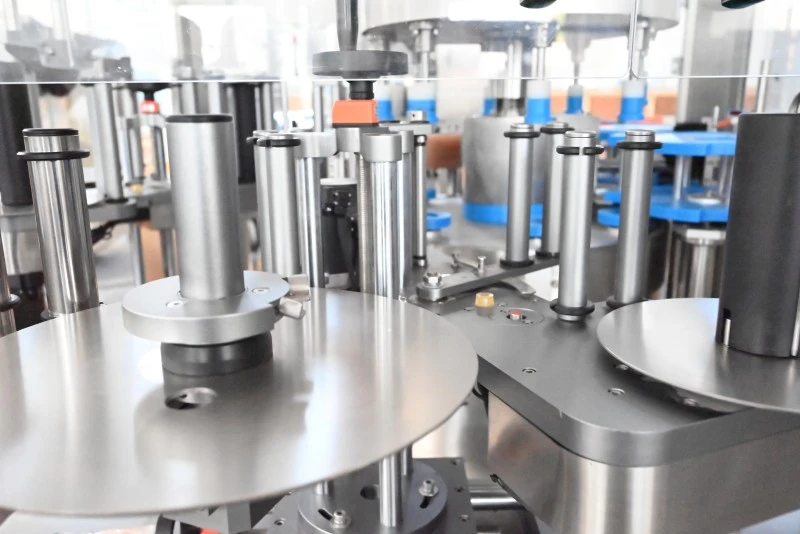

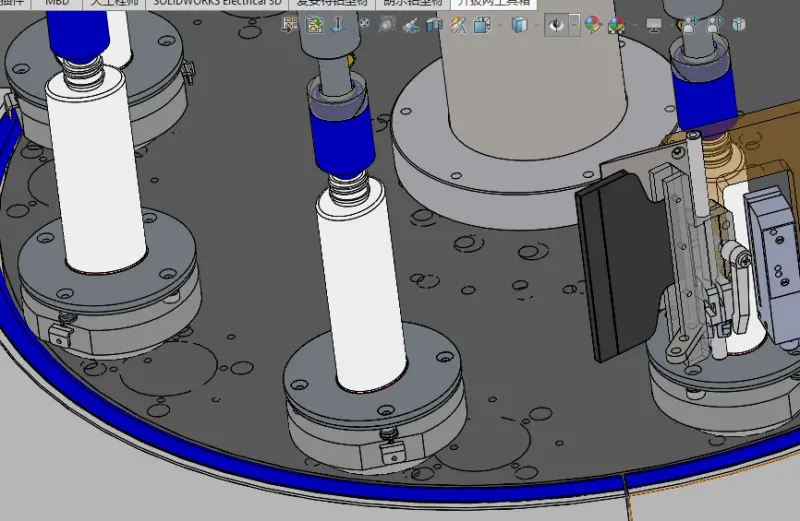

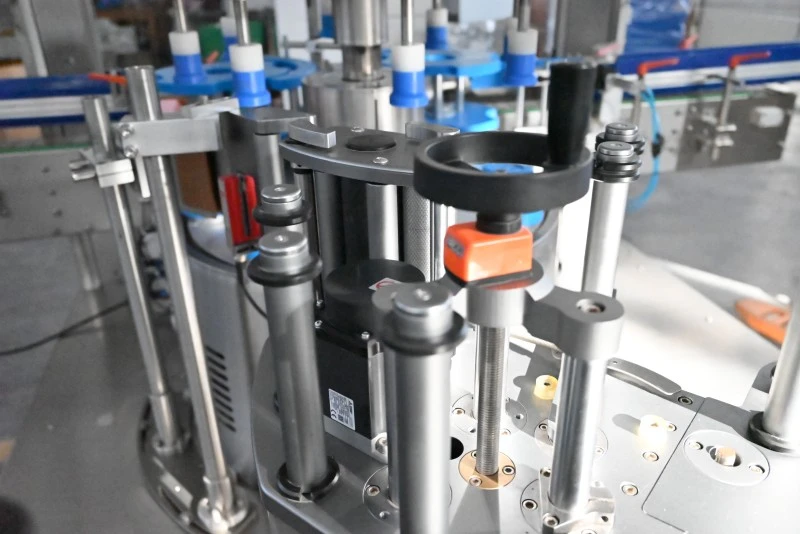

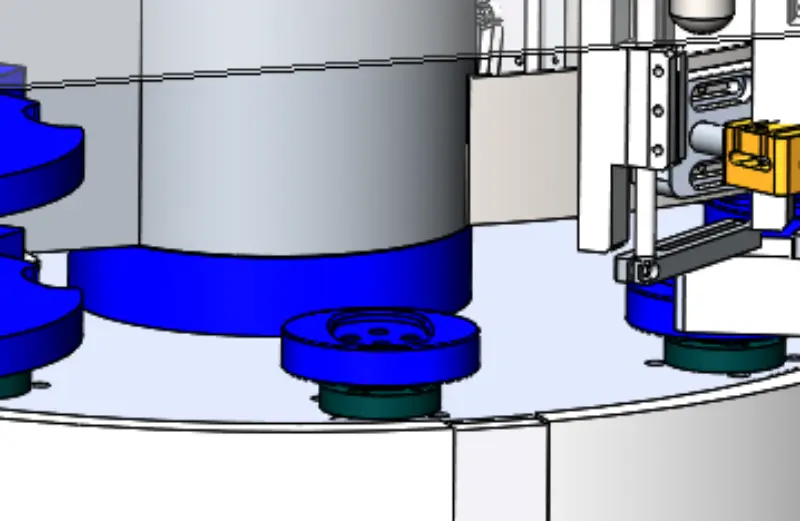

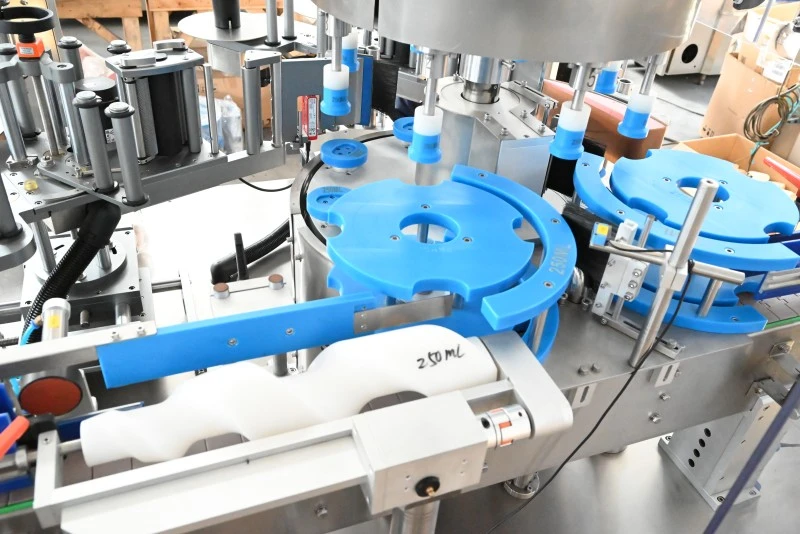

The flexible holding system securely positions each bottle according to its shape.

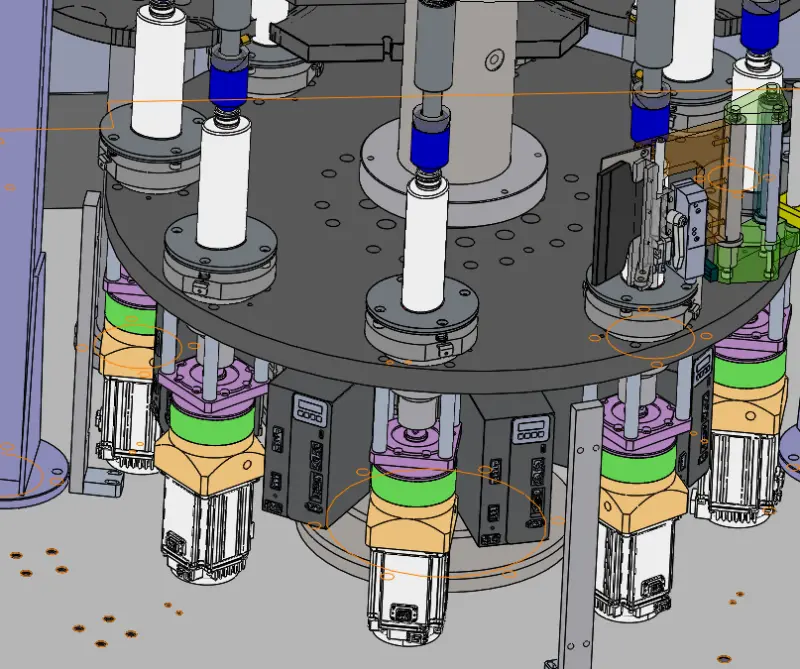

The servo labeling system follows the bottle movement and feeds the self‑adhesive label accurately.
The label is applied along the bottle surface and smoothly pressed into place.
Labeled bottles are conveyed out of the machine for the next production step.
The system monitors the labeling process continuously and stops automatically when a label is missing or a bottle jam occurs.
| No. | Component Name | Brand |
| 1 | HMI | Schneider (France) |
| 2 | Servo Motor | Schneider (France) |
| 3 | Servo Drive | Schneider (France) |
| 4 | Main Motor | Schneider (France) |
| 5 | Conveyor Motor | Transky (Italy) |
| 6 | PLC | Schneider (France) |
| 7 | Frequency Inverter | Schneider (France) |
| 8 | Frequency Inverter | Schneider (France) |
| 9 | Transparent Label Sensor | LEUZE (Germany) |
| 10 | Object Detection Sensor (Reflective Photoelectric Type) | SICK (Germany) |
| 11 | Detection Photoelectric Sensor (Reflective Type) | SICK (Germany) |
| 12 | Proximity Switch | SICK (Germany) |
| 13 | Switching Power Supply | MW (Taiwan, China) |
| 14 | Universal Change‑over Switch | MOELLER (Germany) |
| 15 | Emergency Stop Switch | Schneider (France) |
| 16 | Earth Leakage Circuit Breaker | Schneider (France) |
| 17 | Miniature Circuit Breaker | Schneider (France) |
| 18 | AC Contactor | Schneider (France) |
| 19 | Rotary Encoder | Nemicon (Japan) |
| 20 | Electrical Slip Ring | Senring |
| 21 | Pressure Gauge | Panasonic (Japan) |
| 22 | Vision Camera | Hikvision |
All machines follow a standardized quality control process before shipment. Each machine undergoes 2 hours of no‑load and loaded testing to check labeling accuracy, operating speed and line integration. CE related documents are available upon request.
Each machine is fully assembled, commissioned and inspected before delivery to ensure stable performance during production.
PACKSOUL uses a flexible holding and tracking system specially designed for oval bottles, providing stable positioning during high speed production.
The modular quick release design makes cleaning, fixture changes and routine maintenance simple, helping reduce maintenance time and labor costs.
Standard interfaces allow the machine to connect with both new and existing production lines.
Machine specifications can be customized according to bottle shape, size, label specifications and production requirements.

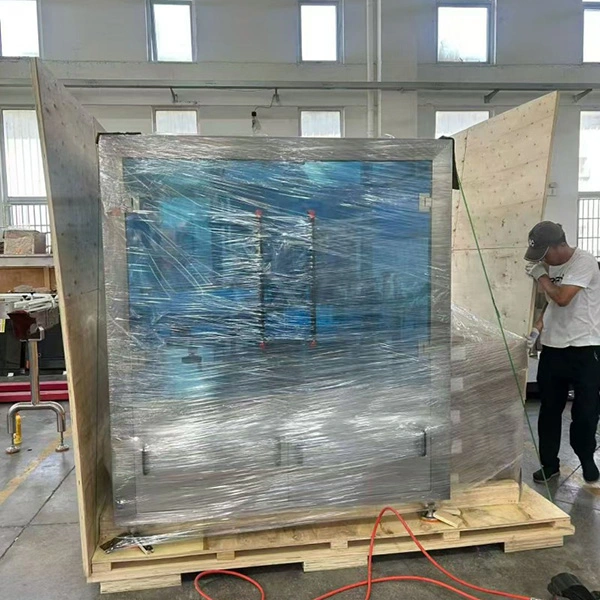

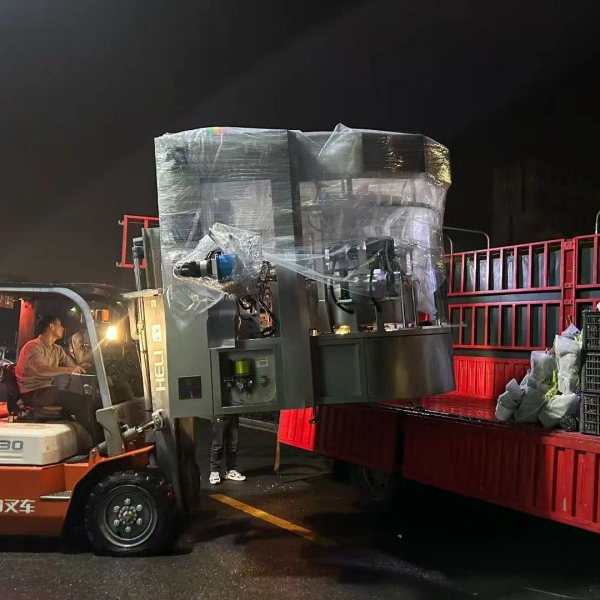

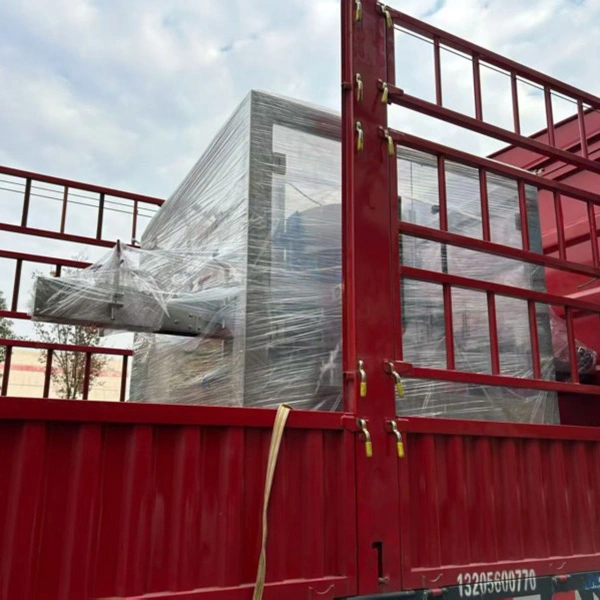

The machine is packed in fumigation free wooden cases. Key electrical and precision components are separately protected with foam to prevent damage during transportation.
Each machine undergoes 2 hours of no load and loaded testing before shipment. Accuracy, speed and main functions are checked before delivery.
The detachable structure helps reduce packing volume and is suitable for 20GP and 40GP containers, helping reduce shipping costs.
The machine can be customized according to bottle shape, bottle height, label size and production capacity.
Complete customs and shipping documents can be provided. Sea freight export from major Chinese ports is supported.
After the machine arrives at the customer site, the customer prepares the required space and power supply. We provide remote guidance for installation and positioning. If the machine needs to be connected to the production line, the customer's onsite staff can assist with line integration and commissioning.
We provide step by step commissioning guidance by remote video, together with illustrated instructions and operation videos. Operators can learn bottle changeover, label replacement and basic daily adjustments.
The complete machine is covered by a 1 year warranty, excluding consumable parts such as sensors and rubber rollers.
24 hour technical support is available online. In overseas service areas, local service partners can be coordinated for onsite maintenance when available.
We work with well‑known brands including Unilever, Nestlé, P&G, Heinz, Pechoin and other companies. Our machines have been tested in high‑volume production environments and are suitable for industrial production. We also have overseas projects in Southeast Asia, South America and the Middle East.
A: Round bottle machines may cause label misalignment on oval bottles. This machine uses a dedicated tracking system for oval bottles to keep the labeling position stable.
A: Standard oval and flat oval bottles can be handled directly. Custom fixtures are available for special bottle shapes.
A: Yes. The machine supports stepless speed adjustment and standard interfaces for connection with filling and sealing equipment.
A: Standard labels such as coated paper and synthetic paper are supported. A transparent label sensor is available as an option.
A: The machine comes with a 1 year warranty, excluding consumable parts. Remote video support is available, and onsite service can be arranged through local partners in supported overseas areas.
