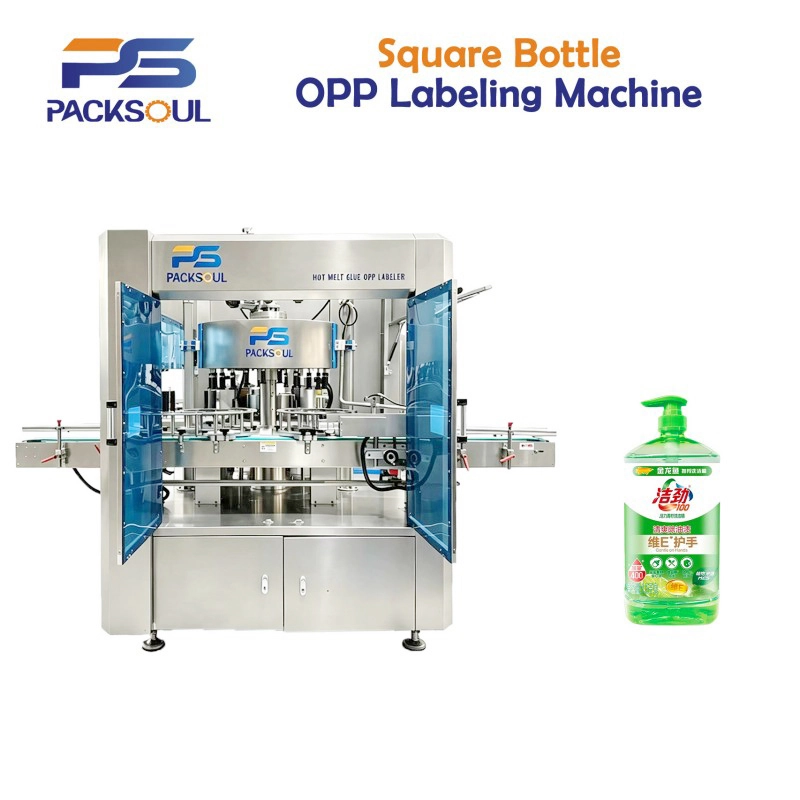

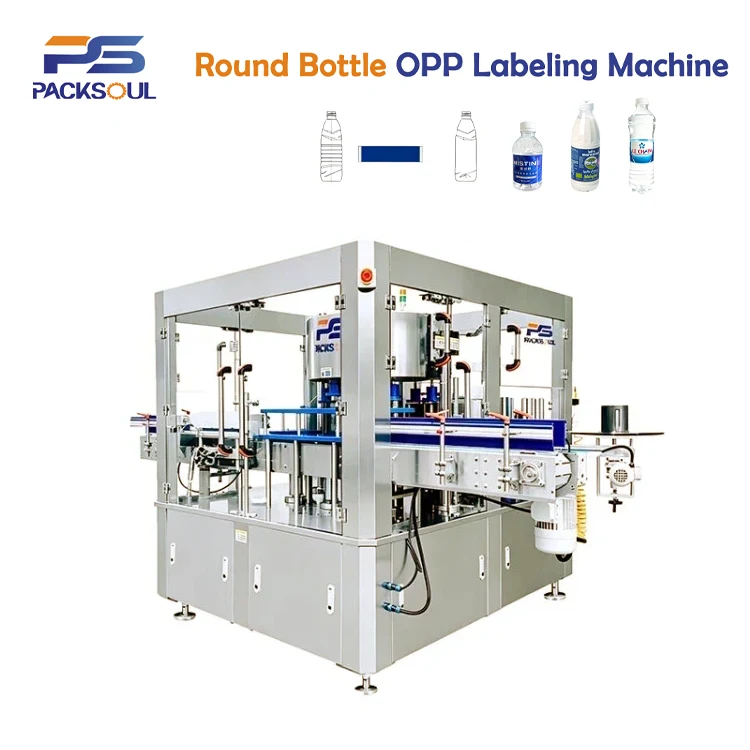

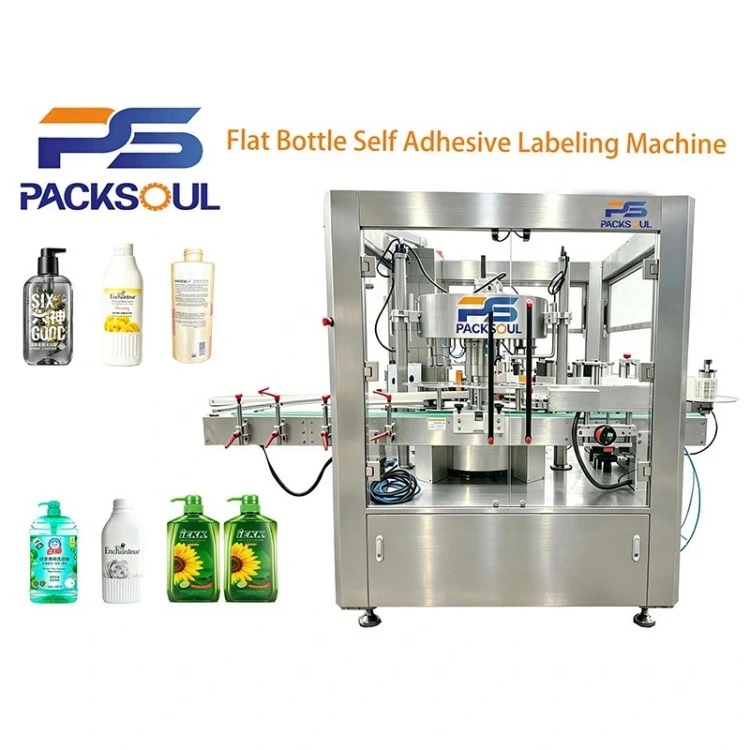

We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

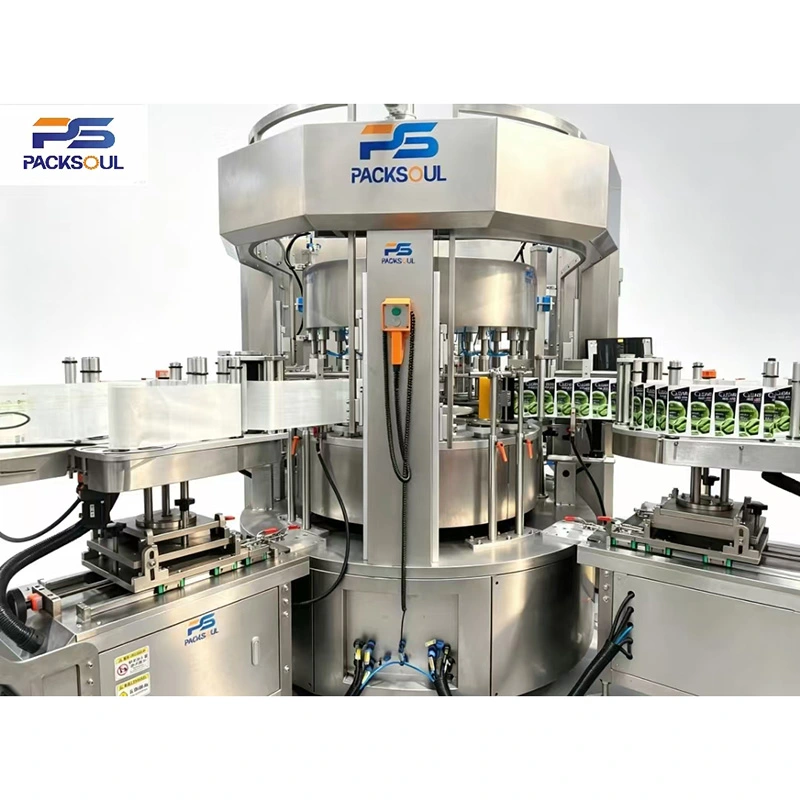

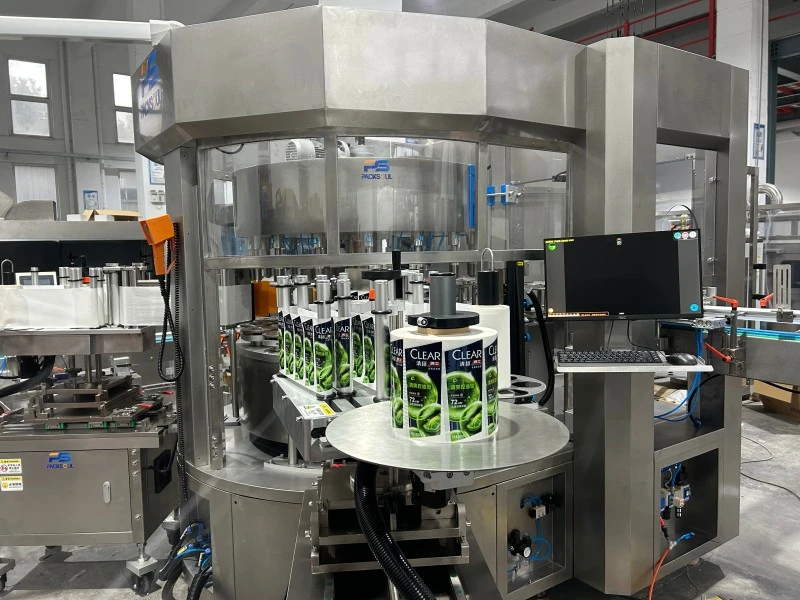

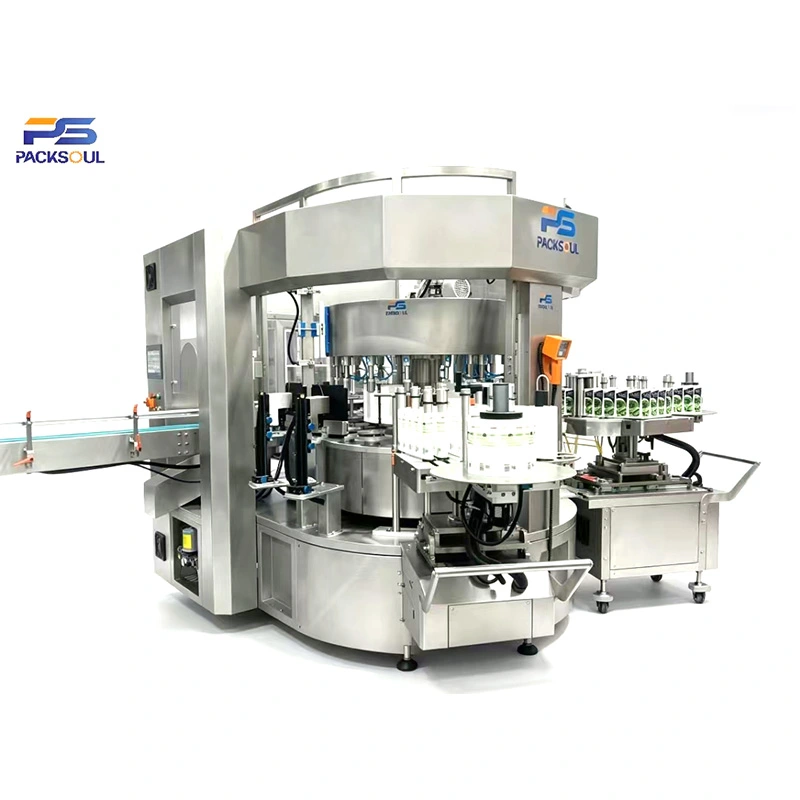

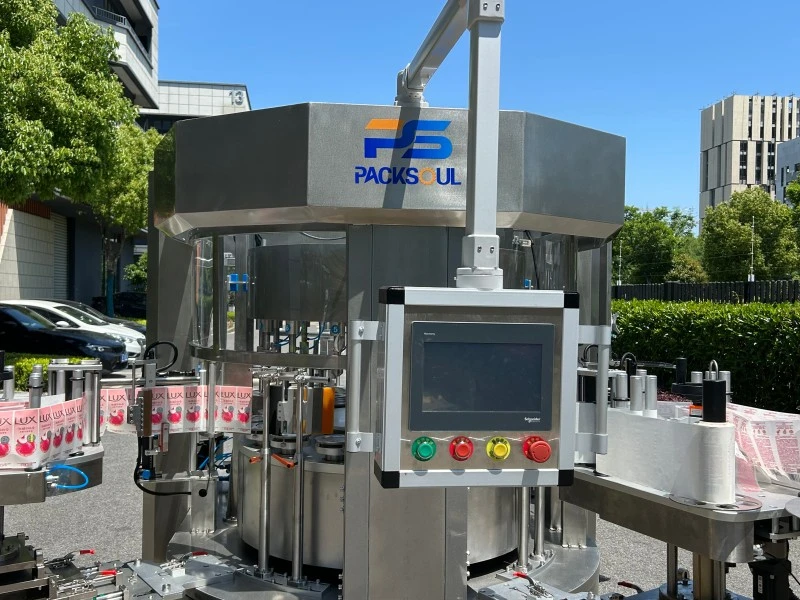

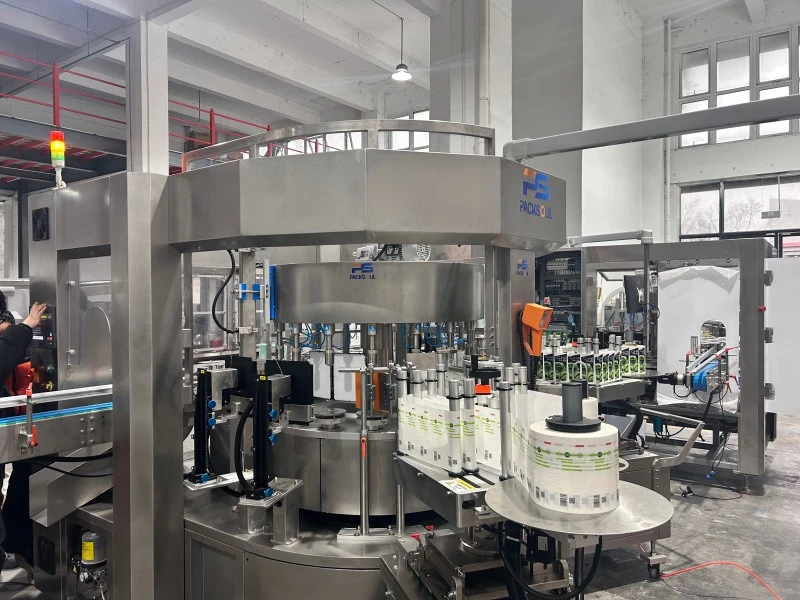

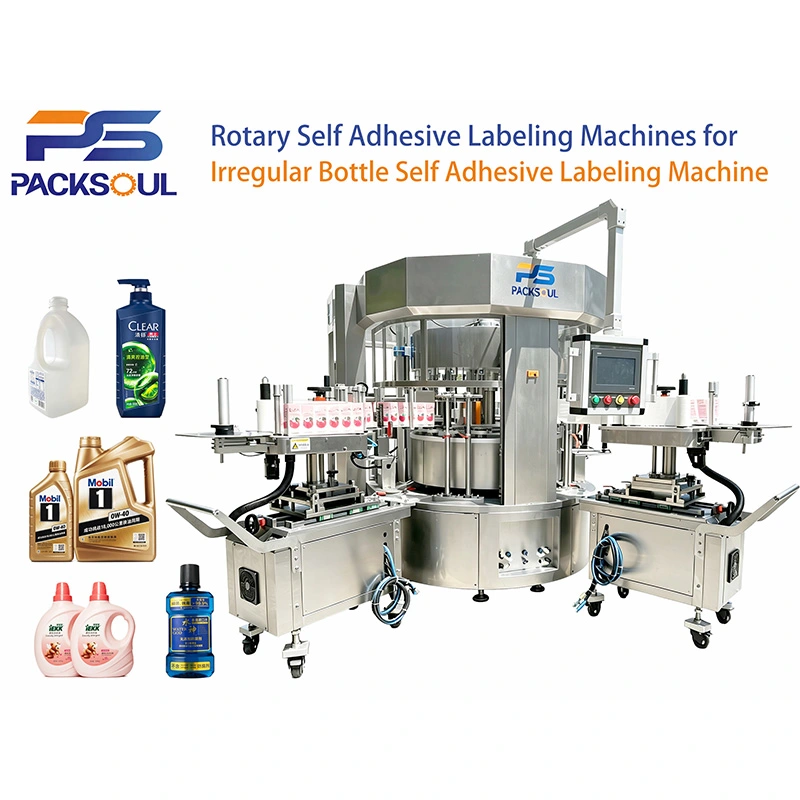

PackSoul Irregular Bottle Self Adhesive Labeling Machine is specially designed for bottles with irregular contours, uneven shapes and eccentric structures. It automatically completes bottle separation, positioning, conveying, single‑side or double‑side self‑adhesive labeling, flattening and discharge. It solves common problems such as bottle tipping, inaccurate positioning and label misalignment. Suitable for high‑volume factory production, the machine can operate independently or connect with upstream and downstream filling and capping machines to form a complete automated production line.

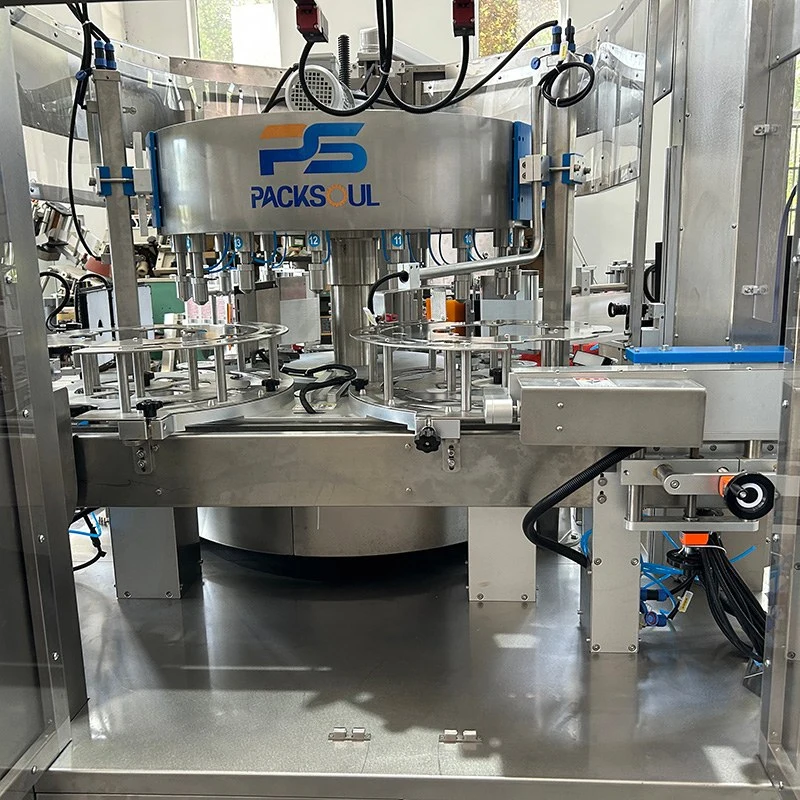

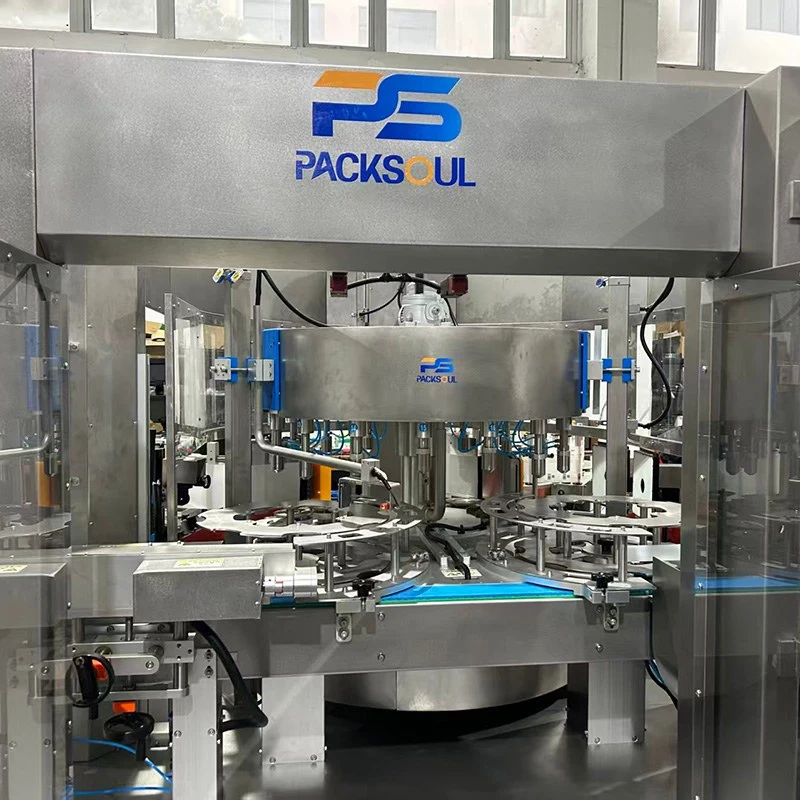

1.The Irregular Bottle Self Adhesive Labeling Machine uses a multi-station rotary star wheel and flexible bottle holders to securely hold irregular bottles. It helps prevent bottle jams and tipping during high-speed production.
2.The machine uses servo motor tracking and a vacuum drum labeling system. Labels are fed smoothly and applied accurately, helping prevent wrinkles and bubbles on curved bottle surfaces. Labeling accuracy can reach ±1 mm.
3.The PLC and HMI control system supports stepless speed adjustment and automatically matches the production line speed. It can detect low label supply, missing labels and bottle jams, and provide alarm notifications.
4.The machine is made of 304 stainless steel, which is resistant to corrosion and oil. It is suitable for production environments in the food, chemical and daily chemical industries.
5.The machine supports single-side, double-side, full-wrap and C/L-shaped labeling. It can work with different label materials, including transparent PVC, coated paper and printed self-adhesive labels.
6.The machine supports customized power supplies such as 220 V, 380 V and 415 V. It can work independently or connect with a production line to meet different production requirements.
| Model | PSR‑B240 |
| Labeling Speed | 24000BPH |
| Container Diameter | 30–100 mm (can be customized if exceed) |
| Container Height | 100‑400mm |
| Label Max Height | 200mm |
| Label Max Width | 300mm |
| Label Roll Diameter | Inner:Φ76.2mm Outer: φ400mm |

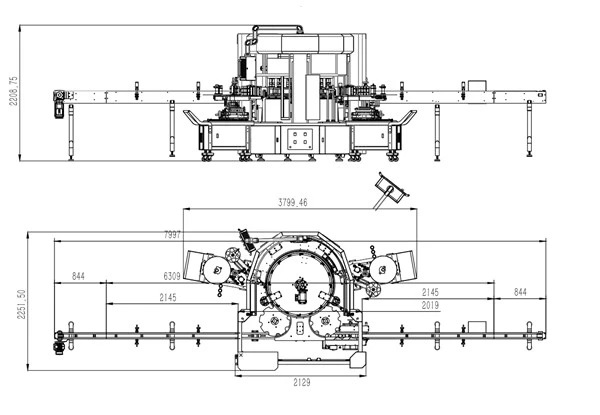

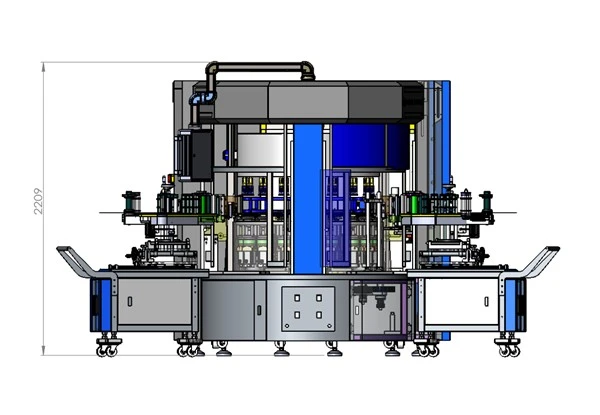

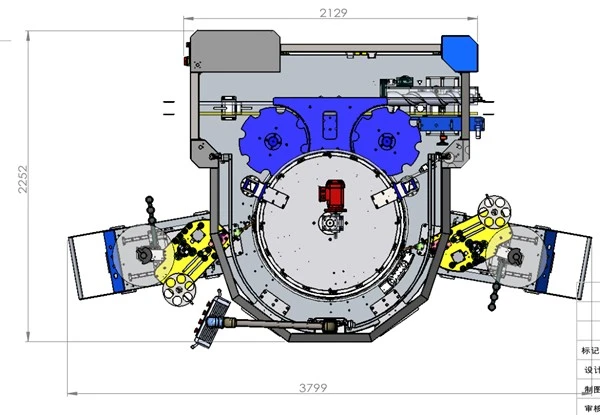

| Whole Machine Size | 4000L*2600W*2000H |
| Working Table Height | 1000±50 mm（can be customized） |
| Power | 380V/50Hz/30KW |
1.Bottle Feeding: Bottles are fed manually or by conveyor to the rotary star wheel. Flexible holders securely hold the irregular bottles in place.
2.Synchronized Conveying: The rotary table runs at a steady speed, synchronized with the servo labeling system for smooth operation.
3.Label Feeding: The vacuum drum feeds the self-adhesive labels at a steady speed. Sensors accurately detect the label position.
4.Label Application: The labeling head follows the irregular bottle surface and applies the label smoothly. A pressure roller removes air and helps prevent wrinkles and bubbles.
5.Product Discharge: After labeling, the bottles move to the discharge outlet and are automatically conveyed to the next process.
1. Daily Chemical Industry: Double side labeling for irregular hand cream bottles, fragrance bottles, shampoo bottles and essential oil bottles
2. Chemical Industry: Labeling for eccentric lubricant bottles, irregular chemical containers and cleaner bottles

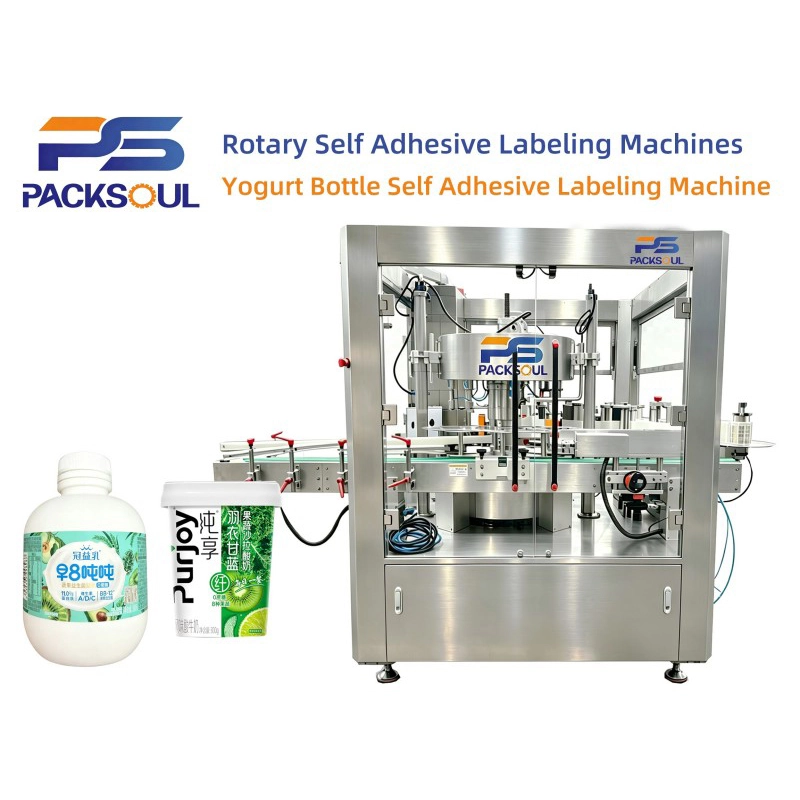

3. Food Industry: Labeling for irregular jam bottles, yogurt cups and beverage bottles
4. Health Supplement Industry: Full wrap labeling for shaped vitamin bottles and irregular oral liquid bottles
1.Clean the machine and star wheel holders with a soft cloth after daily operation. Do not spray the electrical control box or servo motor directly with a high pressure water jet.
2.Clean any label glue from the vacuum drum and label sensors every week. Check the label feeding roller tension to prevent adhesive from sticking to the rollers.
3.Lubricate the rotary table drive chain and bottle holders with food grade lubricant every month. Check and adjust the servo labeling head for accurate labeling.
4.For long term shutdown, release the label roller tension, remove any remaining glue and place a desiccant in the electrical control box to prevent moisture.
5.If workshop humidity is above 80 percent, use a dehumidifier in the electrical control box weekly to protect the electrical components.
1.Initial Setup: Enter the bottle size and label specifications. The machine automatically adjusts the rotary table speed and labeling head settings.
2.Automatic Bottle Feeding: Filled irregular bottles are continuously fed to the multi station rotary star wheel and automatically positioned and secured.
3.Synchronized Labeling: The machine completes label feeding, application and pressing in sequence while checking for missing or incomplete labels.
4.Fault Warning: If a bottle jam, missing label or label position error occurs, the machine gives an audible and visual alarm and stops automatically for protection.
5.Finished Product Conveying: Properly labeled products are automatically discharged and conveyed to the next process, such as packing or film wrapping.

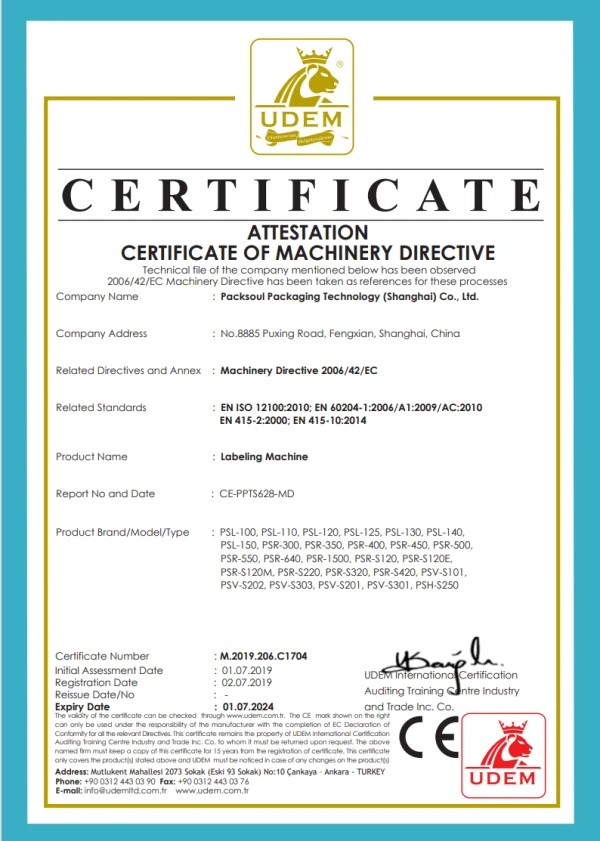

1. The Rotary Self Adhesive Labeling Machine for Irregular Bottle Labeling has CE and ISO 9001 certifications and meets international export standards.
2. Before delivery, each machine is tested continuously for 72 hours, including both no load testing and production testing with irregular bottles. Labeling accuracy and machine stability are fully checked.
3. All components are inspected before assembly. Servo motors, sensors and vacuum drums are selected from reliable brands.
4. The factory has an independent quality control area. Each machine is shipped with a complete inspection report to ensure reliable quality.
1.Flexible Bottle Positioning: The Irregular Bottle Self Adhesive Labeling Machine uses flexible holders that fit different bottle shapes and help prevent scratches and unstable positioning.
2.High Speed Rotary Design: Compared with standard linear labeling machines, the multi station rotary design provides smoother operation and higher production capacity, with up to 40 percent higher output.
3.Full 304 Stainless Steel Construction: The whole machine is made of 304 stainless steel, providing better corrosion resistance for daily chemical and chemical production environments.
4.Stable Curved Surface Labeling: The servo system adjusts to different bottle surfaces, helping prevent label bubbles and misalignment on irregular bottles.
5.One Stop Customization: PackSoul supports customization of labeling stations, voltage, labeling process and machine size, and can provide complete labeling line solutions.
1.Installation: We provide remote installation guidance. Overseas customers can also arrange onsite service. The customer provides power, forklift and working space.
2.Commissioning: Commissioning takes 6 to 9 days. We adjust the machine for the customer's bottles and production line and train the operators.
3.Training: We provide operation, maintenance and troubleshooting guides with pictures and videos, plus online training.
4.Warranty: 1 year warranty for the complete machine, excluding consumable parts such as sensors and glue rollers. 24 hour online technical support is available.
5.Lifetime Service: After the warranty, we provide spare parts, machine upgrades and repair services.

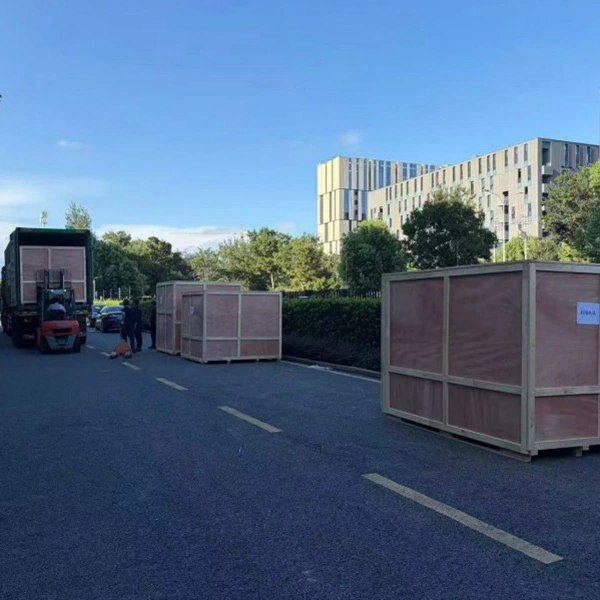

1. The machine is packed in a strong wooden export crate. Foam is used to protect the servo motor, labeling head and other precision parts during shipping.
2. The crate has waterproof and fragile signs. Electrical parts are separately sealed with waterproof packaging.

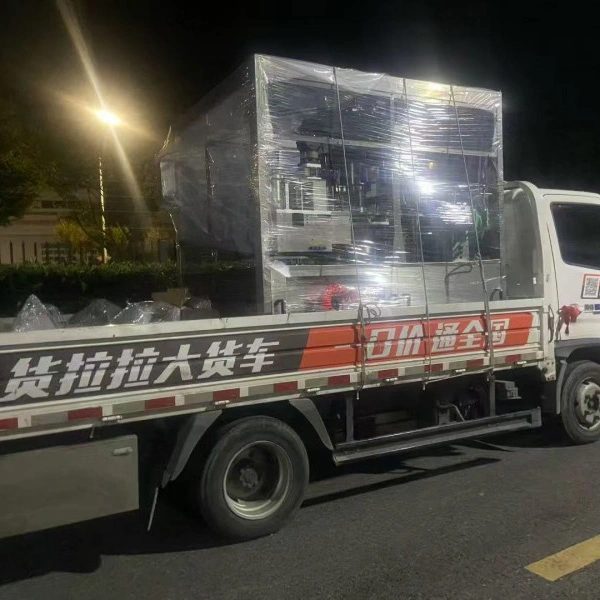

3. We support sea, air and land shipping and can ship the complete production line together.
4. After shipment, we provide the tracking number and packing list and follow the delivery status.

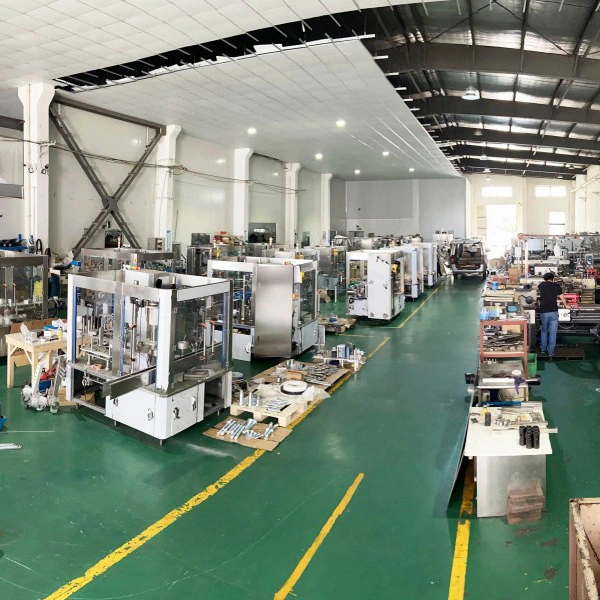

PackSoul has many years of experience in packaging and labeling equipment. We focus on the development and production of rotary self adhesive labeling machines for irregular bottles. Our machines have been exported to Brazil, Malaysia, Russia and other Southeast Asian countries.
We have completed many irregular bottle labeling projects and work with leading contract manufacturers in the daily chemical, chemical and food industries. We regularly attend packaging machinery exhibitions and can provide factory photos, customer operation videos and feedback from overseas customers. We have strong experience in large volume export orders.
A: The machine uses a multi station flexible star wheel that securely holds bottles and helps prevent tipping and bottle jams during high speed operation.
A: The servo tracking system and vacuum drum provide smooth label feeding. The labeling head follows the bottle surface, while the pressure roller removes air for smooth labeling with an accuracy of ±1 mm.
A: Yes. A transparent label sensor can be added to reliably detect transparent PVC and PET labels. The machine supports different label materials.
A: Yes. It can run independently or connect to filling, capping and packing machines. The connection can be customized according to the production line height and speed.
A: No. The machine uses quick adjustment knobs. The bottle holders, labeling head height and label feeding length can be adjusted without tools. Changeover takes about 10 minutes for one bottle type.
A: During the one year warranty, replacement parts and technical support are free, except for consumable parts. After the warranty, spare parts are charged separately and can be discussed in advance.
