We offer a complete range of rotary and linear labeling machines—including 12/16/24-station hot melt OPP models and 4/6/8/12/16/24-station adhesive sticker variants—designed for beverage, cosmetic, pharmaceutical, and daily chemical applications.

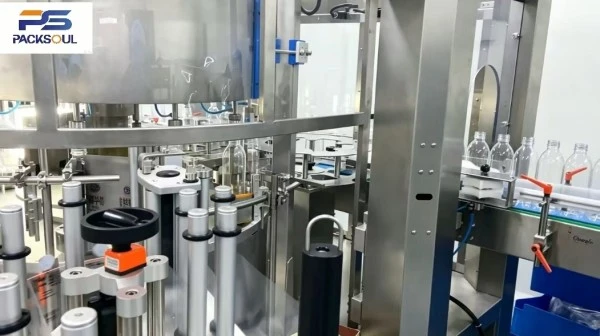

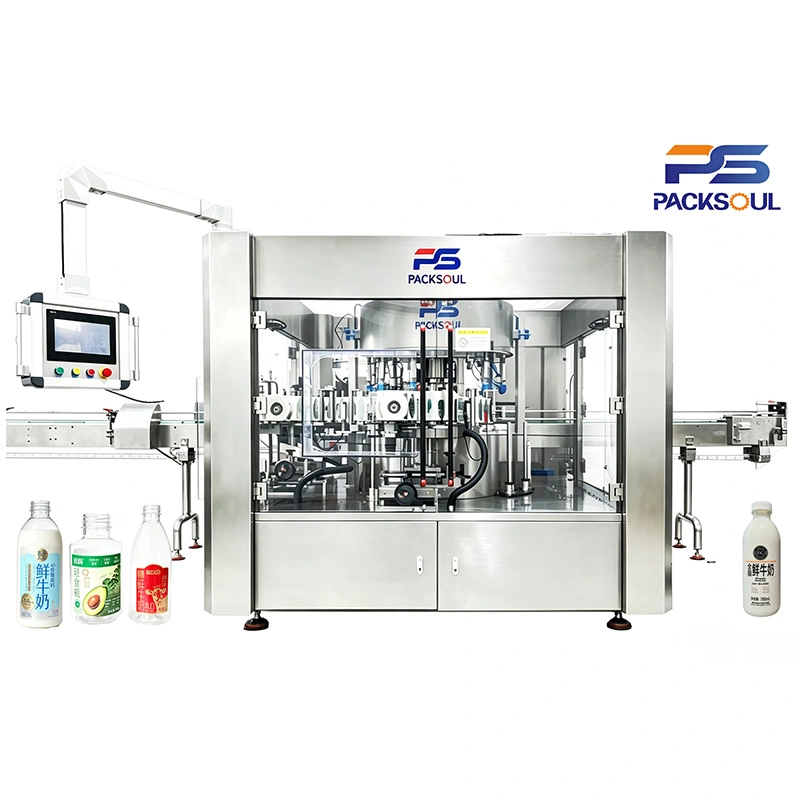

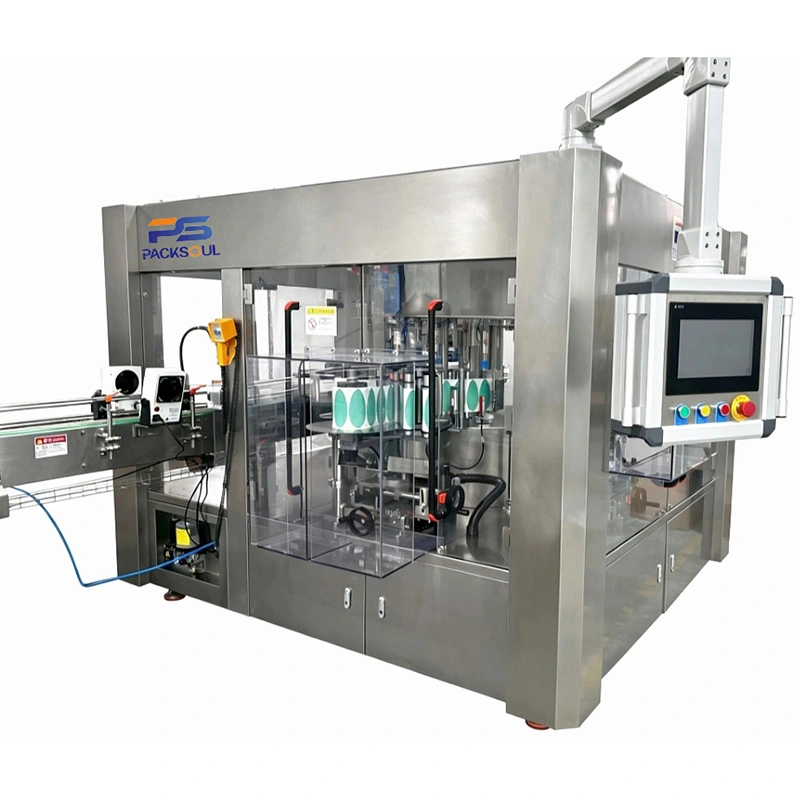

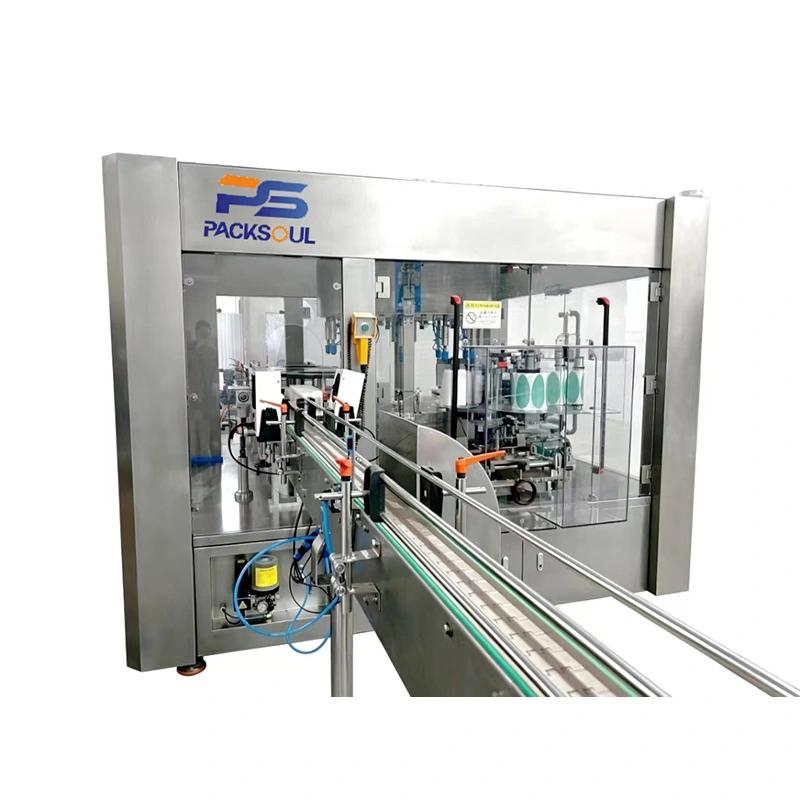

The Rotary Round Bottle Self Adhesive Labeling Machine is a high‑speed automatic labeling machine with a rotary positioning system, specially designed for various round containers. It can apply single or double labels with high positioning accuracy.

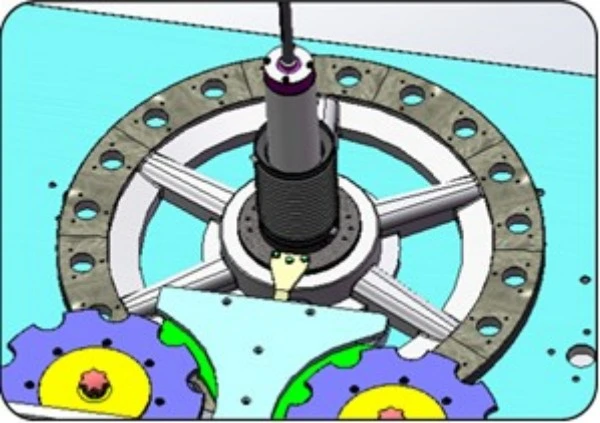

The machine consists of a base platform, conveyor system, rotary table, labeling station, servo positioning system and electrical control system. A precision star wheel separates the bottles, while independent servo‑driven bottle holders control the speed and accurately position each bottle at the required labeling point.
The machine can operate independently or integrate with filling and capping lines. It is widely used for high‑volume production of round bottles across different industries.

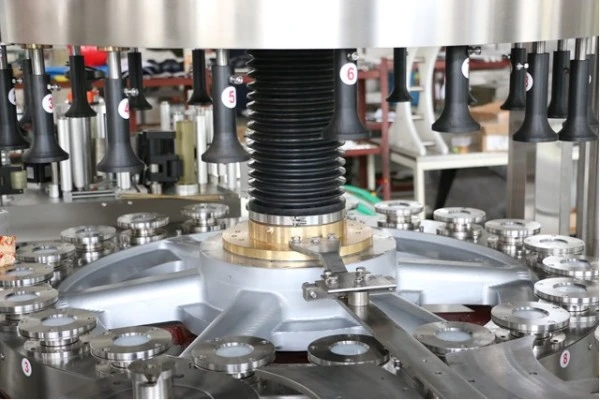

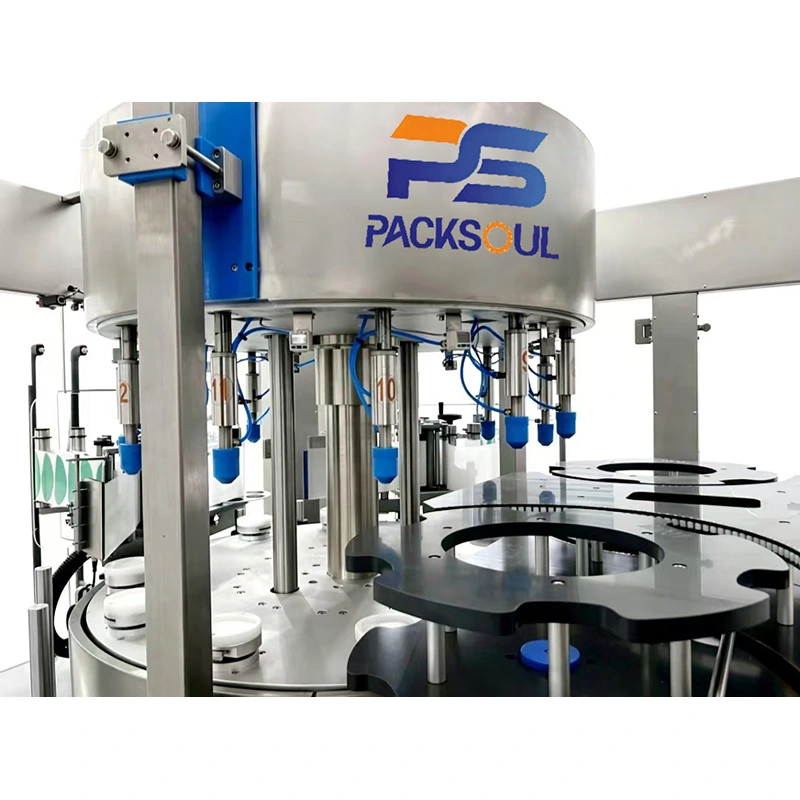

12‑Station Rotary Design Compact machine layout with inline bottle feeding and discharge. Each bottle holder is independently servo driven for smooth and stable operation.
Mechanical positioning ensures accurate labeling at the required position. Adjustable bottle holders support different bottle sizes and long labels.
The labeling head supports multi‑directional adjustment. Position and angle can be adjusted quickly without special tools.

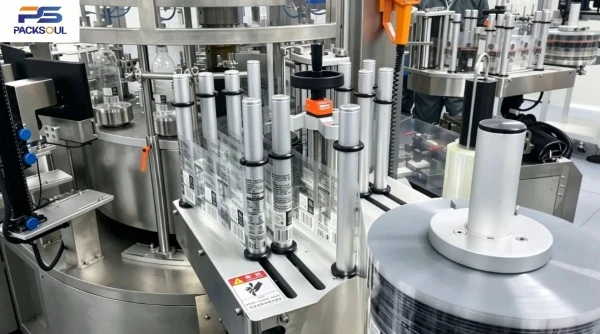

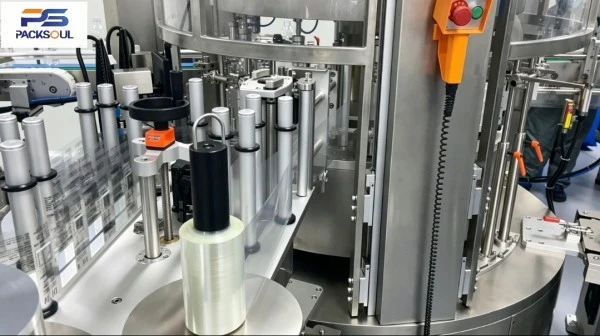

The upgraded label tension system provides smooth and stable label feeding, helping reduce label breaks and misalignment.
Servo‑driven label feeding ensures accurate and consistent label application. Easy parameter adjustment simplifies operation.
Key components are manufactured in‑house, with spare parts readily available for convenient maintenance and fast service.
Precision‑machined components and an enclosed design provide stable operation and good protection against dust and moisture.
The machine monitors bottle flow, adjusts speed automatically and stops when bottle jams occur. The safety cover stops the machine when opened.
| Parameter Item | Specification Value |
| Model | PSR‑B120 |
| Labeling Speed | 12000 BPH (bottles per hour) |
| Container Diameter | 30‑100 mm (based on bottle bottom diameter, customization available for larger sizes) |
| Container Height | 100‑400 mm |
| Label Max Height | 200 mm |
| Label Max Width | 300 mm |
| Label Roll Dimension | Inner: Φ76.2mm, Outer: Φ400mm |
| Whole Machine Size | L4000 × W2500 × H2000 mm |
| Working Table Height | 1000±50 mm (can be customized) |

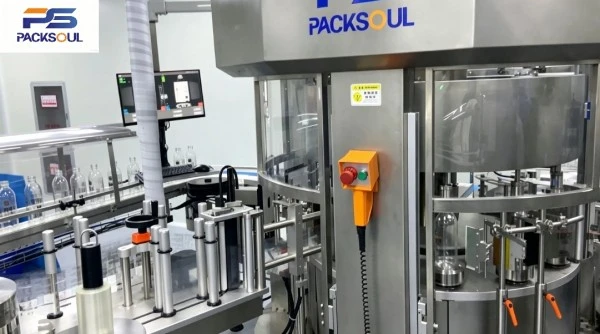

The PACKSOUL Rotary Round Bottle Self Adhesive Labeling Machine uses a rotary star wheel positioning system and servo‑driven label feeding for automatic labeling.
Bottles are evenly separated and transferred to the rotary table. The bottle holders rotate according to preset parameters, while the positioning system detects the required labeling point and controls the bottle angle precisely. The servo labeling station applies the label, and the brush roller smooths it onto the bottle surface. Finished bottles are then automatically discharged, completing the entire labeling process.
The Rotary Round Bottle Self Adhesive Labeling Machine is suitable for high‑volume round bottle labeling across multiple industries.
Beverage: Milk bottles, juice bottles, mineral water bottles and tea bottles
Personal Care: Shampoo bottles, essential oil bottles and perfume bottles
Pharmaceutical & Healthcare: Oral liquid bottles and health supplement bottles
Chemical: Reagent bottles and small industrial chemical containers
Suitable for high‑speed continuous production lines. Custom solutions are available for special bottle shapes
Clean the conveyor chain, star wheel, labeling head and photoelectric sensors daily. Remove label residue and dust.
Regularly check the servo motors and servo drives, and calibrate labeling position accuracy when needed.
In humid environments, regularly dehumidify the electrical control cabinet to protect electrical components.
Do not use high‑pressure water to clean the electrical cabinet or servo motors to prevent water damage and short circuits.
For long‑term shutdown, release the label roll tension to prevent adhesive from sticking to rollers and shafts.
Regularly check the safety cover and door interlock to ensure proper and reliable operation.

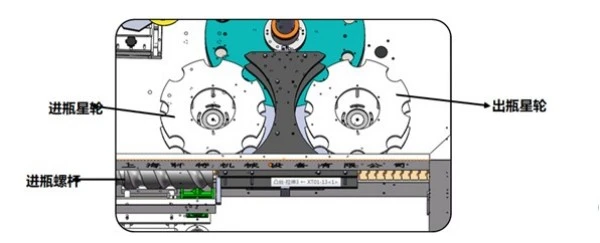

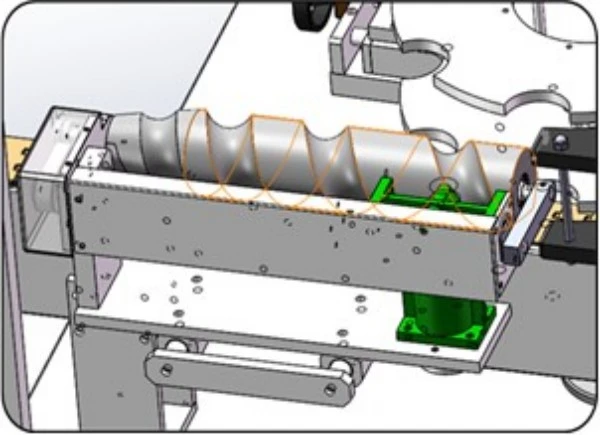

Bottles are conveyed into the machine in an orderly flow. The infeed screw separates closely spaced bottles at equal intervals.

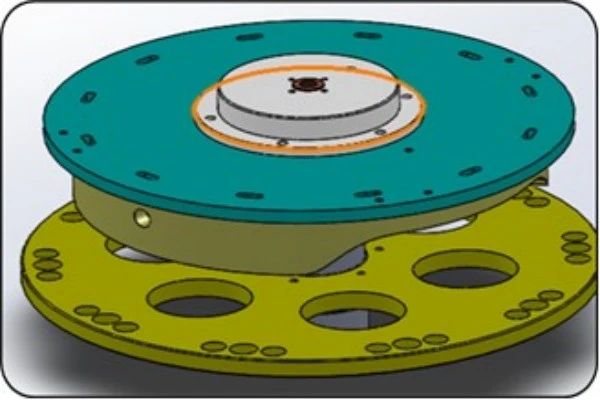

The infeed star wheel smoothly transfers bottles to the rotary table.

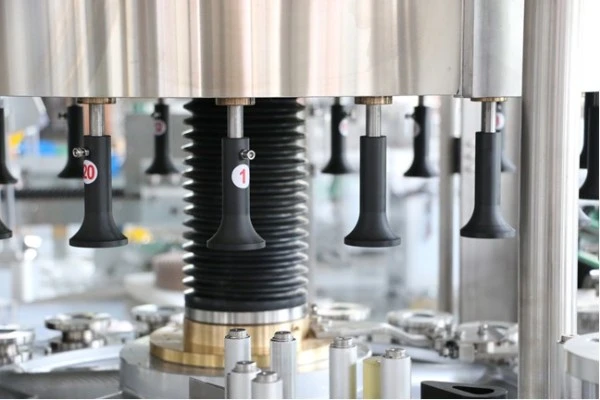

The bottle holder secures the bottle while the servo motor is ready for positioning.
The positioning system detects the bottle's reference point and sends the rotation command.
The servo‑driven bottle holder rotates the bottle to the preset labeling angle.
The servo labeling station dispenses the label, and the brush mechanism presses it firmly onto the bottle surface.
Finished bottles are transferred out through the discharge star wheel and move to the next production process.
| No. | Component Name | Brand |
| 1 | HMI | Schneider (France) |
| 2 | Servo Motor | Schneider (France) |
| 3 | Servo Drive | Schneider (France) |
| 4 | Main Motor | Schneider (France) |
| 5 | Conveyor Motor | TRANSTECNO(Italy) |
| 6 | PLC | Schneider (France) |
| 7 | Frequency Inverter | Schneider (France) |
| 8 | Frequency Inverter | Schneider (France) |
| 9 | Transparent Label Sensor | LEUZE (Germany) |
| 10 | Object Detection Sensor (Reflective Photoelectric Type) | SICK (Germany) |
| 11 | Detection Photoelectric Sensor (Reflective Type) | SICK (Germany) |
| 12 | Proximity Switch | SICK (Germany) |
| 13 | Switching Power Supply | MW (Taiwan, China) |
| 14 | Universal Change‑over Switch | MOELLER (Germany) |
| 15 | Emergency Stop Switch | Schneider (France) |
| 16 | Earth Leakage Circuit Breaker | Schneider (France) |
| 17 | Miniature Circuit Breaker | Schneider (France) |
| 18 | AC Contactor | Schneider (France) |
| 19 | Rotary Encoder | Nemicon (Japan) |
| 20 | Electrical Slip Ring | Senring |
| 21 | Pressure Gauge | Panasonic (Japan) |
| 22 | Vision Camera | Hikvision |
All electrical components comply with CE certification requirements.
CNC precision machining is used throughout the machine, with strict tolerance control for reliable and low‑noise operation during long‑term high‑speed production.
Each machine undergoes continuous no‑load aging tests before shipment, with labeling accuracy, servo synchronization, safety stop and alarm functions fully inspected.
The machine features a closed, dust‑resistant and corrosion‑resistant design with a 304 stainless steel main body for long‑term durability.
Unlike standard rotary labeling machines with a single main shaft, the PACKSOUL Rotary Self-Adhesive Labeling Machine uses 12 independently servo-driven bottle holders with programmable electronic cam control. Each station can be adjusted separately for accurate positioning, even for complex round bottles.
Smooth and stable operation at high speed. Long labels can also be applied evenly.
Key components are made in‑house and kept in stock for faster delivery, maintenance and spare parts support.
Tool‑free change parts make bottle size changes faster and reduce production downtime.
The machine stops automatically in case of bottle jams or safety door opening, reducing machine damage and material waste.
The enclosed design provides reliable long‑term operation in humid food and personal care production environments.
1. Fumigation‑free wooden case with waterproof, shockproof and moisture‑resistant protection for sea and air transport.
2. Key moving parts are reinforced to prevent shifting during transportation.
3. Packing list, inspection report, certificate of conformity and export customs documents are provided.
4. FOB, CIF and DDP trade terms are available.

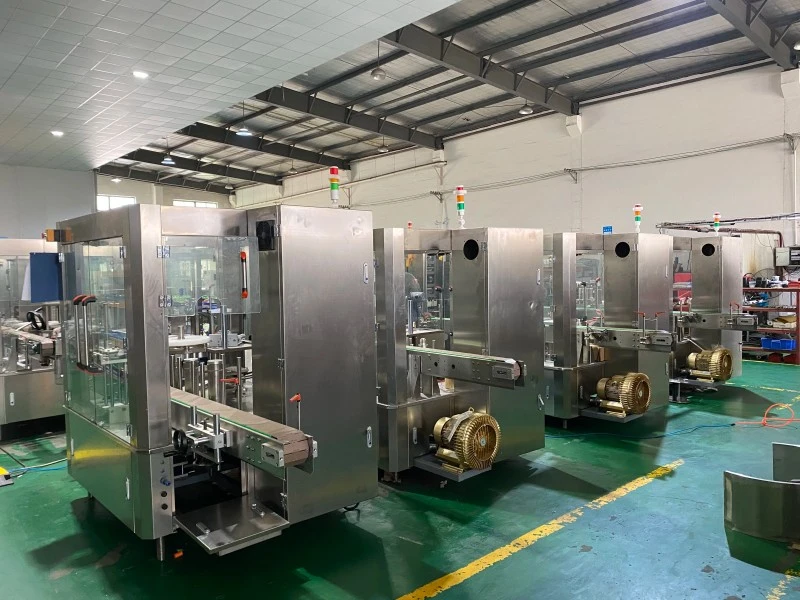

PackSoul focuses on the development and manufacturing of high‑speed rotary labeling machines. Our Rotary Round Bottle Self Adhesive Labeling Machines are supplied to customers in different overseas markets, including Europe, Southeast Asia, the Middle East, South America and Africa.

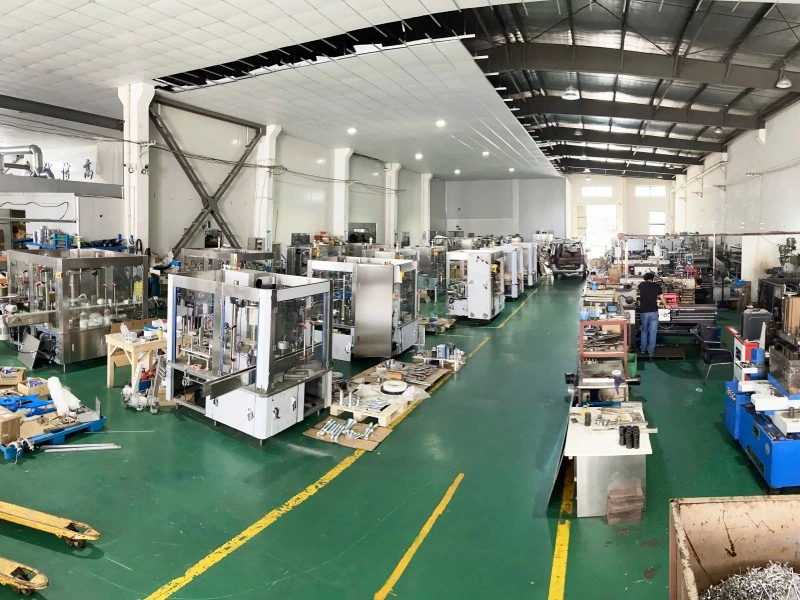

With in‑house R&D, machining and machine testing capabilities, we provide integrated manufacturing and technical support. Our equipment is used in beverage, personal care and pharmaceutical applications, with experience in complete labeling line projects for overseas customers.
Engineers can be arranged to install and commission the machine at the customer's site, including different bottle sizes. For complete filling lines, we can also assist with line integration and commissioning. The schedule can be arranged according to the customer's site conditions.
On‑site training covers machine operation, bottle changeover, parameter adjustment, basic troubleshooting and daily maintenance. Operation manuals are also provided.
The machine comes with a one‑year warranty after acceptance. Non‑human‑caused faults during the warranty period are repaired free of charge. After the warranty, lifetime maintenance is provided with only the cost of replacement parts charged.
Remote video support is provided for troubleshooting. For major issues, an engineer can be arranged for on‑site service within 24 hours. Common spare parts are kept in stock and normally shipped within 3 working days after order confirmation, excluding holidays.
Service records are maintained, and our technical team regularly follows up on machine operation to provide timely support for maintenance and production issues.
A: It is mainly designed for precise positioning and labeling of round bottles. It can also handle some regular square containers. Custom solutions are available for special‑shaped bottles.
A: Yes. The speed can be adjusted continuously to match the production speed of the complete production line.
A: No. Key change parts are quick to remove, and most adjustment points can be set without tools, making changeovers fast and easy.
A: Each bottle holder has an independently programmable rotation curve, providing higher positioning accuracy for long labels and special labeling applications.
A: Yes. The machine features a water‑resistant, dust‑resistant and corrosion‑resistant design and can operate reliably in humid environments. Regular maintenance and dehumidification of the electrical cabinet are recommended.
A: Yes. Experienced engineers can be sent overseas for on‑site installation, commissioning and operator training.
