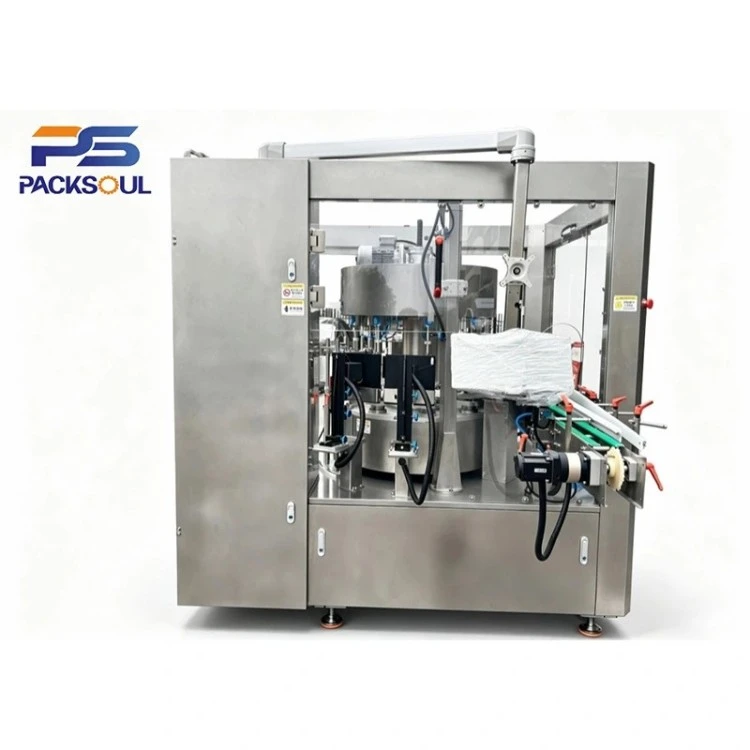

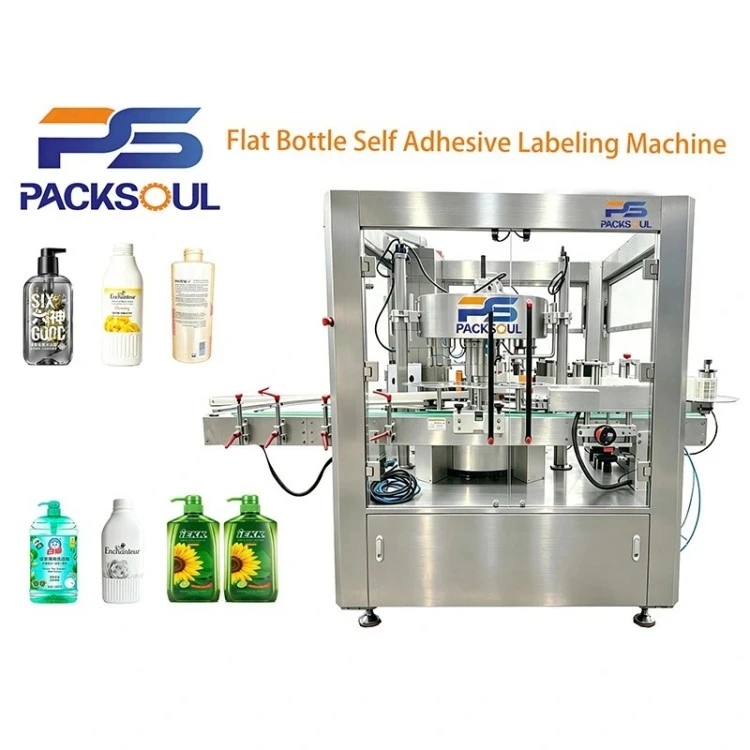

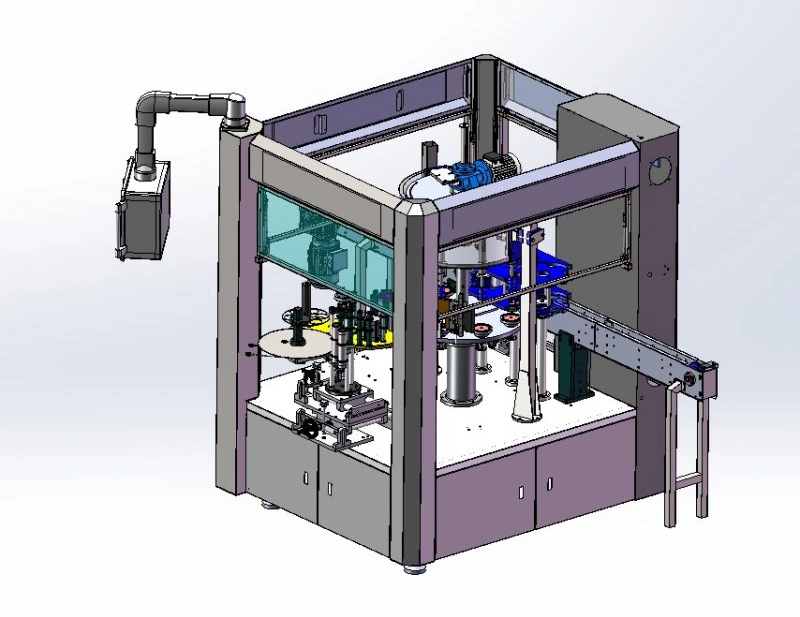

Flat Bottle Self Adhesive Labeling Machine is a high‑speed automatic labeling machine designed for flat bottles with corners and large flat containers. Its multi‑point holding system securely positions the bottle for accurate single‑side and double‑side labeling, helping prevent label shifting, lifting and bubbles around corners.
The machine can run independently or connect with a complete filling line for automatic production. It is suitable for high‑volume labeling of personal care, food and seasoning containers.
Multiple holding points securely position the flat bottle during high‑speed operation, reducing label shifting and lifting around corners.
Corrosion and water resistant, suitable for humid food and personal care workshops and longer machine life.
The servo system matches the rotary station speed and adjusts label tension for smooth application without bubbles or lifting.
The labeling head, bottle fixtures and bottle separation components can be quickly removed for easy bottle changeover, cleaning and maintenance.
The system automatically detects missing labels, bottle jams, overload and material shortages, helping reduce production downtime.
Standard interfaces allow easy connection with filling, capping, coding and packing machines for new or existing production lines.
| Model | PSR‑B080 |
| Labeling Speed | 8000 BPH (Bottles per Hour) |
| Container Size | 30‑100 mm (Based on Bottle Bottom Diameter; Customization Required for Larger Sizes) |
| Container Height | 100‑400 mm |
| Maximum Label Height | 200 mm |
| Maximum Label Width | 300 mm |
| Label Roll Dimensions | Inner Diameter: Φ76 mm; Maximum Outer Diameter: Φ400 mm |
| Overall Machine Dimensions | 3000 L × 2500 W × 2000 H mm |
| Working Height | 1000 ± 50 mm (Customizable) |
| Power Supply | 380 V / 50 Hz / 14 kW |

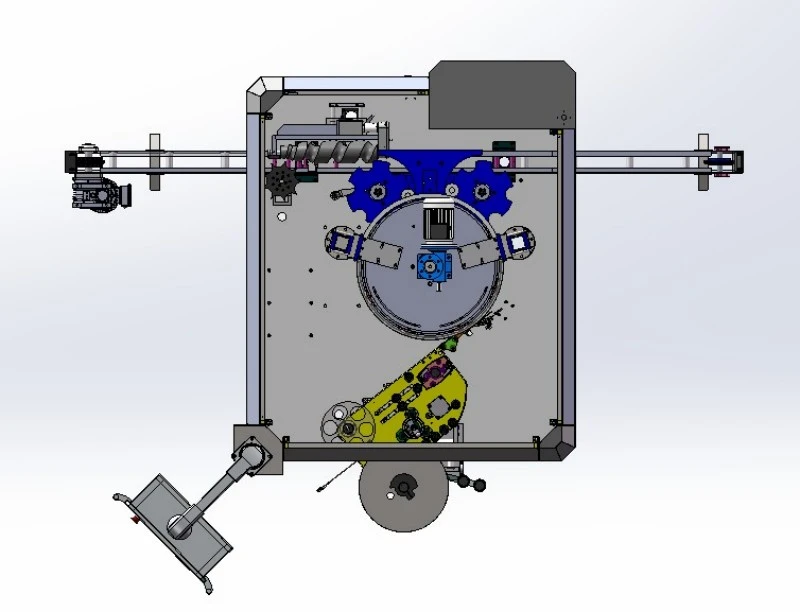

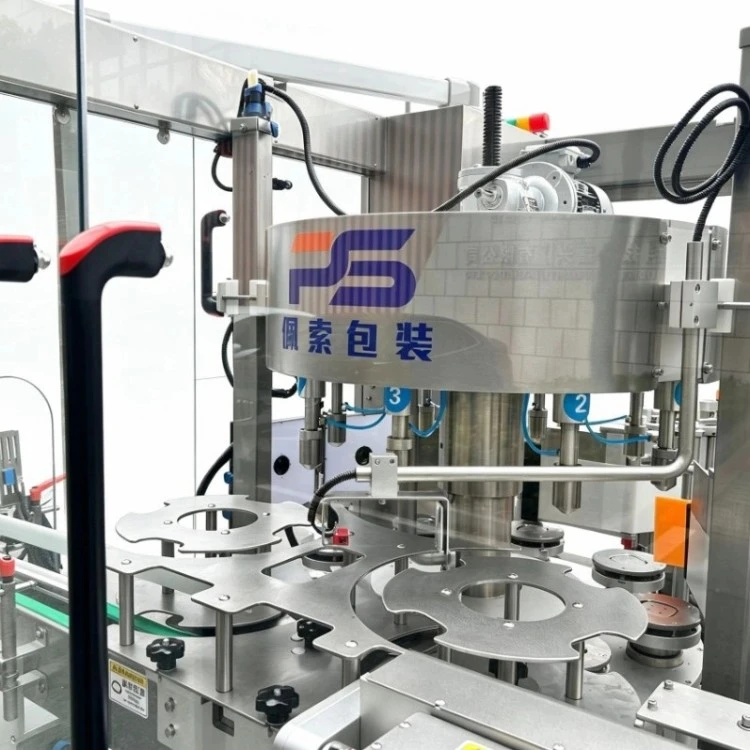

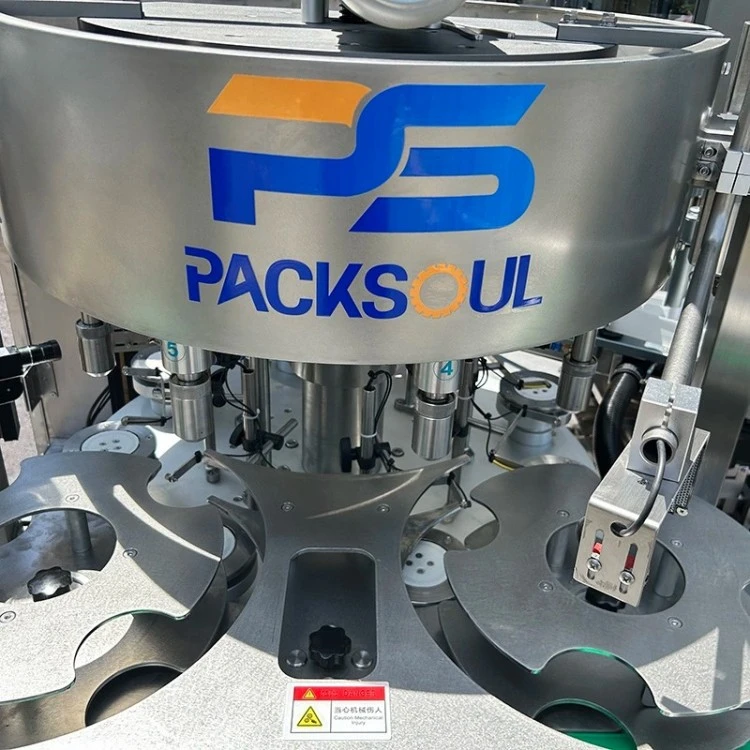

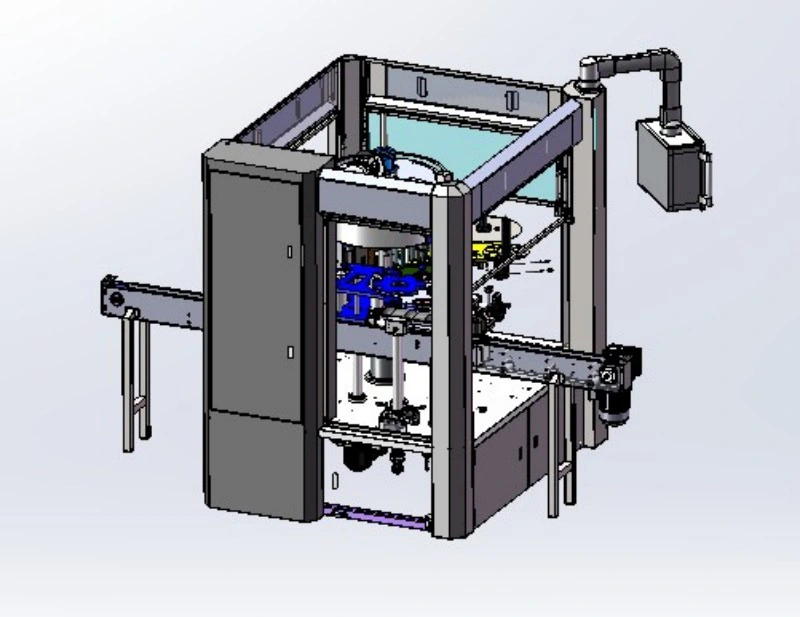

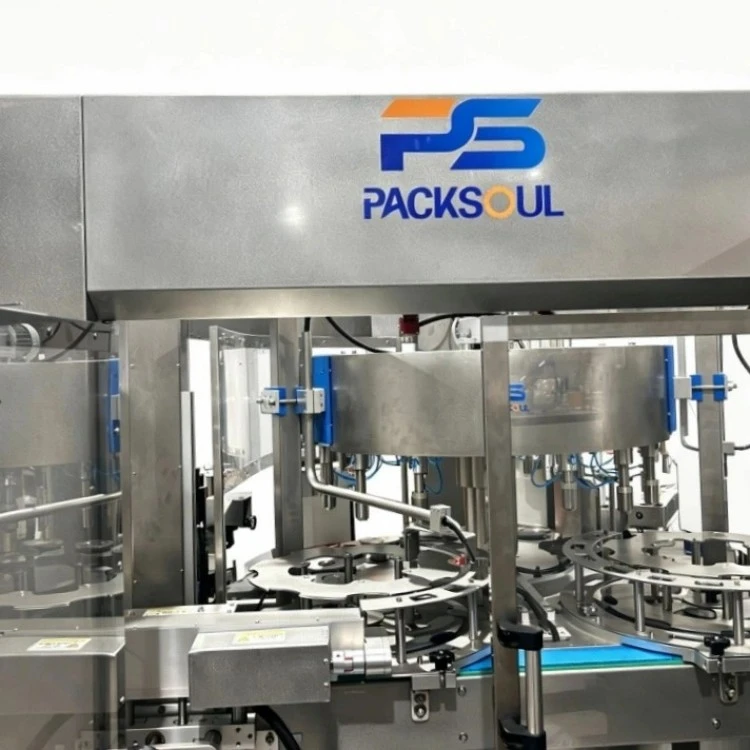

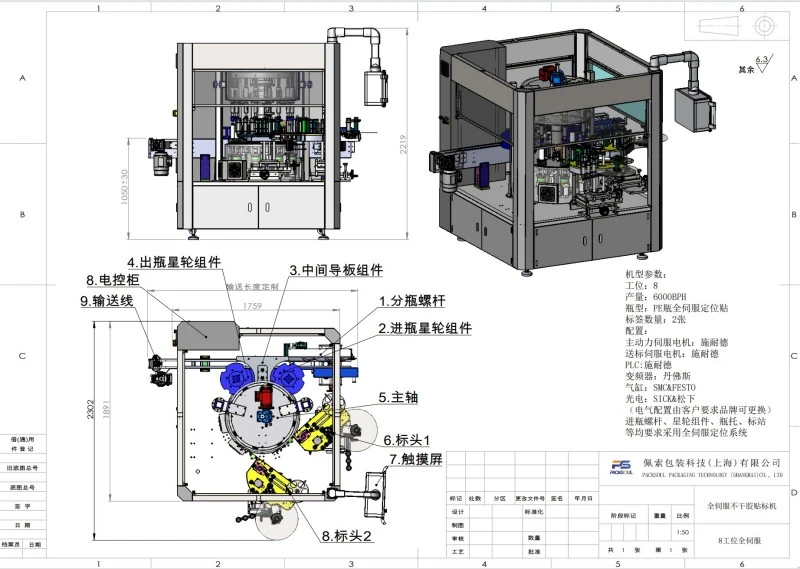

The Flat Bottle Self Adhesive Labeling Machine uses a rotary table and multi‑point positioning fixtures to securely hold each bottle. Servo systems synchronize bottle movement and label feeding.

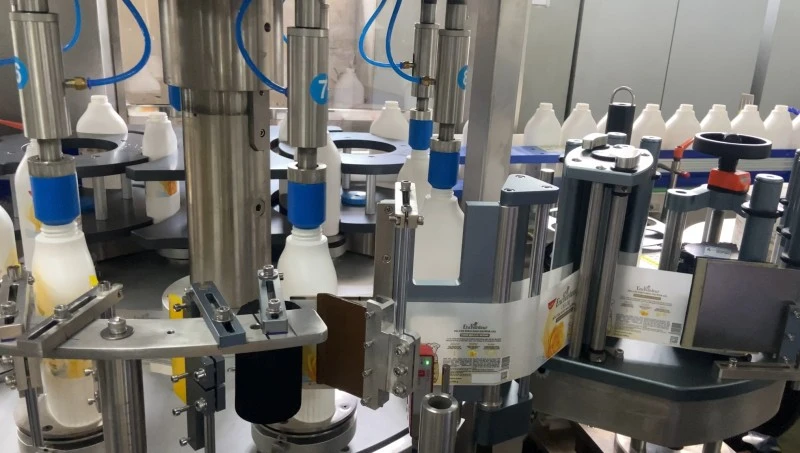

The servo labeling head applies labels smoothly across the flat surface and corners, while rollers press them firmly for single‑side or double‑side labeling. Real‑time monitoring helps detect bottle feeding and material abnormalities.
Personal Care：Large flat body wash bottles, shampoo bottles, disinfectant containers, hand soap bottles and flat cosmetic bottles.
Food and Seasoning：Flat cooking oil bottles, sauce bottles, vinegar bottles and flat food containers.
Suitable for personal care factories, food and seasoning plants and OEM production lines
1.Daily: Wipe the machine with a soft cloth and clean adhesive residue from the fixtures and rollers. Do not spray the electrical cabinet with a water gun.
2.Weekly: Check the servo system and conveyor chain. Lubricate moving parts and release the label roller tension.
3.Monthly: Clean the fixtures and sensors. Check the labeling position and dehumidify the electrical cabinet in humid workshops.
4.Long-Term Shutdown: Cover the machine, release all roller tension, remove label materials and store them in a dry, ventilated area.

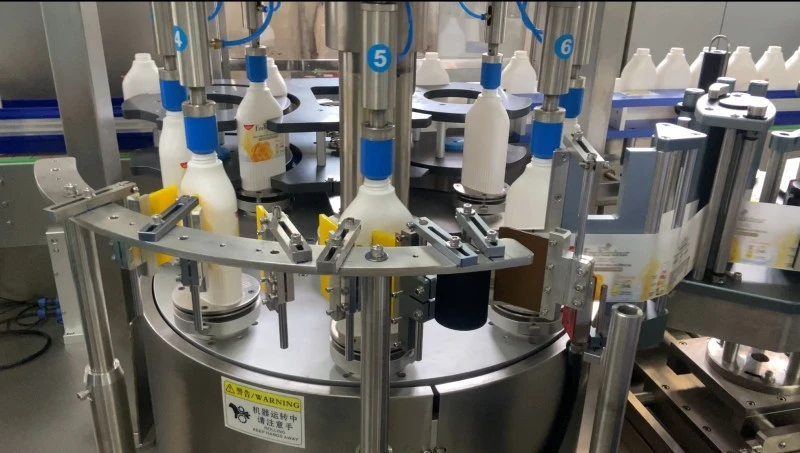

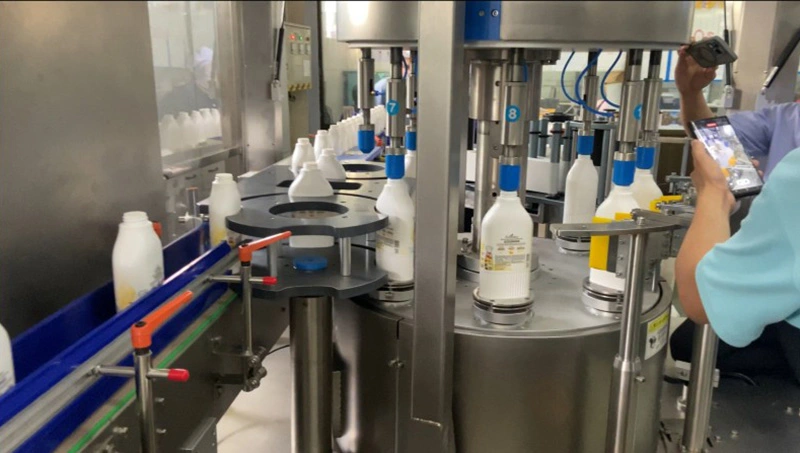

Flat bottles enter the rotary stations through the conveyor.

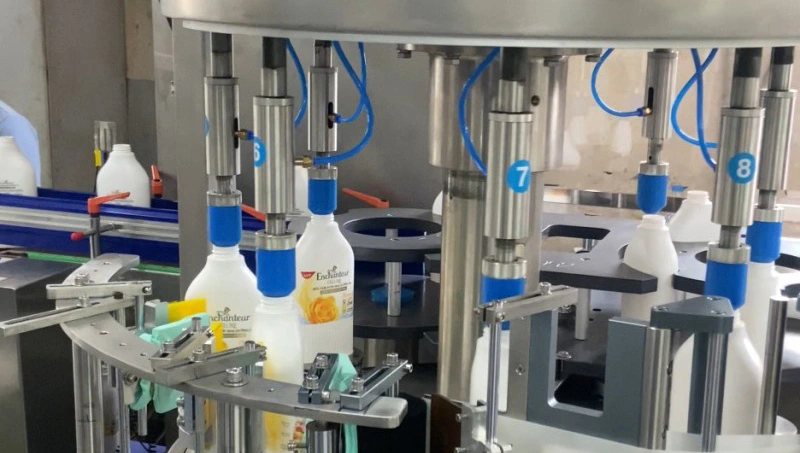

The multi‑point fixtures hold the flat surface and secure the bottle.
The servo system follows the rotary speed and removes the label backing paper.
The label is applied to the flat surface and corners, then pressed smooth by rollers.
Labeled bottles move out with the rotary stations.

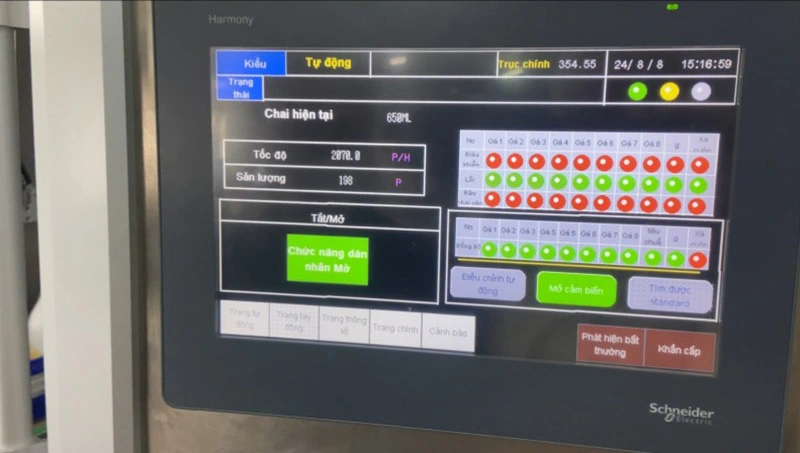

The system monitors the process and stops with an alarm if a bottle jam or missing label is detected.
Each Flat Bottle Self Adhesive Labeling Machine follows a standard quality control process before shipment. The machine undergoes a 2‑hour no‑load test and a production simulation with flat bottles. Labeling performance, accuracy and servo operation are checked.
Complete CE certification documents are available.
Each machine is tested under actual flat bottle working conditions before shipment to ensure stable performance for high‑volume production.
Many manufacturers modify round bottle machines for flat bottle labeling, which may cause label lifting and misalignment at high speed. The PackSoul Rotary Self‑Adhesive Labeling Machine for Flat Bottles uses a multi‑point fixture to hold the flat bottle firmly, keeping labels smooth and well aligned around corners during high‑speed production.
Quick‑release components make bottle changeover and adhesive residue cleaning easier, reducing downtime and maintenance work.
Standard industrial interfaces allow easy connection with filling and coding equipment for both new production lines and existing line upgrades.
The machine is tested under actual flat bottle production conditions and can be customized for special bottle shapes and labeling requirements.
After delivery, the customer prepares the site and power supply. We provide remote installation guidance. For line integration, the customer's technicians assist with commissioning.
One‑on‑one video support is provided with manuals and training videos, covering bottle changeover, label replacement and basic parameter adjustment.
1‑year warranty for the complete machine, excluding sensors, rollers and other wear parts.
24/7 online remote support. Local service can be arranged in selected overseas markets.

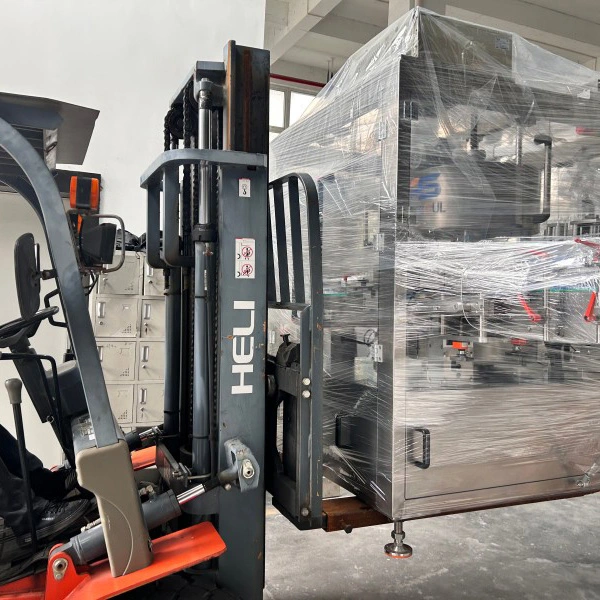

Flat Bottle Self Adhesive Labeling Machine is packed in fumigation‑free export wooden crates, with foam protection for electrical components to prevent damage during sea transportation.
Each machine undergoes a 2‑hour no‑load test and flat bottle production test before shipment. Labeling accuracy, line integration and labeling performance are fully checked.
The modular design reduces packing size and fits 20GP and 40GP containers, helping reduce shipping costs.
Custom machines are available based on bottle size, bottle height, label size and production capacity.
Complete customs and inspection documents can be provided for export from major Chinese ports.
PackSoul works with well‑known companies in China and overseas, including Unilever, Nestlé, P&G, Heinz, Pechoin and Guangweiyuan.
Our Rotary Self‑Adhesive Labeling Machines for Flat Bottles are used in automated production lines across Southeast Asia, South America and the Middle East, with many overseas project applications.
A: Oval bottles use curved surface tracking, while flat bottles require multi‑point positioning. This machine is designed for flat bottles with corners to reduce label lifting and misalignment.
A: Standard flat bottles can be labeled directly. Custom fixtures are available for special bottle shapes.
A: Yes. The speed can be adjusted continuously, and standard interfaces allow connection with filling and sealing equipment.
A: Standard configuration supports coated paper and synthetic paper labels. A transparent label sensor is available as an option.
A: The machine comes with a 1‑year warranty, excluding wear parts. Replacement parts are provided free for non‑human‑caused failures. 24/7 remote video support is available, with local service support in selected overseas markets.
